Toggle Clamps
horizontal acting

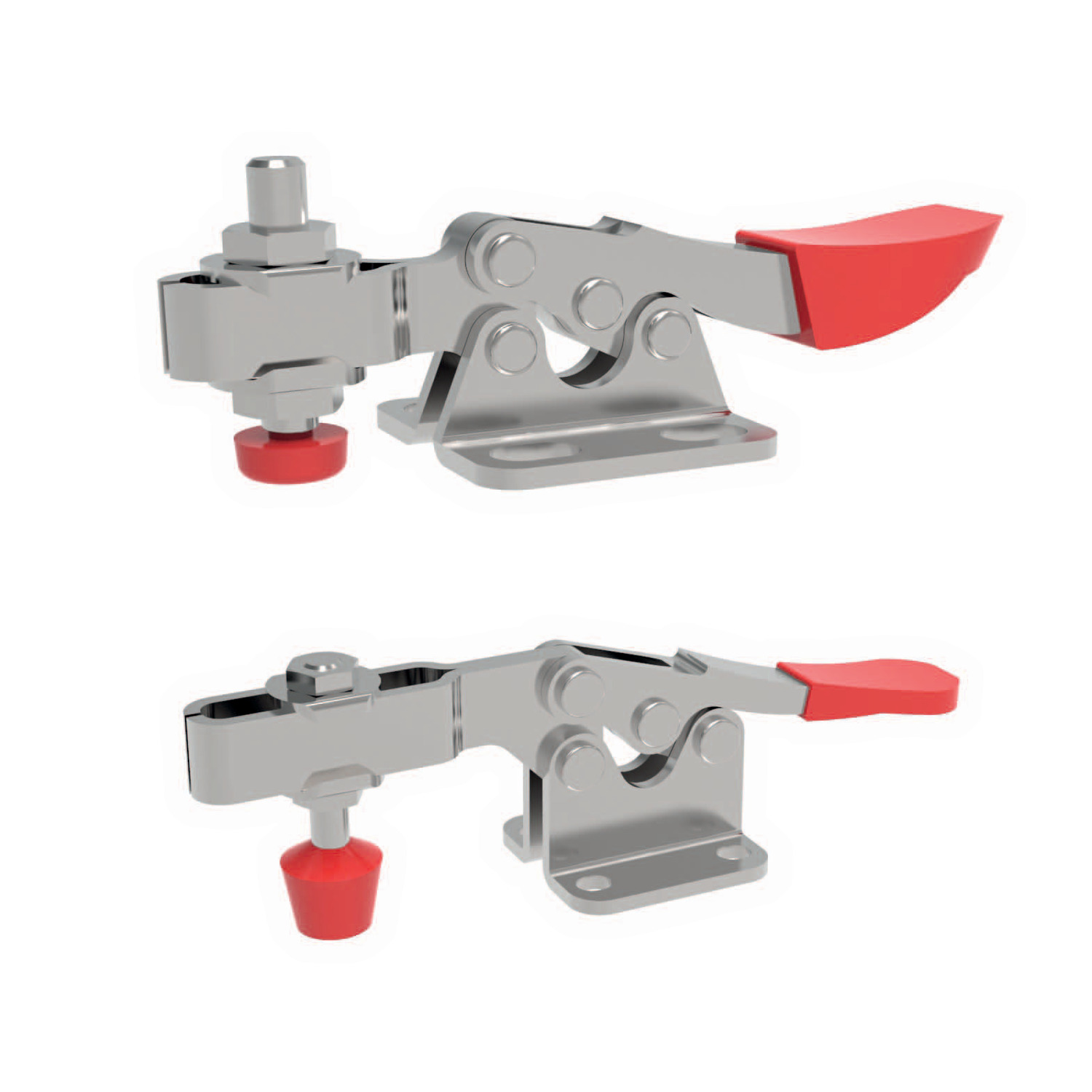

EC630 Toggle Clamps - Horizontal Acting
economy - horizontal base - open arm, material: Steel, zinc plated
Order No.
EC630-1
Size
1
Holding force
kN
0.7

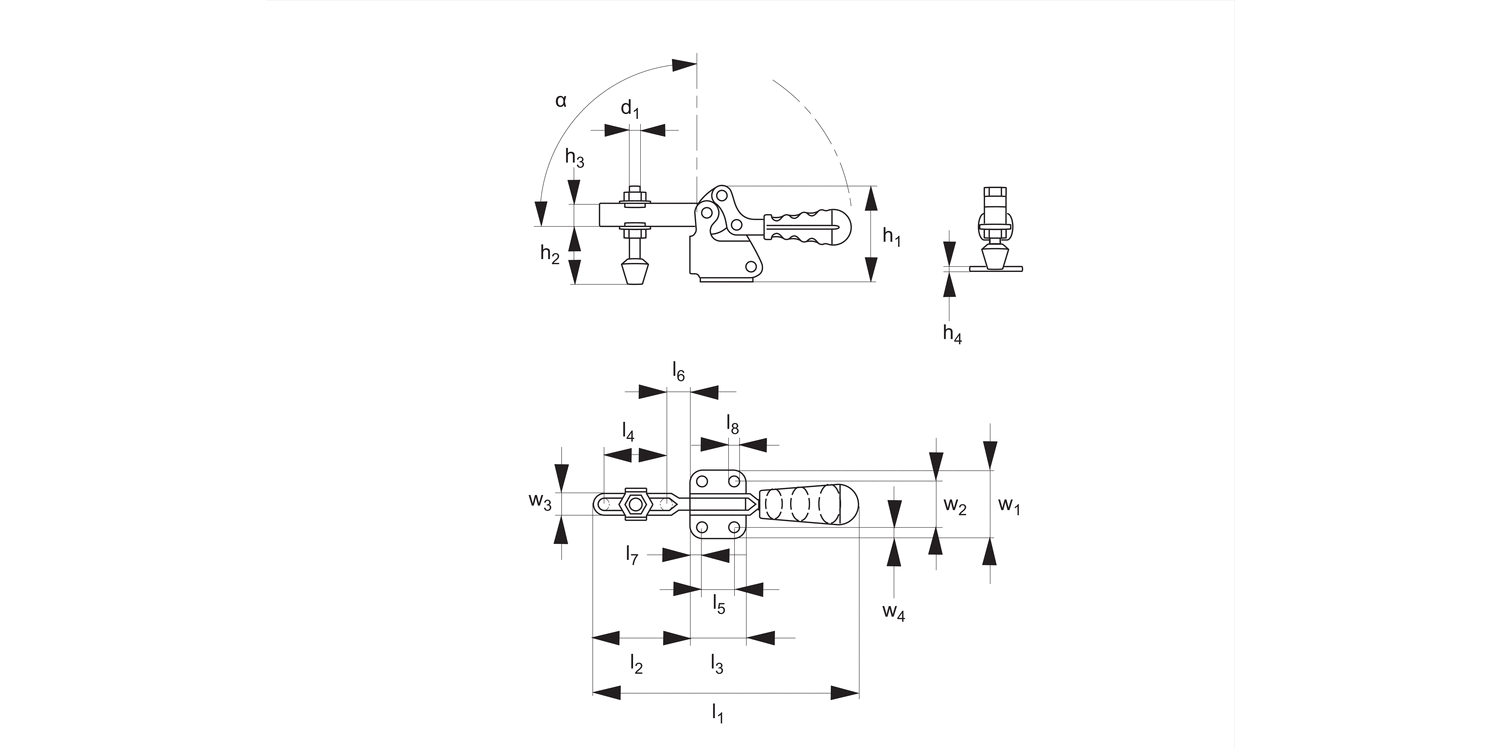

d1
M 5
d2
5.2
h1
38.2
h2
19
h3
9.5
h4
2.0
l1
105
Weight
g
70
l2
36.8
l3
25
l4
20.0
l5
13.5
l6
12.0
l7
5.7
w1
27
w2
19
w3
5.8
w4
-
α
94°
£ 16.58 per unit (click for quantity discounts)
Ready to despatch 11
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 16.58 | 0% |
| 5-9 | £ 15.75 | 5% |
| 10-19 | £ 14.92 | 10% |
| 20+ | £ 14.09 | 15% |
Technical & Application
Material
Body: steel, zinc plated.
Bushes: case hardened and greased.
Handle: plastic, red, oil resistant.
Supplied complete with clamping screw (with rubber pad).
