Magnetic Touch Latches
overlay doors
E5100 Magnetic Touch Latches - Double
for overlay doors, material: Plastic
Alternative products you may wish to consider
£ 4.06 per unit (click for quantity discounts)
£ 4.06 per unit (click for quantity discounts)
Finish
Magnetic force
kgf
Weight
g
| Price & Availability | Article | Finish | Magnetic force kgf | Weight g | ||||||||||||||||||
| E5100.AC0010 | White | 1.2 | 42 | |||||||||||||||||||
£ 4.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Finish White Magnetic force
kgf 1.2 Weight
g 42 | ||||||||||||||||||||||
| E5100.AC0030 | Brown | 1.2 | 42 | |||||||||||||||||||
£ 4.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Finish Brown Magnetic force
kgf 1.2 Weight
g 42 | ||||||||||||||||||||||
Technical & Application
Material
Body: ABS plastic.
Latch and counter plate: steel, nickel plated.
Technical Notes

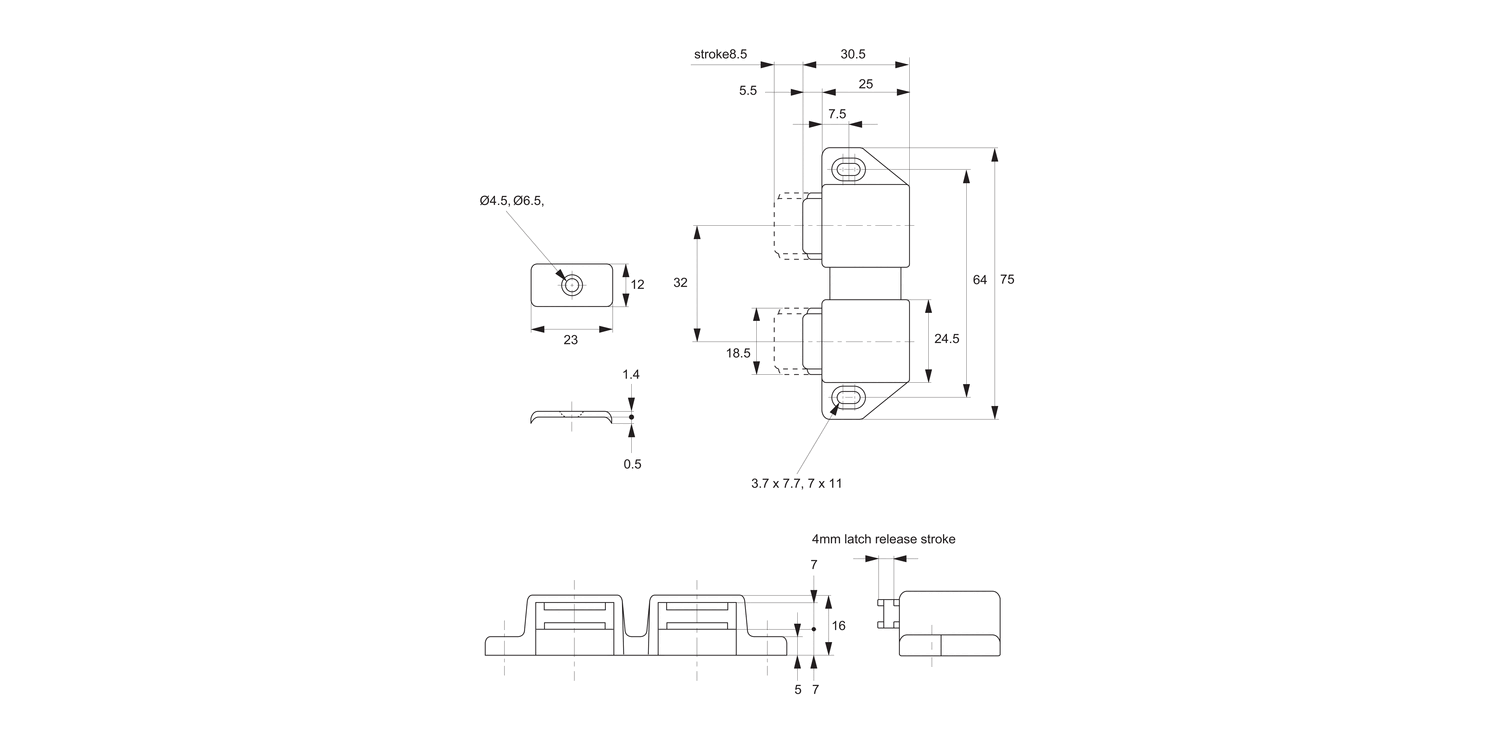

For overlay doors a 4mm gap between the door and cabinet frame is required for the latch release stroke.
Supplied with screws (3.1x13).
