Toggle Latches
adjustable with padlock hasp.
J0602 Toggle Latches
adjustable with padlock shackle, stainless steel, material: Steel or Stainless Steel
Alternative products you may wish to consider

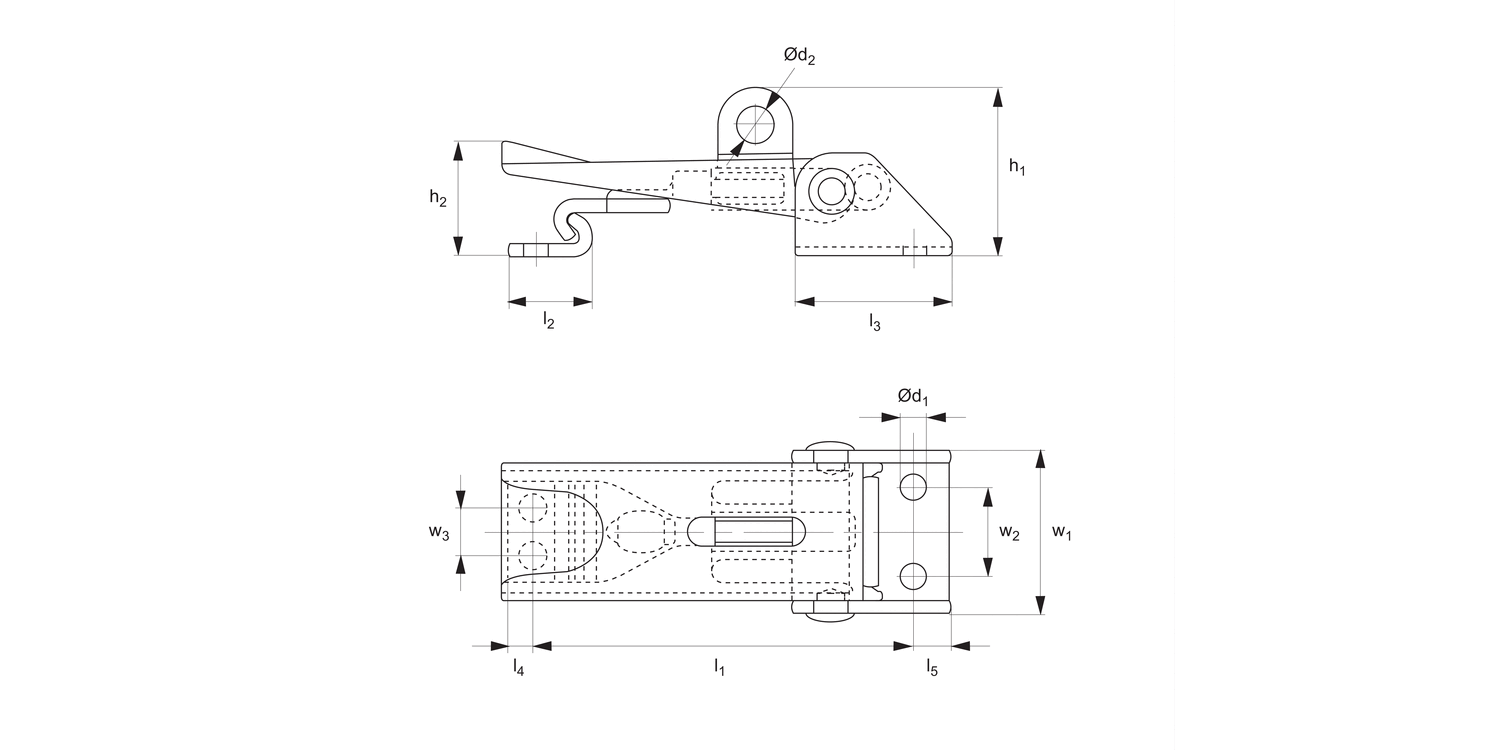

Finish
l1
h1
w1
Ø d1
Ø d2
h2
| Price & Availability | Article | Finish | l1 | h1 | w1 | Ø d1 | Ø d2 | h2 | |||||||||||||||||||||
| J0602.AC0008 | Zinc Plated | 60 to 70 | 27 | 25.5 | 4.2 | 6 | 18 | ||||||||||||||||||||||
£ 5.31 per unit (click for quantity discounts) Ready to despatch 44 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Finish Zinc Plated l1 60 to 70 h1 27 w1 25.5 Ø d1 4.2 Ø d2 6 h2 18 | |||||||||||||||||||||||||||||
| J0602.AC0030 | Stainless Steel | 60 to 70 | 27 | 25.5 | 4.2 | 6 | 18 | ||||||||||||||||||||||
£ 9.68 per unit (click for quantity discounts) Ready to despatch 134 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Finish Stainless Steel l1 60 to 70 h1 27 w1 25.5 Ø d1 4.2 Ø d2 6 h2 18 | |||||||||||||||||||||||||||||
Weight
g
l2
l3
l4
l5
w2
w3
Load
max.
N
Tension
max.
N
| Price & Availability | Article | Weight g | l2 | l3 | l4 | l5 | w2 | w3 | Load max. N | Tension max. N | |||||||||||||||||||||
| J0602.AC0008 | 55 | 14 | 25 | 4 | 6 | 14 | 8 | 1000 | 1400 | ||||||||||||||||||||||
£ 5.31 per unit (click for quantity discounts) Ready to despatch 44 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 55 l2 14 l3 25 l4 4 l5 6 w2 14 w3 8 Load
max.
N 1000 Tension
max.
N 1400 | |||||||||||||||||||||||||||||||
| J0602.AC0030 | 55 | 14 | 25 | 4 | 6 | 14 | 8 | 1000 | 1400 | ||||||||||||||||||||||
£ 9.68 per unit (click for quantity discounts) Ready to despatch 134 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 55 l2 14 l3 25 l4 4 l5 6 w2 14 w3 8 Load
max.
N 1000 Tension
max.
N 1400 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Steel, Fe P02 + P12, UNI5866, zinc plated. Or stainless steel AISI 304, UNI x5crNi.
Technical Notes
Supplied with counter strike.
Draw length adjustable through turns of threaded draw rod, giving 10mm length of adjustment.
Use padlock of 6mm dia. or less.
