P7100 Drawer Slide - Full Extension
30 Kg load per pair - stainless, material: Stainless steel
Alternative products you may wish to consider
Slide length sl
200
Slide travel tr
210
c
415
d
-
e
-
f
-
Load/pair
max.
kg
30
Weight
g
280
£ 21.48 per unit (click for quantity discounts)
Slide length sl
250
Slide travel tr
260
c
515
d
85
e
210
f
-
Load/pair
max.
kg
30
Weight
g
345
£ 25.38 per unit (click for quantity discounts)
Slide length sl
300
Slide travel tr
310
c
615
d
160
e
260
f
260
Load/pair
max.
kg
30
Weight
g
415
£ 29.40 per unit (click for quantity discounts)
Slide length sl
350
Slide travel tr
360
c
715
d
210
e
310
f
310
Load/pair
max.
kg
30
Weight
g
500
£ 33.20 per unit (click for quantity discounts)
Slide length sl
400
Slide travel tr
410
c
815
d
180
e
360
f
360
Load/pair
max.
kg
30
Weight
g
590
£ 37.24 per unit (click for quantity discounts)
Slide length sl
450
Slide travel tr
460
c
915
d
230
e
410
f
410
Load/pair
max.
kg
30
Weight
g
645
£ 41.01 per unit (click for quantity discounts)
Slide length sl
500
Slide travel tr
510
c
1015
d
280
e
460
f
460
Load/pair
max.
kg
30
Weight
g
705
£ 47.11 per unit (click for quantity discounts)
Slide length sl
550
Slide travel tr
560
c
1100
d
230
e
352
f
352
Load/pair
max.
kg
30
Weight
g
740
£ 48.81 per unit (click for quantity discounts)
Slide length sl
Slide travel tr
c
d
e
f
Load/pair
max.
kg
Weight
g

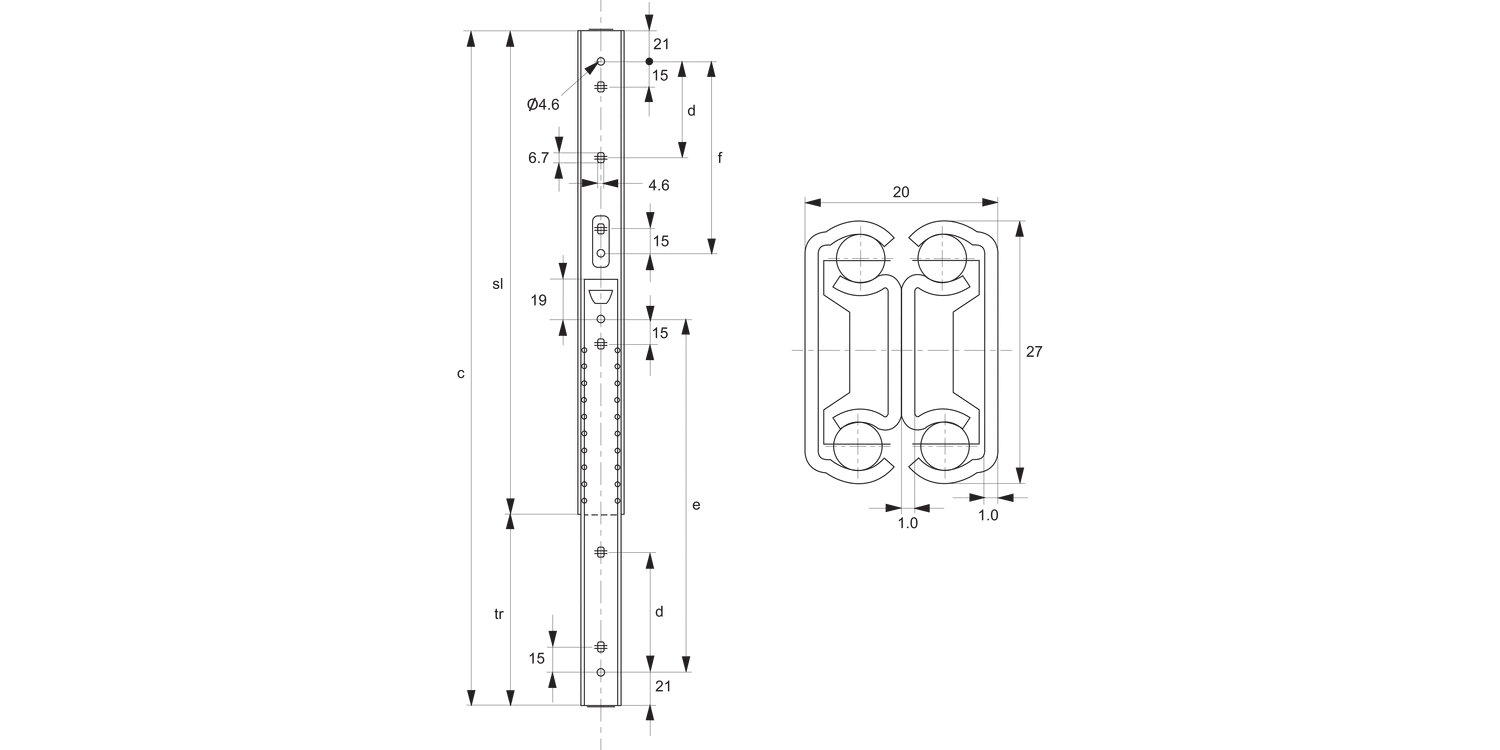

| Price & Availability | Article | Slide length sl | Slide travel tr | c | d | e | f | Load/pair max. kg | Weight g | |||||||||||||||
| P7100.AC0200 | 200 | 210 | 415 | - | - | - | 30 | 280 | ||||||||||||||||
£ 21.48 per unit (click for quantity discounts) Ready to despatch 20 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 200 Slide travel tr 210 c 415 d - e - f - Load/pair
max.
kg 30 Weight
g 280 | ||||||||||||||||||||||||
| P7100.AC0250 | 250 | 260 | 515 | 85 | 210 | - | 30 | 345 | ||||||||||||||||
£ 25.38 per unit (click for quantity discounts) Ready to despatch 32 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 250 Slide travel tr 260 c 515 d 85 e 210 f - Load/pair
max.
kg 30 Weight
g 345 | ||||||||||||||||||||||||
| P7100.AC0300 | 300 | 310 | 615 | 160 | 260 | 260 | 30 | 415 | ||||||||||||||||
£ 29.40 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 300 Slide travel tr 310 c 615 d 160 e 260 f 260 Load/pair
max.
kg 30 Weight
g 415 | ||||||||||||||||||||||||
| P7100.AC0350 | 350 | 360 | 715 | 210 | 310 | 310 | 30 | 500 | ||||||||||||||||
£ 33.20 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 350 Slide travel tr 360 c 715 d 210 e 310 f 310 Load/pair
max.
kg 30 Weight
g 500 | ||||||||||||||||||||||||
| P7100.AC0400 | 400 | 410 | 815 | 180 | 360 | 360 | 30 | 590 | ||||||||||||||||
£ 37.24 per unit (click for quantity discounts) Ready to despatch 39 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 400 Slide travel tr 410 c 815 d 180 e 360 f 360 Load/pair
max.
kg 30 Weight
g 590 | ||||||||||||||||||||||||
| P7100.AC0450 | 450 | 460 | 915 | 230 | 410 | 410 | 30 | 645 | ||||||||||||||||
£ 41.01 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 450 Slide travel tr 460 c 915 d 230 e 410 f 410 Load/pair
max.
kg 30 Weight
g 645 | ||||||||||||||||||||||||
| P7100.AC0500 | 500 | 510 | 1015 | 280 | 460 | 460 | 30 | 705 | ||||||||||||||||
£ 47.11 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 500 Slide travel tr 510 c 1015 d 280 e 460 f 460 Load/pair
max.
kg 30 Weight
g 705 | ||||||||||||||||||||||||
| P7100.AC0550 | 550 | 560 | 1100 | 230 | 352 | 352 | 30 | 740 | ||||||||||||||||
£ 48.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Slide length sl 550 Slide travel tr 560 c 1100 d 230 e 352 f 352 Load/pair
max.
kg 30 Weight
g 740 | ||||||||||||||||||||||||
Technical & Application
Material
Stainless steel AISI 304. Bright finish.
Technical Notes
Positive stop.
These slides have been tested to 60,000 usage cycles.
Important Notes
Load capacity is static load per pair, at the centre of the rails using all mounting holes. Sold individually as single slides.
