Soft-Opening Stays
downward opening, short arm
N0080 Soft-Closing Stays - for Top Opening Lid
80° to 100° opening angle, material: Zinc alloy/steel/plastic
Alternative products you may wish to consider
Type
Stay
Colour
White
Acceptable load bearing single
min.| max.
kg/cm
40 to 70
Acceptable load bearing pair
min.| max.
kg/cm
80 to 140
Weight
g
165
£ 17.07 per unit (click for quantity discounts)
Type
Stay
Colour
Black
Acceptable load bearing single
min.| max.
kg/cm
40 to 70
Acceptable load bearing pair
min.| max.
kg/cm
80 to 140
Weight
g
165
£ 17.07 per unit (click for quantity discounts)
Type
Colour
Acceptable load bearing single
min.| max.
kg/cm
Acceptable load bearing pair
min.| max.
kg/cm
Weight
g
| Price & Availability | Article | Type | Colour | Acceptable load bearing single min.| max. kg/cm | Acceptable load bearing pair min.| max. kg/cm | Weight g | ||||||||||||||||||
| N0080.AC0010 | Stay | White | 40 to 70 | 80 to 140 | 165 | |||||||||||||||||||
£ 17.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stay Colour White Acceptable load bearing single
min.| max.
kg/cm 40 to 70 Acceptable load bearing pair
min.| max.
kg/cm 80 to 140 Weight
g 165 | ||||||||||||||||||||||||
| N0080.AC0020 | Stay | Black | 40 to 70 | 80 to 140 | 165 | |||||||||||||||||||
£ 17.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stay Colour Black Acceptable load bearing single
min.| max.
kg/cm 40 to 70 Acceptable load bearing pair
min.| max.
kg/cm 80 to 140 Weight
g 165 | ||||||||||||||||||||||||
Technical & Application
Material
Arm: zinc alloy, steel, bright nickel finish.
Body: plastic.
Mounting plate: zinc alloy, steel, bright nickel finish.
Technical Notes
For use with lids which are top opening, with concealed, piano or butt hinges. Longer arm for higher load bearing capacity applications.
Designed to control speed at which a suitable lid closes and hence prevent lid slamming shut.
Opening angle of 90º. Temperature range 0º to 40ºC.
Stay is designed to hold lid in fully open position.
Stay has a sprung elbow section which must be released prior to closing lid - please take care not to catch fingers when handling.
Tips
Order mounting plate separately, for universal left and right hand application.
Supplied with mounting plate. Please order cover plate, to your desired colour, separately.

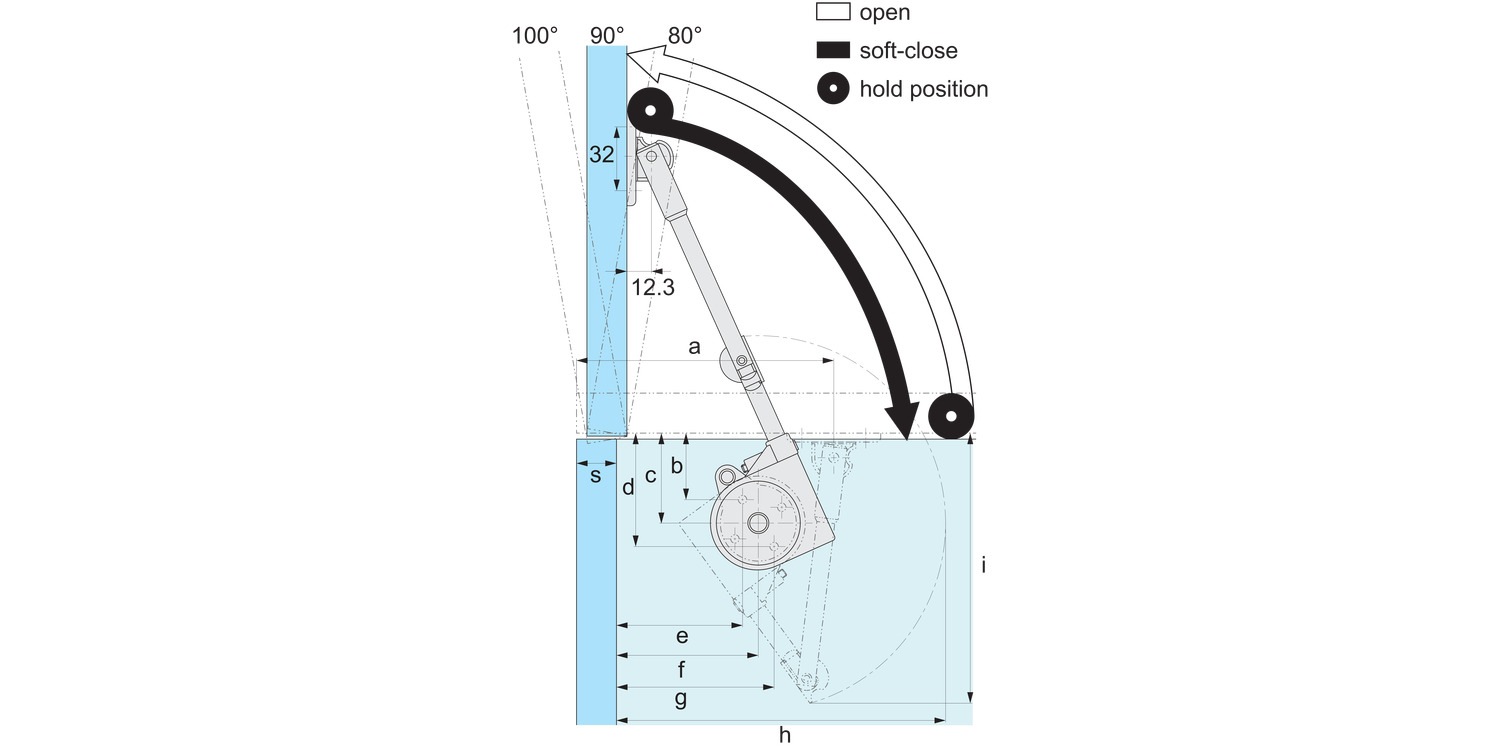

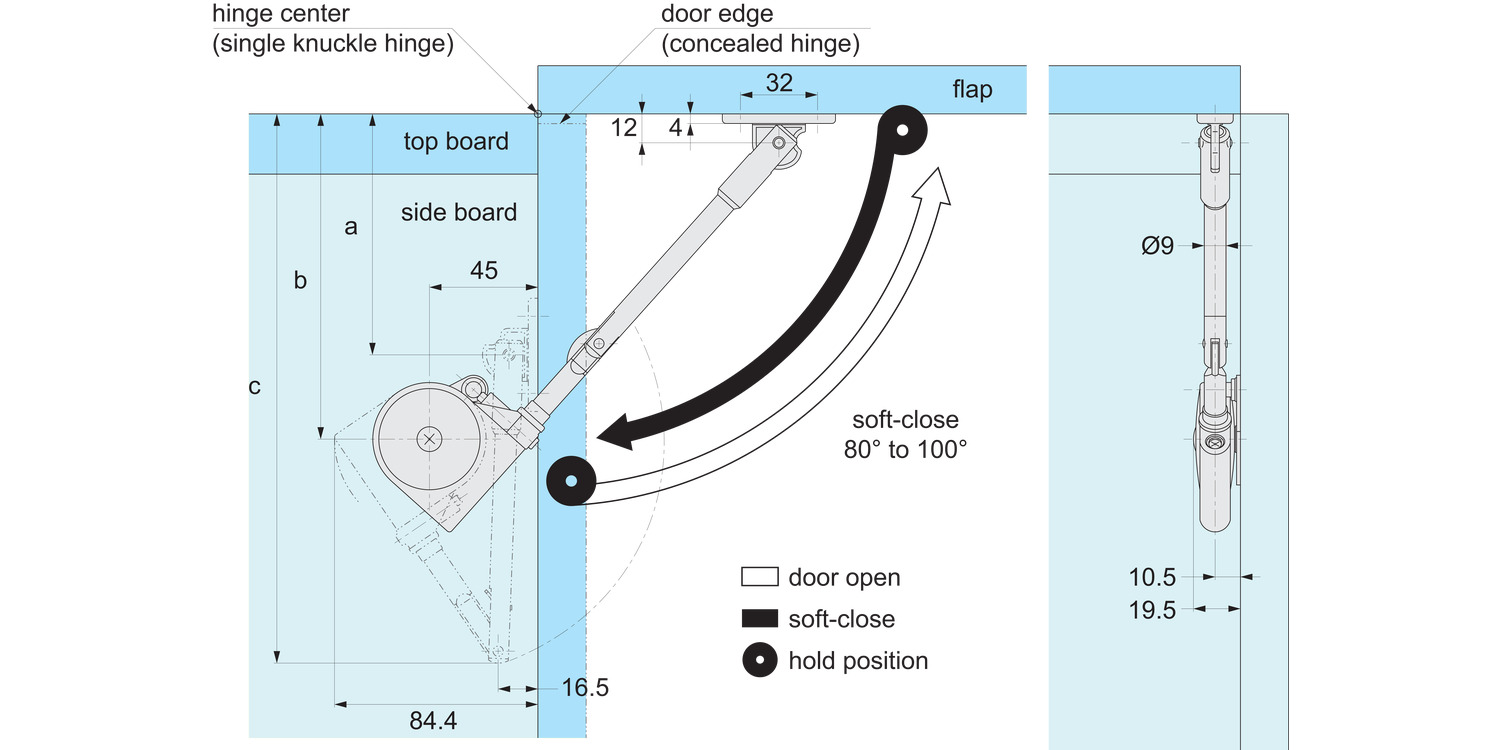

Opening angle can be varied between 80º to 100º via change of mounting dimensions - see installation dimensions below.
Important Notes
Improper application, or use on a lid not within recommended size and load bearing value, may lead to stay being overcome and slamming of lid. Application must be within both the min. and max. load bearing value of the stay, see above table for load bearing capacity when using stays as single or in pairs.
Check Load Bearing Value (T) :
T ( Load Bearing Value of stay Kg/ cm) =
1/2 Door Height cm x Door Weight Kg
Product Datasheets
Application images
