Soft-Opening Stays
downward opening, short arm
N0350 Soft-Closing Stays - for Upward Opening Lid
80° - 100° opening angle, material: Zinc alloy/steel
Alternative products you may wish to consider
Type
Left
Acceptable load bearing single
min.|max.
kg/cm
20 - 70
Acceptable load bearing pair
min.|max.
kg/cm
40 - 140
Weight
g
210
£ 20.72 per unit (click for quantity discounts)
Type
Right
Acceptable load bearing single
min.|max.
kg/cm
20 - 70
Acceptable load bearing pair
min.|max.
kg/cm
40 - 140
Weight
g
210
£ 20.72 per unit (click for quantity discounts)
Type
Acceptable load bearing single
min.|max.
kg/cm
Acceptable load bearing pair
min.|max.
kg/cm
Weight
g
| Price & Availability | Article | Type | Acceptable load bearing single min.|max. kg/cm | Acceptable load bearing pair min.|max. kg/cm | Weight g | ||||||||||||||||||
| N0350.AC0010 | Left | 20 - 70 | 40 - 140 | 210 | |||||||||||||||||||
£ 20.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Left Acceptable load bearing single
min.|max.
kg/cm 20 - 70 Acceptable load bearing pair
min.|max.
kg/cm 40 - 140 Weight
g 210 | |||||||||||||||||||||||
| N0350.AC0110 | Right | 20 - 70 | 40 - 140 | 210 | |||||||||||||||||||
£ 20.72 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Right Acceptable load bearing single
min.|max.
kg/cm 20 - 70 Acceptable load bearing pair
min.|max.
kg/cm 40 - 140 Weight
g 210 | |||||||||||||||||||||||
Technical & Application
Material
Zinc alloy, steel,
bright nickel finish.
Supplied with screws (3,5x15)
Technical Notes
For use with lids which are upward opening, with piano, butt or drop hinges.

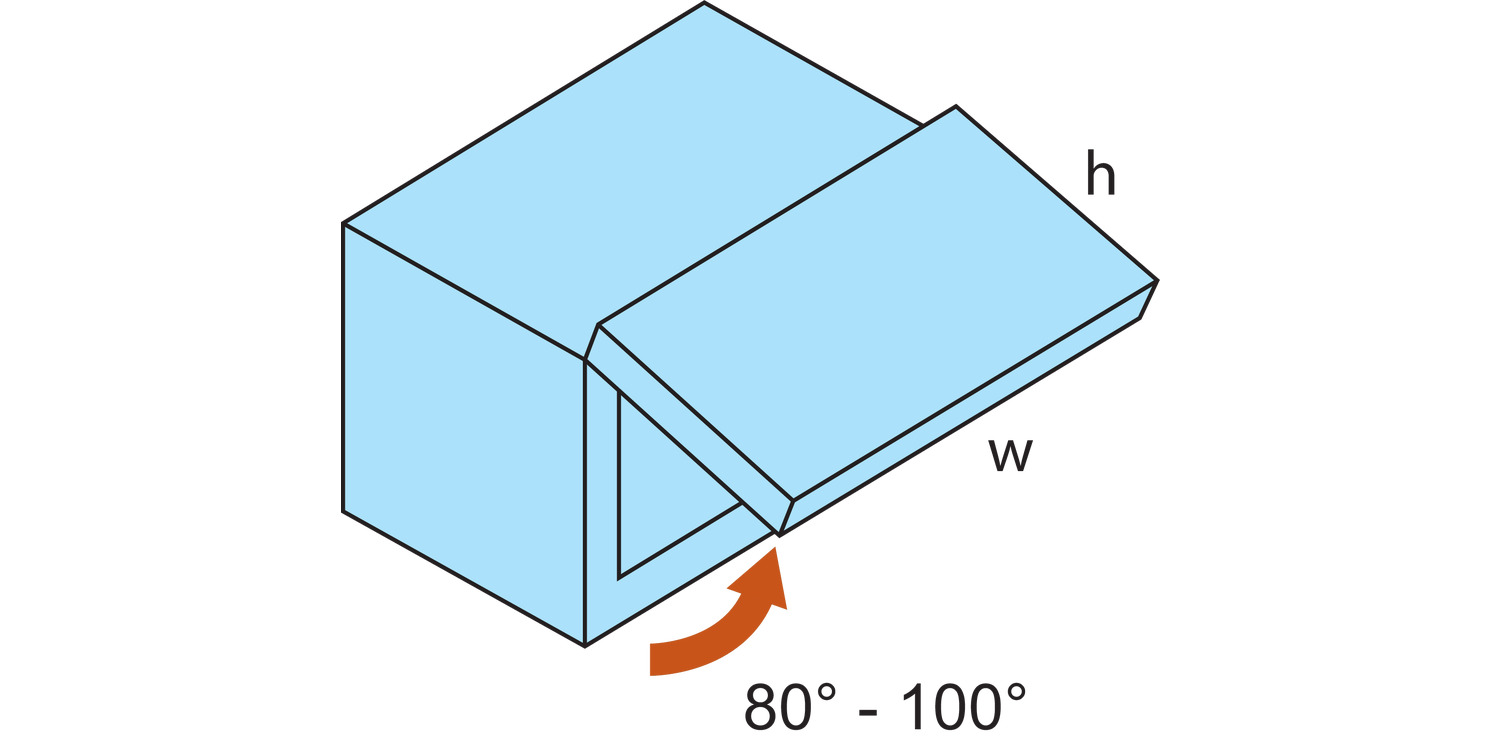

Designed to control speed at which a suitable lid closes and hence prevent lid slamming shut. Opening angle of 80° - 100°. Temperature range - 0° to +40°C. Speed of closure adjustable via screw located at end of stay.
Stay has a sprung elbow section which must be released prior to closing lid - please take care not to catch fingers when handling.
Important Notes
For use with relatively light weight cabinet or furniture lids. Improper application, or use on a lid not within recommended size and load bearing value, may lead to stay being overcome and slamming of lid.
1) Check Lid Size:
If using only one stay- max. lid width 35cm AND must be within load bearing capacity (T) of the stay, check calculation below.
If using two stays-max. lid width 120cm AND must be within load bearing capacity (T) of the stay, check calculation below.
2) Check Load Bearing Value (T):
T (Load Bearing Value of stay Kg/cm) = 1/2 Door Height cm x Door Weight Kg
If using only one stay-
Acceptable load bearing (T) between min. 20 to max 70 Kg/cm.
If using two stays-
Acceptable load bearing (T) between min. 40 to max 140 Kg/cm.
Product Datasheets
Application images
