N0350 Soft-Closing Stays - for Upward Opening Lid

Name: N0350.AC0010
Brand: WC
SKU: N0350.AC0010
Price: 20.72 EUR
Availability: OutOfStock

80° - 100° opening angle, material: Zinc alloy/steel

Article properties

Order No.

N0350.AC0010

Type

Left

Acceptable load bearing single min.|max. kg/cm

20 - 70

Acceptable load bearing pair min.|max. kg/cm

40 - 140

Weight g

210

See full product selection

£ 20.72 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 20.72	0%
10-19	£ 18.65	10%
20-49	£ 17.61	15%
50-99	£ 16.58	20%
100+	£ 15.54	25%

Download product datasheet

Technical & Application

Material

Zinc alloy, steel,
bright nickel finish.
Supplied with screws (3,5x15)

Technical Notes

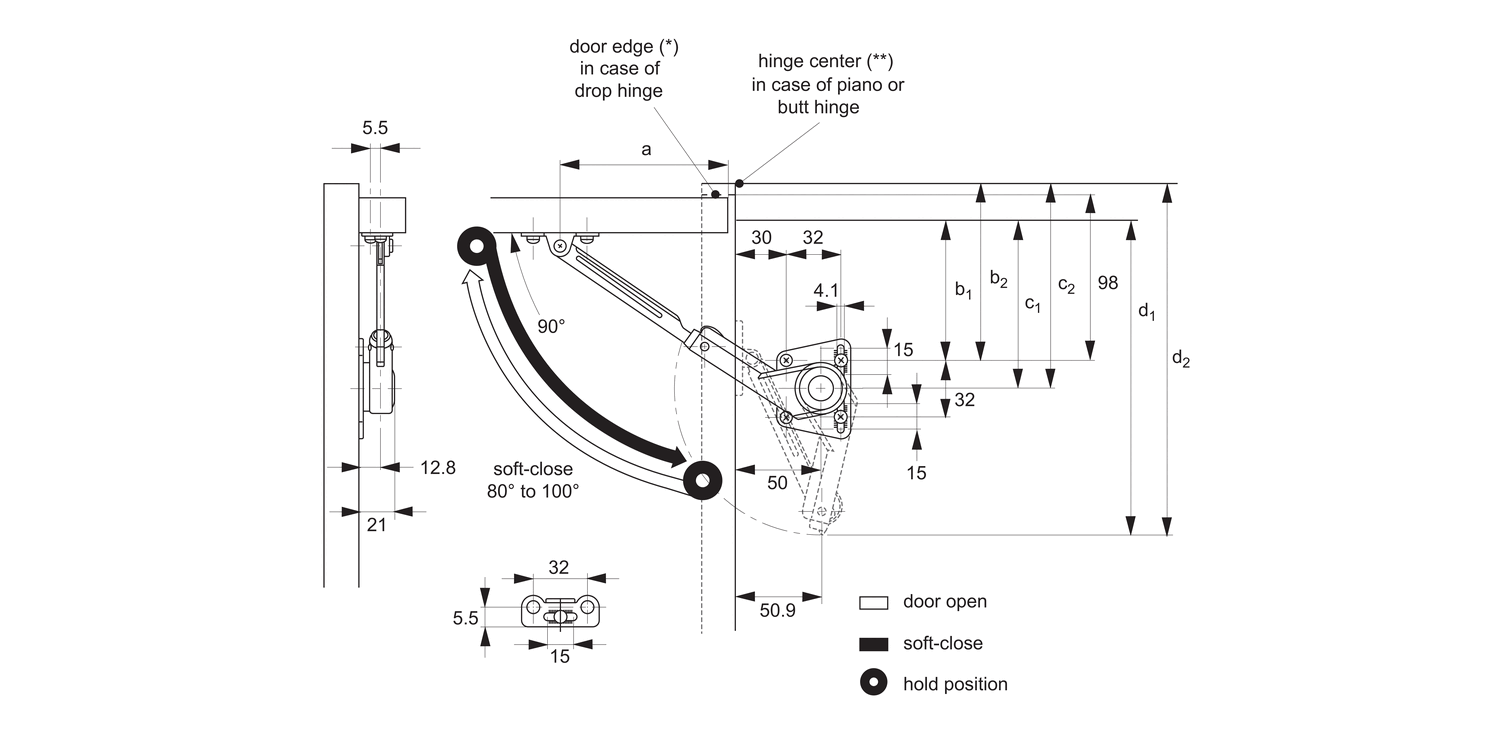

For use with lids which are upward opening, with piano, butt or drop hinges.
Designed to control speed at which a suitable lid closes and hence prevent lid slamming shut. Opening angle of 80° - 100°. Temperature range - 0° to +40°C. Speed of closure adjustable via screw located at end of stay.
Stay has a sprung elbow section which must be released prior to closing lid - please take care not to catch fingers when handling.

Important Notes

For use with relatively light weight cabinet or furniture lids. Improper application, or use on a lid not within recommended size and load bearing value, may lead to stay being overcome and slamming of lid.

1) Check Lid Size:
If using only one stay- max. lid width 35cm AND must be within load bearing capacity (T) of the stay, check calculation below.
If using two stays-max. lid width 120cm AND must be within load bearing capacity (T) of the stay, check calculation below.

2) Check Load Bearing Value (T):
T (Load Bearing Value of stay Kg/cm) = 1/2 Door Height cm x Door Weight Kg

If using only one stay-
Acceptable load bearing (T) between min. 20 to max 70 Kg/cm.
If using two stays-
Acceptable load bearing (T) between min. 40 to max 140 Kg/cm.
