Soft-Opening Stays
downward opening, short arm
N0100 Soft-Closing Stays - for Downward Opening Lid
90° opening angle, material: Zinc alloy/steel
Alternative products you may wish to consider
Type
Left
Acceptable load bearing single
min.|max.
kg/cm
16 - 70
Acceptable load bearing pair
min.|max.
kg/cm
32 - 140
Weight
g
210
£ 21.22 per unit (click for quantity discounts)
Type
Acceptable load bearing single
min.|max.
kg/cm
Acceptable load bearing pair
min.|max.
kg/cm
Weight
g
| Price & Availability | Article | Type | Acceptable load bearing single min.|max. kg/cm | Acceptable load bearing pair min.|max. kg/cm | Weight g | ||||||||||||||||||
| N0100.AC0110 | Left | 16 - 70 | 32 - 140 | 210 | |||||||||||||||||||
£ 21.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Left Acceptable load bearing single
min.|max.
kg/cm 16 - 70 Acceptable load bearing pair
min.|max.
kg/cm 32 - 140 Weight
g 210 | |||||||||||||||||||||||
Technical & Application
Material
Zinc alloy, steel,
bright nickel finish.
Supplied with screws (3,5x15)
Technical Notes
For use lids which are downward opening, with piano, butt or drop hinges.

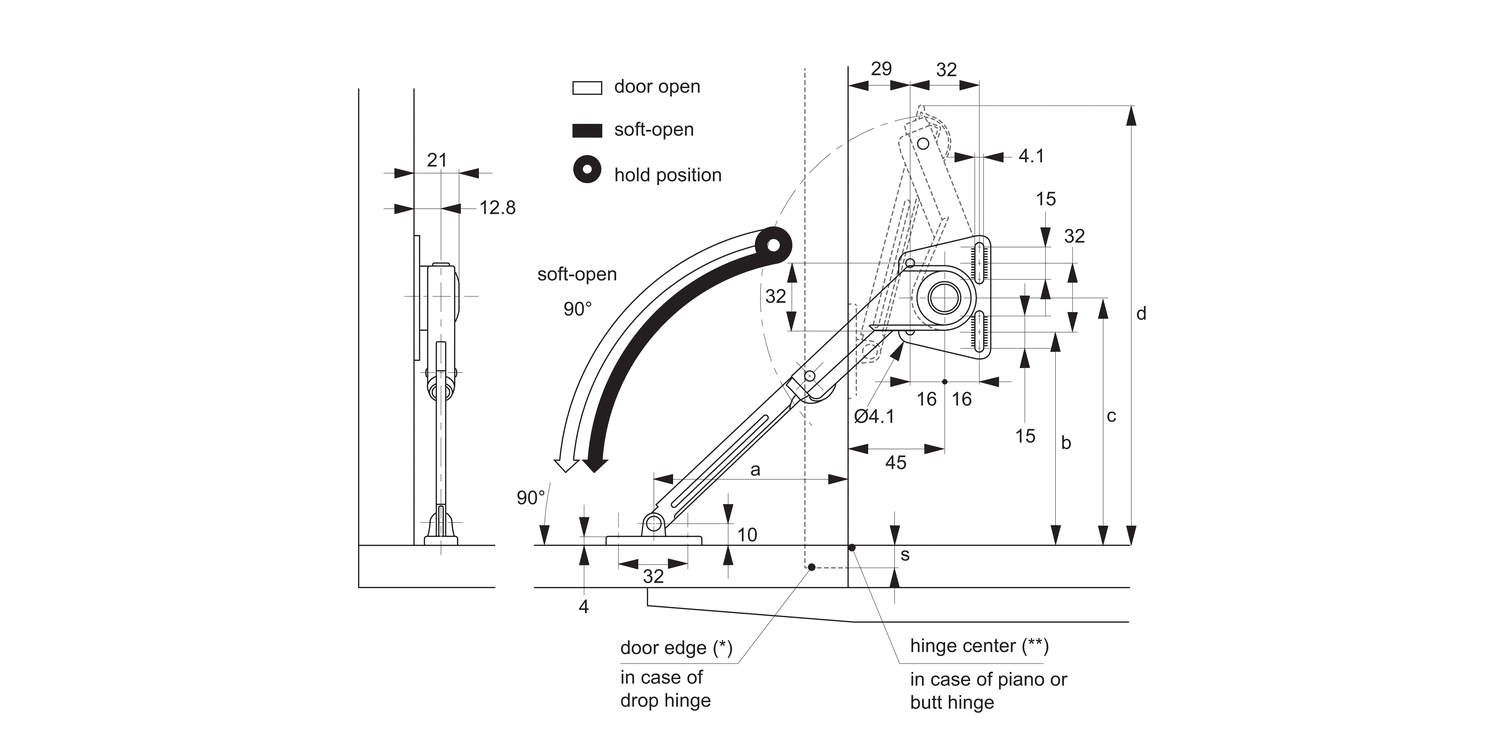

Designed to control speed at which a suitable lid closes and hence prevent lid slamming shut. Opening angle of 90°. Temperature range - 0° to +40°C. Speed of closure adjustable via screw located at end of stay.
Stay has a sprung elbow section which must be released prior to closing lid - please take care not to catch fingers when handling.
Important Notes
For use with relatively light weight cabinet or furniture lids. Improper application, or use on a lid not within recommended size and load bearing value, may lead to stay being overcome and slamming of lid.
1) Checking Application Suitability:
1) Check Lid Size:
One Stay used:
a) Max 35cm wide
AND

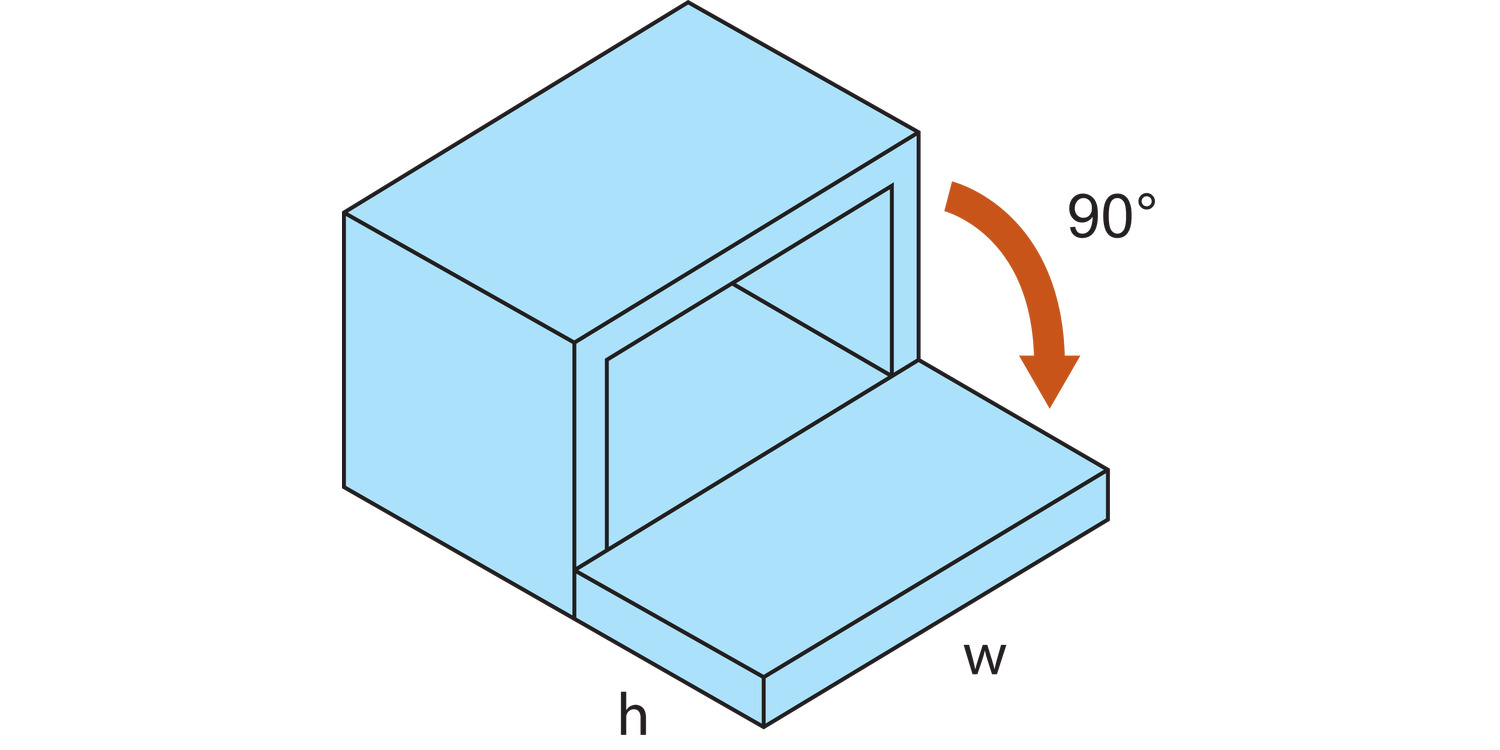

b) within acceptable lid width. height combination - see chart.
If using only one stay-
Acceptable load bearing (T) between min. 20 to max 70 Kg/cm.
Product Datasheets
Application images
