Mini Shock Absorber
self compensating, non-adj
68012 Shock Absorbers, Self Compensating
M8 - M27, non-adjustable, material: Hardened and blackened steel
Alternative products you may wish to consider
With / without cap
Stroke
mm
Nm per cycle (Et)
max.
Nm
Per hour (ETc)
max.
Nm
Effective mass (Me)
max.
kg
Impact speed (v)
max.
m/s
Operating temperature
°C
| Price & Availability | Article | With / without cap | Stroke mm | Nm per cycle (Et) max. Nm | Per hour (ETc) max. Nm | Effective mass (Me) max. kg | Impact speed (v) max. m/s | Operating temperature °C | |||||||||||||||
| 68012.W0080 | Without | 4 | 0.5 | 720 | 3.0 | 0,3 - 1,0 | -10 to +80 | ||||||||||||||||
Ready to despatch 0 Need more? Please call us.
With / without cap Without Stroke
mm 4 Nm per cycle (Et)
max.
Nm 0.5 Per hour (ETc)
max.
Nm 720 Effective mass (Me)
max.
kg 3.0 Impact speed (v)
max.
m/s 0,3 - 1,0 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0081 | Without | 6 | 3 | 7000 | 6 | 0,3 - 2,5 | -10 to +80 | ||||||||||||||||
£ 30.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap Without Stroke
mm 6 Nm per cycle (Et)
max.
Nm 3 Per hour (ETc)
max.
Nm 7000 Effective mass (Me)
max.
kg 6 Impact speed (v)
max.
m/s 0,3 - 2,5 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0082 | With | 6 | 3 | 7000 | 6 | 0,3 - 2,5 | -10 to +80 | ||||||||||||||||
£ 32.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap With Stroke
mm 6 Nm per cycle (Et)
max.
Nm 3 Per hour (ETc)
max.
Nm 7000 Effective mass (Me)
max.
kg 6 Impact speed (v)
max.
m/s 0,3 - 2,5 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0101 | Without | 7 | 6 | 12400 | 12 | 0,3 - 2,5 | -10 to +80 | ||||||||||||||||
£ 32.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap Without Stroke
mm 7 Nm per cycle (Et)
max.
Nm 6 Per hour (ETc)
max.
Nm 12400 Effective mass (Me)
max.
kg 12 Impact speed (v)
max.
m/s 0,3 - 2,5 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0102 | With | 7 | 6 | 12400 | 12 | 0,3 - 3,5 | -10 to +80 | ||||||||||||||||
£ 34.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap With Stroke
mm 7 Nm per cycle (Et)
max.
Nm 6 Per hour (ETc)
max.
Nm 12400 Effective mass (Me)
max.
kg 12 Impact speed (v)
max.
m/s 0,3 - 3,5 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0121 | Without | 10 | 12 | 22500 | 22 | 0,3 - 4,0 | -10 to +80 | ||||||||||||||||
£ 40.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap Without Stroke
mm 10 Nm per cycle (Et)
max.
Nm 12 Per hour (ETc)
max.
Nm 22500 Effective mass (Me)
max.
kg 22 Impact speed (v)
max.
m/s 0,3 - 4,0 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0122 | With | 10 | 12 | 22500 | 22 | 0,3 - 4,0 | -10 to +80 | ||||||||||||||||
£ 42.27 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap With Stroke
mm 10 Nm per cycle (Et)
max.
Nm 12 Per hour (ETc)
max.
Nm 22500 Effective mass (Me)
max.
kg 22 Impact speed (v)
max.
m/s 0,3 - 4,0 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0141 | Without | 12 | 20 | 33000 | 40 | 0,3 - 5,0 | -10 to +80 | ||||||||||||||||
£ 46.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap Without Stroke
mm 12 Nm per cycle (Et)
max.
Nm 20 Per hour (ETc)
max.
Nm 33000 Effective mass (Me)
max.
kg 40 Impact speed (v)
max.
m/s 0,3 - 5,0 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0142 | With | 12 | 20 | 33000 | 40 | 0,3 - 5,0 | -10 to +80 | ||||||||||||||||
£ 48.51 per unit (click for quantity discounts) Ready to despatch 21 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap With Stroke
mm 12 Nm per cycle (Et)
max.
Nm 20 Per hour (ETc)
max.
Nm 33000 Effective mass (Me)
max.
kg 40 Impact speed (v)
max.
m/s 0,3 - 5,0 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0143 | With | 12 | 14 | 24000 | 25.0 | 0,3 - 5,0 | -10 to +80 | ||||||||||||||||
Ready to despatch 0 Need more? Please call us.
With / without cap With Stroke
mm 12 Nm per cycle (Et)
max.
Nm 14 Per hour (ETc)
max.
Nm 24000 Effective mass (Me)
max.
kg 25.0 Impact speed (v)
max.
m/s 0,3 - 5,0 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0201 | Without | 15 | 59 | 38000 | 120 | 0,3 - 5,0 | -10 to +80 | ||||||||||||||||
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap Without Stroke
mm 15 Nm per cycle (Et)
max.
Nm 59 Per hour (ETc)
max.
Nm 38000 Effective mass (Me)
max.
kg 120 Impact speed (v)
max.
m/s 0,3 - 5,0 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0202 | With | 15 | 59 | 38000 | 120 | 0,3 - 5,0 | -10 to +80 | ||||||||||||||||
£ 62.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap With Stroke
mm 15 Nm per cycle (Et)
max.
Nm 59 Per hour (ETc)
max.
Nm 38000 Effective mass (Me)
max.
kg 120 Impact speed (v)
max.
m/s 0,3 - 5,0 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0251 | Without | 25 | 80 | 60000 | 180 | 0,3 - 5,0 | -10 to +80 | ||||||||||||||||
£ 88.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap Without Stroke
mm 25 Nm per cycle (Et)
max.
Nm 80 Per hour (ETc)
max.
Nm 60000 Effective mass (Me)
max.
kg 180 Impact speed (v)
max.
m/s 0,3 - 5,0 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0252 | With | 25 | 80 | 60000 | 180 | 0,3 - 5,0 | -10 to +80 | ||||||||||||||||
£ 93.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap With Stroke
mm 25 Nm per cycle (Et)
max.
Nm 80 Per hour (ETc)
max.
Nm 60000 Effective mass (Me)
max.
kg 180 Impact speed (v)
max.
m/s 0,3 - 5,0 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0271 | Without | 25 | 147 | 72000 | 270 | 0,3 - 5,0 | -10 to +80 | ||||||||||||||||
£ 97.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap Without Stroke
mm 25 Nm per cycle (Et)
max.
Nm 147 Per hour (ETc)
max.
Nm 72000 Effective mass (Me)
max.
kg 270 Impact speed (v)
max.
m/s 0,3 - 5,0 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
| 68012.W0272 | With | 25 | 147 | 72000 | 270 | 0,3 - 5,0 | -10 to +80 | ||||||||||||||||
£ 103.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
With / without cap With Stroke
mm 25 Nm per cycle (Et)
max.
Nm 147 Per hour (ETc)
max.
Nm 72000 Effective mass (Me)
max.
kg 270 Impact speed (v)
max.
m/s 0,3 - 5,0 Operating temperature
°C -10 to +80 | |||||||||||||||||||||||
Weight
g
Thread
a
b
c
d
e
f
h
g
i
A/F
| Price & Availability | Article | Weight g | Thread | a | b | c | d | e | f | h | g | i | A/F | |||||||||||||||
| 68012.W0080 | 4.0 | M 6x0,75 | 36.5 | 28.5 | 4.5 | 1.8 | 4.0 | 22.5 | 8.0 | 1 | 3.0 | - | ||||||||||||||||
Ready to despatch 0 Need more? Please call us.
Weight
g 4.0 Thread M 6x0,75 a 36.5 b 28.5 c 4.5 d 1.8 e 4.0 f 22.5 h 8.0 g 1 i 3.0 A/F - | ||||||||||||||||||||||||||||
| 68012.W0081 | 15 | M 8x1,0 | - | 40.6 | - | 2.9 | - | 33.6 | 11.0 | 2 | 3 | - | ||||||||||||||||
£ 30.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 15 Thread M 8x1,0 a - b 40.6 c - d 2.9 e - f 33.6 h 11.0 g 2 i 3 A/F - | ||||||||||||||||||||||||||||
| 68012.W0082 | 17 | M 8x1,0 | 55.2 | 40.6 | 6.6 | 2.9 | 8.6 | 33.6 | 11.0 | 2 | 3 | - | ||||||||||||||||
£ 32.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 17 Thread M 8x1,0 a 55.2 b 40.6 c 6.6 d 2.9 e 8.6 f 33.6 h 11.0 g 2 i 3 A/F - | ||||||||||||||||||||||||||||
| 68012.W0101 | 25 | M10x1,0 | - | 47.0 | - | 3.0 | - | 39.0 | 12.7 | 3 | 3 | - | ||||||||||||||||
£ 32.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 25 Thread M10x1,0 a - b 47.0 c - d 3.0 e - f 39.0 h 12.7 g 3 i 3 A/F - | ||||||||||||||||||||||||||||
| 68012.W0102 | 28 | M10x1,0 | 62.6 | 47.0 | 8.6 | 3.0 | 8.6 | 39.0 | 12.7 | 3 | 3 | - | ||||||||||||||||
£ 34.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 28 Thread M10x1,0 a 62.6 b 47.0 c 8.6 d 3.0 e 8.6 f 39.0 h 12.7 g 3 i 3 A/F - | ||||||||||||||||||||||||||||
| 68012.W0121 | 29 | M12x1,0 | - | 52.5 | - | 3.0 | - | 44.0 | 14.0 | 3 | 4 | - | ||||||||||||||||
£ 40.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 29 Thread M12x1,0 a - b 52.5 c - d 3.0 e - f 44.0 h 14.0 g 3 i 4 A/F - | ||||||||||||||||||||||||||||
| 68012.W0122 | 32 | M12x1,0 | 71.1 | 52.5 | 10.3 | 3.0 | 8.6 | 44.0 | 14.0 | 3 | 4 | - | ||||||||||||||||
£ 42.27 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 32 Thread M12x1,0 a 71.1 b 52.5 c 10.3 d 3.0 e 8.6 f 44.0 h 14.0 g 3 i 4 A/F - | ||||||||||||||||||||||||||||
| 68012.W0141 | 65 | M14x1,5 | - | 67.0 | - | 4.0 | - | 58.0 | 19.0 | 4 | 5 | 12.1 | ||||||||||||||||
£ 46.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 65 Thread M14x1,5 a - b 67.0 c - d 4.0 e - f 58.0 h 19.0 g 4 i 5 A/F 12.1 | ||||||||||||||||||||||||||||
| 68012.W0142 | 70 | M14x1,5 | 90.0 | 67.0 | 12.0 | 4.0 | 11.0 | 58.0 | 19.0 | 4 | 5 | 12.1 | ||||||||||||||||
£ 48.51 per unit (click for quantity discounts) Ready to despatch 21 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 70 Thread M14x1,5 a 90.0 b 67.0 c 12.0 d 4.0 e 11.0 f 58.0 h 19.0 g 4 i 5 A/F 12.1 | ||||||||||||||||||||||||||||
| 68012.W0143 | 70 | M14x1,5 | 78.8 | 55.0 | 12.0 | 4.0 | 11.2 | 46.5 | 19.0 | 3.5 | 5.0 | 12.1 | ||||||||||||||||
Ready to despatch 0 Need more? Please call us.
Weight
g 70 Thread M14x1,5 a 78.8 b 55.0 c 12.0 d 4.0 e 11.2 f 46.5 h 19.0 g 3.5 i 5.0 A/F 12.1 | ||||||||||||||||||||||||||||
| 68012.W0201 | 150 | M20x1,5 | - | 73.0 | - | 6.0 | - | 62.0 | 26.0 | 4 | 7 | 18.0 | ||||||||||||||||
£ 60.65 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 150 Thread M20x1,5 a - b 73.0 c - d 6.0 e - f 62.0 h 26.0 g 4 i 7 A/F 18.0 | ||||||||||||||||||||||||||||
| 68012.W0202 | 160 | M20x1,5 | 103.0 | 73.0 | 18.0 | 6.0 | 15.0 | 62.0 | 26.0 | 4 | 7 | 18.0 | ||||||||||||||||
£ 62.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 160 Thread M20x1,5 a 103.0 b 73.0 c 18.0 d 6.0 e 15.0 f 62.0 h 26.0 g 4 i 7 A/F 18.0 | ||||||||||||||||||||||||||||
| 68012.W0251 | 280 | M25x1,5 | - | 92.0 | - | 8.0 | - | 82.0 | 32.0 | - | 9 | 23.0 | ||||||||||||||||
£ 88.46 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 280 Thread M25x1,5 a - b 92.0 c - d 8.0 e - f 82.0 h 32.0 g - i 9 A/F 23.0 | ||||||||||||||||||||||||||||
| 68012.W0252 | 295 | M25x1,5 | 136.0 | 92.0 | 22.0 | 8.0 | 19.0 | 82.0 | 32.0 | - | 9 | 23.0 | ||||||||||||||||
£ 93.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 295 Thread M25x1,5 a 136.0 b 92.0 c 22.0 d 8.0 e 19.0 f 82.0 h 32.0 g - i 9 A/F 23.0 | ||||||||||||||||||||||||||||
| 68012.W0271 | 360 | M27x1,5 | - | 99.0 | - | 8.0 | - | 86.0 | 36.0 | 5 | 6 | 25.0 | ||||||||||||||||
£ 97.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 360 Thread M27x1,5 a - b 99.0 c - d 8.0 e - f 86.0 h 36.0 g 5 i 6 A/F 25.0 | ||||||||||||||||||||||||||||
| 68012.W0272 | 375 | M27x1,5 | 143.0 | 99.0 | 22.0 | 8.0 | 19.0 | 86.0 | 36.0 | 5 | 6 | 25.0 | ||||||||||||||||
£ 103.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 375 Thread M27x1,5 a 143.0 b 99.0 c 22.0 d 8.0 e 19.0 f 86.0 h 36.0 g 5 i 6 A/F 25.0 | ||||||||||||||||||||||||||||
Technical & Application
Material
Outer Tube: STKM11A, hardened and blackened.
Piston Rod: AISI 1045 hardened to HV940°, chrome plated.
Return Spring: DIN GWP.
Muffler Cap: urethane rubber. Seal: nitrile rubber.
Technical Notes
Supplied with rubber muffler cap as standard, this is removable - see introductory technical notes for guidance.
Important Notes
For correct product selection refer to Product Selection Formulae and Calculation pages, and associated Capacity & Selection Charts.
Product Datasheets
CAD files

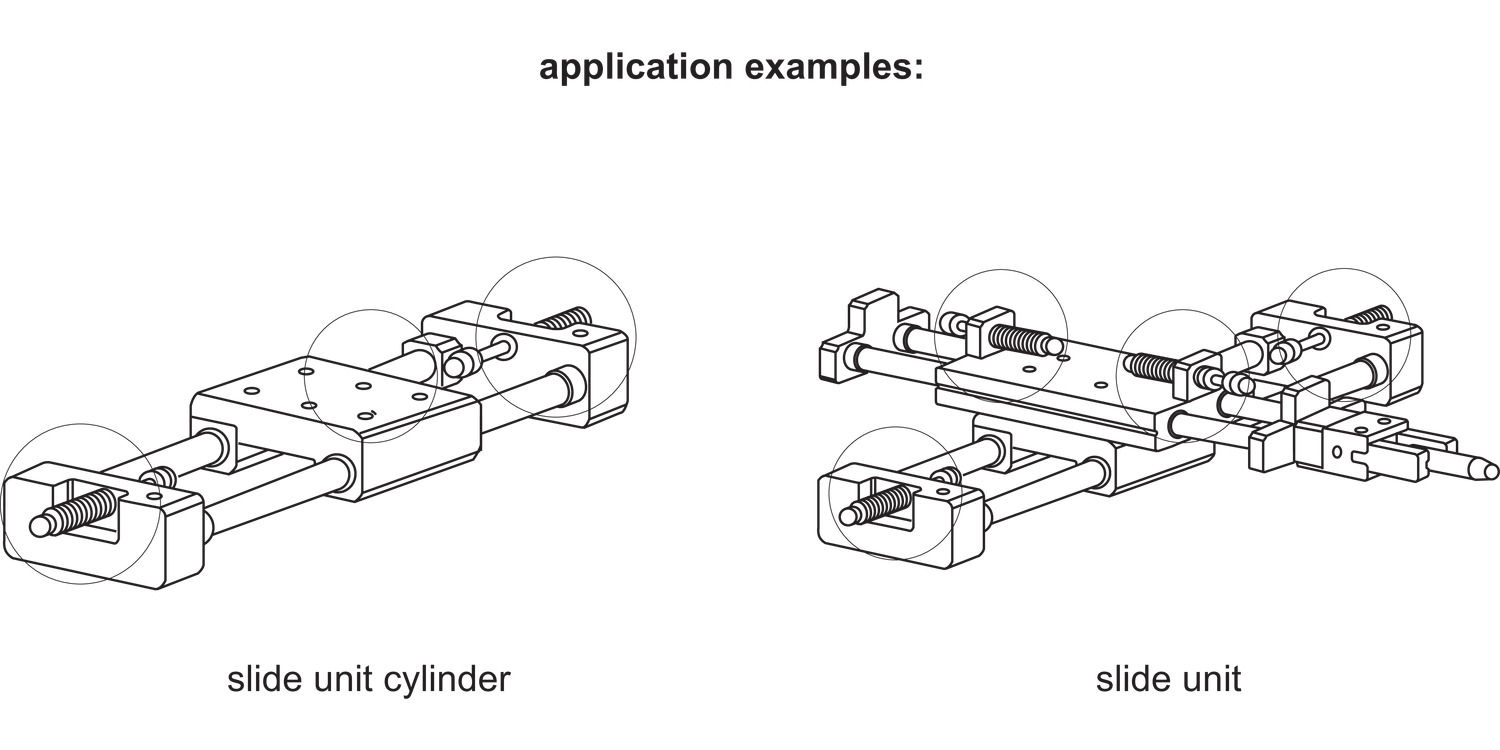

Application images
