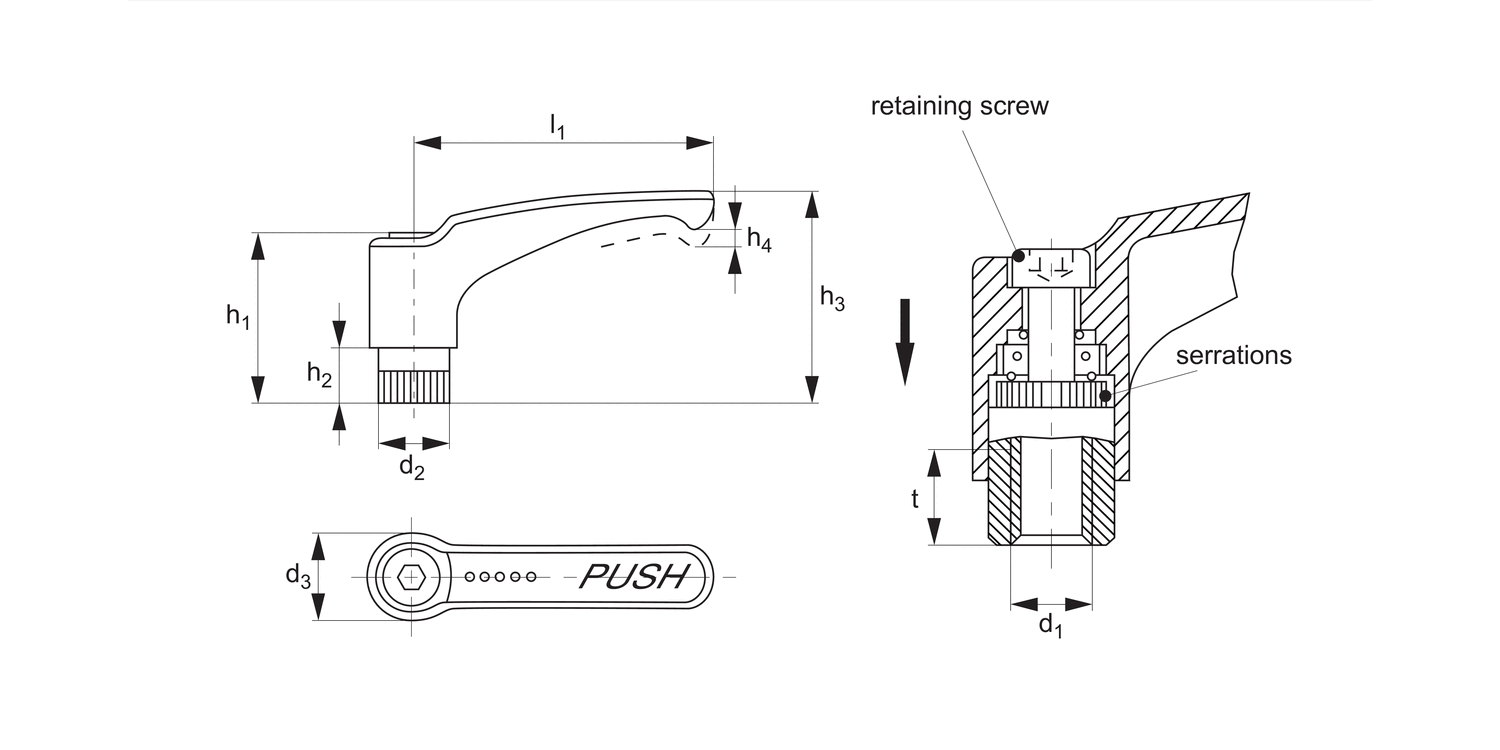

Safety Clamping Lever
free-running, female

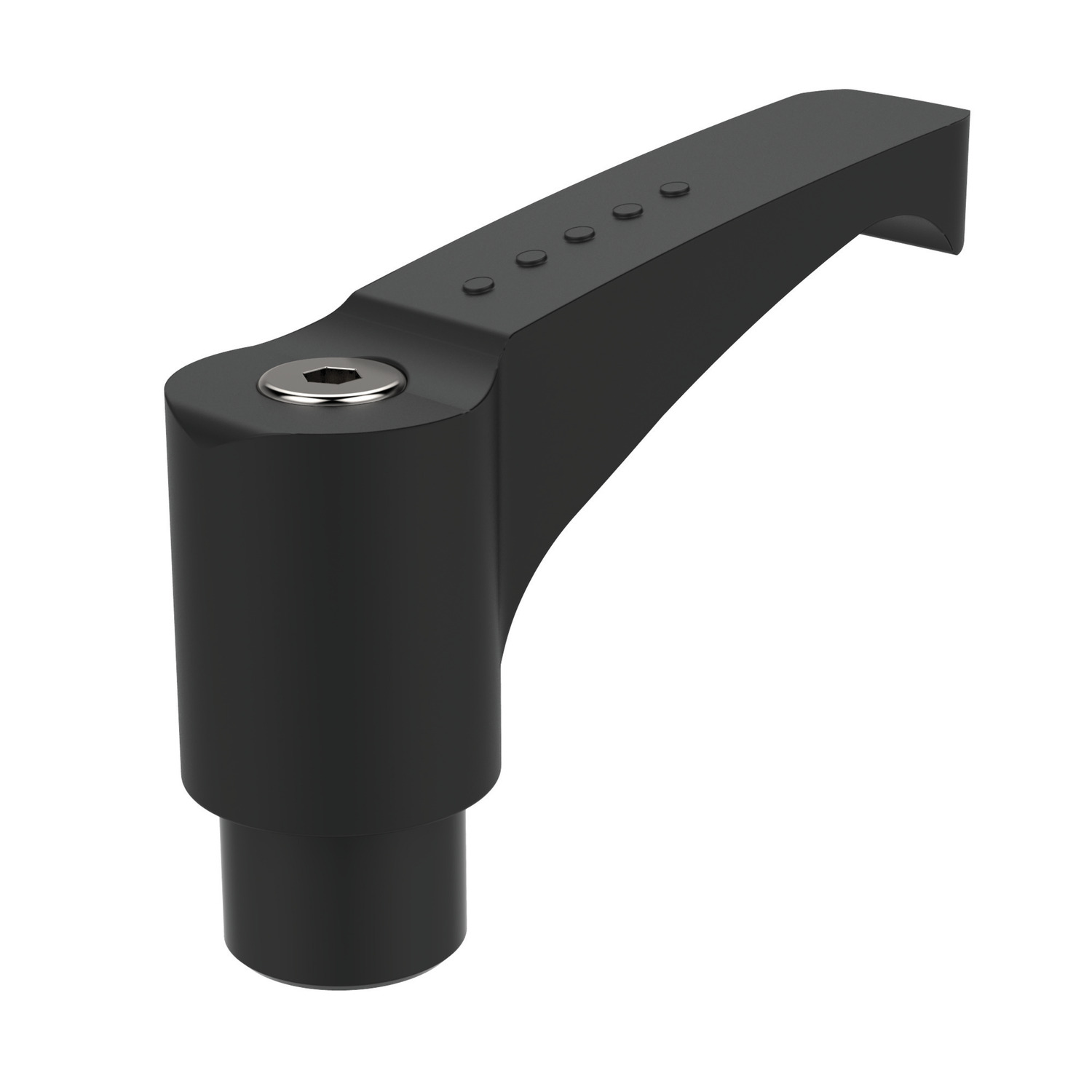

74860 Free Running Safety Clamping Lever, Threaded Insert
free-running when not engaged, material: Polyamide
Alternative products you may wish to consider
l1
44
d1
M 4
d2
12
d3
15.5
h1
29
h2
9
h3
36
h4 stroke
3.5
t
min.
10
Weight
g
14
£ 9.04 per unit (click for quantity discounts)
l1
44
d1
M 5
d2
12
d3
15.5
h1
29
h2
9
h3
36
h4 stroke
3.5
t
min.
10
Weight
g
13
£ 10.16 per unit (click for quantity discounts)
l1
44
d1
M 6
d2
12
d3
15.5
h1
29
h2
9
h3
36
h4 stroke
3.5
t
min.
10
Weight
g
12
£ 9.62 per unit (click for quantity discounts)
l1
63
d1
M 6
d2
15
d3
19.0
h1
37
h2
12
h3
48
h4 stroke
4.0
t
min.
13
Weight
g
25
£ 10.07 per unit (click for quantity discounts)
l1
63
d1
M 8
d2
15
d3
19.0
h1
37
h2
12
h3
48
h4 stroke
4.0
t
min.
13
Weight
g
24
£ 10.97 per unit (click for quantity discounts)
l1
d1
d2
d3
h1
h2
h3
h4 stroke
t
min.
Weight
g
| Price & Availability | Article | l1 | d1 | d2 | d3 | h1 | h2 | h3 | h4 stroke | t min. | Weight g | ||||||||||||||||||
| 74860.W0041 | 44 | M 4 | 12 | 15.5 | 29 | 9 | 36 | 3.5 | 10 | 14 | |||||||||||||||||||
£ 9.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 44 d1 M 4 d2 12 d3 15.5 h1 29 h2 9 h3 36 h4 stroke 3.5 t
min. 10 Weight
g 14 | |||||||||||||||||||||||||||||
| 74860.W0042 | 44 | M 5 | 12 | 15.5 | 29 | 9 | 36 | 3.5 | 10 | 13 | |||||||||||||||||||
£ 10.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 44 d1 M 5 d2 12 d3 15.5 h1 29 h2 9 h3 36 h4 stroke 3.5 t
min. 10 Weight
g 13 | |||||||||||||||||||||||||||||
| 74860.W0043 | 44 | M 6 | 12 | 15.5 | 29 | 9 | 36 | 3.5 | 10 | 12 | |||||||||||||||||||
£ 9.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 44 d1 M 6 d2 12 d3 15.5 h1 29 h2 9 h3 36 h4 stroke 3.5 t
min. 10 Weight
g 12 | |||||||||||||||||||||||||||||
| 74860.W0061 | 63 | M 6 | 15 | 19.0 | 37 | 12 | 48 | 4.0 | 13 | 25 | |||||||||||||||||||
£ 10.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 63 d1 M 6 d2 15 d3 19.0 h1 37 h2 12 h3 48 h4 stroke 4.0 t
min. 13 Weight
g 25 | |||||||||||||||||||||||||||||
| 74860.W0062 | 63 | M 8 | 15 | 19.0 | 37 | 12 | 48 | 4.0 | 13 | 24 | |||||||||||||||||||
£ 10.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 63 d1 M 8 d2 15 d3 19.0 h1 37 h2 12 h3 48 h4 stroke 4.0 t
min. 13 Weight
g 24 | |||||||||||||||||||||||||||||
Technical & Application
Material
Plastic technopolymer (polyamide PA) glass fibre reinforced, black.
Inner parts: steel, blackened embedded in black plastic.
Tips
Unique Safety Handle.
When not in use, the lever is not engaged with threaded insert, i.e. the adjustable lever turns freely.
As soon as the lever hub is pushed down, both serrations will engage, allowing the fixture to be released or clamped.
After "releasing", the lever disengages through spring tension.
Important Notes
Used where accidental loosening or readjustment can result in accidents.
Temperature resistant to +130°c.
