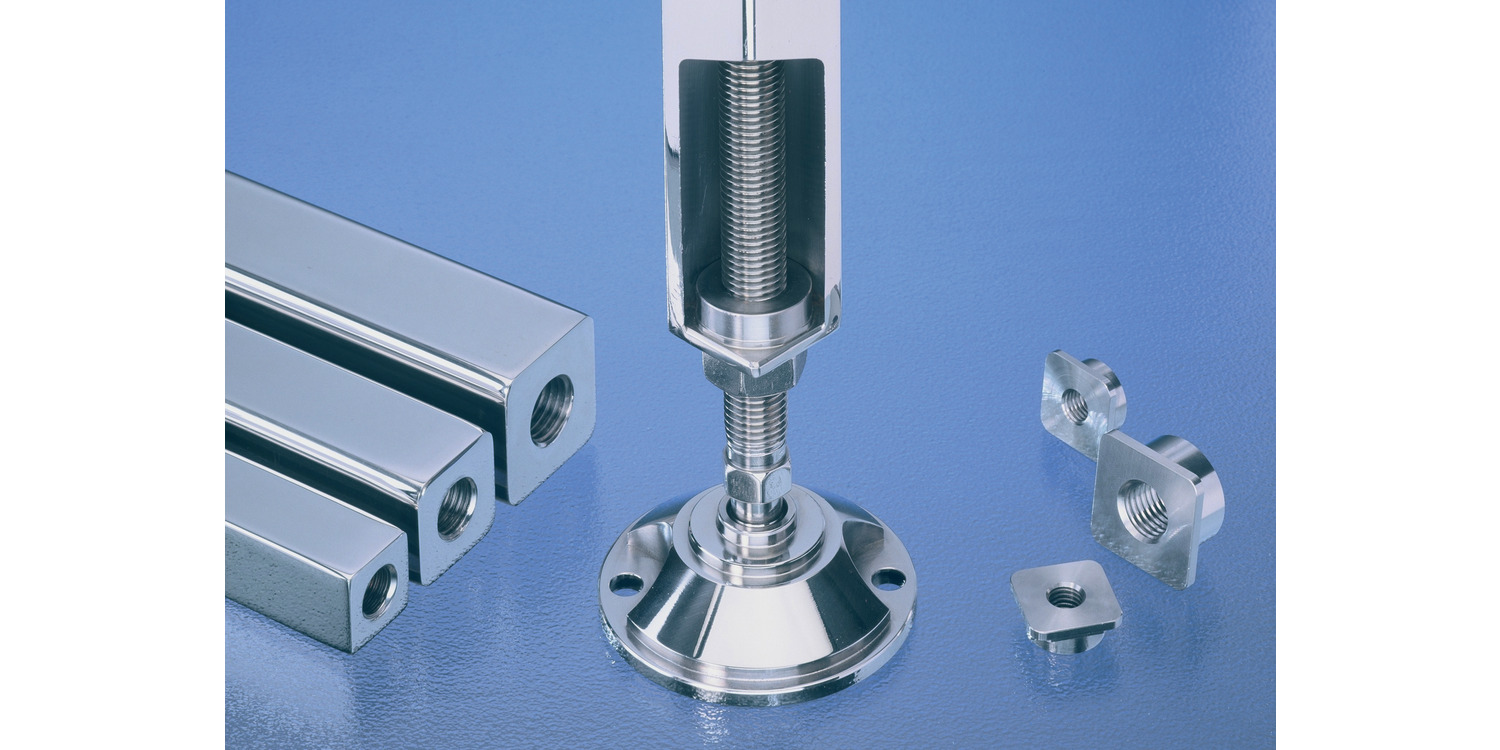

34670 Weldable Threaded Insert

stainless steel, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Threaded Inserts
weldable, s/s

Threaded Inserts
for hollow section, no bush

Threaded Insert
square & round inserts

Threaded Inserts
for hollow section, brass bush

Threaded Inserts
for hollow section, s/s bush

Threaded Insert
brass bush

Threaded Insert
brass bush

Weldable Threaded Insert - SS. 30x30x2,0 - 30 - 26 - M12

34670.W0030

Section size

30x30x2,0

Outerbox d₁ (sq)

30

Innerbox d₂

26

d₃

M12

h₁

12

h₂

4

Load capacity for static load max. kg

1500

£ 30.02 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 30x30x3,0 - 30 - 24 - M12

34670.W0032

Section size

30x30x3,0

Outerbox d₁ (sq)

30

Innerbox d₂

24

d₃

M12

h₁

12

h₂

4

Load capacity for static load max. kg

1500

£ 30.50 per unit (click for quantity discounts)

Weldable Threaded Insert

34670.W0033

Section size

30x30x3,0

Outerbox d₁ (sq)

30

Innerbox d₂

24

d₃

M16

h₁

16

h₂

4

Load capacity for static load max. kg

2000

Weldable Threaded Insert - SS. 40x40x2,0 - 40 - 36 - M16

34670.W0040

Section size

40x40x2,0

Outerbox d₁ (sq)

40

Innerbox d₂

36

d₃

M16

h₁

16

h₂

5

Load capacity for static load max. kg

2000

£ 24.64 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 40x40x2,0 - 40 - 36 - M20

34670.W0041

Section size

40x40x2,0

Outerbox d₁ (sq)

40

Innerbox d₂

36

d₃

M20

h₁

20

h₂

5

Load capacity for static load max. kg

3000

£ 31.36 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 40x40x3,0 - 40 - 34 - M16

34670.W0042

Section size

40x40x3,0

Outerbox d₁ (sq)

40

Innerbox d₂

34

d₃

M16

h₁

16

h₂

5

Load capacity for static load max. kg

2000

£ 23.25 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 40x40x3,0 - 40 - 34 - M20

34670.W0043

Section size

40x40x3,0

Outerbox d₁ (sq)

40

Innerbox d₂

34

d₃

M20

h₁

20

h₂

5

Load capacity for static load max. kg

3000

£ 22.97 per unit (click for quantity discounts)

Weldable Threaded Insert

34670.W0050

Section size

50x50x2,0

Outerbox d₁ (sq)

50

Innerbox d₂

46

d₃

M16

h₁

16

h₂

6

Load capacity for static load max. kg

2000

Weldable Threaded Insert - SS. 50x50x2,0 - 50 - 46 - M20

34670.W0051

Section size

50x50x2,0

Outerbox d₁ (sq)

50

Innerbox d₂

46

d₃

M20

h₁

20

h₂

6

Load capacity for static load max. kg

3000

£ 43.40 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 50x50x3,0 - 50 - 44 - M16

34670.W0053

Section size

50x50x3,0

Outerbox d₁ (sq)

50

Innerbox d₂

44

d₃

M16

h₁

16

h₂

6

Load capacity for static load max. kg

2000

£ 45.20 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 50x50x3,0 - 50 - 44 - M20

34670.W0054

Section size

50x50x3,0

Outerbox d₁ (sq)

50

Innerbox d₂

44

d₃

M20

h₁

20

h₂

6

Load capacity for static load max. kg

3000

£ 49.71 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 50x50x3,0 - 50 - 44 - M24

34670.W0055

Section size

50x50x3,0

Outerbox d₁ (sq)

50

Innerbox d₂

44

d₃

M24

h₁

24

h₂

6

Load capacity for static load max. kg

4000

£ 39.03 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 30x30x2,0 - 30 - 26 - M12

34670.W0030

Section size

30x30x2,0

Outerbox d₁ (sq)

30

Innerbox d₂

26

d₃

M12

h₁

12

h₂

4

Load capacity for static load max. kg

1500

£ 30.02 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 30x30x3,0 - 30 - 24 - M12

34670.W0032

Section size

30x30x3,0

Outerbox d₁ (sq)

30

Innerbox d₂

24

d₃

M12

h₁

12

h₂

4

Load capacity for static load max. kg

1500

£ 30.50 per unit (click for quantity discounts)

Weldable Threaded Insert

34670.W0033

Section size

30x30x3,0

Outerbox d₁ (sq)

30

Innerbox d₂

24

d₃

M16

h₁

16

h₂

4

Load capacity for static load max. kg

2000

Weldable Threaded Insert - SS. 40x40x2,0 - 40 - 36 - M16

34670.W0040

Section size

40x40x2,0

Outerbox d₁ (sq)

40

Innerbox d₂

36

d₃

M16

h₁

16

h₂

5

Load capacity for static load max. kg

2000

£ 24.64 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 40x40x2,0 - 40 - 36 - M20

34670.W0041

Section size

40x40x2,0

Outerbox d₁ (sq)

40

Innerbox d₂

36

d₃

M20

h₁

20

h₂

5

Load capacity for static load max. kg

3000

£ 31.36 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 40x40x3,0 - 40 - 34 - M16

34670.W0042

Section size

40x40x3,0

Outerbox d₁ (sq)

40

Innerbox d₂

34

d₃

M16

h₁

16

h₂

5

Load capacity for static load max. kg

2000

£ 23.25 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 40x40x3,0 - 40 - 34 - M20

34670.W0043

Section size

40x40x3,0

Outerbox d₁ (sq)

40

Innerbox d₂

34

d₃

M20

h₁

20

h₂

5

Load capacity for static load max. kg

3000

£ 22.97 per unit (click for quantity discounts)

Weldable Threaded Insert

34670.W0050

Section size

50x50x2,0

Outerbox d₁ (sq)

50

Innerbox d₂

46

d₃

M16

h₁

16

h₂

6

Load capacity for static load max. kg

2000

Weldable Threaded Insert - SS. 50x50x2,0 - 50 - 46 - M20

34670.W0051

Section size

50x50x2,0

Outerbox d₁ (sq)

50

Innerbox d₂

46

d₃

M20

h₁

20

h₂

6

Load capacity for static load max. kg

3000

£ 43.40 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 50x50x3,0 - 50 - 44 - M16

34670.W0053

Section size

50x50x3,0

Outerbox d₁ (sq)

50

Innerbox d₂

44

d₃

M16

h₁

16

h₂

6

Load capacity for static load max. kg

2000

£ 45.20 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 50x50x3,0 - 50 - 44 - M20

34670.W0054

Section size

50x50x3,0

Outerbox d₁ (sq)

50

Innerbox d₂

44

d₃

M20

h₁

20

h₂

6

Load capacity for static load max. kg

3000

£ 49.71 per unit (click for quantity discounts)

Weldable Threaded Insert - SS. 50x50x3,0 - 50 - 44 - M24

34670.W0055

Section size

50x50x3,0

Outerbox d₁ (sq)

50

Innerbox d₂

44

d₃

M24

h₁

24

h₂

6

Load capacity for static load max. kg

4000

£ 39.03 per unit (click for quantity discounts)



Select all

Section size

Outerbox d₁ (sq)

Innerbox d₂

d₃

h₁

h₂

Load capacity for static load max. kg

Price & Availability	Article	Section size	Outerbox d1 (sq)	Innerbox d2	d3	h1	h2	Load capacity for static load max. kg
	34670.W0030	30x30x2,0	30	26	M12	12	4	1500
£ 30.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 30.02 0% 5-9 £ 27.02 10% 10-19 £ 25.52 15% 20-49 £ 22.52 25% 50+ £ 19.51 35% Section size 30x30x2,0 Outerbox d1 (sq) 30 Innerbox d2 26 d3 M12 h1 12 h2 4 Load capacity for static load max. kg 1500 more info »
	34670.W0032	30x30x3,0	30	24	M12	12	4	1500
£ 30.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 30.50 0% 5-9 £ 27.45 10% 10-19 £ 25.93 15% 20-49 £ 22.88 25% 50+ £ 19.83 35% Section size 30x30x3,0 Outerbox d1 (sq) 30 Innerbox d2 24 d3 M12 h1 12 h2 4 Load capacity for static load max. kg 1500 more info »
	34670.W0033	30x30x3,0	30	24	M16	16	4	2000
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   Section size 30x30x3,0 Outerbox d1 (sq) 30 Innerbox d2 24 d3 M16 h1 16 h2 4 Load capacity for static load max. kg 2000 more info »
	34670.W0040	40x40x2,0	40	36	M16	16	5	2000
£ 24.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 24.64 0% 5-9 £ 22.18 10% 10-19 £ 20.94 15% 20-49 £ 18.48 25% 50+ £ 16.02 35% Section size 40x40x2,0 Outerbox d1 (sq) 40 Innerbox d2 36 d3 M16 h1 16 h2 5 Load capacity for static load max. kg 2000 more info »
	34670.W0041	40x40x2,0	40	36	M20	20	5	3000
£ 31.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 31.36 0% 5-9 £ 28.22 10% 10-19 £ 26.66 15% 20-49 £ 23.52 25% 50+ £ 20.38 35% Section size 40x40x2,0 Outerbox d1 (sq) 40 Innerbox d2 36 d3 M20 h1 20 h2 5 Load capacity for static load max. kg 3000 more info »
	34670.W0042	40x40x3,0	40	34	M16	16	5	2000
£ 23.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 23.25 0% 5-9 £ 20.93 10% 10-19 £ 19.76 15% 20-49 £ 17.44 25% 50+ £ 15.11 35% Section size 40x40x3,0 Outerbox d1 (sq) 40 Innerbox d2 34 d3 M16 h1 16 h2 5 Load capacity for static load max. kg 2000 more info »
	34670.W0043	40x40x3,0	40	34	M20	20	5	3000
£ 22.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 22.97 0% 5-9 £ 20.67 10% 10-19 £ 19.52 15% 20-49 £ 17.23 25% 50+ £ 14.93 35% Section size 40x40x3,0 Outerbox d1 (sq) 40 Innerbox d2 34 d3 M20 h1 20 h2 5 Load capacity for static load max. kg 3000 more info »
	34670.W0050	50x50x2,0	50	46	M16	16	6	2000
Ready to despatch 0 Need more? Please call us. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1+ -   Section size 50x50x2,0 Outerbox d1 (sq) 50 Innerbox d2 46 d3 M16 h1 16 h2 6 Load capacity for static load max. kg 2000 more info »
	34670.W0051	50x50x2,0	50	46	M20	20	6	3000
£ 43.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 43.40 0% 5-9 £ 39.06 10% 10-19 £ 36.89 15% 20-49 £ 32.55 25% 50+ £ 28.21 35% Section size 50x50x2,0 Outerbox d1 (sq) 50 Innerbox d2 46 d3 M20 h1 20 h2 6 Load capacity for static load max. kg 3000 more info »
	34670.W0053	50x50x3,0	50	44	M16	16	6	2000
£ 45.20 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 45.20 0% 5-9 £ 40.68 10% 10-19 £ 38.42 15% 20-49 £ 33.90 25% 50+ £ 29.38 35% Section size 50x50x3,0 Outerbox d1 (sq) 50 Innerbox d2 44 d3 M16 h1 16 h2 6 Load capacity for static load max. kg 2000 more info »
	34670.W0054	50x50x3,0	50	44	M20	20	6	3000
£ 49.71 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 49.71 0% 5-9 £ 44.74 10% 10-19 £ 42.25 15% 20-49 £ 37.28 25% 50+ £ 32.31 35% Section size 50x50x3,0 Outerbox d1 (sq) 50 Innerbox d2 44 d3 M20 h1 20 h2 6 Load capacity for static load max. kg 3000 more info »
	34670.W0055	50x50x3,0	50	44	M24	24	6	4000
£ 39.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 39.03 0% 5-9 £ 35.13 10% 10-19 £ 33.18 15% 20-49 £ 29.27 25% 50+ £ 25.37 35% Section size 50x50x3,0 Outerbox d1 (sq) 50 Innerbox d2 44 d3 M24 h1 24 h2 6 Load capacity for static load max. kg 4000 more info »
