Male
63571 Lifting Points - Double Swivel - Male
standard bar - metric - coarse - stainless steel, material: Stainless steel
Order No.
63571.W0421
Rated load
tonnes (t)
6.250

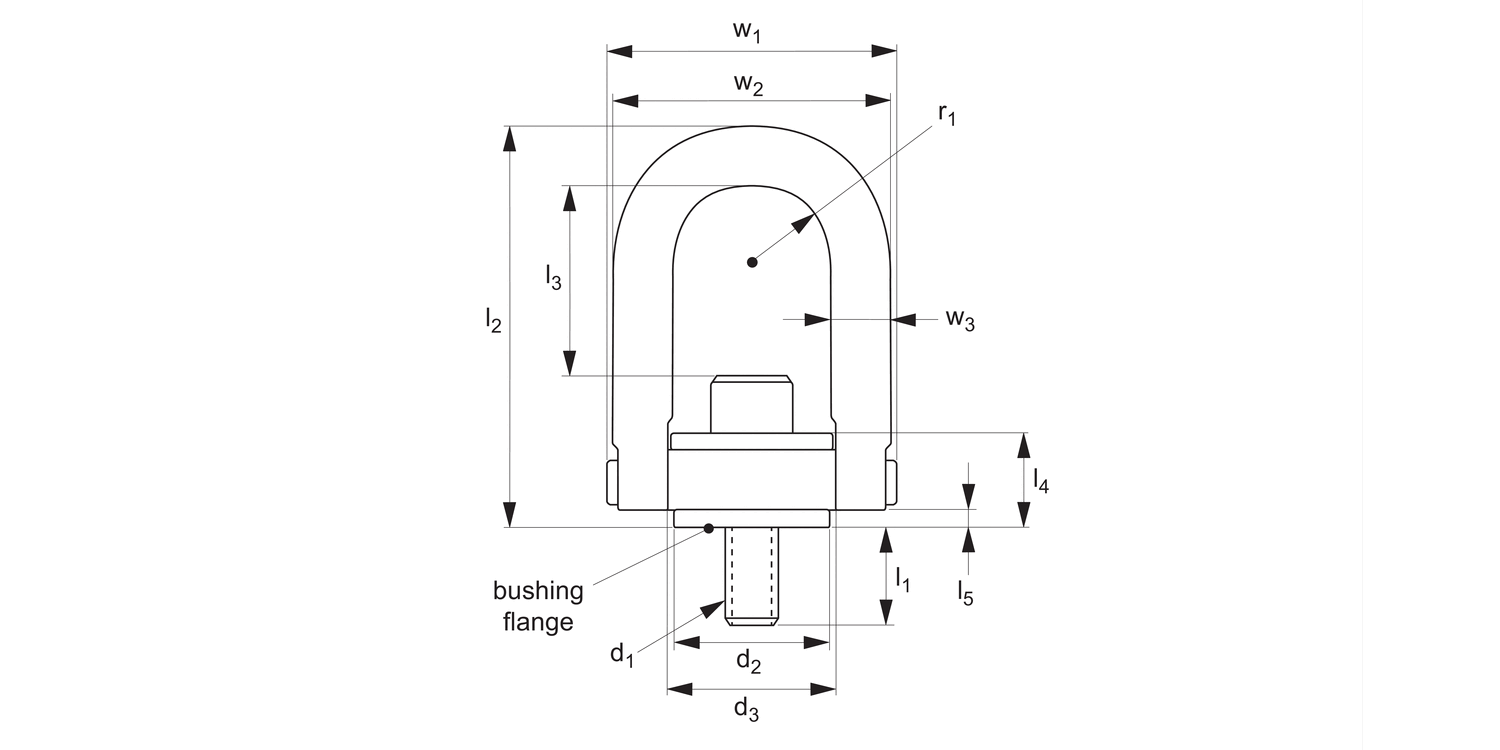

d1
M42x4,50
l1
79
w1
217.2
d2
106.7
d3
123.7
l2
316.7
Weight
kg
15.91
l3
158.8
l4
71.4
l5
11.9
r1
57.2
w2
203.2
w3
44.5
tl
Nm
542.70
£ 3,115.69 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 3,115.69 | 0% |
| 3-4 | £ 2,648.34 | 15% |
| 5-9 | £ 2,492.55 | 20% |
| 10-19 | £ 2,336.77 | 25% |
| 20+ | £ 2,180.98 | 30% |
Technical & Application
Material
Stainless steel, 300 series.
Technical Notes
Min. design safety factor 5:1. 360° swivel and 180° pivot under load.
Each part individually numbered.
tl= recommended torque load (Nm.)
Tips
Liquid penetrant tested as ASTM-E1417. Purification process, clean and passivate as ASTM-A967.
Important Notes
Always follow safety instructions.
