63572 Lifting Points - Double Swivel - Male

long bar - metric - coarse - stainless steel, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Male

Heavy duty - male

Safety Hoist Rings
metric - standard bar - s/s

Safety Hoist Rings
metric - long bar - s/s

Safety Hoist Rings
imperial - standard bar - s/s

Safety Hoist Rings
imperial - long bar - s/s

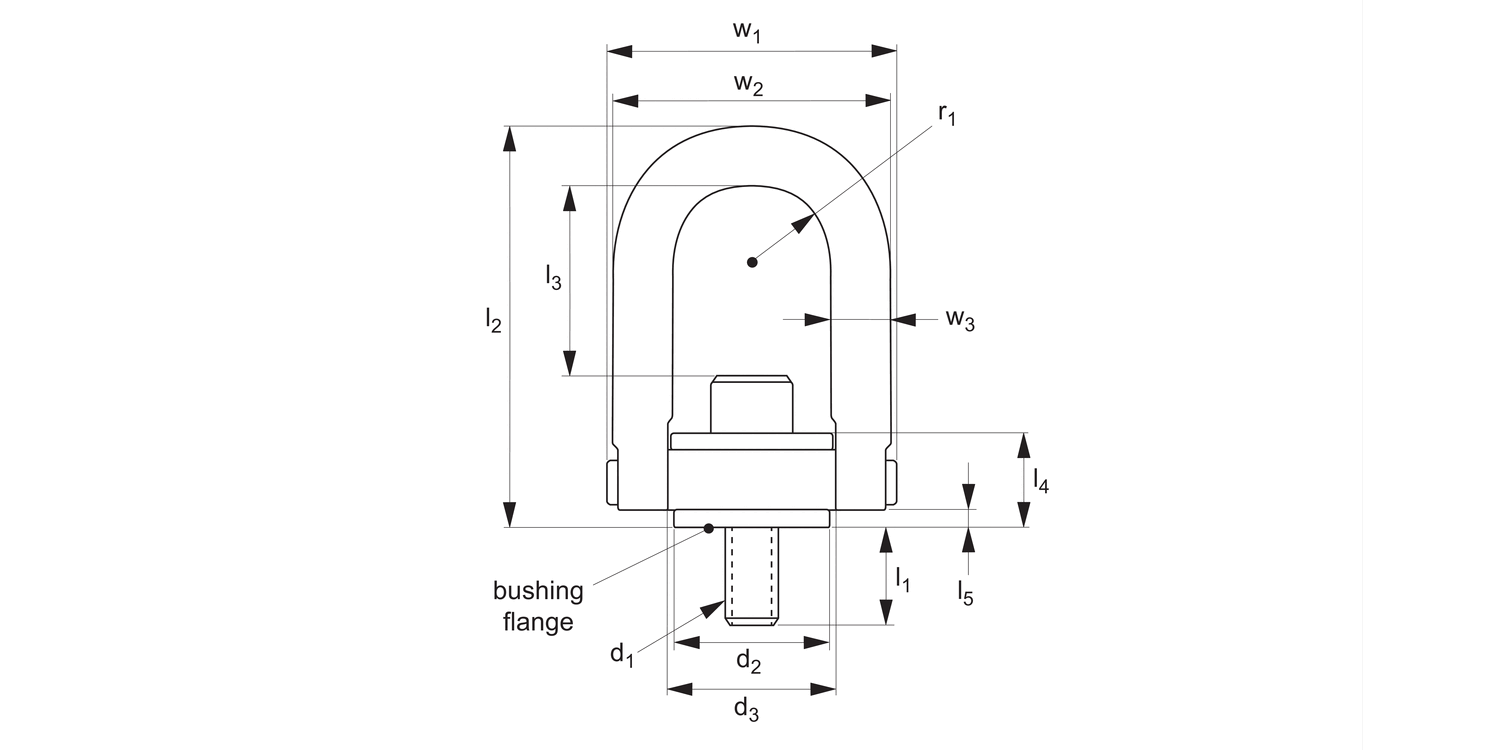

Lifting Points - Dbl Swivel - Male - SS. 0,525 - M12x1,75

63572.W0121

Rated load tonnes (t)

0.525

d₁

M12x1,75

l₁

19

w₁

89.4

d₂

38.0

d₃

50.5

l₂

121.4

l₃

108.6

l₄

31.0

l₅

4.1

r₁

22.4

w₂

82.5

tl Nm

18.5

Weight kg

1.27

£ 744.80 per unit (click for quantity discounts)

Lifting Points - Dbl Swivel - Male - SS. 0,950 - M16x2,00

63572.W0161

Rated load tonnes (t)

0.950

d₁

M16x2,00

l₁

24

w₁

89.4

d₂

38.0

d₃

50.5

l₂

121.4

l₃

104.6

l₄

31.0

l₅

4.1

r₁

22.4

w₂

82.5

tl Nm

40.0

Weight kg

1.33

£ 773.91 per unit (click for quantity discounts)

Lifting Points - Discontinued 1100 - M20x2,50

63572.W0201

Rated load tonnes (t)

1.100

d₁

M20x2,50

l₁

30

w₁

89.4

d₂

38.0

d₃

50.5

l₂

121.4

l₃

100.6

l₄

31.0

l₅

4.1

r₁

22.4

w₂

82.5

tl Nm

67.5

Weight kg

1.38

£ 757.44 per unit (click for quantity discounts)

Lifting Points - discontinued 1500 - M20x2,50

63572.W0202

Rated load tonnes (t)

1.500

d₁

M20x2,50

l₁

29

w₁

130.5

d₂

58.7

d₃

76.2

l₂

165.8

l₃

117.9

l₄

43.4

l₅

5.1

r₁

35.6

w₂

121.2

tl Nm

67.5

Weight kg

3.77

£ 1,194.93 per unit (click for quantity discounts)

Lifting Points - Discontinued 2100 - M24x3,00

63572.W0241

Rated load tonnes (t)

2.100

d₁

M24x3,00

l₁

34

w₁

130.5

d₂

58.7

d₃

76.2

l₂

165.8

l₃

113.9

l₄

43.4

l₅

6.1

r₁

35.6

w₂

121.2

tl Nm

155.5

Weight kg

3.89

£ 1,042.26 per unit (click for quantity discounts)

Lifting Points - Discontinued 2250 - M30x3,50

63572.W0301

Rated load tonnes (t)

2.250

d₁

M30x3,50

l₁

54

w₁

130.5

d₂

58.7

d₃

76.2

l₂

165.8

l₃

109.0

l₄

43.4

l₅

6.1

r₁

35.6

w₂

121.2

tl Nm

155.5

Weight kg

4.01

£ 1,332.06 per unit (click for quantity discounts)

Lifting Points - Dbl Swivel - Male - SS. 0,525 - M12x1,75

63572.W0121

Rated load tonnes (t)

0.525

d₁

M12x1,75

l₁

19

w₁

89.4

d₂

38.0

d₃

50.5

l₂

121.4

l₃

108.6

l₄

31.0

l₅

4.1

r₁

22.4

w₂

82.5

tl Nm

18.5

Weight kg

1.27

£ 744.80 per unit (click for quantity discounts)

Lifting Points - Dbl Swivel - Male - SS. 0,950 - M16x2,00

63572.W0161

Rated load tonnes (t)

0.950

d₁

M16x2,00

l₁

24

w₁

89.4

d₂

38.0

d₃

50.5

l₂

121.4

l₃

104.6

l₄

31.0

l₅

4.1

r₁

22.4

w₂

82.5

tl Nm

40.0

Weight kg

1.33

£ 773.91 per unit (click for quantity discounts)

Lifting Points - Discontinued 1100 - M20x2,50

63572.W0201

Rated load tonnes (t)

1.100

d₁

M20x2,50

l₁

30

w₁

89.4

d₂

38.0

d₃

50.5

l₂

121.4

l₃

100.6

l₄

31.0

l₅

4.1

r₁

22.4

w₂

82.5

tl Nm

67.5

Weight kg

1.38

£ 757.44 per unit (click for quantity discounts)

Lifting Points - discontinued 1500 - M20x2,50

63572.W0202

Rated load tonnes (t)

1.500

d₁

M20x2,50

l₁

29

w₁

130.5

d₂

58.7

d₃

76.2

l₂

165.8

l₃

117.9

l₄

43.4

l₅

5.1

r₁

35.6

w₂

121.2

tl Nm

67.5

Weight kg

3.77

£ 1,194.93 per unit (click for quantity discounts)

Lifting Points - Discontinued 2100 - M24x3,00

63572.W0241

Rated load tonnes (t)

2.100

d₁

M24x3,00

l₁

34

w₁

130.5

d₂

58.7

d₃

76.2

l₂

165.8

l₃

113.9

l₄

43.4

l₅

6.1

r₁

35.6

w₂

121.2

tl Nm

155.5

Weight kg

3.89

£ 1,042.26 per unit (click for quantity discounts)

Lifting Points - Discontinued 2250 - M30x3,50

63572.W0301

Rated load tonnes (t)

2.250

d₁

M30x3,50

l₁

54

w₁

130.5

d₂

58.7

d₃

76.2

l₂

165.8

l₃

109.0

l₄

43.4

l₅

6.1

r₁

35.6

w₂

121.2

tl Nm

155.5

Weight kg

4.01

£ 1,332.06 per unit (click for quantity discounts)



Select all

Rated load tonnes (t)

d₁

l₁

w₁

d₂

d₃

l₂

l₃

l₄

l₅

r₁

w₂

tl Nm

Weight kg

Price & Availability	Article	Rated load tonnes (t)	d1	l1	w1	d2	d3	l2	l3	l4	l5	r1	w2	tl Nm	Weight kg
	63572.W0121	0.525	M12x1,75	19	89.4	38.0	50.5	121.4	108.6	31.0	4.1	22.4	82.5	18.5	1.27
£ 744.80 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-2 £ 744.80 0% 3-4 £ 633.08 15% 5-9 £ 595.84 20% 10-19 £ 558.60 25% 20+ £ 521.36 30% Rated load tonnes (t) 0.525 d1 M12x1,75 l1 19 w1 89.4 d2 38.0 d3 50.5 l2 121.4 l3 108.6 l4 31.0 l5 4.1 r1 22.4 w2 82.5 tl Nm 18.5 Weight kg 1.27 more info »
	63572.W0161	0.950	M16x2,00	24	89.4	38.0	50.5	121.4	104.6	31.0	4.1	22.4	82.5	40.0	1.33
£ 773.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-2 £ 773.91 0% 3-4 £ 657.82 15% 5-9 £ 619.13 20% 10-19 £ 580.43 25% 20+ £ 541.74 30% Rated load tonnes (t) 0.950 d1 M16x2,00 l1 24 w1 89.4 d2 38.0 d3 50.5 l2 121.4 l3 104.6 l4 31.0 l5 4.1 r1 22.4 w2 82.5 tl Nm 40.0 Weight kg 1.33 more info »
	63572.W0201	1.100	M20x2,50	30	89.4	38.0	50.5	121.4	100.6	31.0	4.1	22.4	82.5	67.5	1.38
£ 757.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-2 £ 757.44 0% 3-4 £ 643.82 15% 5-9 £ 605.95 20% 10-19 £ 568.08 25% 20+ £ 530.21 30% Rated load tonnes (t) 1.100 d1 M20x2,50 l1 30 w1 89.4 d2 38.0 d3 50.5 l2 121.4 l3 100.6 l4 31.0 l5 4.1 r1 22.4 w2 82.5 tl Nm 67.5 Weight kg 1.38 more info »
	63572.W0202	1.500	M20x2,50	29	130.5	58.7	76.2	165.8	117.9	43.4	5.1	35.6	121.2	67.5	3.77
£ 1,194.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-2 £ 1,194.93 0% 3-4 £ 1,015.69 15% 5-9 £ 955.94 20% 10-19 £ 896.20 25% 20+ £ 836.45 30% Rated load tonnes (t) 1.500 d1 M20x2,50 l1 29 w1 130.5 d2 58.7 d3 76.2 l2 165.8 l3 117.9 l4 43.4 l5 5.1 r1 35.6 w2 121.2 tl Nm 67.5 Weight kg 3.77 more info »
	63572.W0241	2.100	M24x3,00	34	130.5	58.7	76.2	165.8	113.9	43.4	6.1	35.6	121.2	155.5	3.89
£ 1,042.26 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-2 £ 1,042.26 0% 3-4 £ 885.92 15% 5-9 £ 833.81 20% 10-19 £ 781.70 25% 20+ £ 729.58 30% Rated load tonnes (t) 2.100 d1 M24x3,00 l1 34 w1 130.5 d2 58.7 d3 76.2 l2 165.8 l3 113.9 l4 43.4 l5 6.1 r1 35.6 w2 121.2 tl Nm 155.5 Weight kg 3.89 more info »
	63572.W0301	2.250	M30x3,50	54	130.5	58.7	76.2	165.8	109.0	43.4	6.1	35.6	121.2	155.5	4.01
£ 1,332.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-2 £ 1,332.06 0% 3-4 £ 1,132.25 15% 5-9 £ 1,065.65 20% 10-19 £ 999.05 25% 20+ £ 932.44 30% Rated load tonnes (t) 2.250 d1 M30x3,50 l1 54 w1 130.5 d2 58.7 d3 76.2 l2 165.8 l3 109.0 l4 43.4 l5 6.1 r1 35.6 w2 121.2 tl Nm 155.5 Weight kg 4.01 more info »
