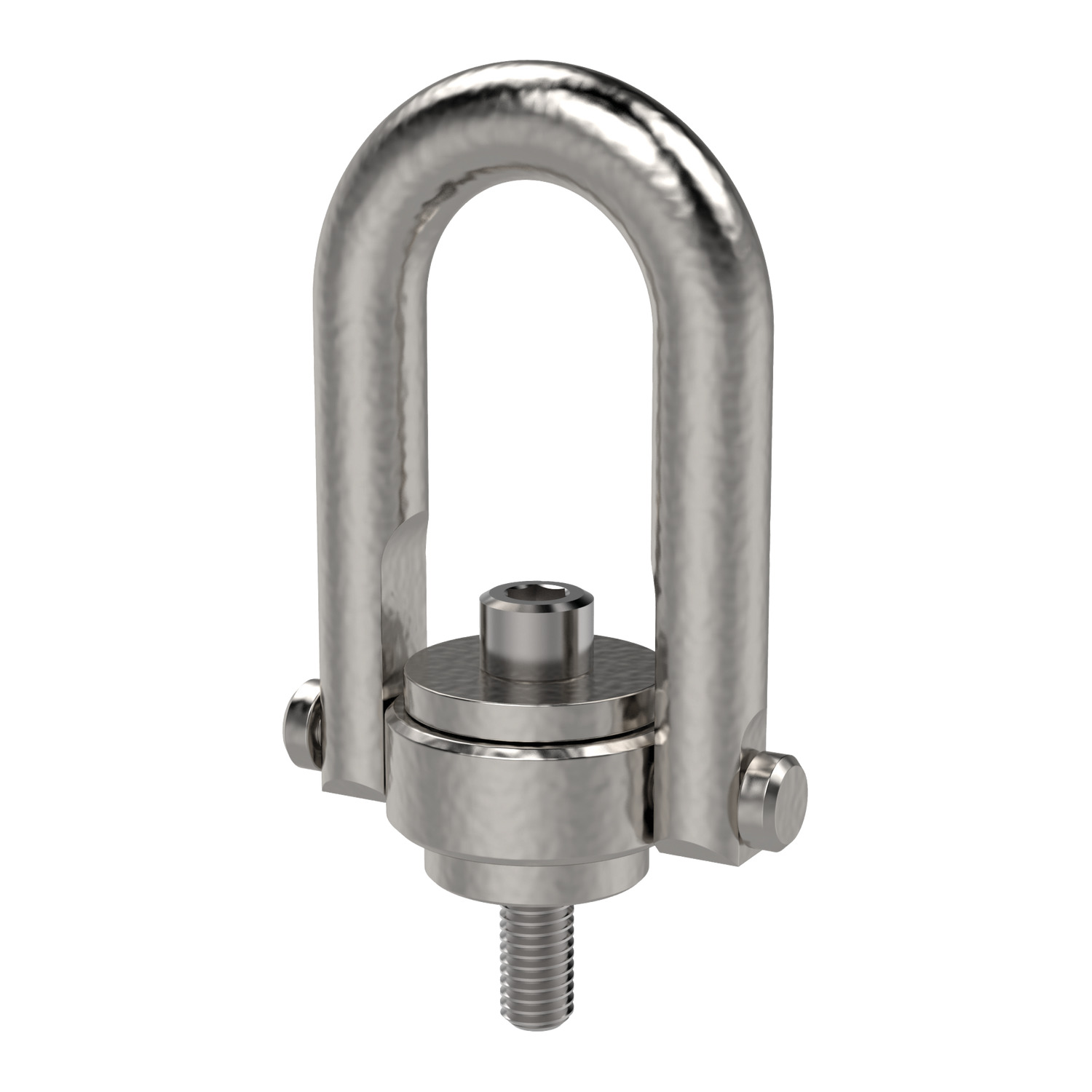

63582 Lifting Points - Double Swivel - Male

Name: 63582.W0881I
Brand: WC
SKU: 63582.W0881I
Price: 1332.06 EUR
Availability: OutOfStock

long bar - UNC thread - stainless steel, material: Stainless steel

Article properties

Order No.

63582.W0881I

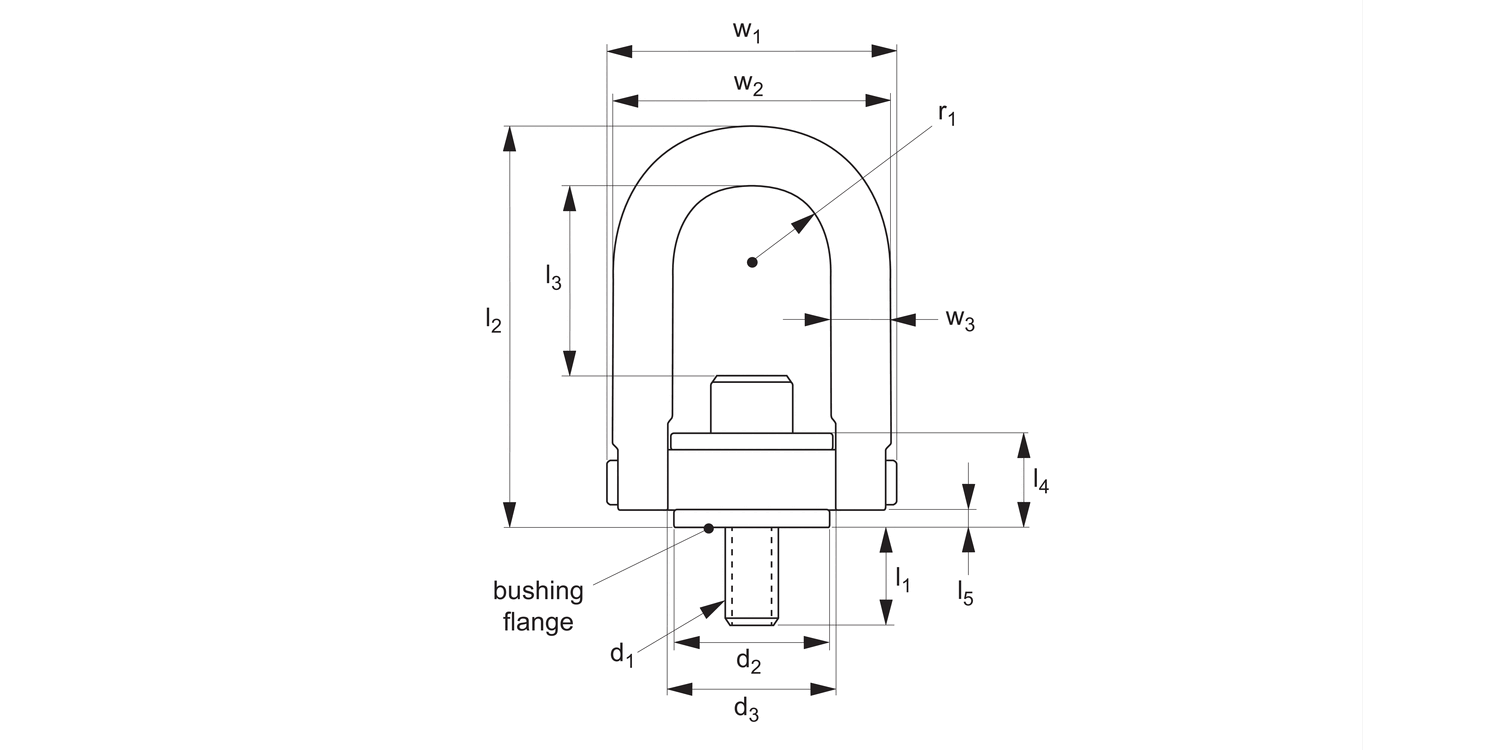

Rated load lb

4000

d₁ UNC

7/9-9

l₁

1.04

w₁

5.14

d₂

2.37

d₃

3.00

l₂

8.11

Weight lb

6.75

l₃

4.52

l₄

1.71

l₅

0.24

r₁

1.40

w₂

4.80

w₃

tl ft·lb

See full product selection

£ 1,332.06 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-2	£ 1,332.06	0%
3-4	£ 1,132.25	15%
5-9	£ 1,065.65	20%
10-19	£ 999.05	25%
20+	£ 932.44	30%

Download product datasheet

Technical & Application

Material

Stainless steel, 300 series.

Technical Notes

Min. design safety factor 5:1. 360° swivel and 180° pivot under load.
Each part individually numbered.
tl = recommended torque load (ft - lbs).

Tips

Liquid penetrant tested as ASTM-E1417. Purification process, clean and passivate as ASTM-A967.

Important Notes

All dimensions in imperial.
Always follow safety instructions.
