63651 Lifting Shackle - Tri-Thread - Male

metric - coarse, material: Forged alloy

Download product datasheet

Alternative products you may wish to consider

Centre-Lifting Rings
metric - tri-thread

Centre-Lifting Rings
imperial - tri-thread

Shackle Hoist Rings
imperial

Lifting Shackles
imperial

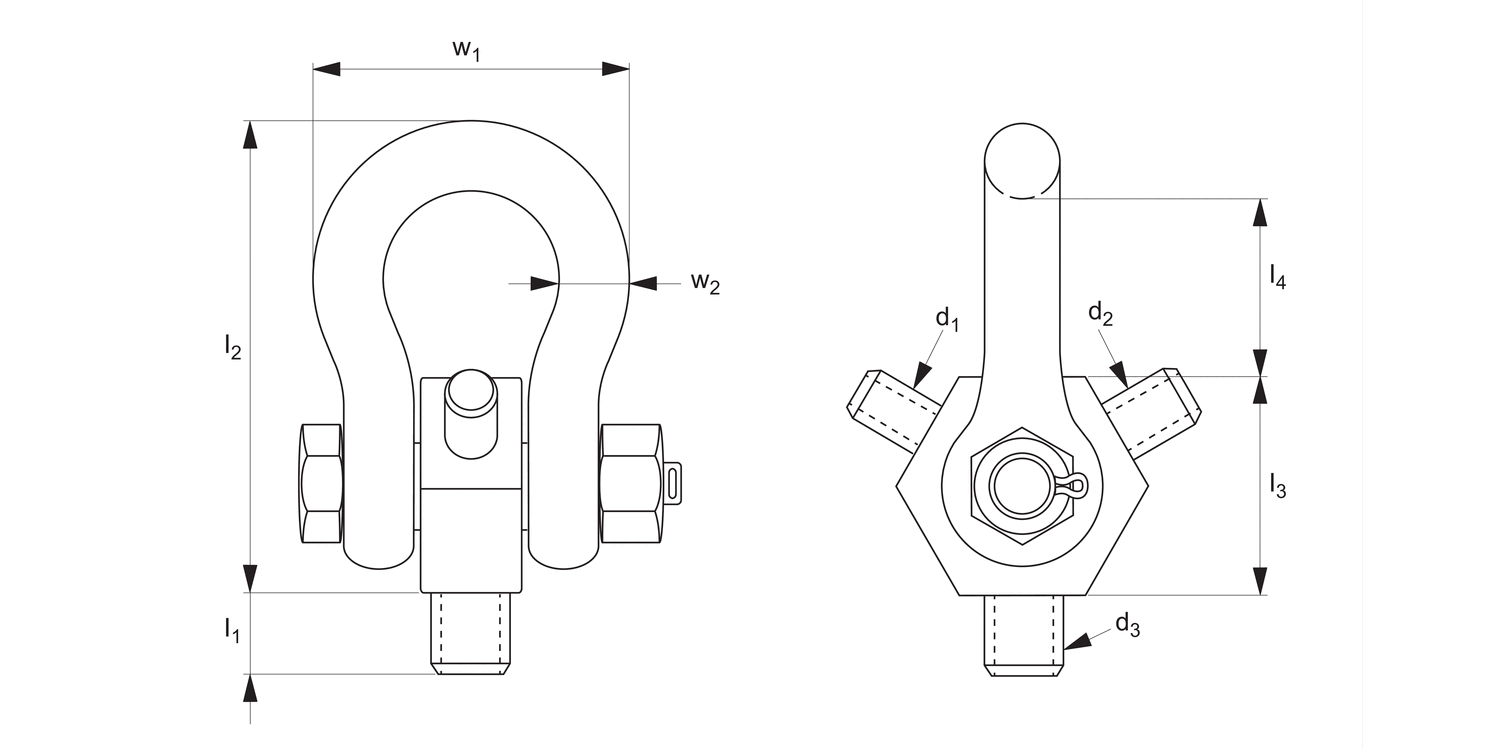

Lifting Shackle - Tri-Thread - Male Forged alloy - d1 - M 8x1,25 - 0,40 - 13, d2 - M10x1,50 - 0,45 - 13, d3 - M12x1,75 - 1,05 - 13

63651.W0812I

Thread

d1 d2 d3

Thread size

M 8x1,25 M10x1,50 M12x1,75

Load capacity tonnes (t)

0,40 0,45 1,05

l₁

13 13 13

l₂

77,80 77,80 77,80

l₃

34,93 34,93 34,93

l₄

31,8 31,8 31,8

w₁

53,98 53,98 53,98

w₂

11,11 11,11 11,11

Weight kg

0,36 0,36 0,36

£ 152.35 per unit (click for quantity discounts)

Lifting Shackle - Tri-Thread - Male Forged alloy - d1 - M14x2,00 - 1,05 - 19, d2 - M16x2,00 - 1,90 - 19, d3 - M20x2,50 - 2,20 - 19

63651.W1420I

Thread

d1 d2 d3

Thread size

M14x2,00 M16x2,00 M20x2,50

Load capacity tonnes (t)

1,05 1,90 2,20

l₁

19 19 19

l₂

111,13 111,13 111,13

l₃

50,80 50,80 50,80

l₄

44,5 44,5 44,5

w₁

76,20 76,20 76,20

w₂

15,90 15,90 15,90

Weight kg

1,13 1,13 1,13

£ 181.42 per unit (click for quantity discounts)

Lifting Shackle - Tri-Thread - Male Forged alloy - d1 - M 8x1,25 - 0,40 - 13, d2 - M10x1,50 - 0,45 - 13, d3 - M12x1,75 - 1,05 - 13

63651.W0812I

Thread

d1 d2 d3

Thread size

M 8x1,25 M10x1,50 M12x1,75

Load capacity tonnes (t)

0,40 0,45 1,05

l₁

13 13 13

l₂

77,80 77,80 77,80

l₃

34,93 34,93 34,93

l₄

31,8 31,8 31,8

w₁

53,98 53,98 53,98

w₂

11,11 11,11 11,11

Weight kg

0,36 0,36 0,36

£ 152.35 per unit (click for quantity discounts)

Lifting Shackle - Tri-Thread - Male Forged alloy - d1 - M14x2,00 - 1,05 - 19, d2 - M16x2,00 - 1,90 - 19, d3 - M20x2,50 - 2,20 - 19

63651.W1420I

Thread

d1 d2 d3

Thread size

M14x2,00 M16x2,00 M20x2,50

Load capacity tonnes (t)

1,05 1,90 2,20

l₁

19 19 19

l₂

111,13 111,13 111,13

l₃

50,80 50,80 50,80

l₄

44,5 44,5 44,5

w₁

76,20 76,20 76,20

w₂

15,90 15,90 15,90

Weight kg

1,13 1,13 1,13

£ 181.42 per unit (click for quantity discounts)



Select all

Thread

Thread size

Load capacity tonnes (t)

l₁

l₂

l₃

l₄

w₁

w₂

Weight kg

Price & Availability	Article	Thread	Thread size	Load capacity tonnes (t)	l1	l2	l3	l4	w1	w2	Weight kg
	63651.W0812I	d1 d2 d3	M 8x1,25 M10x1,50 M12x1,75	0,40 0,45 1,05	13 13 13	77,80 77,80 77,80	34,93 34,93 34,93	31,8 31,8 31,8	53,98 53,98 53,98	11,11 11,11 11,11	0,36 0,36 0,36
£ 152.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-2 £ 152.35 0% 3-4 £ 129.50 15% 5-9 £ 121.88 20% 10-19 £ 114.26 25% 20+ £ 106.65 30% Thread d1 d2 d3 Thread size M 8x1,25 M10x1,50 M12x1,75 Load capacity tonnes (t) 0,40 0,45 1,05 l1 13 13 13 l2 77,80 77,80 77,80 l3 34,93 34,93 34,93 l4 31,8 31,8 31,8 w1 53,98 53,98 53,98 w2 11,11 11,11 11,11 Weight kg 0,36 0,36 0,36 more info »
	63651.W1420I	d1 d2 d3	M14x2,00 M16x2,00 M20x2,50	1,05 1,90 2,20	19 19 19	111,13 111,13 111,13	50,80 50,80 50,80	44,5 44,5 44,5	76,20 76,20 76,20	15,90 15,90 15,90	1,13 1,13 1,13
£ 181.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-2 £ 181.42 0% 3-4 £ 154.21 15% 5-9 £ 145.14 20% 10-19 £ 136.07 25% 20+ £ 126.99 30% Thread d1 d2 d3 Thread size M14x2,00 M16x2,00 M20x2,50 Load capacity tonnes (t) 1,05 1,90 2,20 l1 19 19 19 l2 111,13 111,13 111,13 l3 50,80 50,80 50,80 l4 44,5 44,5 44,5 w1 76,20 76,20 76,20 w2 15,90 15,90 15,90 Weight kg 1,13 1,13 1,13 more info »
