36300 Seating Pins

Name: 36300.W0126
Brand: WC
SKU: 36300.W0126
Price: 13.88 EUR
Availability: OutOfStock

material: Tool steel

Article properties

Order No.

36300.W0126

Type

Intermediate Sizes

d₁

l₁

10.0

d₂ tol. N6

h₁ tol. H9

10.0

Location hole = d₂ to tol. H7

Weight g

See full product selection

£ 13.88 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 13.88	0%
10-19	£ 12.49	10%
20-49	£ 11.80	15%
50-99	£ 11.10	20%
100+	£ 9.72	30%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Tool steel (DIN 6321), hardened and ground.

Technical Notes

Bearing surface without centering.

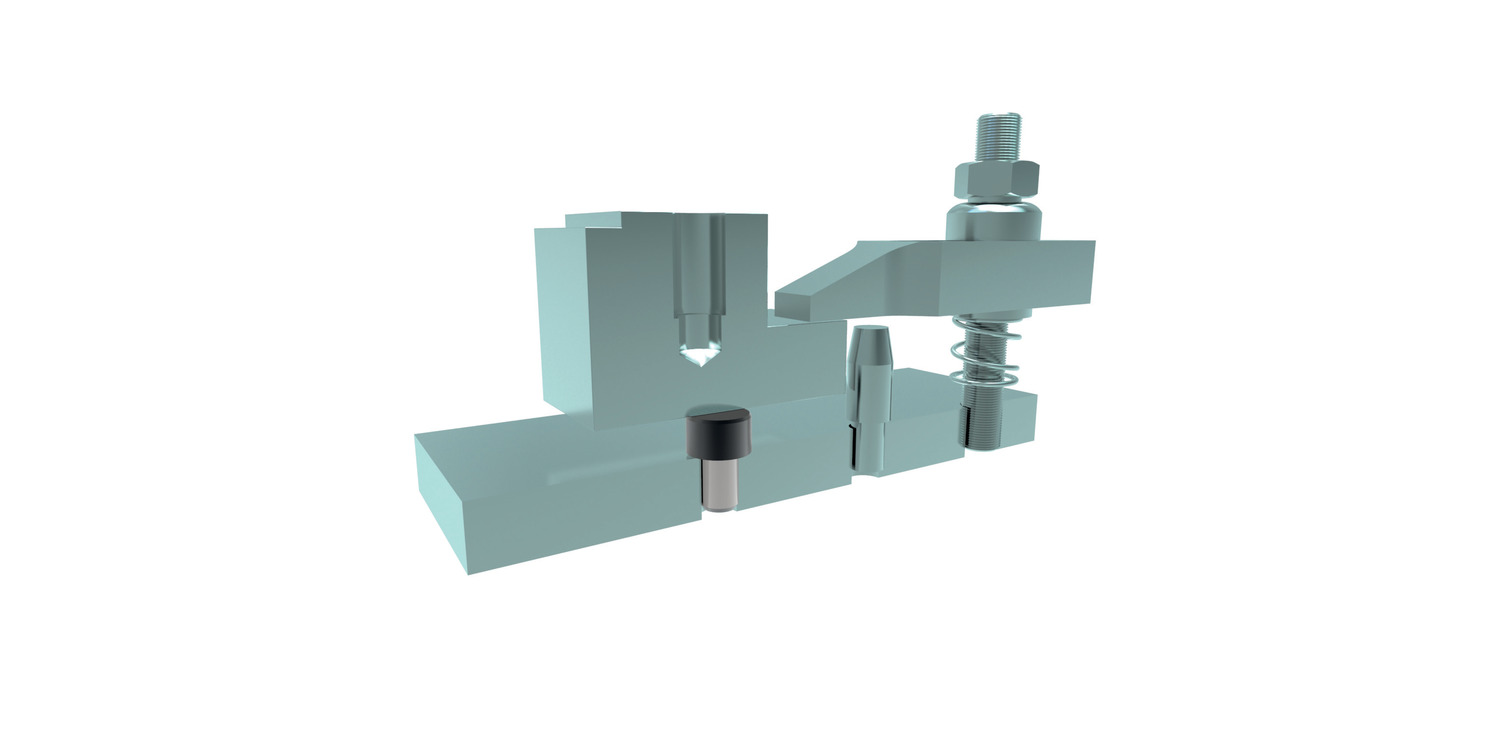

Seating pins serve as bearing surfaces for tools and jigs.
Suggested hole tolerance for shaft d2 is a hole to N6.
