Sensing Elements
with sensor adapter, s/s
38700 Sensing Elements
with sensor adapter, stainless steel, material: Stainless steel
Alternative products you may wish to consider
d1
M12x1
d2
6.2
d3
M_8x1
d4
19.0
l1
44
l2
20
l3
≈
15.5
s
5.6
A/F
17
Spring load F1
≈
N
24.0
Spring load F2
≈
N
47.3
Weight
g
57
£ 46.62 per unit (click for quantity discounts)
d1
M16x1
d2
8.5
d3
M12×1
d4
21.5
l1
65
l2
32
l3
≈
20.0
s
7.5
A/F
19
Spring load F1
≈
N
32.5
Spring load F2
≈
N
65.5
Weight
g
103
£ 56.50 per unit (click for quantity discounts)
d1
d2
d3
d4
l1
l2
l3
≈
s
A/F
Spring load F1
≈
N
Spring load F2
≈
N
Weight
g
| Price & Availability | Article | d1 | d2 | d3 | d4 | l1 | l2 | l3 ≈ | s | A/F | Spring load F1 ≈ N | Spring load F2 ≈ N | Weight g | |||||||||||||||
| 38700.W0012 | M12x1 | 6.2 | M_8x1 | 19.0 | 44 | 20 | 15.5 | 5.6 | 17 | 24.0 | 47.3 | 57 | ||||||||||||||||
£ 46.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M12x1 d2 6.2 d3 M_8x1 d4 19.0 l1 44 l2 20 l3
≈ 15.5 s 5.6 A/F 17 Spring load F1
≈
N 24.0 Spring load F2
≈
N 47.3 Weight
g 57 | ||||||||||||||||||||||||||||
| 38700.W0016 | M16x1 | 8.5 | M12×1 | 21.5 | 65 | 32 | 20.0 | 7.5 | 19 | 32.5 | 65.5 | 103 | ||||||||||||||||
£ 56.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 M16x1 d2 8.5 d3 M12×1 d4 21.5 l1 65 l2 32 l3
≈ 20.0 s 7.5 A/F 19 Spring load F1
≈
N 32.5 Spring load F2
≈
N 65.5 Weight
g 103 | ||||||||||||||||||||||||||||
Technical & Application
Material
Housing: stainless steel 1.4305
Spring: stainless steel
Pin: stainless steel 1.4305
Nut: (ISO 4035), nickle plated.
Technical Notes

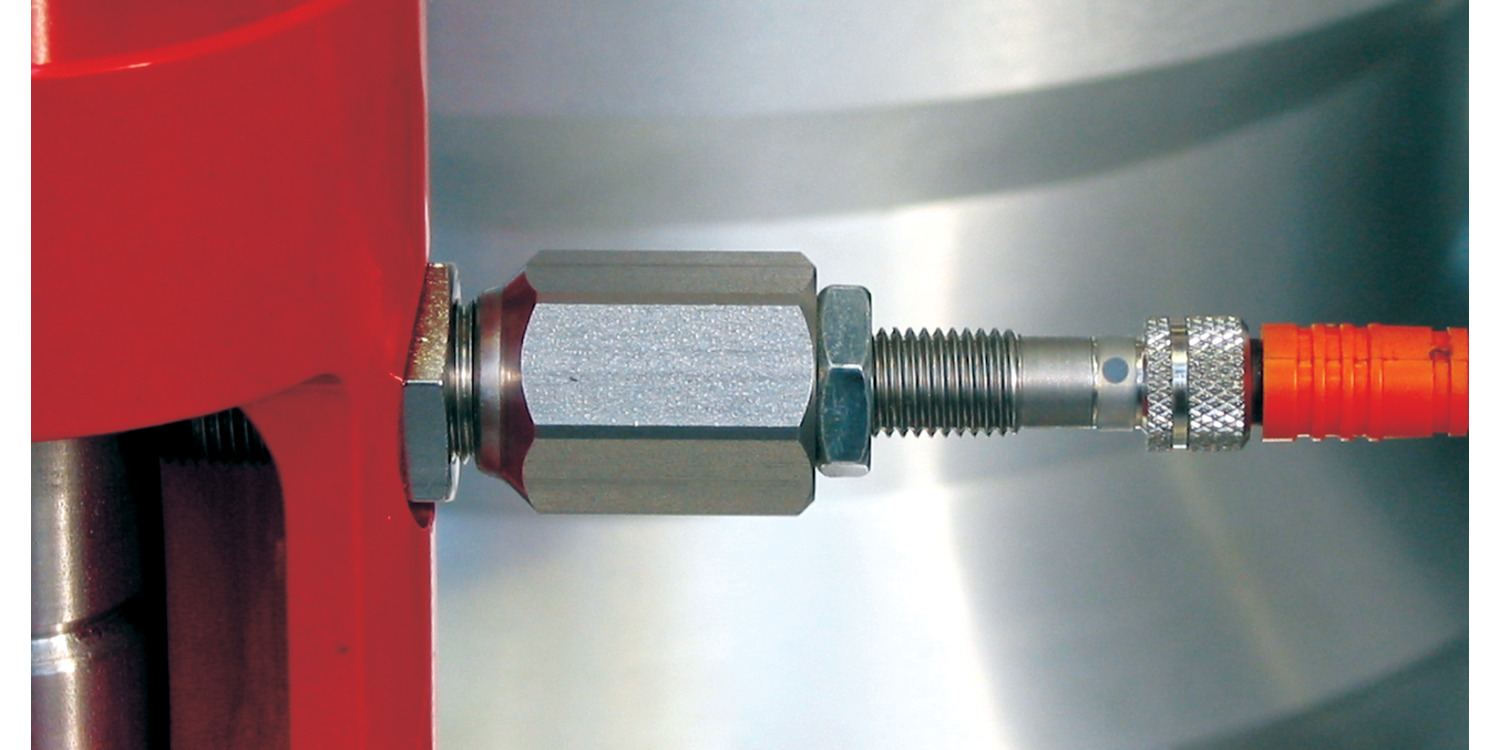

Spring plunger with integrated position sensing via standard inductive sensors. Adjustment of the sensor screw enables variation of the switching range. Sensitivity of switch can be adjusted throughout the entire stroke. Suitable for inductive sensors with flush contact. Spring loads * = statistical average value.
Tips
Suitable for multiple applications, e.g. position control.
