Spherical Plain Bearing - K series
maintenance free
65704 Low Cost Rod End - Male
with teflon bearing race, material: Steel
Alternative products you may wish to consider
Thread hand
Right

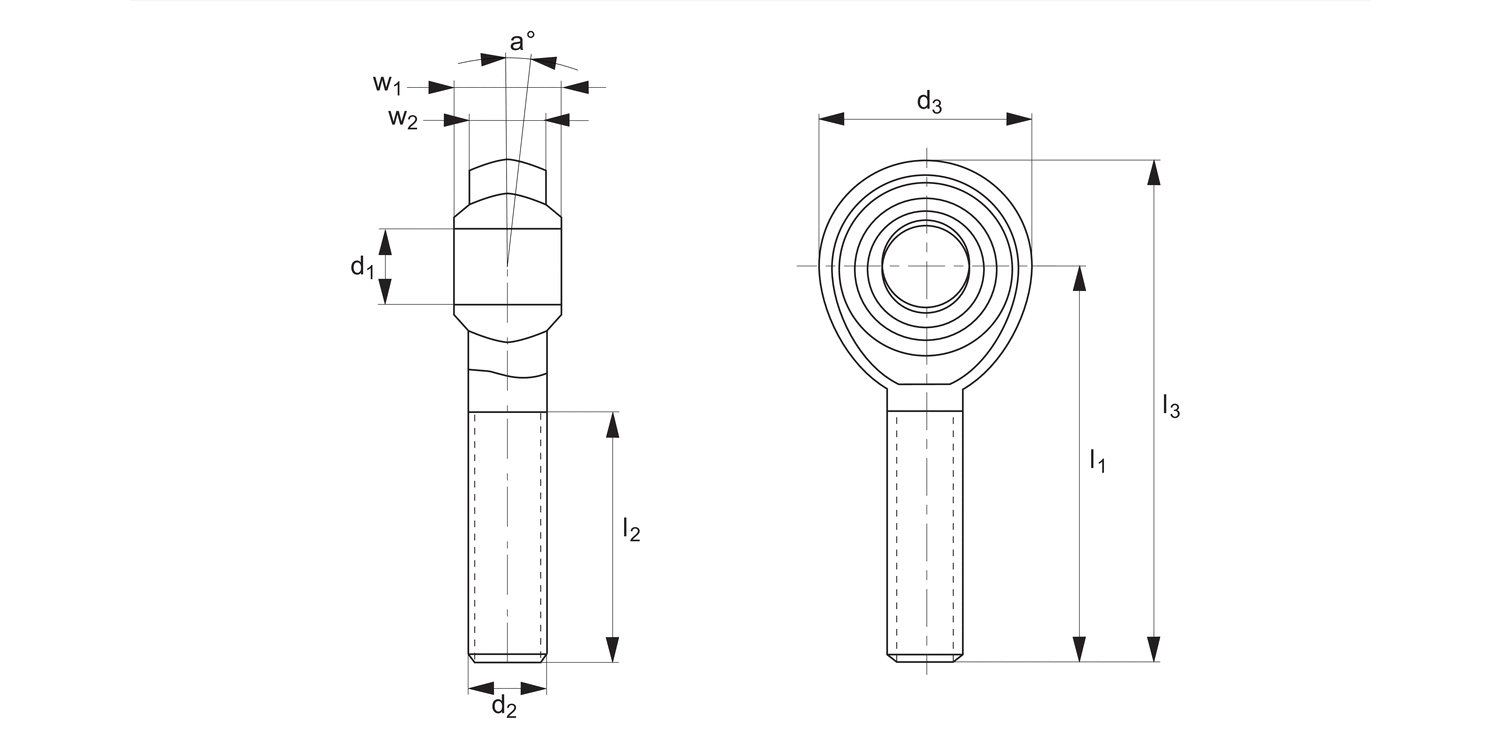

d1
tol. H7
5
l1
33
d2
M5
d3
18
l2
19
a
°
13
l3
42
w1
8
w2
6.00
Static load C0
max.
kN
4.8
£ 7.75 per unit (click for quantity discounts)
Thread hand
Right
d1
tol. H7
6
l1
36
d2
M6
d3
20
l2
21
a
°
13
l3
46
w1
9
w2
6.75
Static load C0
max.
kN
6.2
£ 7.75 per unit (click for quantity discounts)
Thread hand
Right
d1
tol. H7
8
l1
42
d2
M8
d3
24
l2
25
a
°
14
l3
54
w1
12
w2
9.00
Static load C0
max.
kN
10.3
£ 9.04 per unit (click for quantity discounts)
Thread hand
Right
d1
tol. H7
10
l1
48
d2
M10
d3
28
l2
28
a
°
13
l3
62
w1
14
w2
10.50
Static load C0
max.
kN
14.4
£ 13.52 per unit (click for quantity discounts)
Thread hand
Right
d1
tol. H7
12
l1
54
d2
M12
d3
32
l2
32
a
°
13
l3
70
w1
16
w2
12.00
Static load C0
max.
kN
19.2
£ 16.35 per unit (click for quantity discounts)
Thread hand
Right
d1
tol. H7
16
l1
66
d2
M16
d3
42
l2
37
a
°
15
l3
87
w1
21
w2
15.00
Static load C0
max.
kN
31.2
£ 23.24 per unit (click for quantity discounts)
Thread hand
Left
d1
tol. H7
5
l1
33
d2
M5
d3
18
l2
19
a
°
13
l3
42
w1
8
w2
6.00
Static load C0
max.
kN
3.9
£ 10.17 per unit (click for quantity discounts)
Thread hand
Left
d1
tol. H7
6
l1
36
d2
M6
d3
20
l2
21
a
°
13
l3
46
w1
9
w2
6.75
Static load C0
max.
kN
6.0
£ 10.17 per unit (click for quantity discounts)
Thread hand
Left
d1
tol. H7
8
l1
42
d2
M8
d3
24
l2
25
a
°
14
l3
54
w1
12
w2
9.00
Static load C0
max.
kN
10.0
£ 9.04 per unit (click for quantity discounts)
Thread hand
Left
d1
tol. H7
10
l1
48
d2
M10
d3
28
l2
28
a
°
13
l3
62
w1
14
w2
10.50
Static load C0
max.
kN
16.0
£ 13.52 per unit (click for quantity discounts)
Thread hand
Left
d1
tol. H7
12
l1
54
d2
M12
d3
32
l2
32
a
°
13
l3
70
w1
16
w2
12.00
Static load C0
max.
kN
23.0
£ 16.35 per unit (click for quantity discounts)
Thread hand
Left
d1
tol. H7
16
l1
66
d2
M16
d3
42
l2
37
a
°
15
l3
87
w1
21
w2
15.00
Static load C0
max.
kN
44.0
£ 22.24 per unit (click for quantity discounts)
Thread hand
d1
tol. H7
l1
d2
d3
l2
a
°
l3
w1
w2
Static load C0
max.
kN
| Price & Availability | Article | Thread hand | d1 tol. H7 | l1 | d2 | d3 | l2 | a ° | l3 | w1 | w2 | Static load C0 max. kN | ||||||||||||||||||
| 65704.W0005 | Right | 5 | 33 | M5 | 18 | 19 | 13 | 42 | 8 | 6.00 | 4.8 | |||||||||||||||||||
£ 7.75 per unit (click for quantity discounts) Ready to despatch 2324 Need more? Please call us.
Thread hand Right d1
tol. H7 5 l1 33 d2 M5 d3 18 l2 19 a
° 13 l3 42 w1 8 w2 6.00 Static load C0
max.
kN 4.8 | ||||||||||||||||||||||||||||||
| 65704.W0006 | Right | 6 | 36 | M6 | 20 | 21 | 13 | 46 | 9 | 6.75 | 6.2 | |||||||||||||||||||
£ 7.75 per unit (click for quantity discounts) Ready to despatch 1393 Need more? Please call us.
Thread hand Right d1
tol. H7 6 l1 36 d2 M6 d3 20 l2 21 a
° 13 l3 46 w1 9 w2 6.75 Static load C0
max.
kN 6.2 | ||||||||||||||||||||||||||||||
| 65704.W0008 | Right | 8 | 42 | M8 | 24 | 25 | 14 | 54 | 12 | 9.00 | 10.3 | |||||||||||||||||||
£ 9.04 per unit (click for quantity discounts) Ready to despatch 2300 Need more? Please call us.
Thread hand Right d1
tol. H7 8 l1 42 d2 M8 d3 24 l2 25 a
° 14 l3 54 w1 12 w2 9.00 Static load C0
max.
kN 10.3 | ||||||||||||||||||||||||||||||
| 65704.W0010 | Right | 10 | 48 | M10 | 28 | 28 | 13 | 62 | 14 | 10.50 | 14.4 | |||||||||||||||||||
£ 13.52 per unit (click for quantity discounts) Ready to despatch 612 Need more? Please call us.
Thread hand Right d1
tol. H7 10 l1 48 d2 M10 d3 28 l2 28 a
° 13 l3 62 w1 14 w2 10.50 Static load C0
max.
kN 14.4 | ||||||||||||||||||||||||||||||
| 65704.W0012 | Right | 12 | 54 | M12 | 32 | 32 | 13 | 70 | 16 | 12.00 | 19.2 | |||||||||||||||||||
£ 16.35 per unit (click for quantity discounts) Ready to despatch 1366 Need more? Please call us.
Thread hand Right d1
tol. H7 12 l1 54 d2 M12 d3 32 l2 32 a
° 13 l3 70 w1 16 w2 12.00 Static load C0
max.
kN 19.2 | ||||||||||||||||||||||||||||||
| 65704.W0016 | Right | 16 | 66 | M16 | 42 | 37 | 15 | 87 | 21 | 15.00 | 31.2 | |||||||||||||||||||
£ 23.24 per unit (click for quantity discounts) Ready to despatch 10 Need more? Please call us.
Thread hand Right d1
tol. H7 16 l1 66 d2 M16 d3 42 l2 37 a
° 15 l3 87 w1 21 w2 15.00 Static load C0
max.
kN 31.2 | ||||||||||||||||||||||||||||||
| 65704.W0505 | Left | 5 | 33 | M5 | 18 | 19 | 13 | 42 | 8 | 6.00 | 3.9 | |||||||||||||||||||
£ 10.17 per unit (click for quantity discounts) Ready to despatch 114 Need more? Please call us.
Thread hand Left d1
tol. H7 5 l1 33 d2 M5 d3 18 l2 19 a
° 13 l3 42 w1 8 w2 6.00 Static load C0
max.
kN 3.9 | ||||||||||||||||||||||||||||||
| 65704.W0506 | Left | 6 | 36 | M6 | 20 | 21 | 13 | 46 | 9 | 6.75 | 6.0 | |||||||||||||||||||
£ 10.17 per unit (click for quantity discounts) Ready to despatch 686 Need more? Please call us.
Thread hand Left d1
tol. H7 6 l1 36 d2 M6 d3 20 l2 21 a
° 13 l3 46 w1 9 w2 6.75 Static load C0
max.
kN 6.0 | ||||||||||||||||||||||||||||||
| 65704.W0508 | Left | 8 | 42 | M8 | 24 | 25 | 14 | 54 | 12 | 9.00 | 10.0 | |||||||||||||||||||
£ 9.04 per unit (click for quantity discounts) Ready to despatch 368 Need more? Please call us.
Thread hand Left d1
tol. H7 8 l1 42 d2 M8 d3 24 l2 25 a
° 14 l3 54 w1 12 w2 9.00 Static load C0
max.
kN 10.0 | ||||||||||||||||||||||||||||||
| 65704.W0510 | Left | 10 | 48 | M10 | 28 | 28 | 13 | 62 | 14 | 10.50 | 16.0 | |||||||||||||||||||
£ 13.52 per unit (click for quantity discounts) Ready to despatch 18 Need more? Please call us.
Thread hand Left d1
tol. H7 10 l1 48 d2 M10 d3 28 l2 28 a
° 13 l3 62 w1 14 w2 10.50 Static load C0
max.
kN 16.0 | ||||||||||||||||||||||||||||||
| 65704.W0512 | Left | 12 | 54 | M12 | 32 | 32 | 13 | 70 | 16 | 12.00 | 23.0 | |||||||||||||||||||
£ 16.35 per unit (click for quantity discounts) Ready to despatch 302 Need more? Please call us.
Thread hand Left d1
tol. H7 12 l1 54 d2 M12 d3 32 l2 32 a
° 13 l3 70 w1 16 w2 12.00 Static load C0
max.
kN 23.0 | ||||||||||||||||||||||||||||||
| 65704.W0516 | Left | 16 | 66 | M16 | 42 | 37 | 15 | 87 | 21 | 15.00 | 44.0 | |||||||||||||||||||
£ 22.24 per unit (click for quantity discounts) Ready to despatch 654 Need more? Please call us.
Thread hand Left d1
tol. H7 16 l1 66 d2 M16 d3 42 l2 37 a
° 15 l3 87 w1 21 w2 15.00 Static load C0
max.
kN 44.0 | ||||||||||||||||||||||||||||||
Technical & Application
Material
Ball: low carbon steel, surface hardened. Silver zinc plated.
Housing: low carbon steel, zinc plated for corrosion resistance.
Bearing race: teflon.
Brass bearing with PTFE composite lining.
Technical Notes
Standard thread is right hand thread.
Product Datasheets
CAD files
