33248 Locating Bushes
for ball lock pins, material: Stainless steel
Alternative products you may wish to consider

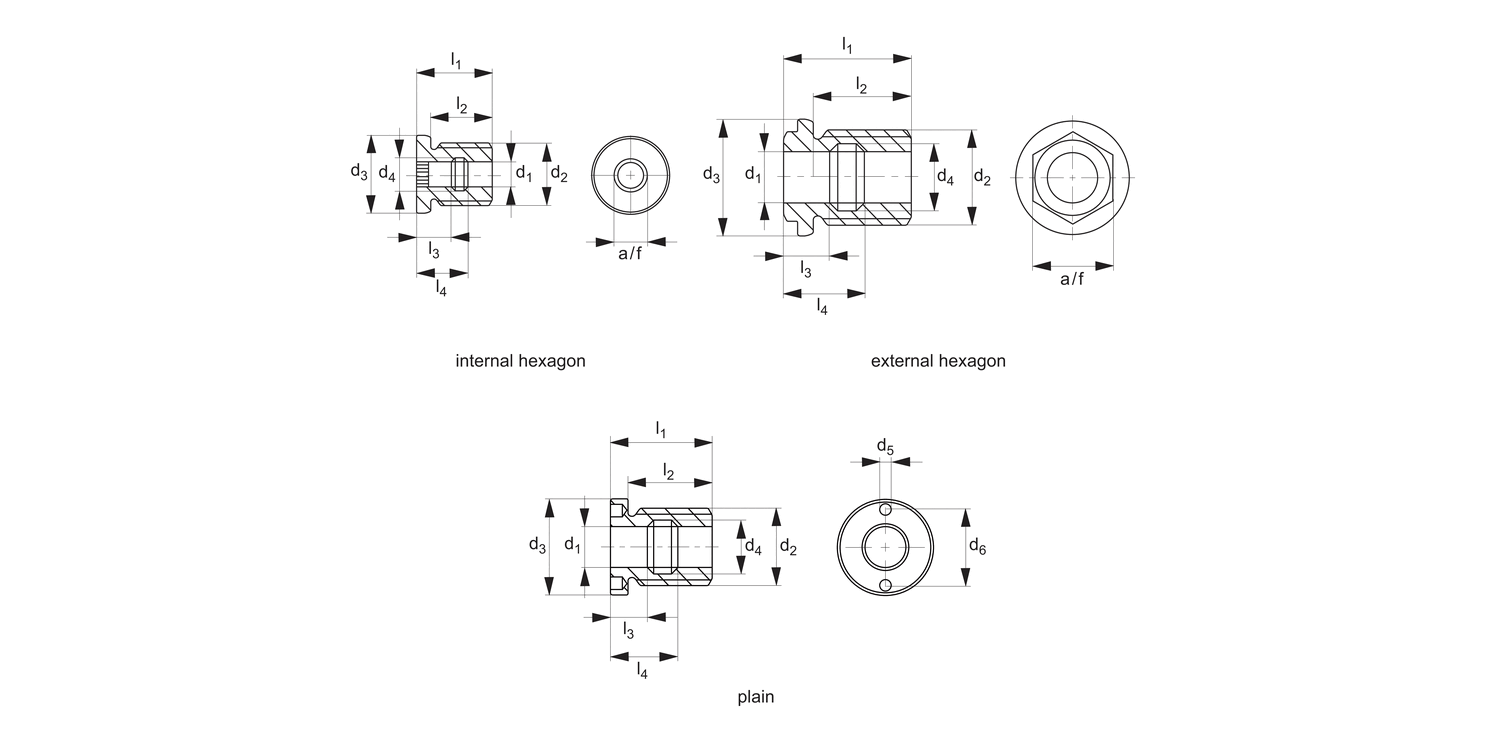

Type
d1
tol. H11
d2
d3
tol. h9
d4
d5
d6
| Price & Availability | Article | Type | d1 tol. H11 | d2 | d3 tol. h9 | d4 | d5 | d6 | ||||||||||||||||||
| 33248.W0906 | Int Hex | 6 | M12 | 18 | 7.5 | - | - | |||||||||||||||||||
£ 19.87 per unit (click for quantity discounts) Ready to despatch 12 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Int Hex d1
tol. H11 6 d2 M12 d3
tol. h9 18 d4 7.5 d5 - d6 - | ||||||||||||||||||||||||||
| 33248.W0910 | Int Hex | 10 | M24 | 30 | 12.5 | - | - | |||||||||||||||||||
£ 34.03 per unit (click for quantity discounts) Ready to despatch 22 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Int Hex d1
tol. H11 10 d2 M24 d3
tol. h9 30 d4 12.5 d5 - d6 - | ||||||||||||||||||||||||||
| 33248.W0912 | Int Hex | 12 | M24 | 30 | 15.0 | - | - | |||||||||||||||||||
£ 35.43 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Int Hex d1
tol. H11 12 d2 M24 d3
tol. h9 30 d4 15.0 d5 - d6 - | ||||||||||||||||||||||||||
Weight
g
l1
l2
l3
l4
l5
l6
A/F
| Price & Availability | Article | Weight g | l1 | l2 | l3 | l4 | l5 | l6 | A/F | ||||||||||||||||||
| 33248.W0906 | 13 | 19 | 15 | 9.4 | 13.0 | 5.6 | 8.8 | 6 | |||||||||||||||||||
£ 19.87 per unit (click for quantity discounts) Ready to despatch 12 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 13 l1 19 l2 15 l3 9.4 l4 13.0 l5 5.6 l6 8.8 A/F 6 | |||||||||||||||||||||||||||
| 33248.W0910 | 75 | 29 | 24 | 13.5 | 19.5 | 8.9 | 14.1 | 10 | |||||||||||||||||||
£ 34.03 per unit (click for quantity discounts) Ready to despatch 22 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 75 l1 29 l2 24 l3 13.5 l4 19.5 l5 8.9 l6 14.1 A/F 10 | |||||||||||||||||||||||||||
| 33248.W0912 | 66 | 29 | 24 | 14 | 20 | 9.6 | 14.4 | 12 | |||||||||||||||||||
£ 35.43 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 66 l1 29 l2 24 l3 14 l4 20 l5 9.6 l6 14.4 A/F 12 | |||||||||||||||||||||||||||
Technical & Application
Material
Body: stainless steel 1.4305. (AISI 303).
Technical Notes
For quick and safe location of single acting ball lock pins - especially in soft materials such as aluminium, or in thin walled components.
Can be used from both sides. Optimised centering due to precision collar on bush.
Important Notes

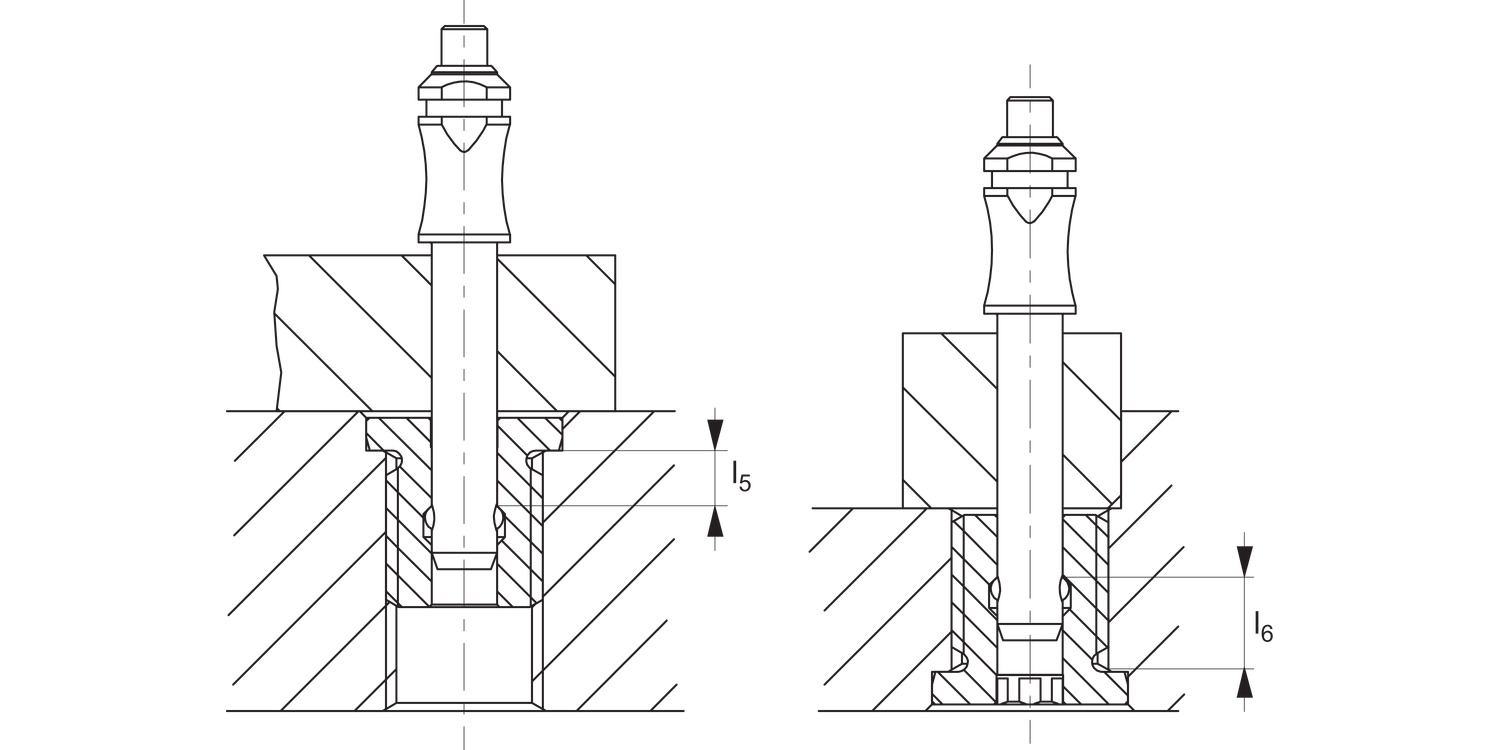

l5 and l6 refer to depths of ball locating recess when bush is installed flange collar up, or flange collar inverted (see diagram below).
Use pin face spanner with 5mm pin to install pin mount bushings.
Product Datasheets
CAD files

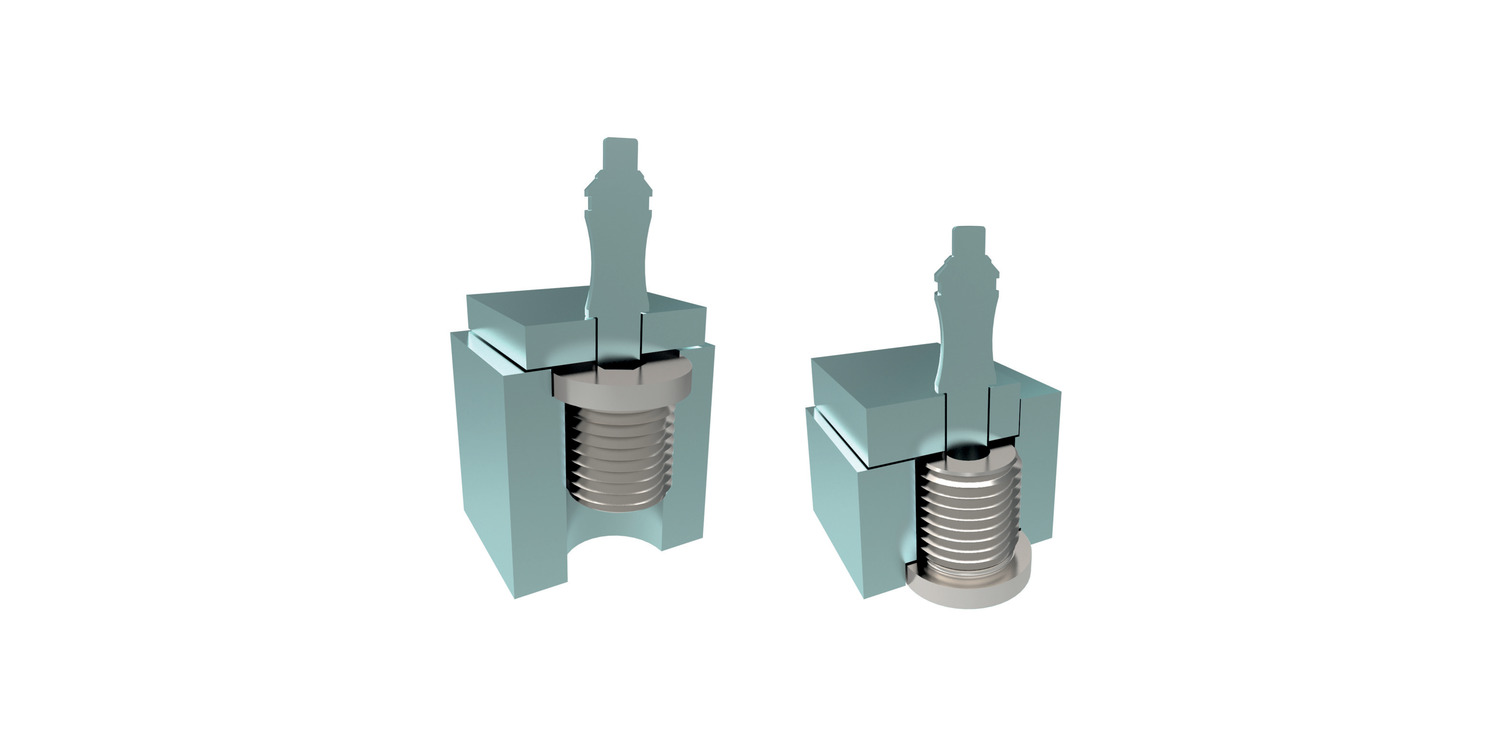

Application images
