Threaded Lock Pins
self-locking

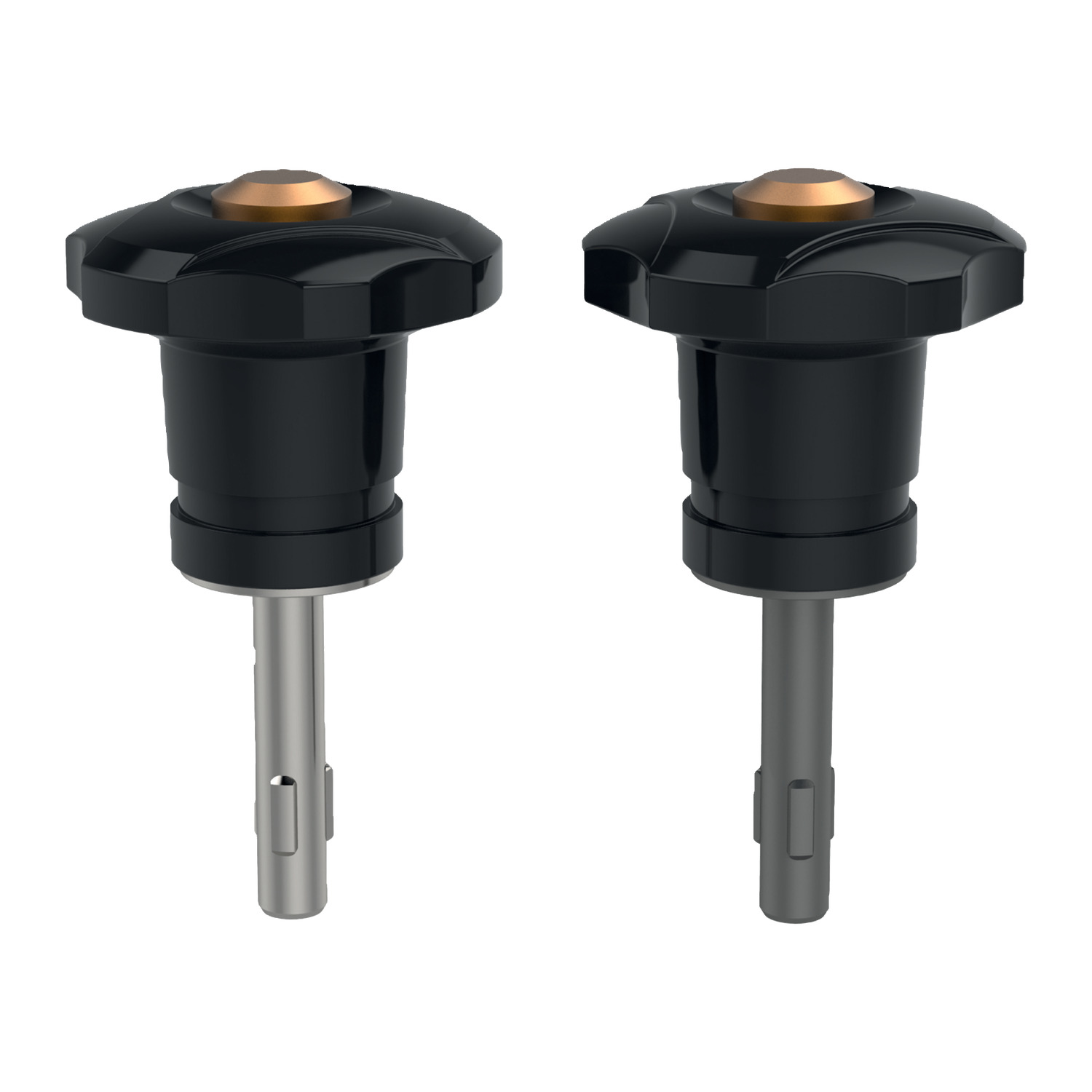

33331 Threaded Lock Pins
self-locking, material: steel or stainless steel
Alternative products you may wish to consider

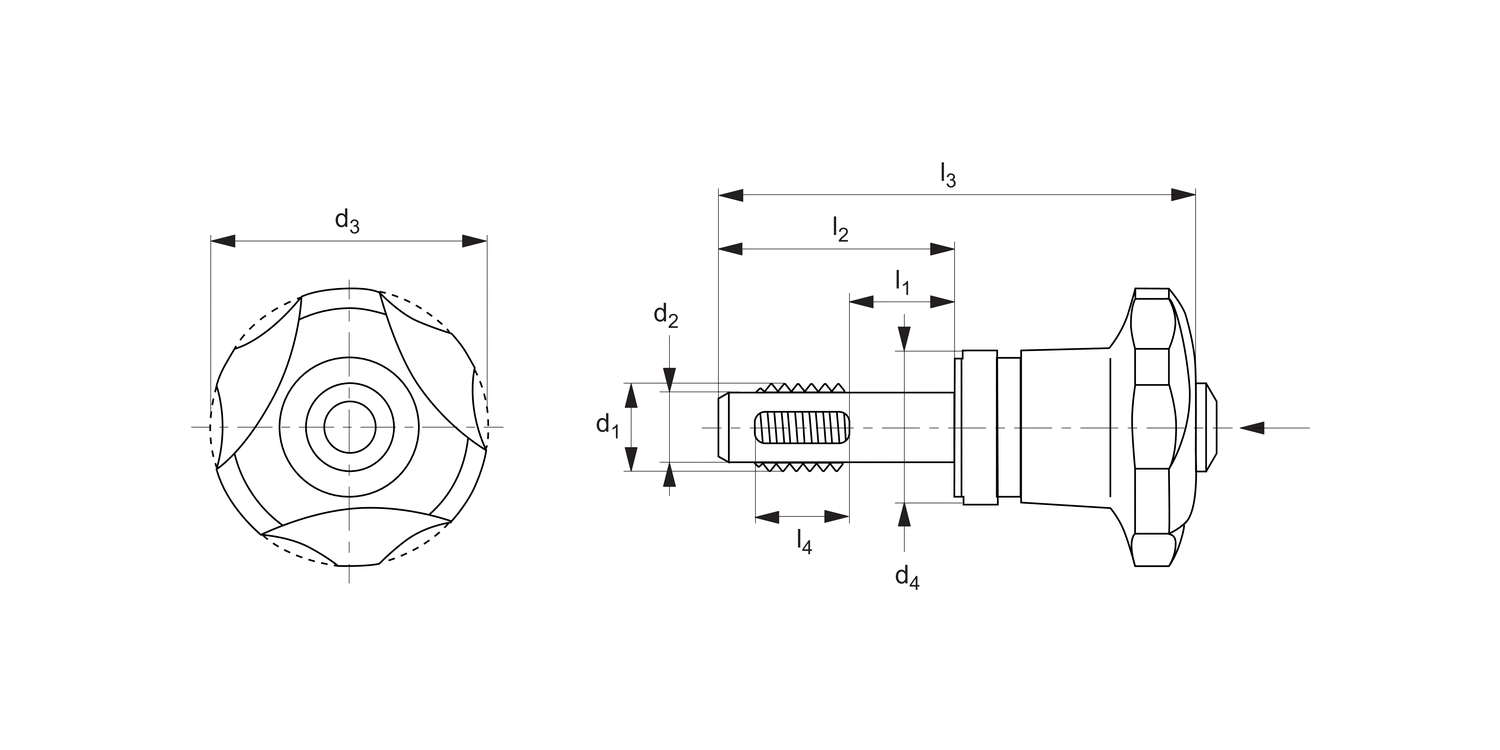

Type
d1
l1
d2
-0.07
d3
d4
| Price & Availability | Article | Type | d1 | l1 | d2 -0.07 | d3 | d4 | ||||||||||||||||||
| 33331.W0102 | Steel | M 8 | 10 | 6.62 | 40 | 21.6 | |||||||||||||||||||
£ 107.43 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M 8 l1 10 d2
-0.07 6.62 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W0104 | Steel | M 8 | 20 | 6.62 | 40 | 21.6 | |||||||||||||||||||
£ 108.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M 8 l1 20 d2
-0.07 6.62 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W0106 | Steel | M 8 | 30 | 6.62 | 40 | 21.6 | |||||||||||||||||||
£ 109.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M 8 l1 30 d2
-0.07 6.62 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W0202 | Steel | M10 | 10 | 8.35 | 40 | 21.6 | |||||||||||||||||||
£ 111.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M10 l1 10 d2
-0.07 8.35 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W0204 | Steel | M10 | 20 | 8.35 | 40 | 21.6 | |||||||||||||||||||
£ 112.49 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M10 l1 20 d2
-0.07 8.35 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W0206 | Steel | M10 | 30 | 8.35 | 40 | 21.6 | |||||||||||||||||||
£ 113.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M10 l1 30 d2
-0.07 8.35 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W0303 | Steel | M12 | 15 | 10.07 | 40 | 21.6 | |||||||||||||||||||
£ 115.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M12 l1 15 d2
-0.07 10.07 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W0306 | Steel | M12 | 30 | 10.07 | 40 | 21.6 | |||||||||||||||||||
£ 116.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M12 l1 30 d2
-0.07 10.07 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W0310 | Steel | M12 | 50 | 10.07 | 40 | 21.6 | |||||||||||||||||||
£ 117.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M12 l1 50 d2
-0.07 10.07 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W0503 | Steel | M16 | 15 | 13.80 | 40 | 21.6 | |||||||||||||||||||
£ 130.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M16 l1 15 d2
-0.07 13.80 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W0506 | Steel | M16 | 30 | 13.80 | 40 | 21.6 | |||||||||||||||||||
£ 131.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M16 l1 30 d2
-0.07 13.80 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W0510 | Steel | M16 | 50 | 13.80 | 40 | 21.6 | |||||||||||||||||||
£ 132.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Steel d1 M16 l1 50 d2
-0.07 13.80 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W1102 | Stainless Steel | M 8 | 10 | 6.62 | 40 | 21.6 | |||||||||||||||||||
£ 123.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel d1 M 8 l1 10 d2
-0.07 6.62 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W1104 | Stainless Steel | M 8 | 20 | 6.62 | 40 | 21.6 | |||||||||||||||||||
£ 125.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel d1 M 8 l1 20 d2
-0.07 6.62 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W1106 | Stainless Steel | M 8 | 30 | 6.62 | 40 | 21.6 | |||||||||||||||||||
£ 127.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel d1 M 8 l1 30 d2
-0.07 6.62 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W1202 | Stainless Steel | M10 | 10 | 8.35 | 40 | 21.6 | |||||||||||||||||||
£ 131.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel d1 M10 l1 10 d2
-0.07 8.35 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W1204 | Stainless Steel | M10 | 20 | 8.35 | 40 | 21.6 | |||||||||||||||||||
£ 134.52 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel d1 M10 l1 20 d2
-0.07 8.35 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W1206 | Stainless Steel | M10 | 30 | 8.35 | 40 | 21.6 | |||||||||||||||||||
£ 137.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel d1 M10 l1 30 d2
-0.07 8.35 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W1303 | Stainless Steel | M12 | 15 | 10.07 | 40 | 21.6 | |||||||||||||||||||
£ 143.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel d1 M12 l1 15 d2
-0.07 10.07 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W1306 | Stainless Steel | M12 | 30 | 10.07 | 40 | 21.6 | |||||||||||||||||||
£ 145.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel d1 M12 l1 30 d2
-0.07 10.07 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W1310 | Stainless Steel | M12 | 50 | 10.07 | 40 | 21.6 | |||||||||||||||||||
£ 148.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel d1 M12 l1 50 d2
-0.07 10.07 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W1503 | Stainless Steel | M16 | 15 | 13.80 | 40 | 21.6 | |||||||||||||||||||
£ 172.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel d1 M16 l1 15 d2
-0.07 13.80 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W1506 | Stainless Steel | M16 | 30 | 13.80 | 40 | 21.6 | |||||||||||||||||||
£ 175.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel d1 M16 l1 30 d2
-0.07 13.80 d3 40 d4 21.6 | |||||||||||||||||||||||||
| 33331.W1510 | Stainless Steel | M16 | 50 | 13.80 | 40 | 21.6 | |||||||||||||||||||
£ 178.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Stainless Steel d1 M16 l1 50 d2
-0.07 13.80 d3 40 d4 21.6 | |||||||||||||||||||||||||
Weight
g
l2
l3
l4
Locating thread
Temp. resistance
min.
°C
Temp. resistance
max.
°C
Torque to
max.
Nm
Shearing resistance two-shear
min.
kN
| Price & Availability | Article | Weight g | l2 | l3 | l4 | Locating thread | Temp. resistance min. °C | Temp. resistance max. °C | Torque to max. Nm | Shearing resistance two-shear min. kN | ||||||||||||||||||
| 33331.W0102 | 40 | 23.8 | 58.4 | 8 | M 8 | -30 | 80 | 5 | 12.7 | |||||||||||||||||||
£ 107.43 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 40 l2 23.8 l3 58.4 l4 8 Locating thread M 8 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 12.7 | ||||||||||||||||||||||||||||
| 33331.W0104 | 42 | 33.8 | 68.4 | 8 | M 8 | -30 | 80 | 5 | 12.7 | |||||||||||||||||||
£ 108.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 42 l2 33.8 l3 68.4 l4 8 Locating thread M 8 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 12.7 | ||||||||||||||||||||||||||||
| 33331.W0106 | 45 | 43.8 | 78.4 | 8 | M 8 | -30 | 80 | 5 | 12.7 | |||||||||||||||||||
£ 109.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 45 l2 43.8 l3 78.4 l4 8 Locating thread M 8 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 12.7 | ||||||||||||||||||||||||||||
| 33331.W0202 | 44 | 26.0 | 60.6 | 10 | M10 | -30 | 80 | 5 | 20.6 | |||||||||||||||||||
£ 111.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 44 l2 26.0 l3 60.6 l4 10 Locating thread M10 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 20.6 | ||||||||||||||||||||||||||||
| 33331.W0204 | 48 | 36.0 | 70.6 | 10 | M10 | -30 | 80 | 5 | 20.6 | |||||||||||||||||||
£ 112.49 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 48 l2 36.0 l3 70.6 l4 10 Locating thread M10 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 20.6 | ||||||||||||||||||||||||||||
| 33331.W0206 | 52 | 46.0 | 80.6 | 10 | M10 | -30 | 80 | 5 | 20.6 | |||||||||||||||||||
£ 113.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 52 l2 46.0 l3 80.6 l4 10 Locating thread M10 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 20.6 | ||||||||||||||||||||||||||||
| 33331.W0303 | 53 | 34.0 | 68.6 | 12 | M12 | -30 | 80 | 5 | 30.4 | |||||||||||||||||||
£ 115.32 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 53 l2 34.0 l3 68.6 l4 12 Locating thread M12 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 30.4 | ||||||||||||||||||||||||||||
| 33331.W0306 | 62 | 49.0 | 83.6 | 12 | M12 | -30 | 80 | 5 | 30.4 | |||||||||||||||||||
£ 116.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 62 l2 49.0 l3 83.6 l4 12 Locating thread M12 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 30.4 | ||||||||||||||||||||||||||||
| 33331.W0310 | 74 | 69.0 | 103.6 | 12 | M12 | -30 | 80 | 5 | 30.4 | |||||||||||||||||||
£ 117.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 74 l2 69.0 l3 103.6 l4 12 Locating thread M12 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 30.4 | ||||||||||||||||||||||||||||
| 33331.W0503 | 70 | 34.0 | 68.6 | 12 | M16 | -30 | 80 | 5 | 62.9 | |||||||||||||||||||
£ 130.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 70 l2 34.0 l3 68.6 l4 12 Locating thread M16 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 62.9 | ||||||||||||||||||||||||||||
| 33331.W0506 | 87 | 49.0 | 83.6 | 12 | M16 | -30 | 80 | 5 | 62.9 | |||||||||||||||||||
£ 131.30 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 87 l2 49.0 l3 83.6 l4 12 Locating thread M16 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 62.9 | ||||||||||||||||||||||||||||
| 33331.W0510 | 109 | 69.0 | 103.6 | 12 | M16 | -30 | 80 | 5 | 62.9 | |||||||||||||||||||
£ 132.78 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 109 l2 69.0 l3 103.6 l4 12 Locating thread M16 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 62.9 | ||||||||||||||||||||||||||||
| 33331.W1102 | 40 | 23.8 | 58.4 | 8 | M 8 | -30 | 80 | 5 | 16.7 | |||||||||||||||||||
£ 123.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 40 l2 23.8 l3 58.4 l4 8 Locating thread M 8 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 16.7 | ||||||||||||||||||||||||||||
| 33331.W1104 | 42 | 33.8 | 68.4 | 8 | M 8 | -30 | 80 | 5 | 16.7 | |||||||||||||||||||
£ 125.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 42 l2 33.8 l3 68.4 l4 8 Locating thread M 8 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 16.7 | ||||||||||||||||||||||||||||
| 33331.W1106 | 45 | 43.8 | 78.4 | 8 | M 8 | -30 | 80 | 5 | 16.7 | |||||||||||||||||||
£ 127.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 45 l2 43.8 l3 78.4 l4 8 Locating thread M 8 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 16.7 | ||||||||||||||||||||||||||||
| 33331.W1202 | 44 | 26.0 | 60.6 | 10 | M10 | -30 | 80 | 5 | 27.1 | |||||||||||||||||||
£ 131.48 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 44 l2 26.0 l3 60.6 l4 10 Locating thread M10 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 27.1 | ||||||||||||||||||||||||||||
| 33331.W1204 | 48 | 36.0 | 70.6 | 10 | M10 | -30 | 80 | 5 | 27.1 | |||||||||||||||||||
£ 134.52 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 48 l2 36.0 l3 70.6 l4 10 Locating thread M10 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 27.1 | ||||||||||||||||||||||||||||
| 33331.W1206 | 52 | 46.0 | 80.6 | 10 | M10 | -30 | 80 | 5 | 27.1 | |||||||||||||||||||
£ 137.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 52 l2 46.0 l3 80.6 l4 10 Locating thread M10 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 27.1 | ||||||||||||||||||||||||||||
| 33331.W1303 | 53 | 34.0 | 68.6 | 12 | M12 | -30 | 80 | 5 | 40.0 | |||||||||||||||||||
£ 143.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 53 l2 34.0 l3 68.6 l4 12 Locating thread M12 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 40.0 | ||||||||||||||||||||||||||||
| 33331.W1306 | 62 | 49.0 | 83.6 | 12 | M12 | -30 | 80 | 5 | 40.0 | |||||||||||||||||||
£ 145.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 62 l2 49.0 l3 83.6 l4 12 Locating thread M12 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 40.0 | ||||||||||||||||||||||||||||
| 33331.W1310 | 74 | 69.0 | 103.6 | 12 | M12 | -30 | 80 | 5 | 40.0 | |||||||||||||||||||
£ 148.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 74 l2 69.0 l3 103.6 l4 12 Locating thread M12 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 40.0 | ||||||||||||||||||||||||||||
| 33331.W1503 | 70 | 34.0 | 68.6 | 12 | M16 | -30 | 80 | 5 | 82.7 | |||||||||||||||||||
£ 172.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 70 l2 34.0 l3 68.6 l4 12 Locating thread M16 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 82.7 | ||||||||||||||||||||||||||||
| 33331.W1506 | 87 | 49.0 | 83.6 | 12 | M16 | -30 | 80 | 5 | 82.7 | |||||||||||||||||||
£ 175.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 87 l2 49.0 l3 83.6 l4 12 Locating thread M16 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 82.7 | ||||||||||||||||||||||||||||
| 33331.W1510 | 109 | 69.0 | 103.6 | 12 | M16 | -30 | 80 | 5 | 82.7 | |||||||||||||||||||
£ 178.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 109 l2 69.0 l3 103.6 l4 12 Locating thread M16 Temp. resistance
min.
°C -30 Temp. resistance
max.
°C 80 Torque to
max.
Nm 5 Shearing resistance two-shear
min.
kN 82.7 | ||||||||||||||||||||||||||||
Technical & Application
Material
Pin: Free cutting steel, manganese phosphated or stainless steel 1.4305 (AISI 303).
Handle: Thermoplastic PA 6, black similar to RAL 9005
Press button: Aluminium, orange, anodised.
Threaded element: stainless steel 1.4542 (AISI 630), precipitation-hardened.
Spring: stainless steel.
Technical Notes
Pressing = unlocking.
Releasing = locking.

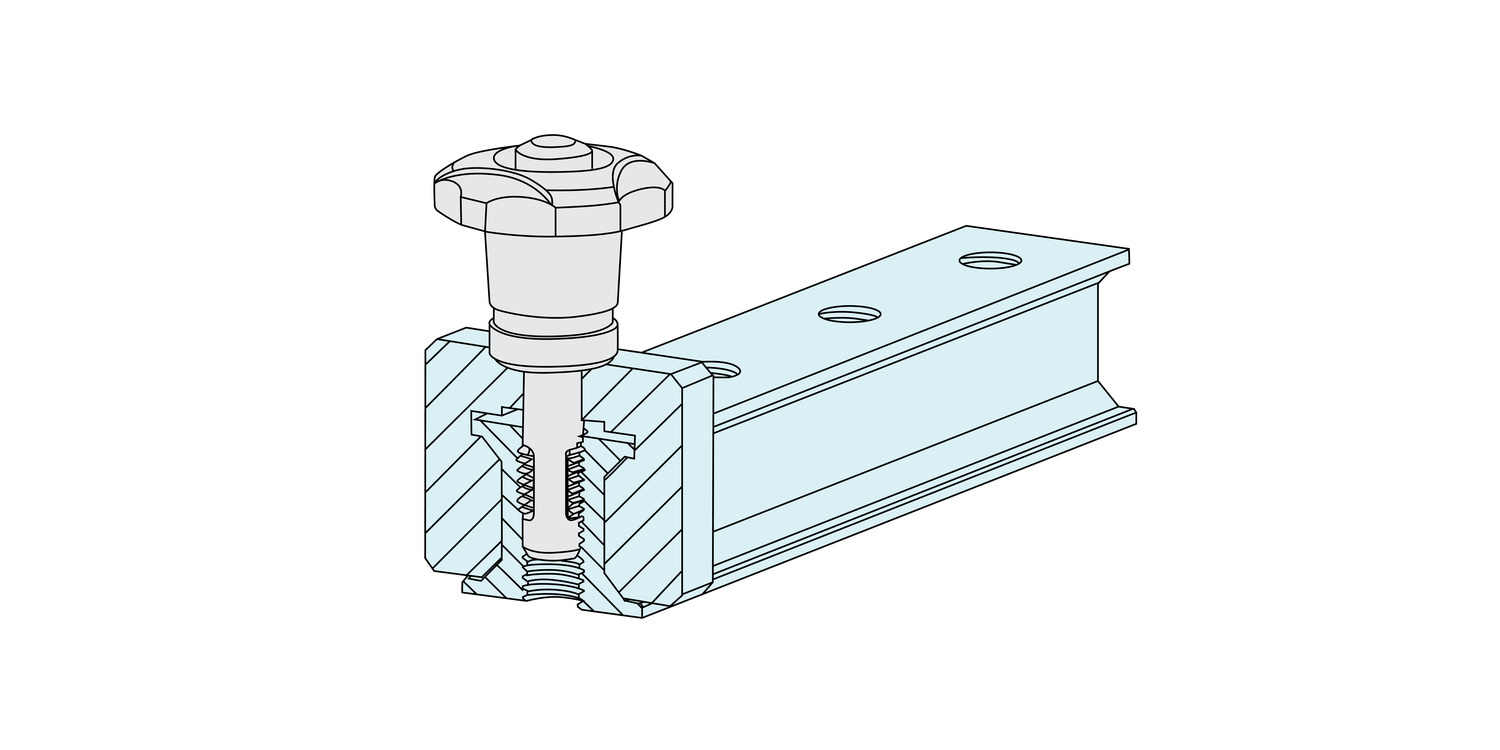

To suit metric course threads. The threaded lock pin can be quickly inserted into a threaded hole, and further tightened up to indicated max. torque reducing both assembly and disassembly times.
Tips
For suitable lanyards see part no. 33268. Lanyards can be used to prevent accidental loss of pin from application.
Product Datasheets
CAD files
Application images
This content is not visible because of your cookie settings.
Wixroyd Group Ltd
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4497
sales@wixroyd.com
Route via Google Maps
Alexia House, Glenmore Business Park
PO19 7BJ Chichester
United Kingdom
0333 207 4497
sales@wixroyd.com
Route via Google Maps
Company registration no: 00496138
Company VAT number GB 408154022
