32504 Index Plungers - T-handle Grip
compact - locking, material: Free cutting steel or stainless steel
Alternative products you may wish to consider
Type
Locking
Material
Steel

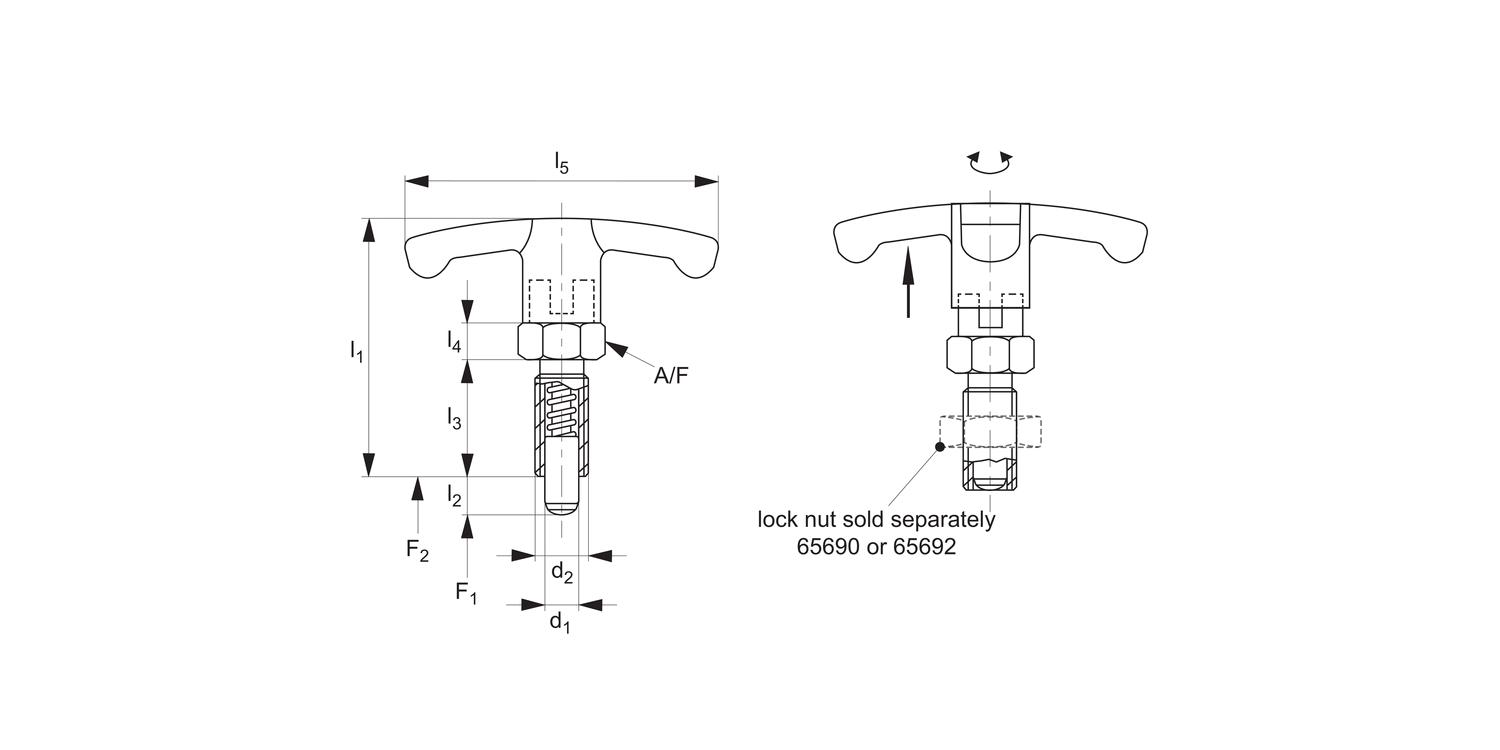

d1
6
l2
6
d2
M12x1,5
l1
48
l3
22
l4
6
l5
54
A/F
14
Spring load F1
≈
N
6.5
Spring load F2
≈
N
19
Weight
g
33.0
£ 15.10 per unit (click for quantity discounts)
Type
Locking
Material
Steel
d1
6
l2
9
d2
M12x1,5
l1
48
l3
22
l4
6
l5
54
A/F
14
Spring load F1
≈
N
6.0
Spring load F2
≈
N
25
Weight
g
34.0
£ 15.10 per unit (click for quantity discounts)
Type
Locking
Material
Steel
d1
8
l2
8
d2
M16x1,5
l1
59
l3
26
l4
8
l5
59
A/F
17
Spring load F1
≈
N
8.5
Spring load F2
≈
N
26
Weight
g
68.0
£ 17.34 per unit (click for quantity discounts)
Type
Locking
Material
Steel
d1
8
l2
12
d2
M16x1,5
l1
59
l3
26
l4
8
l5
59
A/F
17
Spring load F1
≈
N
8.5
Spring load F2
≈
N
28
Weight
g
71.0
£ 18.12 per unit (click for quantity discounts)
Type
Locking
Material
Steel
d1
10
l2
12
d2
M16x1,5
l1
59
l3
26
l4
8
l5
59
A/F
17
Spring load F1
≈
N
9.5
Spring load F2
≈
N
38
Weight
g
72.0
£ 18.12 per unit (click for quantity discounts)
Type
Locking
Material
Steel
d1
12
l2
15
d2
M20x1,5
l1
68
l3
33
l4
10
l5
59
A/F
22
Spring load F1
≈
N
11.5
Spring load F2
≈
N
40
Weight
g
127.0
£ 27.42 per unit (click for quantity discounts)
Type
Locking
Material
Stainless
d1
6
l2
6
d2
M12x1,5
l1
48
l3
22
l4
6
l5
54
A/F
14
Spring load F1
≈
N
6.5
Spring load F2
≈
N
19
Weight
g
33.0
£ 22.52 per unit (click for quantity discounts)
Type
Locking
Material
Stainless
d1
6
l2
9
d2
M12x1,5
l1
48
l3
22
l4
6
l5
54
A/F
14
Spring load F1
≈
N
6.0
Spring load F2
≈
N
25
Weight
g
34.0
£ 22.52 per unit (click for quantity discounts)
Type
Locking
Material
Stainless
d1
8
l2
8
d2
M16x1,5
l1
59
l3
26
l4
8
l5
59
A/F
17
Spring load F1
≈
N
8.5
Spring load F2
≈
N
26
Weight
g
68.0
£ 30.50 per unit (click for quantity discounts)
Type
Locking
Material
Stainless
d1
8
l2
12
d2
M16x1,5
l1
59
l3
26
l4
8
l5
59
A/F
17
Spring load F1
≈
N
8.5
Spring load F2
≈
N
28
Weight
g
71.0
£ 30.50 per unit (click for quantity discounts)
Type
Locking
Material
Stainless
d1
10
l2
12
d2
M16x1,5
l1
59
l3
26
l4
8
l5
59
A/F
17
Spring load F1
≈
N
9.5
Spring load F2
≈
N
38
Weight
g
72.0
£ 30.50 per unit (click for quantity discounts)
Type
Locking
Material
Stainless
d1
12
l2
15
d2
M20x1,5
l1
68
l3
33
l4
10
l5
59
A/F
22
Spring load F1
≈
N
11.5
Spring load F2
≈
N
40
Weight
g
127.0
£ 47.84 per unit (click for quantity discounts)
Type
Material
d1
l2
d2
l1
l3
l4
l5
A/F
Spring load F1
≈
N
Spring load F2
≈
N
Weight
g
| Price & Availability | Article | Type | Material | d1 | l2 | d2 | l1 | l3 | l4 | l5 | A/F | Spring load F1 ≈ N | Spring load F2 ≈ N | Weight g | ||||||||||||||||||
| 32504.W0832 | Locking | Steel | 6 | 6 | M12x1,5 | 48 | 22 | 6 | 54 | 14 | 6.5 | 19 | 33.0 | |||||||||||||||||||
£ 15.10 per unit (click for quantity discounts) Ready to despatch 78 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking Material Steel d1 6 l2 6 d2 M12x1,5 l1 48 l3 22 l4 6 l5 54 A/F 14 Spring load F1
≈
N 6.5 Spring load F2
≈
N 19 Weight
g 33.0 | ||||||||||||||||||||||||||||||||
| 32504.W0834 | Locking | Steel | 6 | 9 | M12x1,5 | 48 | 22 | 6 | 54 | 14 | 6.0 | 25 | 34.0 | |||||||||||||||||||
£ 15.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking Material Steel d1 6 l2 9 d2 M12x1,5 l1 48 l3 22 l4 6 l5 54 A/F 14 Spring load F1
≈
N 6.0 Spring load F2
≈
N 25 Weight
g 34.0 | ||||||||||||||||||||||||||||||||
| 32504.W0836 | Locking | Steel | 8 | 8 | M16x1,5 | 59 | 26 | 8 | 59 | 17 | 8.5 | 26 | 68.0 | |||||||||||||||||||
£ 17.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking Material Steel d1 8 l2 8 d2 M16x1,5 l1 59 l3 26 l4 8 l5 59 A/F 17 Spring load F1
≈
N 8.5 Spring load F2
≈
N 26 Weight
g 68.0 | ||||||||||||||||||||||||||||||||
| 32504.W0838 | Locking | Steel | 8 | 12 | M16x1,5 | 59 | 26 | 8 | 59 | 17 | 8.5 | 28 | 71.0 | |||||||||||||||||||
£ 18.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking Material Steel d1 8 l2 12 d2 M16x1,5 l1 59 l3 26 l4 8 l5 59 A/F 17 Spring load F1
≈
N 8.5 Spring load F2
≈
N 28 Weight
g 71.0 | ||||||||||||||||||||||||||||||||
| 32504.W0840 | Locking | Steel | 10 | 12 | M16x1,5 | 59 | 26 | 8 | 59 | 17 | 9.5 | 38 | 72.0 | |||||||||||||||||||
£ 18.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking Material Steel d1 10 l2 12 d2 M16x1,5 l1 59 l3 26 l4 8 l5 59 A/F 17 Spring load F1
≈
N 9.5 Spring load F2
≈
N 38 Weight
g 72.0 | ||||||||||||||||||||||||||||||||
| 32504.W0842 | Locking | Steel | 12 | 15 | M20x1,5 | 68 | 33 | 10 | 59 | 22 | 11.5 | 40 | 127.0 | |||||||||||||||||||
£ 27.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking Material Steel d1 12 l2 15 d2 M20x1,5 l1 68 l3 33 l4 10 l5 59 A/F 22 Spring load F1
≈
N 11.5 Spring load F2
≈
N 40 Weight
g 127.0 | ||||||||||||||||||||||||||||||||
| 32504.W0932 | Locking | Stainless | 6 | 6 | M12x1,5 | 48 | 22 | 6 | 54 | 14 | 6.5 | 19 | 33.0 | |||||||||||||||||||
£ 22.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking Material Stainless d1 6 l2 6 d2 M12x1,5 l1 48 l3 22 l4 6 l5 54 A/F 14 Spring load F1
≈
N 6.5 Spring load F2
≈
N 19 Weight
g 33.0 | ||||||||||||||||||||||||||||||||
| 32504.W0934 | Locking | Stainless | 6 | 9 | M12x1,5 | 48 | 22 | 6 | 54 | 14 | 6.0 | 25 | 34.0 | |||||||||||||||||||
£ 22.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking Material Stainless d1 6 l2 9 d2 M12x1,5 l1 48 l3 22 l4 6 l5 54 A/F 14 Spring load F1
≈
N 6.0 Spring load F2
≈
N 25 Weight
g 34.0 | ||||||||||||||||||||||||||||||||
| 32504.W0936 | Locking | Stainless | 8 | 8 | M16x1,5 | 59 | 26 | 8 | 59 | 17 | 8.5 | 26 | 68.0 | |||||||||||||||||||
£ 30.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking Material Stainless d1 8 l2 8 d2 M16x1,5 l1 59 l3 26 l4 8 l5 59 A/F 17 Spring load F1
≈
N 8.5 Spring load F2
≈
N 26 Weight
g 68.0 | ||||||||||||||||||||||||||||||||
| 32504.W0938 | Locking | Stainless | 8 | 12 | M16x1,5 | 59 | 26 | 8 | 59 | 17 | 8.5 | 28 | 71.0 | |||||||||||||||||||
£ 30.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking Material Stainless d1 8 l2 12 d2 M16x1,5 l1 59 l3 26 l4 8 l5 59 A/F 17 Spring load F1
≈
N 8.5 Spring load F2
≈
N 28 Weight
g 71.0 | ||||||||||||||||||||||||||||||||
| 32504.W0940 | Locking | Stainless | 10 | 12 | M16x1,5 | 59 | 26 | 8 | 59 | 17 | 9.5 | 38 | 72.0 | |||||||||||||||||||
£ 30.50 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking Material Stainless d1 10 l2 12 d2 M16x1,5 l1 59 l3 26 l4 8 l5 59 A/F 17 Spring load F1
≈
N 9.5 Spring load F2
≈
N 38 Weight
g 72.0 | ||||||||||||||||||||||||||||||||
| 32504.W0942 | Locking | Stainless | 12 | 15 | M20x1,5 | 68 | 33 | 10 | 59 | 22 | 11.5 | 40 | 127.0 | |||||||||||||||||||
£ 47.84 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Locking Material Stainless d1 12 l2 15 d2 M20x1,5 l1 68 l3 33 l4 10 l5 59 A/F 22 Spring load F1
≈
N 11.5 Spring load F2
≈
N 40 Weight
g 127.0 | ||||||||||||||||||||||||||||||||
Technical & Application
Material
Free cutting Steel Type-
Body: free cutting steel, blackened.
Pin: steel, hardened.
Grip: thermplastic PA6, black, dull.
Stainless Steel Type-
Body: stainless steel 1.4305 (AISI 303).
Pin: stainless steel 1.4305 (AISI 303), nickel plated.
Grip: thermosplastic PA6, black, dull.
Technical Notes
T-handle grip makes for improved handling, especialy when operator is using safety gloves etc.
Thread recess on body allows full engagement of thread length. Hexagon collar improves leverage for secure installation.
"Locking" type- enable pin to be held in retracted/non-projecting position; pull back grip, turn 90º to engage 'locking' on a notched catch.
Lock nuts sold separately. See products 65690 and 65692
Tips
Distance collars no. 32750 can be used to adapt screw length.
Grip non-removable.
Spring loads* = statistical average.
