Spring Plungers
round pin & hex. socket
32150 Spring Plungers
with round-ended pin & slot - stainless steel or steel, material: Stainless Steel or Steel
Order No.
32150.W0104
Material
Steel
Spring load
Normal

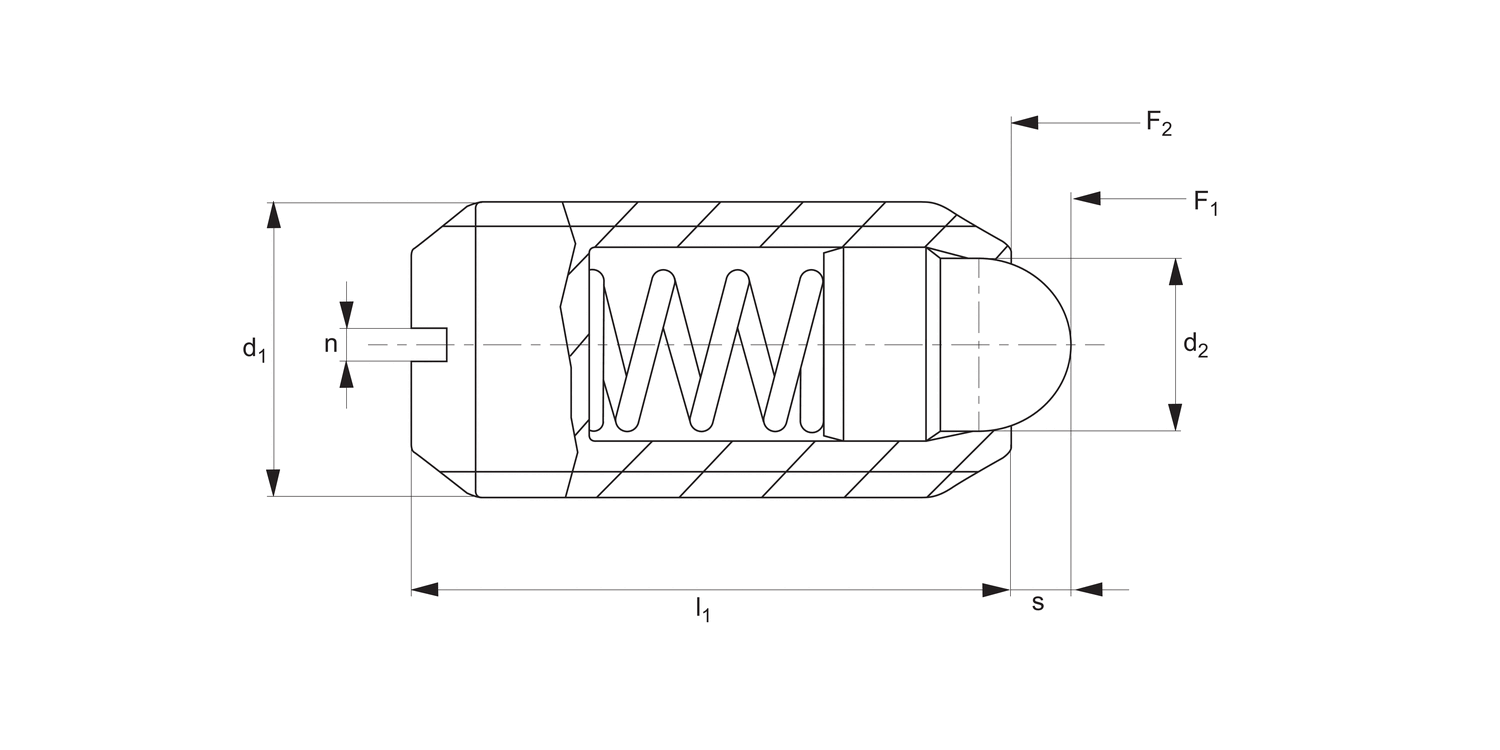

d1
M 4
d2
1.8
l1
9
n1
0.6
s1
1.5
Spring load F1
≈
N
4.5
Spring load F2
≈
N
12.5
Weight
g
0.4
£ 2.58 per unit (click for quantity discounts)
Ready to despatch 86
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 2.58 | 0% |
| 20-49 | £ 2.32 | 10% |
| 50-99 | £ 2.19 | 15% |
| 100-499 | £ 1.94 | 25% |
| 500+ | £ 1.68 | 35% |
Technical & Application
Material
Free cutting steel type-
Body: free cutting steel, blackened.
Pin: free cutting steel, hardened, blackened.
Spring: stainless steel.
Stainless steel type-
Body: stainless steel 1.4305 (AISI 303).
Pin: stainless steel, 1.4305 (AISI 303).
Spring: stainless steel.
Technical Notes
These spring plungers may be used for location, for applying pressure or lifting off.
Temperature range up to 250ºC. Spring load * = statistical average value.
Tips
Spring load identifier:
Normal spring load - no marking.
Increased spring load - body marked with two lines.
Special types available on request.
Important Notes
All metric Wixroyd spring plungers have a coarse thread, see appendix five for thread details.
