Spring Plungers
round pin & hex. socket
32420 Spring Plungers
long version, material: Steel
Order No.
32420.W0408
Spring load
Normal
d1
M10
d2
4.0
d3
7.8
l1
35
l2
25
n
1.5
s
8
Spring load F1
≈
N
6
Spring load F2
≈
N
16
t
1.4
A/F
3
Weight
g
13
£ 28.66 per unit (click for quantity discounts)
Ready to despatch 8
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 28.66 | 0% |
| 10-14 | £ 25.79 | 10% |
| 15-24 | £ 24.36 | 15% |
| 25-49 | £ 22.93 | 20% |
| 50+ | £ 20.06 | 30% |
Technical & Application
Material
Body: free cutting steel, blackened or heat-treated steel tempered blackened.
Part nos. 32420.W0512 to 32420.W0580 - threaded body bright finish.
Pin: case hardened steel, blackened.
Spring: stainless steel.
Technical Notes

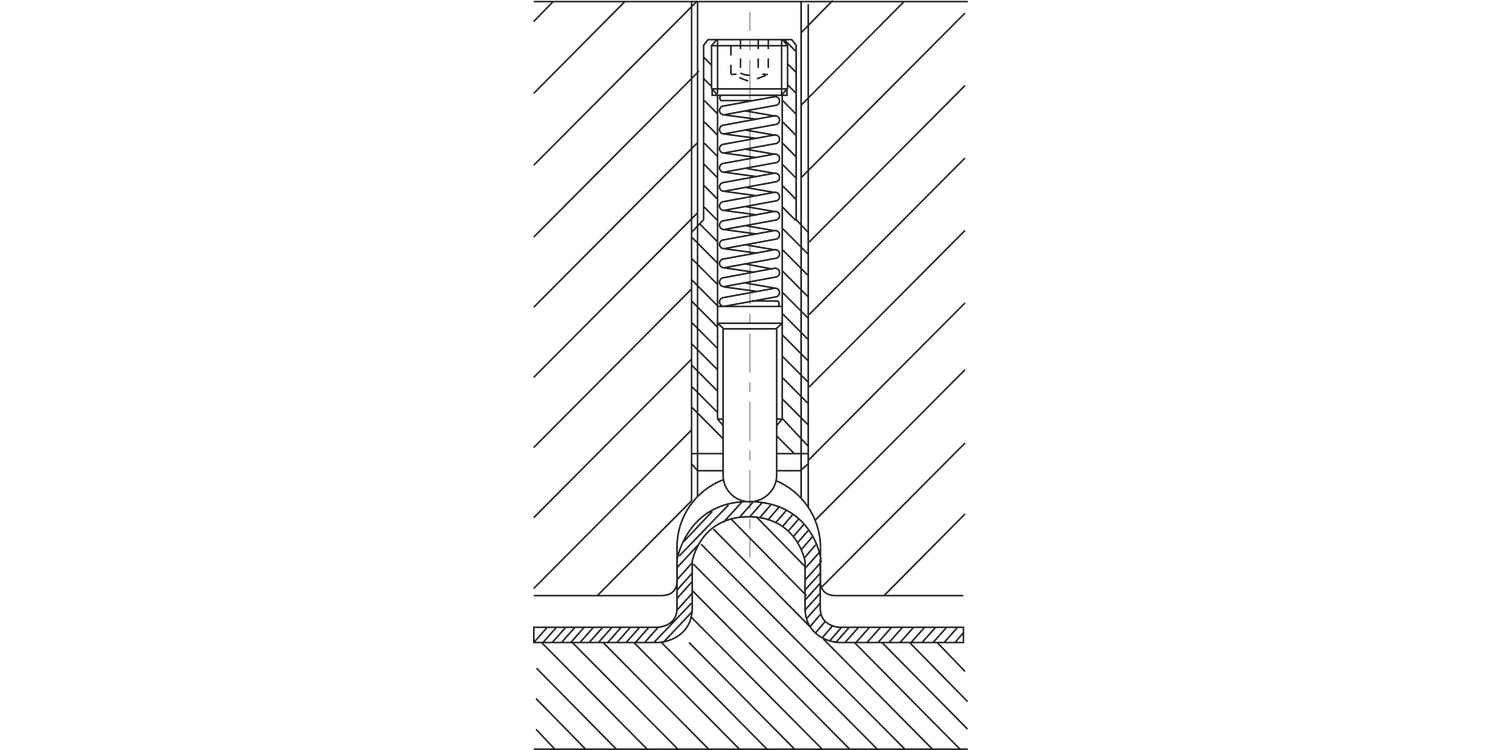

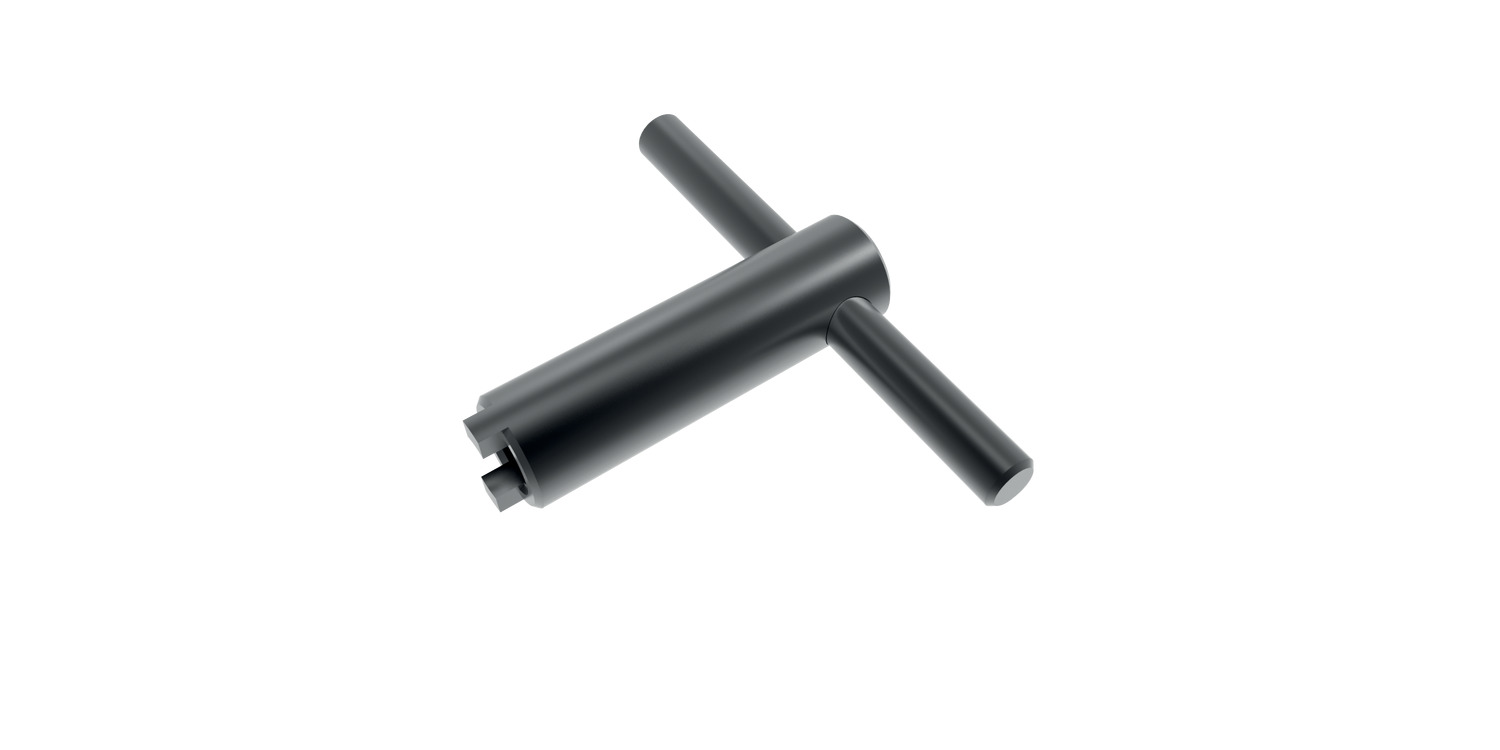

Used for ejecting parts (particularly in press tools), and applying pressure. They are fitted/removed by means of the slot or internal hexagon.
Spring load* = statistical average value.
Tips
Spring Load Identifier:
Normal spring load - no marking.
Increased spring load - body marked with two lines.
Parts 32420.W0408 to 32420.W0580 with thread-lock.
