Tommy Screws
with fixed bar
38100 Tommy Screws
with moveable bar - DIN 6306, material: Steel
Order No.
38100.W0022
Thrust pad
W/o Pad

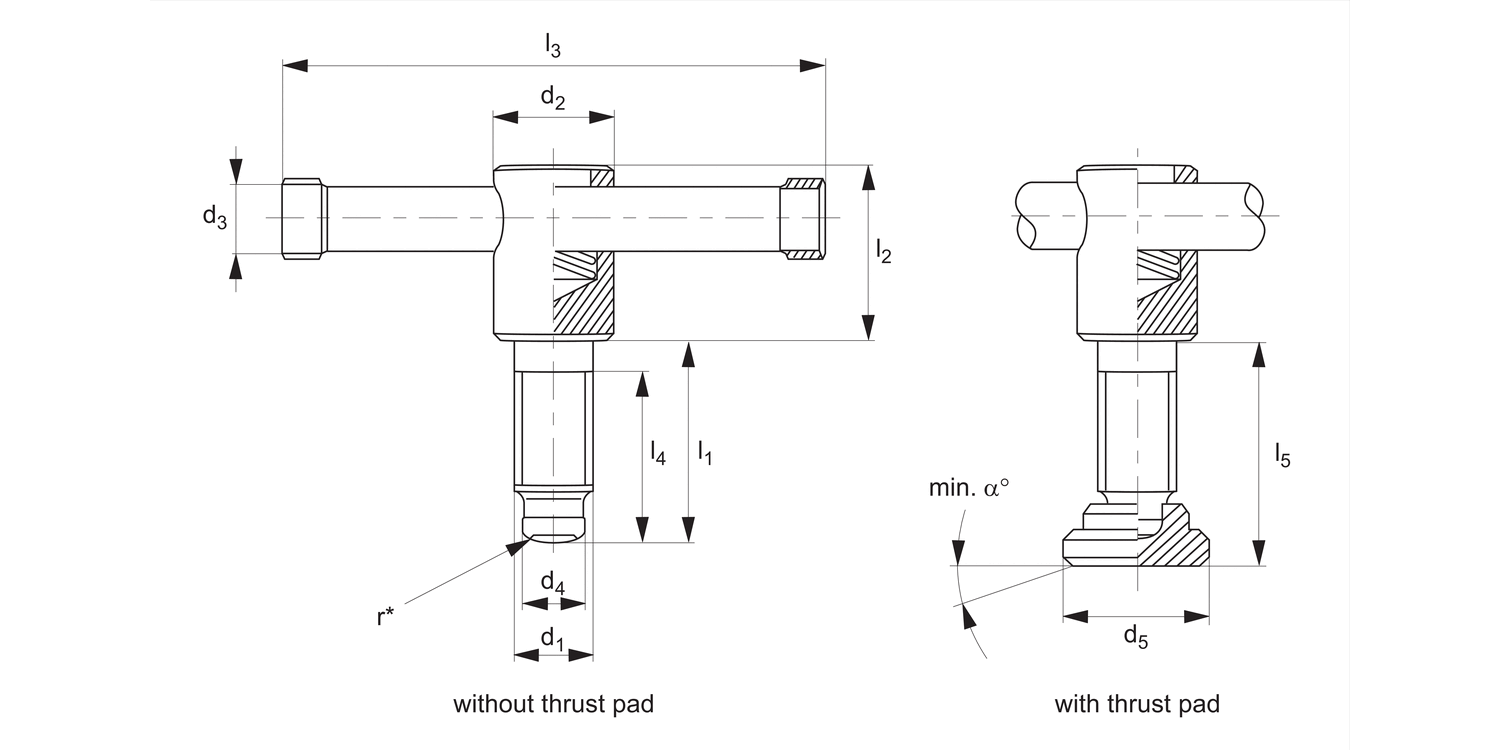

d1
M20
l1
90
d2
30
d3
16
d4
15.5
d5
-
l2
45
l3
140
l4
80
l5
≈
-
α
min.
°
-
Type
w/o Thrust Pad
Weight with pad
g
593
£ 52.53 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 52.53 | 0% |
| 5-9 | £ 49.90 | 5% |
| 10-19 | £ 47.28 | 10% |
| 20-49 | £ 44.65 | 15% |
| 50+ | £ 39.40 | 25% |
Technical & Application
Material
Free-cutting steel, black. Turned, pressure lug hardened, with moveable pin retained by spring.
Technical Notes
To ease assembly minor radius (r*) added outside of DIN standard.
