Base Plate
rectangle

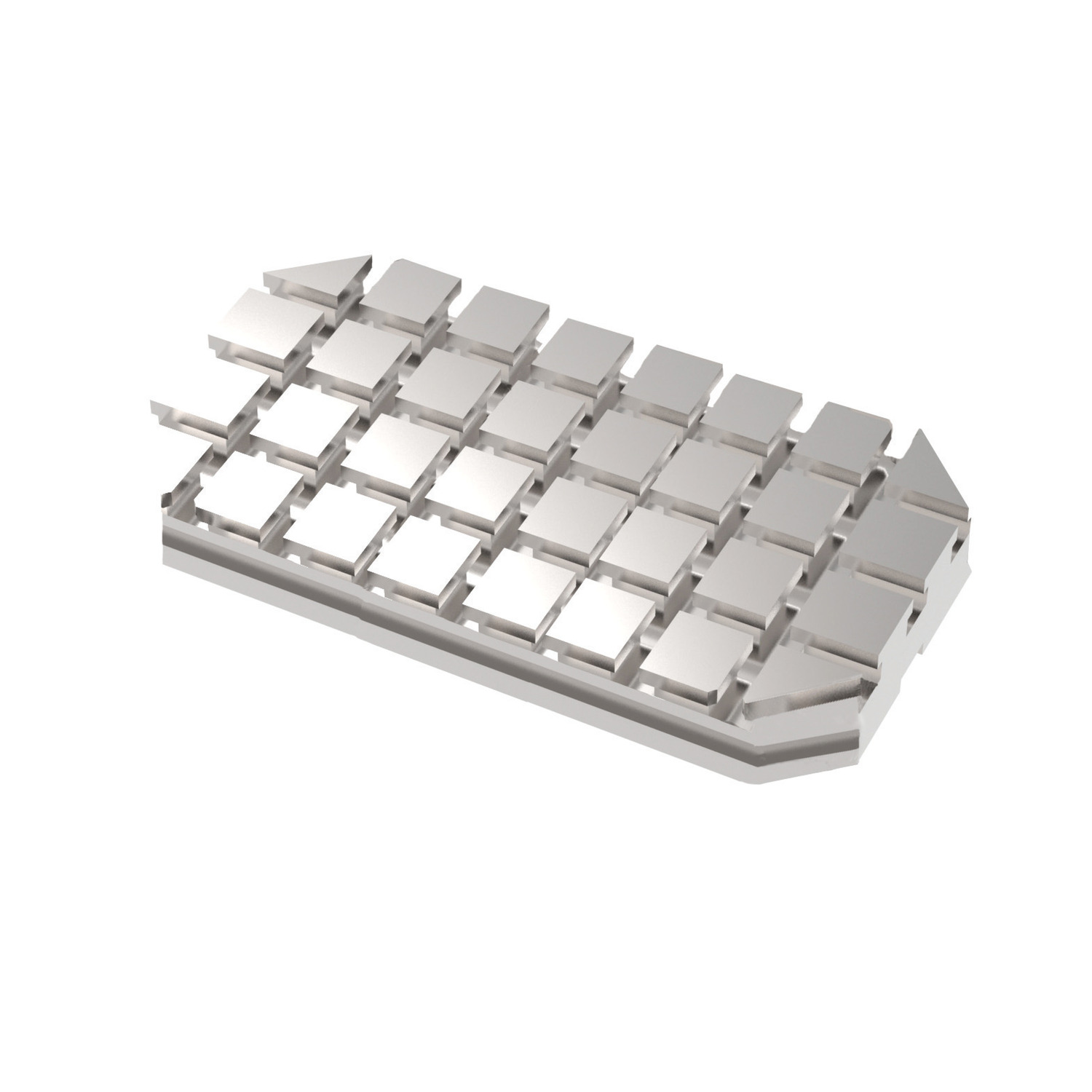

19580 T-Slot Base Plate
rectangular, material: Tool steel
Alternative products you may wish to consider
l1 x w1
420x230
w2
±0.2
100
l2
±0.2
150
l3
70
l4
240
l5
±0,013
150
d1
12
Number of T-slots
3x6
Weight
kg
38
l1 x w1
490x300
w2
±0.2
100
l2
±0.2
200
l3
70
l4
310
l5
±0,013
200
d1
12
Number of T-slots
4x7
Weight
kg
57
l1 x w1
630x370
w2
±0.2
100
l2
±0.2
200
l3
70
l4
350
l5
±0,013
200
d1
12
Number of T-slots
5x9
Weight
kg
92
l1 x w1
w2
±0.2
l2
±0.2
l3
l4
l5
±0,013
d1
Number of T-slots
Weight
kg
| Price & Availability | Article | l1 x w1 | w2 ±0.2 | l2 ±0.2 | l3 | l4 | l5 ±0,013 | d1 | Number of T-slots | Weight kg | ||||||
| 19580.W0300 | 420x230 | 100 | 150 | 70 | 240 | 150 | 12 | 3x6 | 38 | |||||||
Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 x w1 420x230 w2
±0.2 100 l2
±0.2 150 l3 70 l4 240 l5
±0,013 150 d1 12 Number of T-slots 3x6 Weight
kg 38 | ||||||||||||||||
| 19580.W0400 | 490x300 | 100 | 200 | 70 | 310 | 200 | 12 | 4x7 | 57 | |||||||
Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 x w1 490x300 w2
±0.2 100 l2
±0.2 200 l3 70 l4 310 l5
±0,013 200 d1 12 Number of T-slots 4x7 Weight
kg 57 | ||||||||||||||||
| 19580.W0500 | 630x370 | 100 | 200 | 70 | 350 | 200 | 12 | 5x9 | 92 | |||||||
Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
l1 x w1 630x370 w2
±0.2 100 l2
±0.2 200 l3 70 l4 350 l5
±0,013 200 d1 12 Number of T-slots 5x9 Weight
kg 92 | ||||||||||||||||
Technical & Application
Material
High tensile tool steel.
