12454 Compact Wedge Clamps

Name: 12454.W0016
Brand: WC
SKU: 12454.W0016
Price: 38.08 EUR
Availability: OutOfStock

material: Steel

Article properties

Order No.

12454.W0016

Type

Countersunk

l₁ min.

18.5

l₁ max.

21.5

h₁ min.

9.9

h₁ max.

11.4

h₂

0.4

h₃

11.3

w₁

18.4

w₂

w₃

5.3

d₁

M 8x20

A/F

Clamping force max. kN

5.0

Tightening force max. Nm

18.0

Weight g

See full product selection

£ 38.08 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 38.08	0%
10-19	£ 34.27	10%
20-49	£ 32.37	15%
50-99	£ 30.46	20%
100+	£ 26.66	30%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Jaw: alloy steel, black oxide finish, hardness HRC33-39.
Washer: alloy steel, black oxide finish.
O-ring: fluoro rubber.

Technical Notes

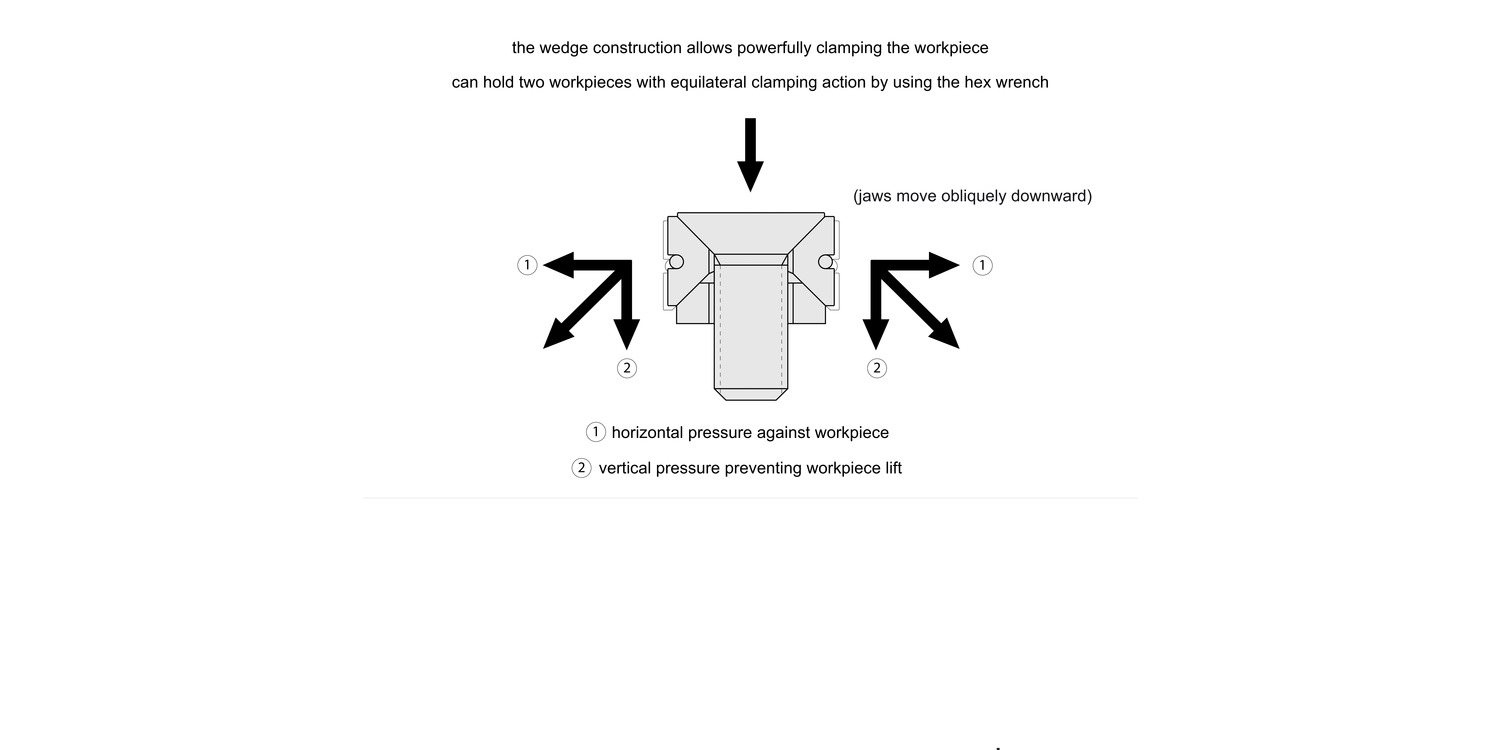

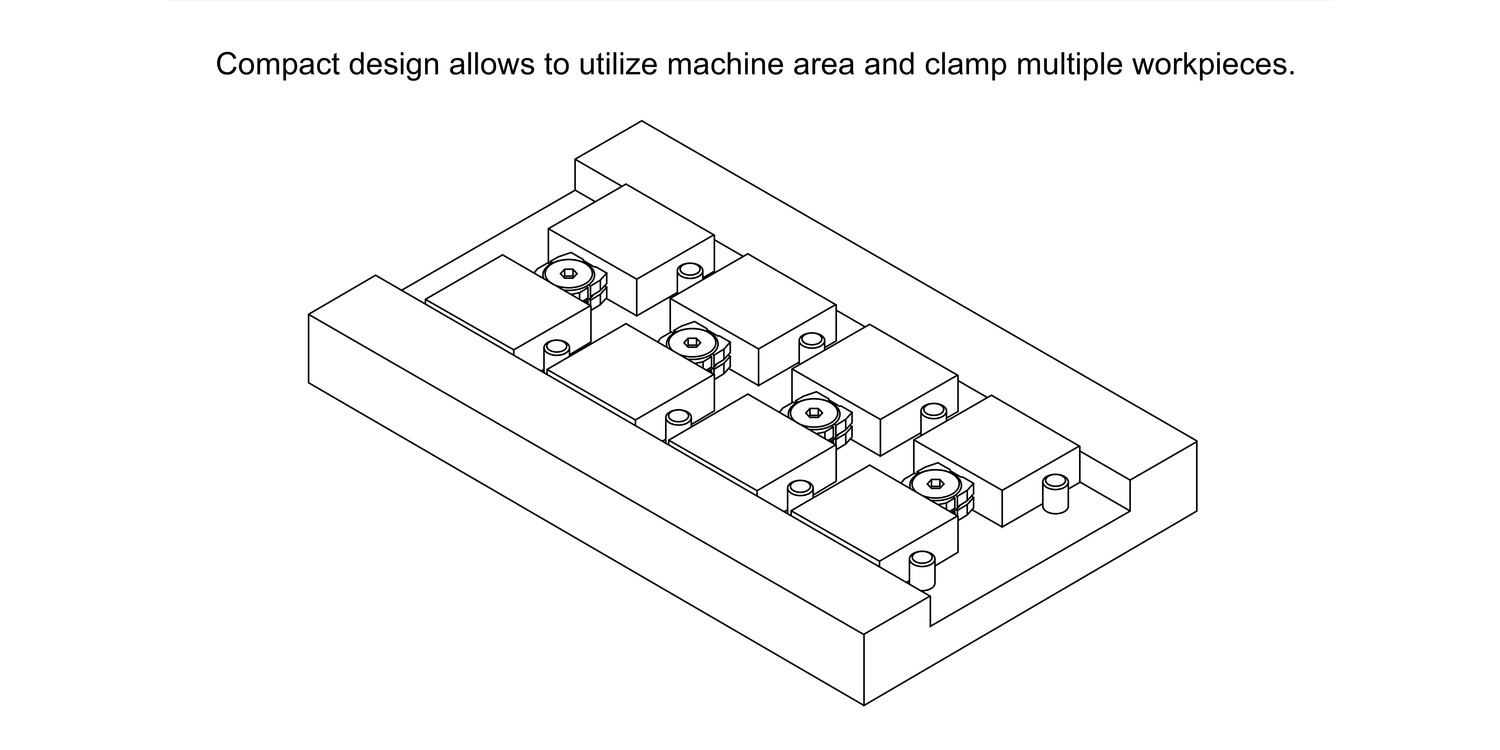

Compact design for clamping of multiple workpieces. Wedge construction results in powerful clamping and holding of two workpieces with equal clamping force.
Provides both downward and side clamping force.
