Wedge Clamps
12042 Spring-Loc and Sliding Stop
material: Steel
Alternative products you may wish to consider
Description
Spring-Loc Clamp
l1
76.2
l2
63.5
l3
-
w1
-
w2
-
Qty/pack
2
Stroke s1
1.83
Weight
g
113.0
£ 67.44 per unit (click for quantity discounts)
Description
Sliding Stop
l1
76.2
l2
59.8
l3
38.1
w1
25.4
w2
6.6
Qty/pack
4
Stroke s1
1.83
Weight
g
82.0
£ 67.44 per unit (click for quantity discounts)
Description
l1
l2
l3
w1
w2
Qty/pack
Stroke s1
Weight
g
| Price & Availability | Article | Description | l1 | l2 | l3 | w1 | w2 | Qty/pack | Stroke s1 | Weight g | ||||||||||||||||||
| 12042.W0100 | Spring-Loc Clamp | 76.2 | 63.5 | - | - | - | 2 | 1.83 | 113.0 | |||||||||||||||||||
£ 67.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Description Spring-Loc Clamp l1 76.2 l2 63.5 l3 - w1 - w2 - Qty/pack 2 Stroke s1 1.83 Weight
g 113.0 | ||||||||||||||||||||||||||||
| 12042.W0200 | Sliding Stop | 76.2 | 59.8 | 38.1 | 25.4 | 6.6 | 4 | 1.83 | 82.0 | |||||||||||||||||||
£ 67.44 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Description Sliding Stop l1 76.2 l2 59.8 l3 38.1 w1 25.4 w2 6.6 Qty/pack 4 Stroke s1 1.83 Weight
g 82.0 | ||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel.
Technical Notes
Spring-loc clamp, extremely low profile clamp capable of approx. 10lbs of pressure. A quick and flexible approach to holding parts during engraving or vision systems.
Product Datasheets
CAD files

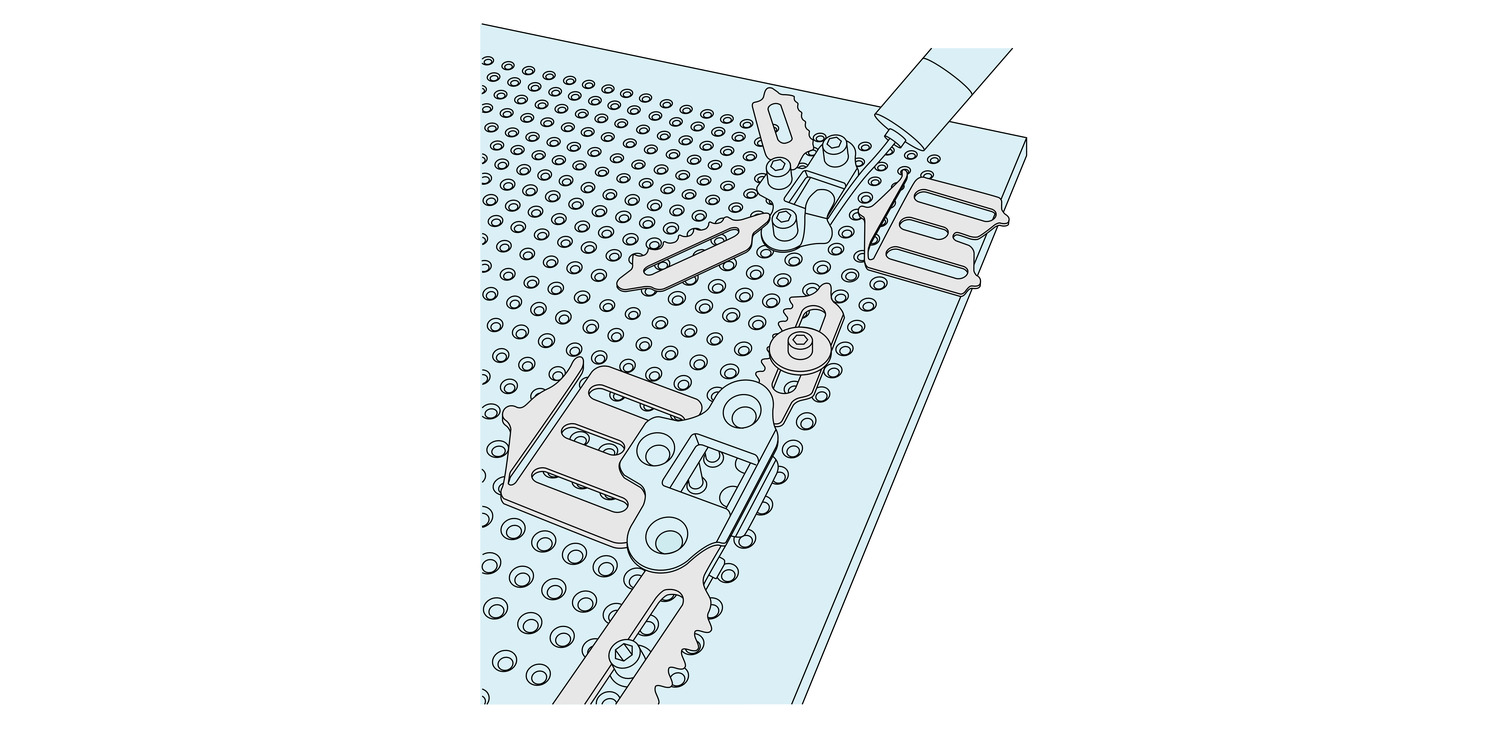

Application images
