Machinable Vice Jaws
for ReLock vices
19796 Carrier Jaws - SnapLock
ReLock vices with AccuSnap & QuickChange master jaws, material: Aluminium
Alternative products you may wish to consider
Vice size
4"
Contents
2 x Outer, 1 x Centre
Material
Aluminium

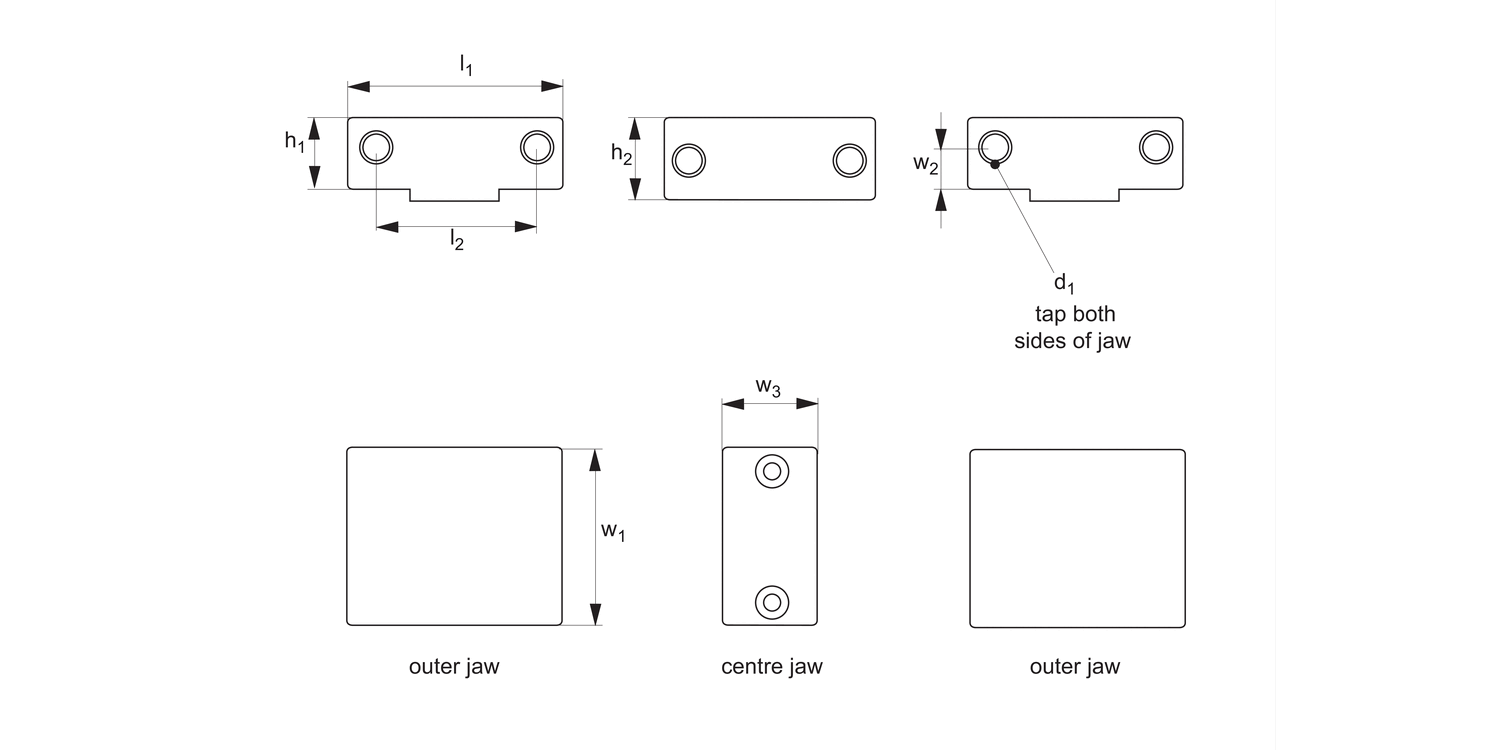

l1
3.94
l2
2.500
w1
3.812
w2
0.687
w3
1.25
h1
1.12
h2
1.35
d1
3/8-16
£ 750.60 per unit (click for quantity discounts)
Vice size
4"
Contents
2 x Outer
Material
Aluminium
l1
3.94
l2
2.500
w1
3.812
w2
0.687
w3
-
h1
1.12
h2
-
d1
3/8-16
£ 307.05 per unit (click for quantity discounts)
Vice size
6"
Contents
2 x Outer, 1 x Centre
Material
Aluminium
l1
5.94
l2
3.875
w1
4.750
w2
0.937
w3
1.50
h1
1.52
h2
1.85
d1
1/2-13
£ 1,150.84 per unit (click for quantity discounts)
Vice size
6"
Contents
2 x Outer
Material
Aluminium
l1
5.94
l2
3.875
w1
4.750
w2
0.937
w3
-
h1
1.52
h2
-
d1
1/2-13
£ 618.58 per unit (click for quantity discounts)
Vice size
8"
Contents
2 x Outer, 1 x Centre
Material
Aluminium
l1
7.94
l2
4.750
w1
6.125
w2
1.218
w3
1.98
h1
2.12
h2
2.3
d1
5/8-11
£ 2,078.00 per unit (click for quantity discounts)
Vice size
8"
Contents
2 x Outer
Material
Aluminium
l1
7.94
l2
4.750
w1
6.125
w2
1.218
w3
-
h1
2.12
h2
-
d1
5/8-11
£ 1,116.67 per unit (click for quantity discounts)
Vice size
4"
Contents
2 x Outer, 1 x Centre
Material
Steel
l1
3.94
l2
2.500
w1
3.812
w2
0.687
w3
1.25
h1
1.12
h2
1.35
d1
3/8-16
£ 1,089.41 per unit (click for quantity discounts)
Vice size
4"
Contents
1 x Centre
Material
Steel
l1
3.94
l2
2.500
w1
-
w2
0.687
w3
1.25
h1
1.12
h2
1.35
d1
3/8-16
£ 443.56 per unit (click for quantity discounts)
Vice size
4"
Contents
2 x Outer
Material
Steel
l1
3.94
l2
2.500
w1
3.812
w2
0.687
w3
-
h1
1.12
h2
-
d1
3/8-16
£ 609.61 per unit (click for quantity discounts)
Vice size
6"
Contents
2 x Outer, 1 x Centre
Material
Steel
l1
5.94
l2
3.875
w1
4.750
w2
0.937
w3
1.50
h1
1.52
h2
1.85
d1
1/2-13
£ 1,654.98 per unit (click for quantity discounts)
Vice size
6"
Contents
1 x Centre
Material
Steel
l1
5.94
l2
3.875
w1
-
w2
0.937
w3
1.50
h1
-
h2
1.85
d1
1/2-13
£ 566.29 per unit (click for quantity discounts)
Vice size
6"
Contents
2 x Outer
Material
Steel
l1
5.94
l2
3.875
w1
4.750
w2
0.937
w3
-
h1
1.52
h2
-
d1
1/2-13
£ 1,159.81 per unit (click for quantity discounts)
Vice size
8"
Contents
2 x Outer, 1 x Centre
Material
Steel
l1
7.94
l2
4.750
w1
6.125
w2
1.218
w3
1.98
h1
2.12
h2
2.35
d1
5/8-11
£ 3,322.37 per unit (click for quantity discounts)
Vice size
8"
Contents
1 x Centre
Material
Steel
l1
7.94
l2
4.750
w1
-
w2
1.218
w3
1.98
h1
-
h2
2.35
d1
5/8-11
£ 1,068.86 per unit (click for quantity discounts)
Vice size
8"
Contents
2 x Outer
Material
Steel
l1
7.94
l2
4.750
w1
6.125
w2
1.218
w3
-
h1
2.12
h2
-
d1
5/8-11
£ 2,338.61 per unit (click for quantity discounts)
Vice size
Contents
Material
l1
l2
w1
w2
w3
h1
h2
d1
| Price & Availability | Article | Vice size | Contents | Material | l1 | l2 | w1 | w2 | w3 | h1 | h2 | d1 | ||||||
| 19796.W0401 | 4" | 2 x Outer, 1 x Centre | Aluminium | 3.94 | 2.500 | 3.812 | 0.687 | 1.25 | 1.12 | 1.35 | 3/8-16 | |||||||
£ 750.60 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 4" Contents 2 x Outer, 1 x Centre Material Aluminium l1 3.94 l2 2.500 w1 3.812 w2 0.687 w3 1.25 h1 1.12 h2 1.35 d1 3/8-16 | ||||||||||||||||||
| 19796.W0403 | 4" | 2 x Outer | Aluminium | 3.94 | 2.500 | 3.812 | 0.687 | - | 1.12 | - | 3/8-16 | |||||||
£ 307.05 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 4" Contents 2 x Outer Material Aluminium l1 3.94 l2 2.500 w1 3.812 w2 0.687 w3 - h1 1.12 h2 - d1 3/8-16 | ||||||||||||||||||
| 19796.W0601 | 6" | 2 x Outer, 1 x Centre | Aluminium | 5.94 | 3.875 | 4.750 | 0.937 | 1.50 | 1.52 | 1.85 | 1/2-13 | |||||||
£ 1,150.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 6" Contents 2 x Outer, 1 x Centre Material Aluminium l1 5.94 l2 3.875 w1 4.750 w2 0.937 w3 1.50 h1 1.52 h2 1.85 d1 1/2-13 | ||||||||||||||||||
| 19796.W0603 | 6" | 2 x Outer | Aluminium | 5.94 | 3.875 | 4.750 | 0.937 | - | 1.52 | - | 1/2-13 | |||||||
£ 618.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 6" Contents 2 x Outer Material Aluminium l1 5.94 l2 3.875 w1 4.750 w2 0.937 w3 - h1 1.52 h2 - d1 1/2-13 | ||||||||||||||||||
| 19796.W0801 | 8" | 2 x Outer, 1 x Centre | Aluminium | 7.94 | 4.750 | 6.125 | 1.218 | 1.98 | 2.12 | 2.3 | 5/8-11 | |||||||
£ 2,078.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 8" Contents 2 x Outer, 1 x Centre Material Aluminium l1 7.94 l2 4.750 w1 6.125 w2 1.218 w3 1.98 h1 2.12 h2 2.3 d1 5/8-11 | ||||||||||||||||||
| 19796.W0803 | 8" | 2 x Outer | Aluminium | 7.94 | 4.750 | 6.125 | 1.218 | - | 2.12 | - | 5/8-11 | |||||||
£ 1,116.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 8" Contents 2 x Outer Material Aluminium l1 7.94 l2 4.750 w1 6.125 w2 1.218 w3 - h1 2.12 h2 - d1 5/8-11 | ||||||||||||||||||
| 19796.W1401 | 4" | 2 x Outer, 1 x Centre | Steel | 3.94 | 2.500 | 3.812 | 0.687 | 1.25 | 1.12 | 1.35 | 3/8-16 | |||||||
£ 1,089.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 4" Contents 2 x Outer, 1 x Centre Material Steel l1 3.94 l2 2.500 w1 3.812 w2 0.687 w3 1.25 h1 1.12 h2 1.35 d1 3/8-16 | ||||||||||||||||||
| 19796.W1402 | 4" | 1 x Centre | Steel | 3.94 | 2.500 | - | 0.687 | 1.25 | 1.12 | 1.35 | 3/8-16 | |||||||
£ 443.56 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 4" Contents 1 x Centre Material Steel l1 3.94 l2 2.500 w1 - w2 0.687 w3 1.25 h1 1.12 h2 1.35 d1 3/8-16 | ||||||||||||||||||
| 19796.W1403 | 4" | 2 x Outer | Steel | 3.94 | 2.500 | 3.812 | 0.687 | - | 1.12 | - | 3/8-16 | |||||||
£ 609.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 4" Contents 2 x Outer Material Steel l1 3.94 l2 2.500 w1 3.812 w2 0.687 w3 - h1 1.12 h2 - d1 3/8-16 | ||||||||||||||||||
| 19796.W1601 | 6" | 2 x Outer, 1 x Centre | Steel | 5.94 | 3.875 | 4.750 | 0.937 | 1.50 | 1.52 | 1.85 | 1/2-13 | |||||||
£ 1,654.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 6" Contents 2 x Outer, 1 x Centre Material Steel l1 5.94 l2 3.875 w1 4.750 w2 0.937 w3 1.50 h1 1.52 h2 1.85 d1 1/2-13 | ||||||||||||||||||
| 19796.W1602 | 6" | 1 x Centre | Steel | 5.94 | 3.875 | - | 0.937 | 1.50 | - | 1.85 | 1/2-13 | |||||||
£ 566.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 6" Contents 1 x Centre Material Steel l1 5.94 l2 3.875 w1 - w2 0.937 w3 1.50 h1 - h2 1.85 d1 1/2-13 | ||||||||||||||||||
| 19796.W1603 | 6" | 2 x Outer | Steel | 5.94 | 3.875 | 4.750 | 0.937 | - | 1.52 | - | 1/2-13 | |||||||
£ 1,159.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 6" Contents 2 x Outer Material Steel l1 5.94 l2 3.875 w1 4.750 w2 0.937 w3 - h1 1.52 h2 - d1 1/2-13 | ||||||||||||||||||
| 19796.W1801 | 8" | 2 x Outer, 1 x Centre | Steel | 7.94 | 4.750 | 6.125 | 1.218 | 1.98 | 2.12 | 2.35 | 5/8-11 | |||||||
£ 3,322.37 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 8" Contents 2 x Outer, 1 x Centre Material Steel l1 7.94 l2 4.750 w1 6.125 w2 1.218 w3 1.98 h1 2.12 h2 2.35 d1 5/8-11 | ||||||||||||||||||
| 19796.W1802 | 8" | 1 x Centre | Steel | 7.94 | 4.750 | - | 1.218 | 1.98 | - | 2.35 | 5/8-11 | |||||||
£ 1,068.86 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 8" Contents 1 x Centre Material Steel l1 7.94 l2 4.750 w1 - w2 1.218 w3 1.98 h1 - h2 2.35 d1 5/8-11 | ||||||||||||||||||
| 19796.W1803 | 8" | 2 x Outer | Steel | 7.94 | 4.750 | 6.125 | 1.218 | - | 2.12 | - | 5/8-11 | |||||||
£ 2,338.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Vice size 8" Contents 2 x Outer Material Steel l1 7.94 l2 4.750 w1 6.125 w2 1.218 w3 - h1 2.12 h2 - d1 5/8-11 | ||||||||||||||||||
Technical & Application
Material
Outside jaws: aluminium.
Centre jaws: steel.
Technical Notes
Carrier jaws can be used in conjunction with AccuSnap and QuickChange master jaws.
Outside jaws can be used in conjunction with single station conversion plates.
Tips
Only for use with our ReLock Vice system.
Important Notes
All dimensions are in inches.
