Extension Tube
coolant nozzles
20114 Coolant Nozzles - Manifold
material: Aluminium
Alternative products you may wish to consider

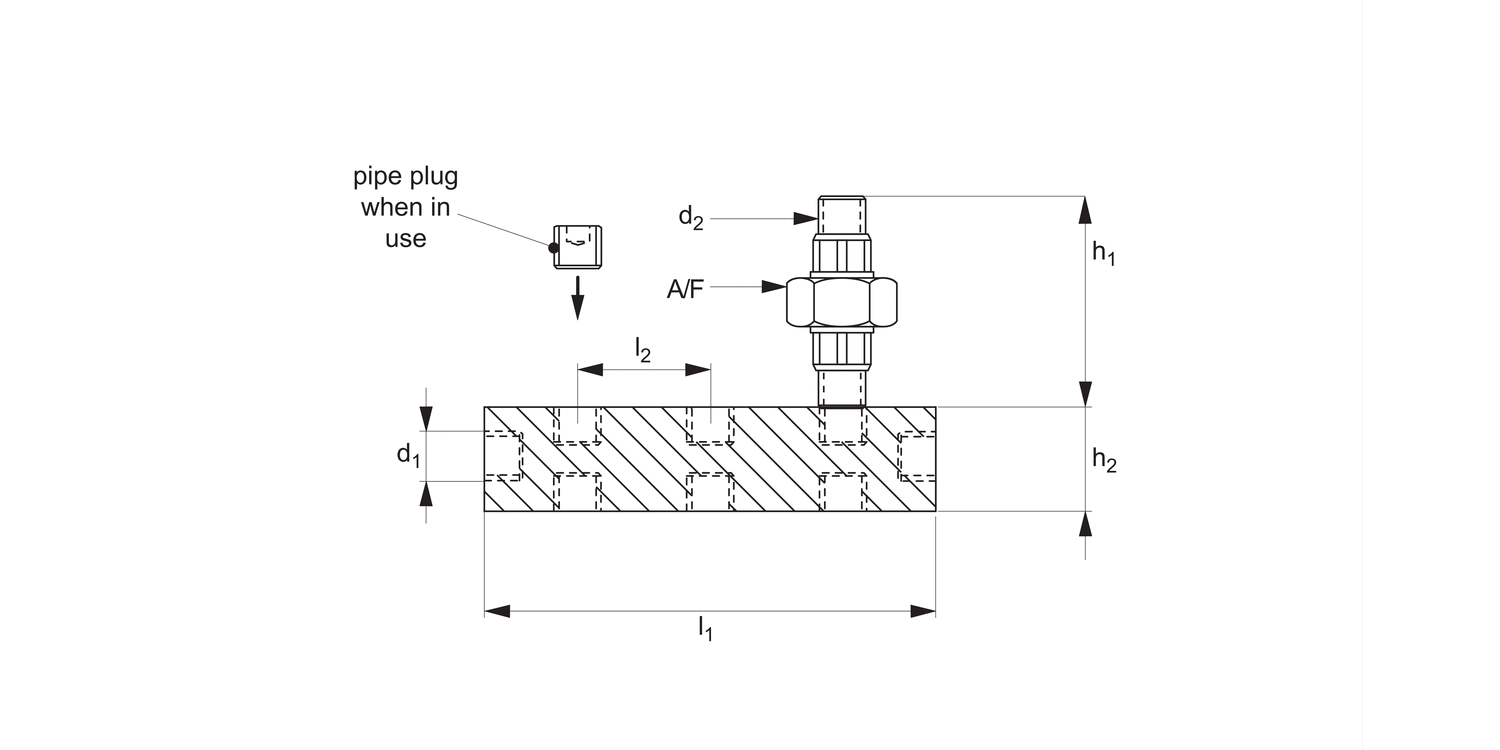

d1
1/4" NPT
d2
1/4" NPT/BSPT
h1
76.2
h2
25.4
l1
88.9
l2
31.8
A/F
1-3/16"
£ 208.63 per unit (click for quantity discounts)
d1
d2
h1
h2
l1
l2
A/F
| Price & Availability | Article | d1 | d2 | h1 | h2 | l1 | l2 | A/F | ||||||||||||||||||
| 20114.W2250 | 1/4" NPT | 1/4" NPT/BSPT | 76.2 | 25.4 | 88.9 | 31.8 | 1-3/16" | |||||||||||||||||||
£ 208.63 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 1/4" NPT d2 1/4" NPT/BSPT h1 76.2 h2 25.4 l1 88.9 l2 31.8 A/F 1-3/16" | ||||||||||||||||||||||||||
Technical & Application
Material
Manifold: anodized aluminium.
Thread connectors: brass.
Pipe plugs: plated steel.
Thread union: brass.
Technical Notes
Max. temperature: 70°C.
Max. pressure: 33 bar.
