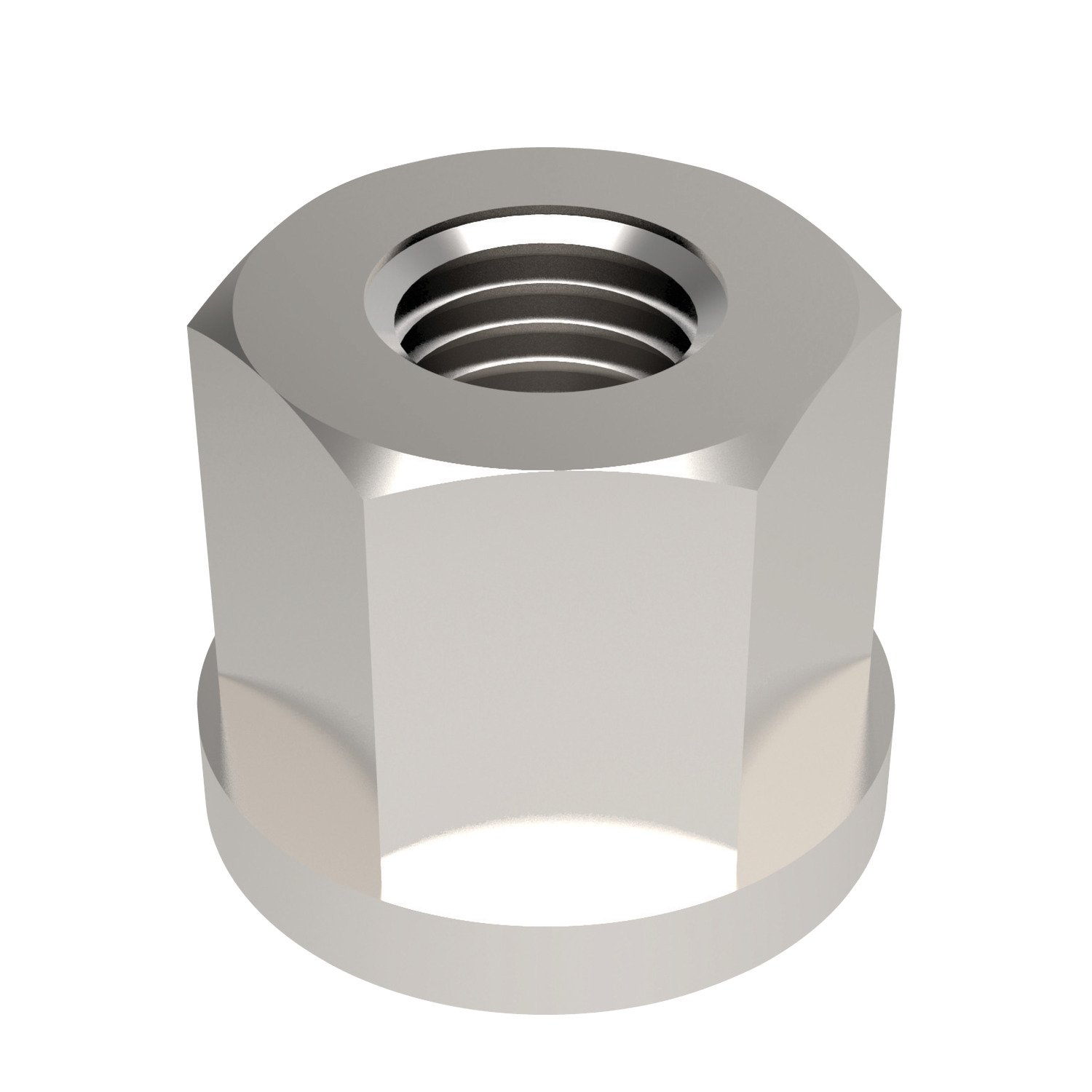

24420 Collar Nuts

stainless steel, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Collar Nuts
stainless steel

Fixture Nuts
stainless steel

Hex Coupler Nuts
A2 & A4 s/s

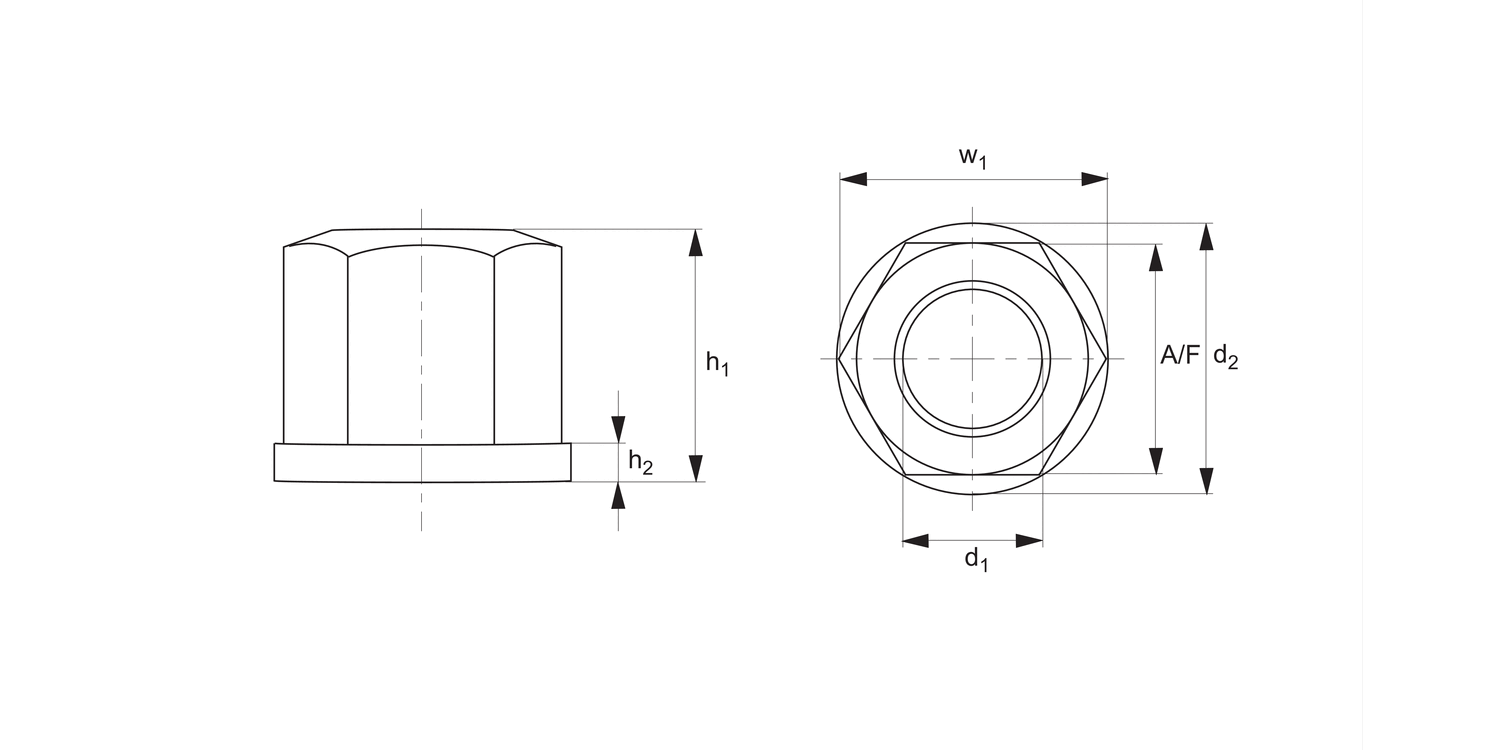

Collar Nuts - SS. M12 - 25 - 4,0 - 20,8

24420.W0112

d₁

M12

d₂

25

h₁

18

h₂

4.0

w₁

20.8

A/F

19*

Weight g

30

£ 13.45 per unit (click for quantity discounts)

Collar Nuts - SS. M20 - 37 - 6,0 - 34,6

24420.W0120

d₁

M20

d₂

37

h₁

30

h₂

6.0

w₁

34.6

A/F

30

Weight g

129

£ 33.14 per unit (click for quantity discounts)

Collar Nuts - SS. M12 - 25 - 4,0 - 20,8

24420.W0112

d₁

M12

d₂

25

h₁

18

h₂

4.0

w₁

20.8

A/F

19*

Weight g

30

£ 13.45 per unit (click for quantity discounts)

Collar Nuts - SS. M20 - 37 - 6,0 - 34,6

24420.W0120

d₁

M20

d₂

37

h₁

30

h₂

6.0

w₁

34.6

A/F

30

Weight g

129

£ 33.14 per unit (click for quantity discounts)



Select all

d₁

d₂

h₁

h₂

w₁

A/F

Weight g

Price & Availability	Article	d1	d2	h1	h2	w1	A/F	Weight g
	24420.W0112	M12	25	18	4.0	20.8	19*	30
£ 13.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 13.45 0% 10-29 £ 12.11 10% 30-74 £ 11.43 15% 75-199 £ 10.09 25% 200+ £ 8.74 35% d1 M12 d2 25 h1 18 h2 4.0 w1 20.8 A/F 19* Weight g 30 more info »
	24420.W0120	M20	37	30	6.0	34.6	30	129
£ 33.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 33.14 0% 10-29 £ 29.83 10% 30-74 £ 28.17 15% 75-199 £ 24.86 25% 200+ £ 21.54 35% d1 M20 d2 37 h1 30 h2 6.0 w1 34.6 A/F 30 Weight g 129 more info »
