26000 Clamp Supports - Spring Type

with brass locking screw, material: Steel

Download product datasheet

Alternative products you may wish to consider

Spring Type Clamp
with brass locking screw

T-Slot Scrapers

T-Slot Covers

Hole Protectors

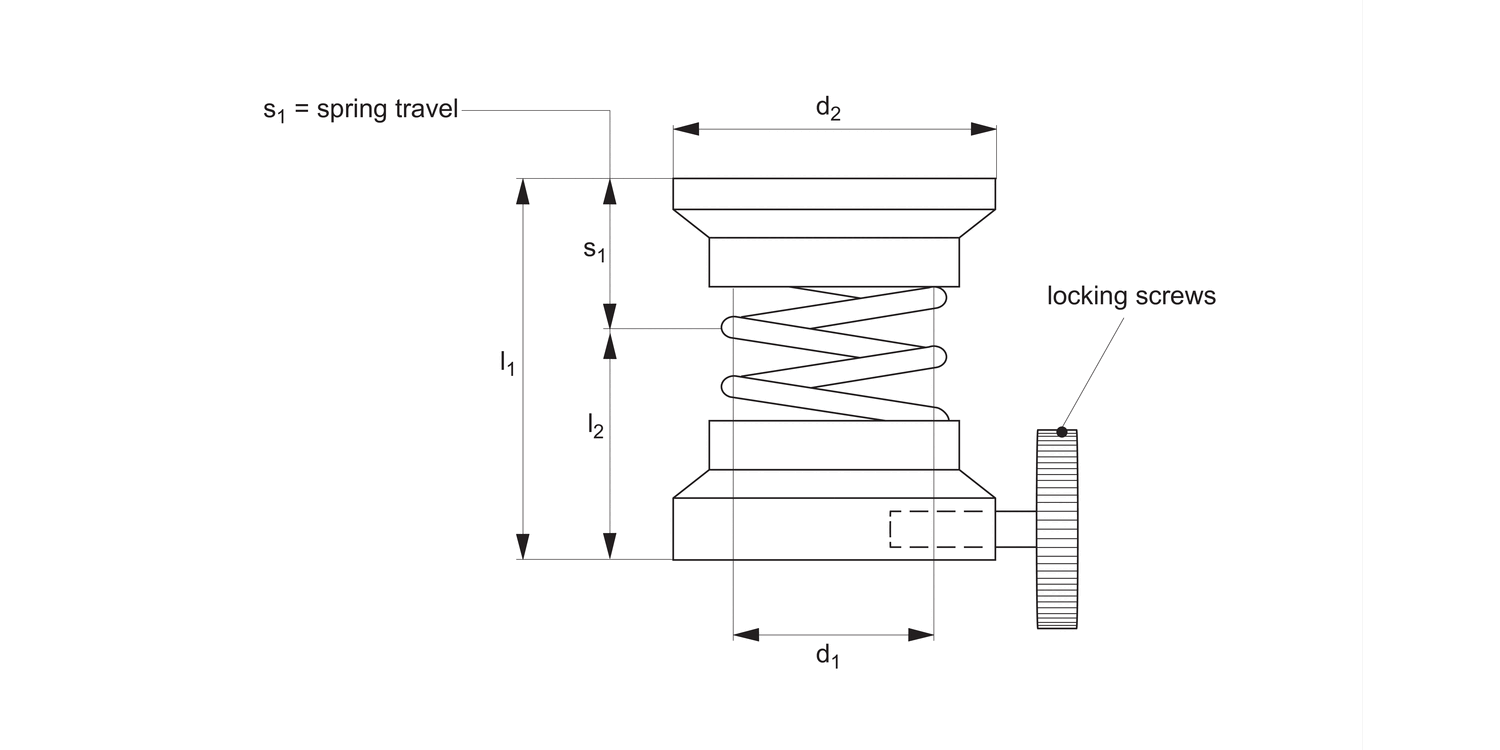

Spring Type Clamp Supports 1 - 22 - 10,5 - 30

26000.W0101

For thread

M 8-M10

d₁

10.5

d₂

22

l₁

30

l₂

22

Spring travel s₁

8

Weight g

41

£ 42.41 per unit (click for quantity discounts)

Spring Type Clamp Supports 2 - 26 - 14,5 - 32

26000.W0102

For thread

M12-M14

d₁

14.5

d₂

26

l₁

32

l₂

22

Spring travel s₁

10

Weight g

55

£ 45.57 per unit (click for quantity discounts)

Spring Type Clamp Supports 3 - 32 - 18,5 - 38

26000.W0103

For thread

M16-M18

d₁

18.5

d₂

32

l₁

38

l₂

26

Spring travel s₁

12

Weight g

89

£ 47.88 per unit (click for quantity discounts)

Spring Type Clamp Supports 4 - 38 - 22,5 - 40

26000.W0104

For thread

M20-M22

d₁

22.5

d₂

38

l₁

40

l₂

28

Spring travel s₁

12

Weight g

133

£ 53.68 per unit (click for quantity discounts)

Spring Type Clamp Supports 5 - 45 - 27,5 - 44

26000.W0105

For thread

M24-M27

d₁

27.5

d₂

45

l₁

44

l₂

32

Spring travel s₁

12

Weight g

177

£ 65.35 per unit (click for quantity discounts)

Spring Type Clamp Supports 1 - 22 - 10,5 - 30

26000.W0101

For thread

M 8-M10

d₁

10.5

d₂

22

l₁

30

l₂

22

Spring travel s₁

8

Weight g

41

£ 42.41 per unit (click for quantity discounts)

Spring Type Clamp Supports 2 - 26 - 14,5 - 32

26000.W0102

For thread

M12-M14

d₁

14.5

d₂

26

l₁

32

l₂

22

Spring travel s₁

10

Weight g

55

£ 45.57 per unit (click for quantity discounts)

Spring Type Clamp Supports 3 - 32 - 18,5 - 38

26000.W0103

For thread

M16-M18

d₁

18.5

d₂

32

l₁

38

l₂

26

Spring travel s₁

12

Weight g

89

£ 47.88 per unit (click for quantity discounts)

Spring Type Clamp Supports 4 - 38 - 22,5 - 40

26000.W0104

For thread

M20-M22

d₁

22.5

d₂

38

l₁

40

l₂

28

Spring travel s₁

12

Weight g

133

£ 53.68 per unit (click for quantity discounts)

Spring Type Clamp Supports 5 - 45 - 27,5 - 44

26000.W0105

For thread

M24-M27

d₁

27.5

d₂

45

l₁

44

l₂

32

Spring travel s₁

12

Weight g

177

£ 65.35 per unit (click for quantity discounts)



Select all

For thread

d₁

d₂

l₁

l₂

Spring travel s₁

Weight g

Price & Availability	Article	For thread	d1	d2	l1	l2	Spring travel s1	Weight g
	26000.W0101	M 8-M10	10.5	22	30	22	8	41
£ 42.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 42.41 0% 10-29 £ 38.17 10% 30-74 £ 36.05 15% 75-199 £ 31.81 25% 200+ £ 27.57 35% For thread M 8-M10 d1 10.5 d2 22 l1 30 l2 22 Spring travel s1 8 Weight g 41 more info »
	26000.W0102	M12-M14	14.5	26	32	22	10	55
£ 45.57 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 45.57 0% 10-29 £ 41.01 10% 30-74 £ 38.73 15% 75-199 £ 34.18 25% 200+ £ 29.62 35% For thread M12-M14 d1 14.5 d2 26 l1 32 l2 22 Spring travel s1 10 Weight g 55 more info »
	26000.W0103	M16-M18	18.5	32	38	26	12	89
£ 47.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 47.88 0% 10-29 £ 43.09 10% 30-74 £ 40.70 15% 75-199 £ 35.91 25% 200+ £ 31.12 35% For thread M16-M18 d1 18.5 d2 32 l1 38 l2 26 Spring travel s1 12 Weight g 89 more info »
	26000.W0104	M20-M22	22.5	38	40	28	12	133
£ 53.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 53.68 0% 10-29 £ 48.31 10% 30-74 £ 45.63 15% 75-199 £ 40.26 25% 200+ £ 34.89 35% For thread M20-M22 d1 22.5 d2 38 l1 40 l2 28 Spring travel s1 12 Weight g 133 more info »
	26000.W0105	M24-M27	27.5	45	44	32	12	177
£ 65.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 65.35 0% 10-29 £ 58.82 10% 30-74 £ 55.55 15% 75-199 £ 49.01 25% 200+ £ 42.48 35% For thread M24-M27 d1 27.5 d2 45 l1 44 l2 32 Spring travel s1 12 Weight g 177 more info »
