Sphl Seat Washers
type c - s/s
25200 Washers - Spherical Seat
stainless steel 303, material: Stainless steel
Order No.
25200.W0312
For thread
M12
For thread
inch
1/2"
d1
tol. H13
13.0
d2
24
h1
4.6
h2
1.1
r1
17
Static load
max.
kN
24
Torque for screwed connectors
max.
Nm
56
With 25500 h3
7.9
With 25800 h3
8.9
Weight
g
8
£ 4.60 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 4.60 | 0% |
| 10-29 | £ 4.14 | 10% |
| 30-74 | £ 3.91 | 15% |
| 75-199 | £ 3.45 | 25% |
| 200+ | £ 2.99 | 35% |
Technical & Application
Material
Stainless steel (AISI 303, 1.4305), A2-70.
Technical Notes
Similar to DIN 6319C.
Used with dished washers no. 25500 (type D), and no. 25800 (type G).
Tips
When clamping over holes or slots which do not provide full surface contact to the washer, only use no. 25200 in combination with washer no. 25800 (type G)- do not use in combination with no. 25500 (type D) in such situations.
*Torques for screws A2-70 are approximate values.
Product Datasheets
CAD files

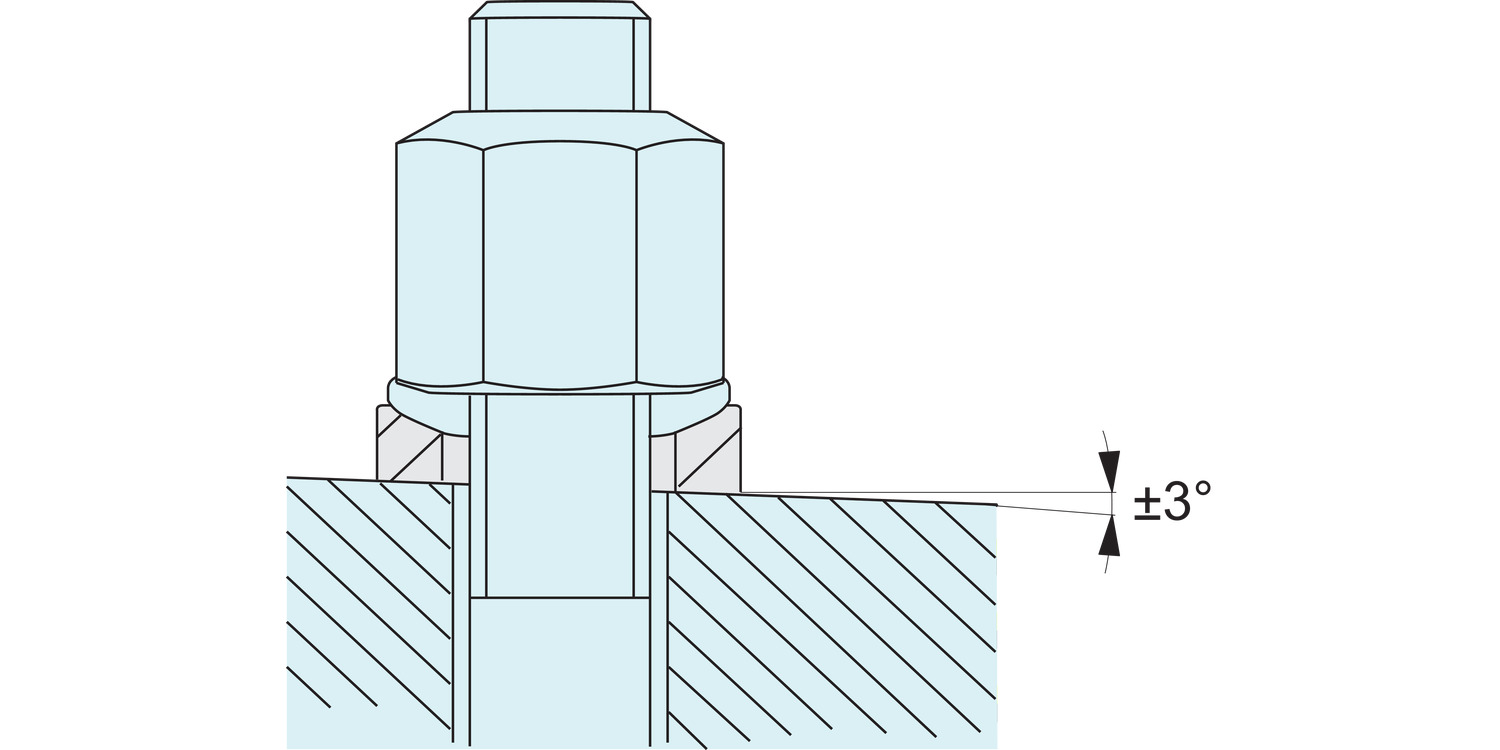

Application images
