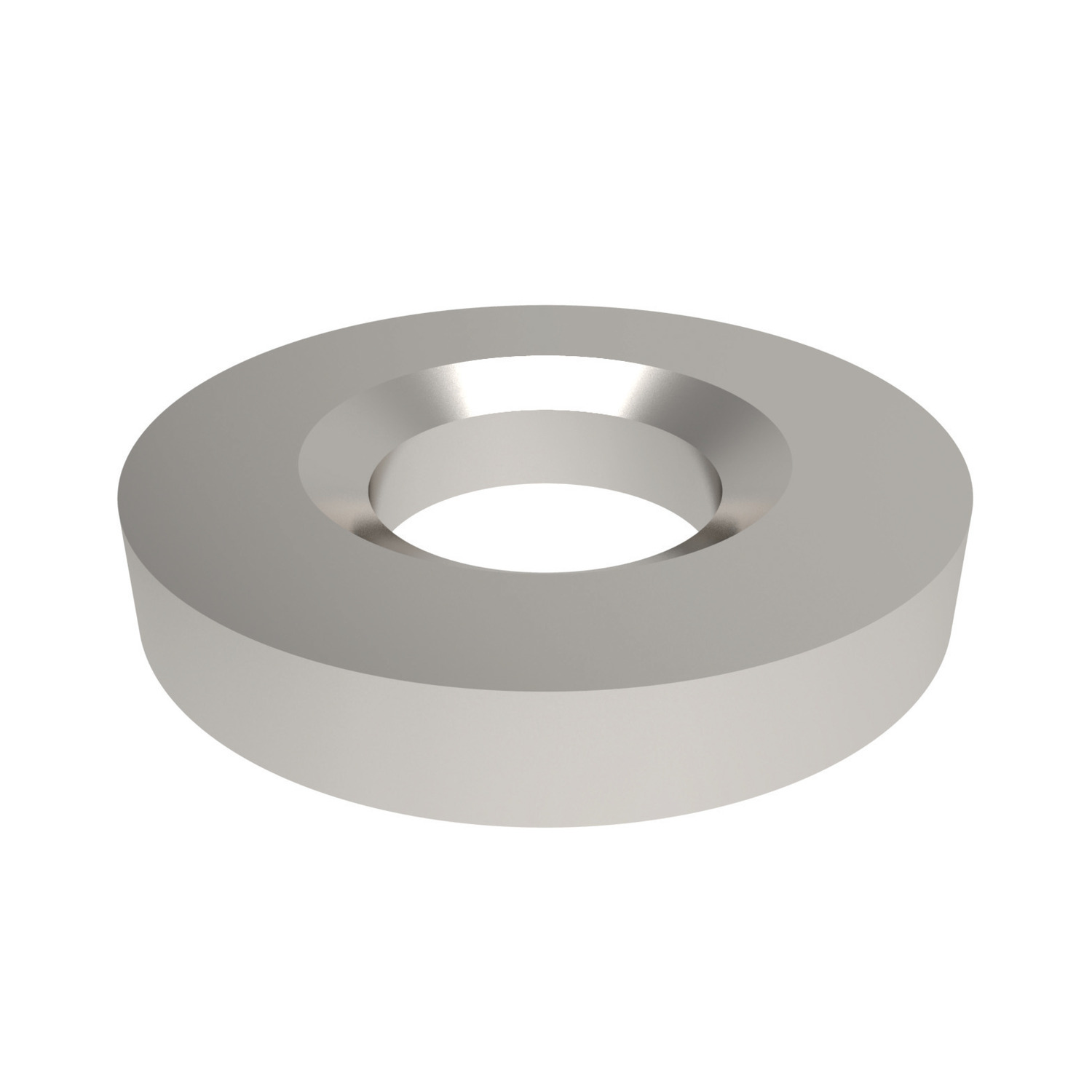

25800 Dished Washers

Name: 25800.W0116
Brand: WC
SKU: 25800.W0116
Price: 18.56 EUR
Availability: InStock

stainless steel 303, material: Stainless steel

Article properties

Order No.

25800.W0116

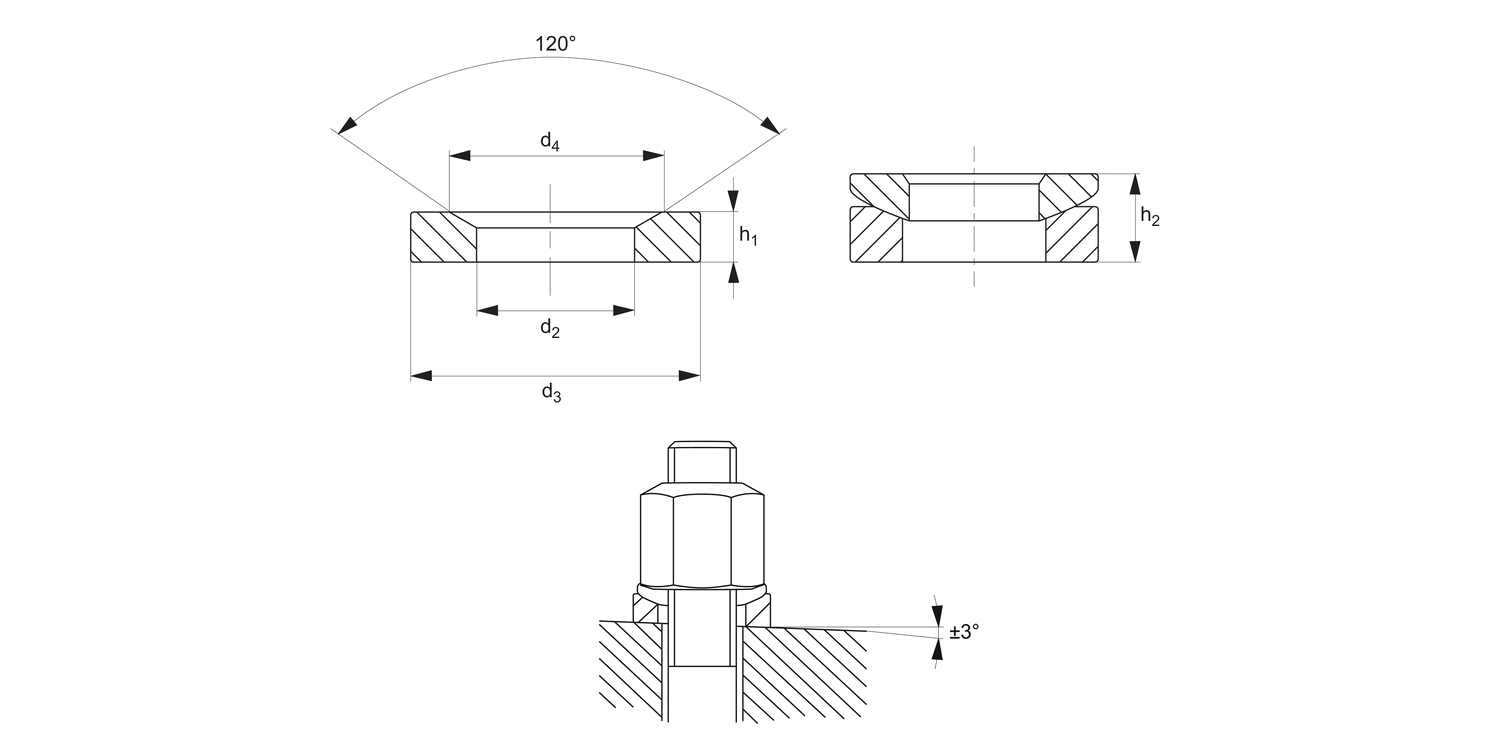

For metric thread d₁

M16

For thread d₁ inch

5/8"

d₂ tol. H13

19.0

d₃

h₁

d₄

26.0

Load capacity for static load max. kN

Torque max. Nm

135

With 25200 h₂

10.1

Weight g

See full product selection

£ 18.56 per unit (click for quantity discounts)

Ready to despatch 3
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 18.56	0%
10-29	£ 16.70	10%
30-74	£ 15.78	15%
75-199	£ 13.92	25%
200+	£ 12.06	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Stainless steel 1.4305 (AISI 303).

Technical Notes

Similar to DIN 6319G.
Their large diameter makes them suitable to bridge wide slots.
*Torque values of screwed connector A2-70 are approximate. Actual preloads should be considered, coefficient of friction µ total 0,12.

Product Datasheets

25800 Dished WashersJune 24, 2025, 3:33 PM / 234.51 kB

Washers - Stainless SteelJune 24, 2025, 3:30 PM / 361.97 kB

WashersJune 24, 2025, 3:31 PM / 881.78 kB

Fixing Elements, Inserts & GaugesJune 24, 2025, 3:32 PM / 9.54 MB

Work HoldingJune 24, 2025, 3:33 PM / 61.81 MB

CAD files

25800 AcisApril 17, 2024, 9:11 AM / 18.63 kB

25800 IGESApril 17, 2024, 9:11 AM / 75.47 kB

25800 ParasolidApril 17, 2024, 9:11 AM / 16.07 kB

25800 ProEApril 17, 2024, 9:11 AM / 610.17 kB

25800 SolidWorksApril 17, 2024, 9:11 AM / 1.28 MB

25800 StepApril 17, 2024, 9:11 AM / 35.05 kB
