Stainless Eye bolts
Stainless steel
18864 Stainless Male Lifting Eye Bolts
metric sizes, material: Stainless steel
Alternative products you may wish to consider
Material
A4 s/s

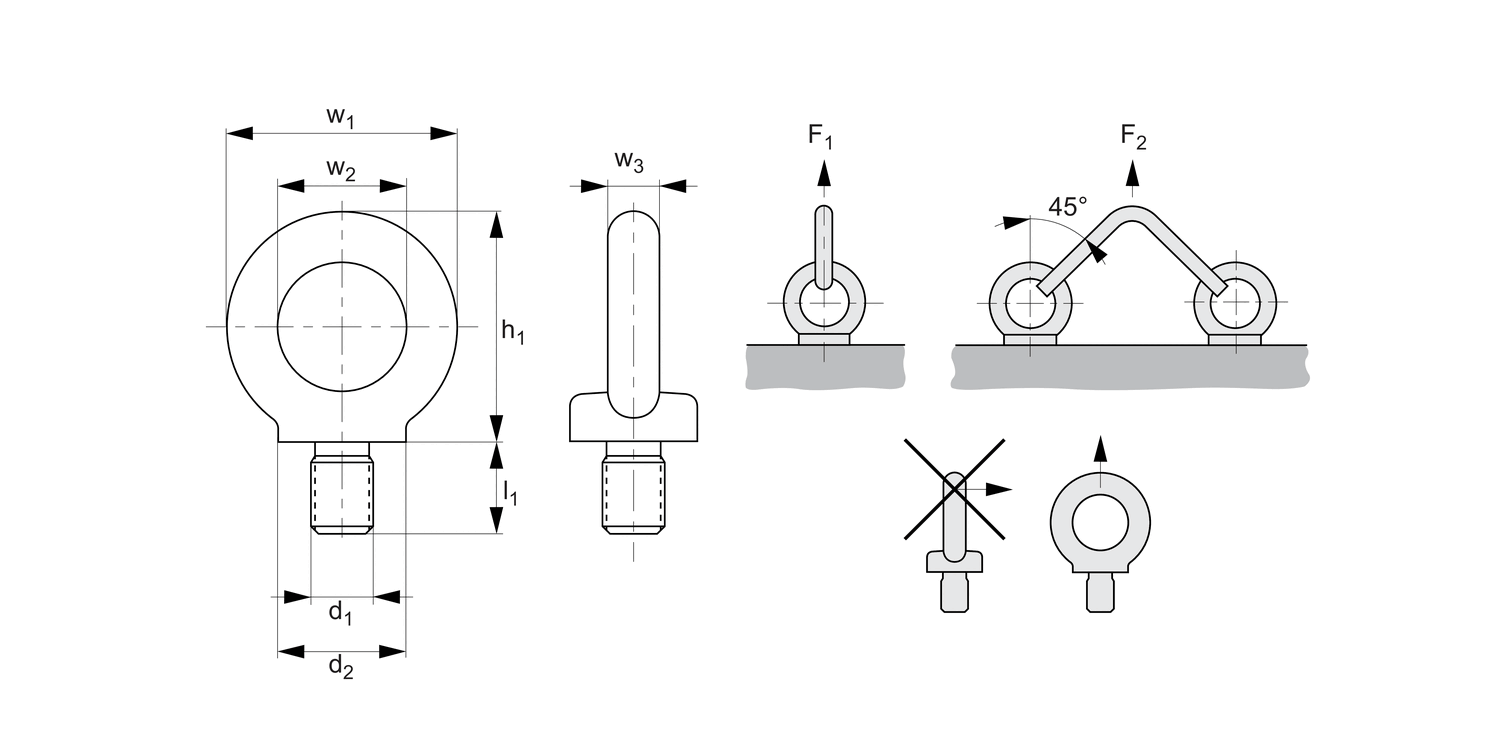

d1
M 6
d2
20
w1
36
l1
13.0
h1
36
w2
20
w3
8
F1
max.
kg
70
F2
max.
kg
50
Weight
kg
0.05
£ 13.62 per unit (click for quantity discounts)
Material
A4 s/s
d1
M 8
d2
20
w1
36
l1
13.0
h1
36
w2
20
w3
8
F1
max.
kg
140
F2
max.
kg
95
Weight
kg
0.06
£ 10.81 per unit (click for quantity discounts)
Material
A4 s/s
d1
M 10
d2
25
w1
45
l1
17.0
h1
45
w2
25
w3
10
F1
max.
kg
230
F2
max.
kg
170
Weight
kg
0.11
£ 11.50 per unit (click for quantity discounts)
Material
A4 s/s
d1
M 12
d2
30
w1
54
l1
20.5
h1
53
w2
30
w3
12
F1
max.
kg
340
F2
max.
kg
240
Weight
kg
0.18
£ 18.27 per unit (click for quantity discounts)
Material
A4 s/s
d1
M 16
d2
35
w1
63
l1
27.0
h1
62
w2
35
w3
14
F1
max.
kg
700
F2
max.
kg
500
Weight
kg
0.28
£ 25.32 per unit (click for quantity discounts)
Material
A4 s/s
d1
M 20
d2
40
w1
72
l1
30.0
h1
71
w2
40
w3
16
F1
max.
kg
1200
F2
max.
kg
860
Weight
kg
0.45
£ 33.16 per unit (click for quantity discounts)
Material
A4 s/s
d1
M 24
d2
50
w1
90
l1
36.0
h1
90
w2
50
w3
20
F1
max.
kg
1800
F2
max.
kg
1270
Weight
kg
0.74
£ 57.81 per unit (click for quantity discounts)
Material
A4 s/s
d1
M 30
d2
65
w1
108
l1
45.0
h1
109
w2
60
w3
24
F1
max.
kg
3200
F2
max.
kg
2300
Weight
kg
1.66
£ 148.35 per unit (click for quantity discounts)
Material
A4 s/s
d1
M 36
d2
75
w1
126
l1
54.0
h1
128
w2
70
w3
28
F1
max.
kg
4600
F2
max.
kg
3300
Weight
kg
2.65
Material
A4 s/s
d1
M 42
d2
85
w1
144
l1
63.0
h1
147
w2
80
w3
32
F1
max.
kg
6300
F2
max.
kg
4500
Weight
kg
4.03
Material
A4 s/s
d1
M 48
d2
100
w1
166
l1
68.0
h1
168
w2
90
w3
38
F1
max.
kg
8600
F2
max.
kg
6100
Weight
kg
6.38
£ 350.90 per unit (click for quantity discounts)
Material
d1
d2
w1
l1
h1
w2
w3
F1
max.
kg
F2
max.
kg
Weight
kg
| Price & Availability | Article | Material | d1 | d2 | w1 | l1 | h1 | w2 | w3 | F1 max. kg | F2 max. kg | Weight kg | |||||||||||||||||||||
| 18864.W0006 | A4 s/s | M 6 | 20 | 36 | 13.0 | 36 | 20 | 8 | 70 | 50 | 0.05 | ||||||||||||||||||||||
£ 13.62 per unit (click for quantity discounts) Ready to despatch 181 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material A4 s/s d1 M 6 d2 20 w1 36 l1 13.0 h1 36 w2 20 w3 8 F1
max.
kg 70 F2
max.
kg 50 Weight
kg 0.05 | |||||||||||||||||||||||||||||||||
| 18864.W0008 | A4 s/s | M 8 | 20 | 36 | 13.0 | 36 | 20 | 8 | 140 | 95 | 0.06 | ||||||||||||||||||||||
£ 10.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material A4 s/s d1 M 8 d2 20 w1 36 l1 13.0 h1 36 w2 20 w3 8 F1
max.
kg 140 F2
max.
kg 95 Weight
kg 0.06 | |||||||||||||||||||||||||||||||||
| 18864.W0010 | A4 s/s | M 10 | 25 | 45 | 17.0 | 45 | 25 | 10 | 230 | 170 | 0.11 | ||||||||||||||||||||||
£ 11.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material A4 s/s d1 M 10 d2 25 w1 45 l1 17.0 h1 45 w2 25 w3 10 F1
max.
kg 230 F2
max.
kg 170 Weight
kg 0.11 | |||||||||||||||||||||||||||||||||
| 18864.W0012 | A4 s/s | M 12 | 30 | 54 | 20.5 | 53 | 30 | 12 | 340 | 240 | 0.18 | ||||||||||||||||||||||
£ 18.27 per unit (click for quantity discounts) Ready to despatch 20 Need more? Please call us.
Material A4 s/s d1 M 12 d2 30 w1 54 l1 20.5 h1 53 w2 30 w3 12 F1
max.
kg 340 F2
max.
kg 240 Weight
kg 0.18 | |||||||||||||||||||||||||||||||||
| 18864.W0016 | A4 s/s | M 16 | 35 | 63 | 27.0 | 62 | 35 | 14 | 700 | 500 | 0.28 | ||||||||||||||||||||||
£ 25.32 per unit (click for quantity discounts) Ready to despatch 18 Need more? Please call us.
Material A4 s/s d1 M 16 d2 35 w1 63 l1 27.0 h1 62 w2 35 w3 14 F1
max.
kg 700 F2
max.
kg 500 Weight
kg 0.28 | |||||||||||||||||||||||||||||||||
| 18864.W0020 | A4 s/s | M 20 | 40 | 72 | 30.0 | 71 | 40 | 16 | 1200 | 860 | 0.45 | ||||||||||||||||||||||
£ 33.16 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material A4 s/s d1 M 20 d2 40 w1 72 l1 30.0 h1 71 w2 40 w3 16 F1
max.
kg 1200 F2
max.
kg 860 Weight
kg 0.45 | |||||||||||||||||||||||||||||||||
| 18864.W0024 | A4 s/s | M 24 | 50 | 90 | 36.0 | 90 | 50 | 20 | 1800 | 1270 | 0.74 | ||||||||||||||||||||||
£ 57.81 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 5 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material A4 s/s d1 M 24 d2 50 w1 90 l1 36.0 h1 90 w2 50 w3 20 F1
max.
kg 1800 F2
max.
kg 1270 Weight
kg 0.74 | |||||||||||||||||||||||||||||||||
| 18864.W0030 | A4 s/s | M 30 | 65 | 108 | 45.0 | 109 | 60 | 24 | 3200 | 2300 | 1.66 | ||||||||||||||||||||||
£ 148.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material A4 s/s d1 M 30 d2 65 w1 108 l1 45.0 h1 109 w2 60 w3 24 F1
max.
kg 3200 F2
max.
kg 2300 Weight
kg 1.66 | |||||||||||||||||||||||||||||||||
| 18864.W0036 | A4 s/s | M 36 | 75 | 126 | 54.0 | 128 | 70 | 28 | 4600 | 3300 | 2.65 | ||||||||||||||||||||||
Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material A4 s/s d1 M 36 d2 75 w1 126 l1 54.0 h1 128 w2 70 w3 28 F1
max.
kg 4600 F2
max.
kg 3300 Weight
kg 2.65 | |||||||||||||||||||||||||||||||||
| 18864.W0042 | A4 s/s | M 42 | 85 | 144 | 63.0 | 147 | 80 | 32 | 6300 | 4500 | 4.03 | ||||||||||||||||||||||
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material A4 s/s d1 M 42 d2 85 w1 144 l1 63.0 h1 147 w2 80 w3 32 F1
max.
kg 6300 F2
max.
kg 4500 Weight
kg 4.03 | |||||||||||||||||||||||||||||||||
| 18864.W0048 | A4 s/s | M 48 | 100 | 166 | 68.0 | 168 | 90 | 38 | 8600 | 6100 | 6.38 | ||||||||||||||||||||||
£ 350.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Material A4 s/s d1 M 48 d2 100 w1 166 l1 68.0 h1 168 w2 90 w3 38 F1
max.
kg 8600 F2
max.
kg 6100 Weight
kg 6.38 | |||||||||||||||||||||||||||||||||
Technical & Application
Material
Stainless steel (A4, AISI 316).
CE marked.
Technical Notes
To DIN 580.
When using lifting eye bolts it is critical to ensure that the face is in firm contact with the mating surface.
These lifting bolts are generally installed and remain on a piece of equipment for the purpose of transporting them. They are not for repeated lifting use - if this is required our swivelling lifting bolt range should be used.
Tips
Maximum load values are only applicable when the thread and the material, it is being used in is as least as strong as the that of the bolt.
F1 and F2 values given are for steel and cast iron components.
Important Notes
Not to be used at lift angles of greater than 45° or with swivelling loads.
Supplied with certificate and operating instructions.
