Pull-Down Clamps
solid clamping jaws - flat design
12330 Clamping Jaw
for clamps 12320, material: Steel
Alternative products you may wish to consider
£ 182.93 per unit (click for quantity discounts)
£ 216.59 per unit (click for quantity discounts)
£ 268.63 per unit (click for quantity discounts)
For clamp w1
d1
d2
h1
h2
l1
l2
Weight
g
| Price & Availability | Article | For clamp w1 | d1 | d2 | h1 | h2 | l1 | l2 | Weight g | ||||||||||||||||||
| 12330.W0019 | 65 | 8.1 | 9 | 85 | 35 | 38 | 12 | 889 | |||||||||||||||||||
£ 182.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For clamp w1 65 d1 8.1 d2 9 h1 85 h2 35 l1 38 l2 12 Weight
g 889 | |||||||||||||||||||||||||||
| 12330.W0026 | 75 | 8.1 | 9 | 100 | 45 | 38 | 12 | 1306 | |||||||||||||||||||
£ 216.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For clamp w1 75 d1 8.1 d2 9 h1 100 h2 45 l1 38 l2 12 Weight
g 1306 | |||||||||||||||||||||||||||
| 12330.W0038 | 90 | 8.1 | 9 | 120 | 50 | 38 | 12 | 1829 | |||||||||||||||||||
£ 268.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For clamp w1 90 d1 8.1 d2 9 h1 120 h2 50 l1 38 l2 12 Weight
g 1829 | |||||||||||||||||||||||||||
Technical & Application
Material
Steel, case hardened, with M8 bolts.
Tips
Clamping jaw with serrated surface for machining of rough parts. Can be mounted on the clamping jaw or the stop.
Product Datasheets

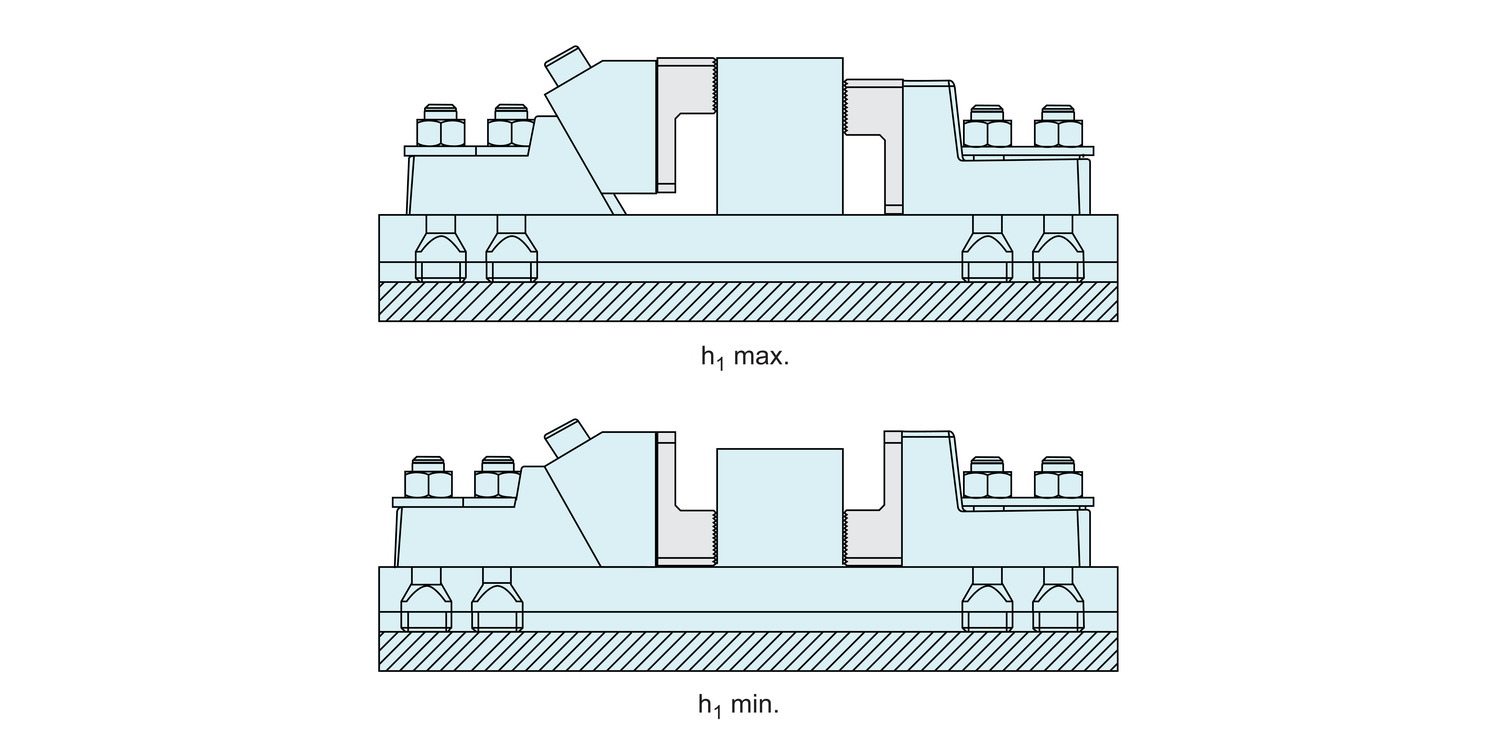

Application images
