Pull-Down Clamps
solid clamping jaws - flat design
12300 Clamping Jaws - Standard
downhold action, material: Cast iron
Alternative products you may wish to consider
£ 416.35 per unit (click for quantity discounts)
For T-slot
16-20
w1
50
w2
19
h1
60
h2
25
h3
35
l1
150
l2
72
Stroke s1
4
Weight
g
2940
£ 473.56 per unit (click for quantity discounts)
For T-slot
22-36
w1
80
w2
31
h1
75
h2
30
h3
45
l1
205
l2
102
Stroke s1
5
Weight
g
7900
£ 728.98 per unit (click for quantity discounts)
For T-slot
w1
w2
h1
h2
h3
l1
l2
Stroke s1
Weight
g
| Price & Availability | Article | For T-slot | w1 | w2 | h1 | h2 | h3 | l1 | l2 | Stroke s1 | Weight g | ||||||||||||||||||
| 12300.W0016 | 10-14 | 40 | 13 | 50 | 20 | 30 | 115 | 60 | 3 | 1590 | |||||||||||||||||||
£ 416.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For T-slot 10-14 w1 40 w2 13 h1 50 h2 20 h3 30 l1 115 l2 60 Stroke s1 3 Weight
g 1590 | |||||||||||||||||||||||||||||
| 12300.W0018 | 16-20 | 50 | 19 | 60 | 25 | 35 | 150 | 72 | 4 | 2940 | |||||||||||||||||||
£ 473.56 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For T-slot 16-20 w1 50 w2 19 h1 60 h2 25 h3 35 l1 150 l2 72 Stroke s1 4 Weight
g 2940 | |||||||||||||||||||||||||||||
| 12300.W0030 | 22-36 | 80 | 31 | 75 | 30 | 45 | 205 | 102 | 5 | 7900 | |||||||||||||||||||
£ 728.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For T-slot 22-36 w1 80 w2 31 h1 75 h2 30 h3 45 l1 205 l2 102 Stroke s1 5 Weight
g 7900 | |||||||||||||||||||||||||||||
Technical & Application
Material
Body: cast iron.
Jaws: steel, hardened.
Technical Notes
For mounting of each clamp to machine table, two clamping bolts no. 21000, washers no. 25000 and fixture nuts no. 24300 should be ordered separately.
Hex. key provided.
Tips
Can be actuated from left hand side only.
Sold in pairs.

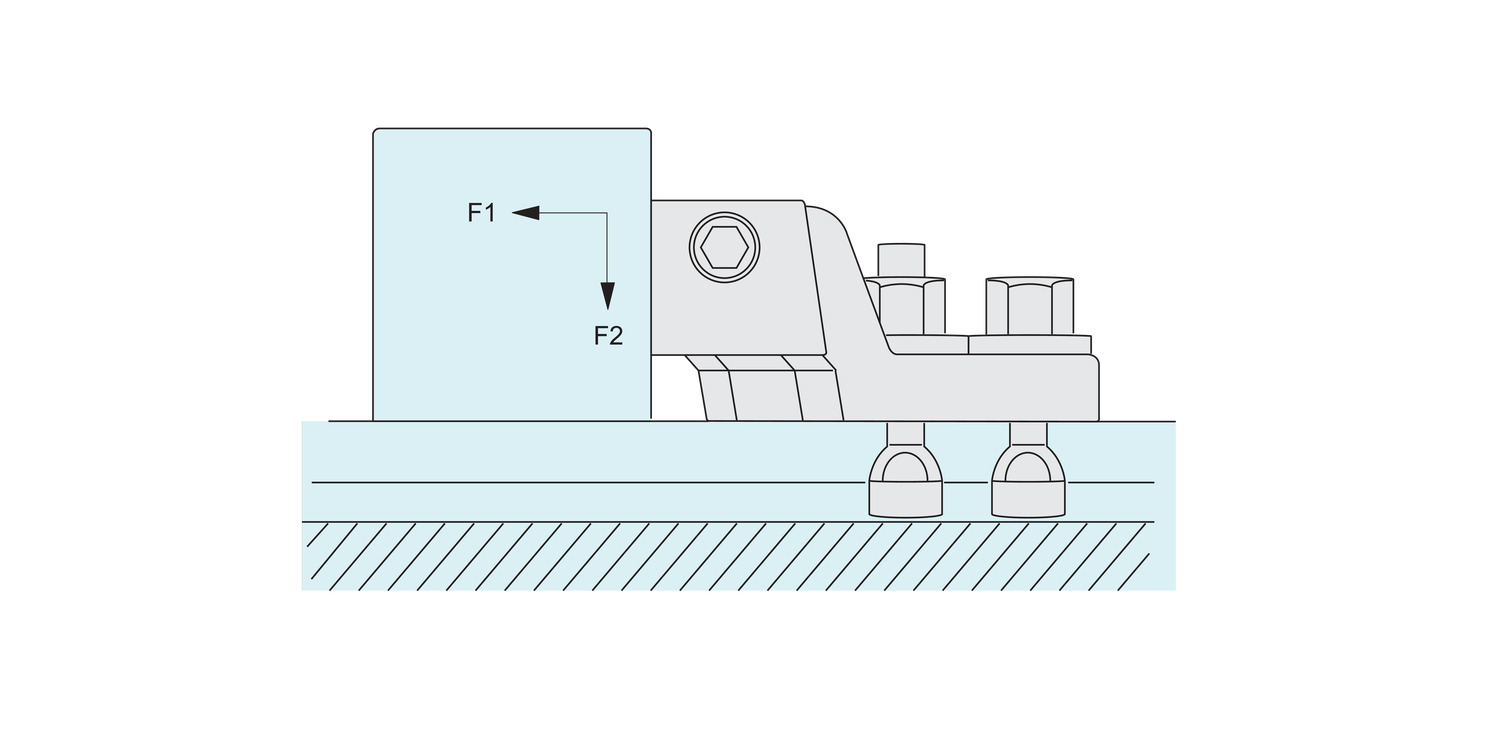

For table of clamping forces, see below.
Product Datasheets
CAD files

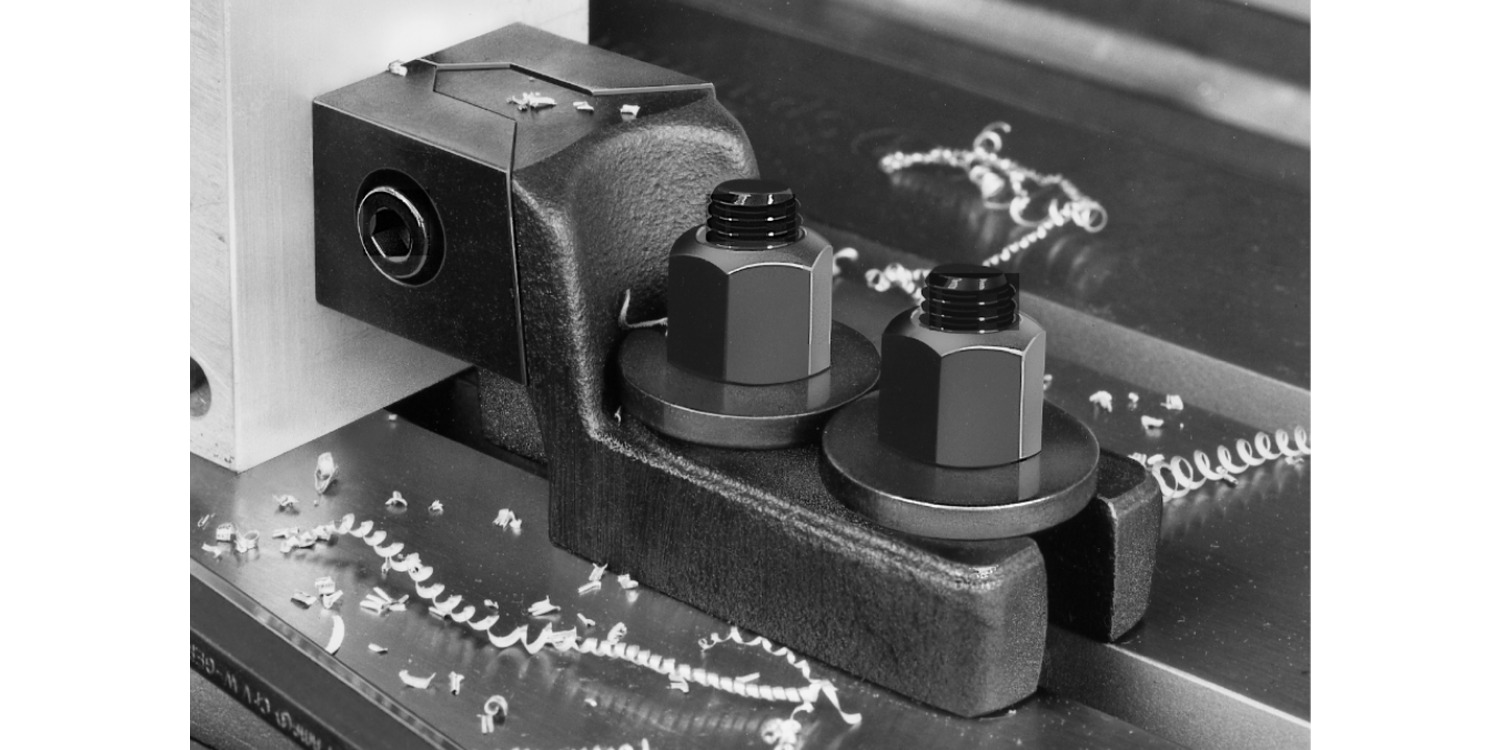

Application images
