Mini Clamp Stops
for 10940
10900 Fixed Mini Finger Clamp Stops
single or double point, material: Spring steel
Alternative products you may wish to consider
Type
Single - standard
Clamp height
2.5
h1
6.5
h2
2.5
h3
-
h4
5
l1
12
l2
3.5
l3
15
l4
22
w1
20
w2
25
w3
±0.01
18
d1
M 4
d2
tol. H7
4.2
£ 67.41 per unit (click for quantity discounts)
Type
Double - standard
Clamp height
2.5
h1
6.5
h2
2.5
h3
-
h4
5
l1
12
l2
3.5
l3
15
l4
22
w1
-
w2
25
w3
±0.01
18
d1
M 4
d2
tol. H7
4.2
£ 69.85 per unit (click for quantity discounts)
Type
Single - raised
Clamp height
7.5
h1
10
h2
2.5
h3
5
h4
-
l1
12
l2
3.5
l3
15
l4
22
w1
20
w2
25
w3
±0.01
18
d1
M 4
d2
tol. H7
4.2
£ 74.67 per unit (click for quantity discounts)
Type
Double - raised
Clamp height
7.5
h1
10
h2
2.5
h3
5
h4
-
l1
12
l2
3.5
l3
15
l4
22
w1
-
w2
25
w3
±0.01
18
d1
M 4
d2
tol. H7
4.2
£ 81.91 per unit (click for quantity discounts)
Type
Clamp height
h1
h2
h3
h4
l1
l2
l3
l4
w1
w2
w3
±0.01
d1
d2
tol. H7

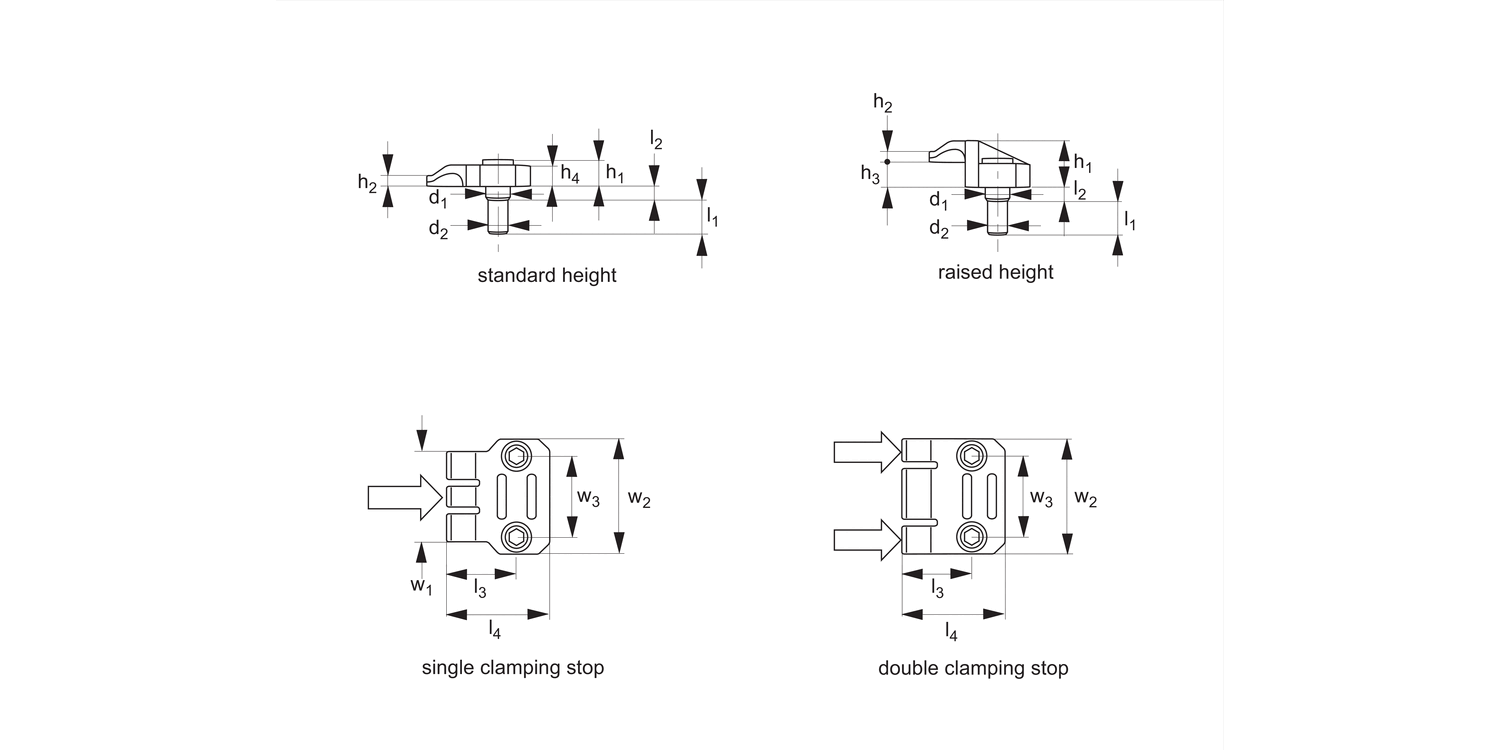

| Price & Availability | Article | Type | Clamp height | h1 | h2 | h3 | h4 | l1 | l2 | l3 | l4 | w1 | w2 | w3 ±0.01 | d1 | d2 tol. H7 | |||||||||||||||
| 10900.W0105 | Single - standard | 2.5 | 6.5 | 2.5 | - | 5 | 12 | 3.5 | 15 | 22 | 20 | 25 | 18 | M 4 | 4.2 | ||||||||||||||||
£ 67.41 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Single - standard Clamp height 2.5 h1 6.5 h2 2.5 h3 - h4 5 l1 12 l2 3.5 l3 15 l4 22 w1 20 w2 25 w3
±0.01 18 d1 M 4 d2
tol. H7 4.2 | |||||||||||||||||||||||||||||||
| 10900.W0110 | Double - standard | 2.5 | 6.5 | 2.5 | - | 5 | 12 | 3.5 | 15 | 22 | - | 25 | 18 | M 4 | 4.2 | ||||||||||||||||
£ 69.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Double - standard Clamp height 2.5 h1 6.5 h2 2.5 h3 - h4 5 l1 12 l2 3.5 l3 15 l4 22 w1 - w2 25 w3
±0.01 18 d1 M 4 d2
tol. H7 4.2 | |||||||||||||||||||||||||||||||
| 10900.W0115 | Single - raised | 7.5 | 10 | 2.5 | 5 | - | 12 | 3.5 | 15 | 22 | 20 | 25 | 18 | M 4 | 4.2 | ||||||||||||||||
£ 74.67 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Single - raised Clamp height 7.5 h1 10 h2 2.5 h3 5 h4 - l1 12 l2 3.5 l3 15 l4 22 w1 20 w2 25 w3
±0.01 18 d1 M 4 d2
tol. H7 4.2 | |||||||||||||||||||||||||||||||
| 10900.W0120 | Double - raised | 7.5 | 10 | 2.5 | 5 | - | 12 | 3.5 | 15 | 22 | - | 25 | 18 | M 4 | 4.2 | ||||||||||||||||
£ 81.91 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type Double - raised Clamp height 7.5 h1 10 h2 2.5 h3 5 h4 - l1 12 l2 3.5 l3 15 l4 22 w1 - w2 25 w3
±0.01 18 d1 M 4 d2
tol. H7 4.2 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Spring steel.
Technical Notes
Fixed in place with special screws allowing the precise location and re-positioning of parts.
Tips

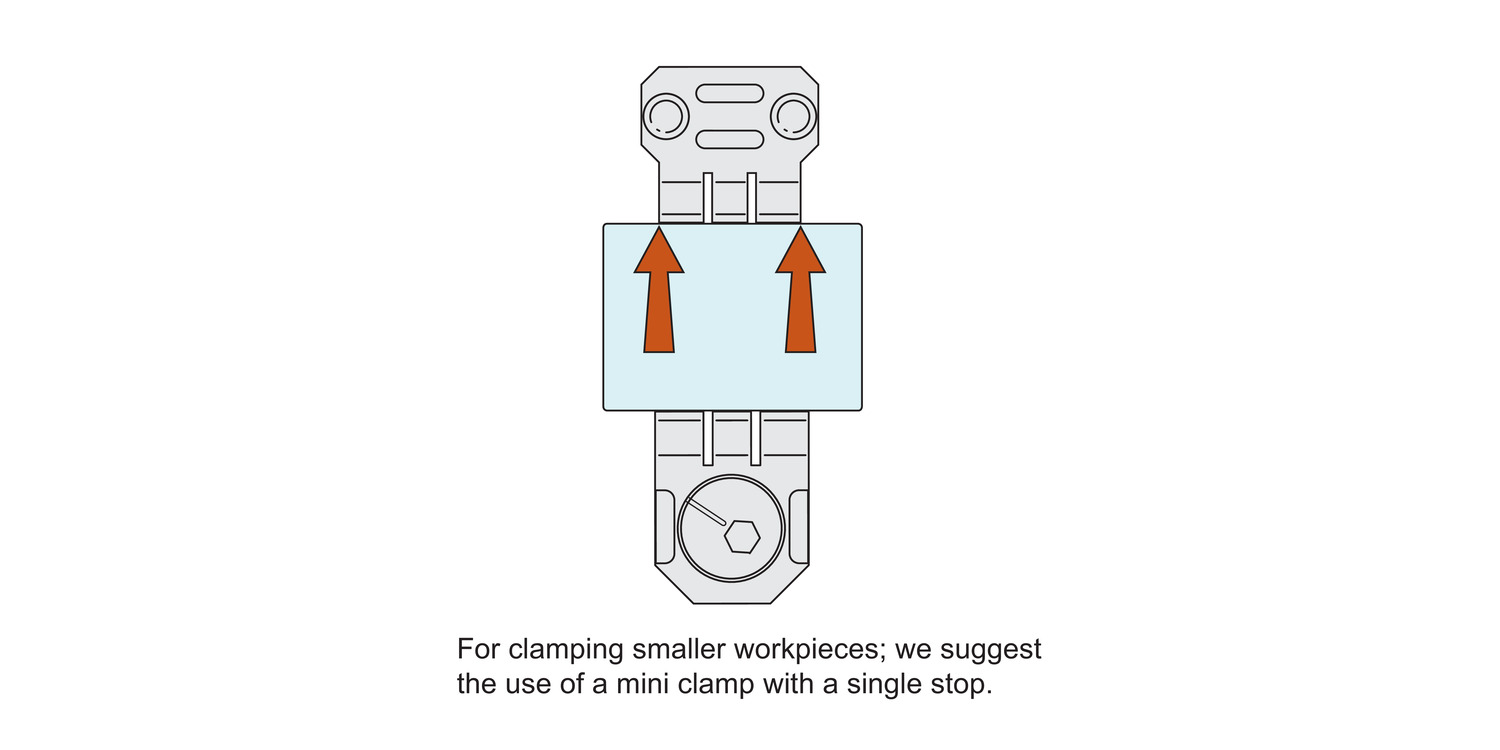

Single or double version stops.

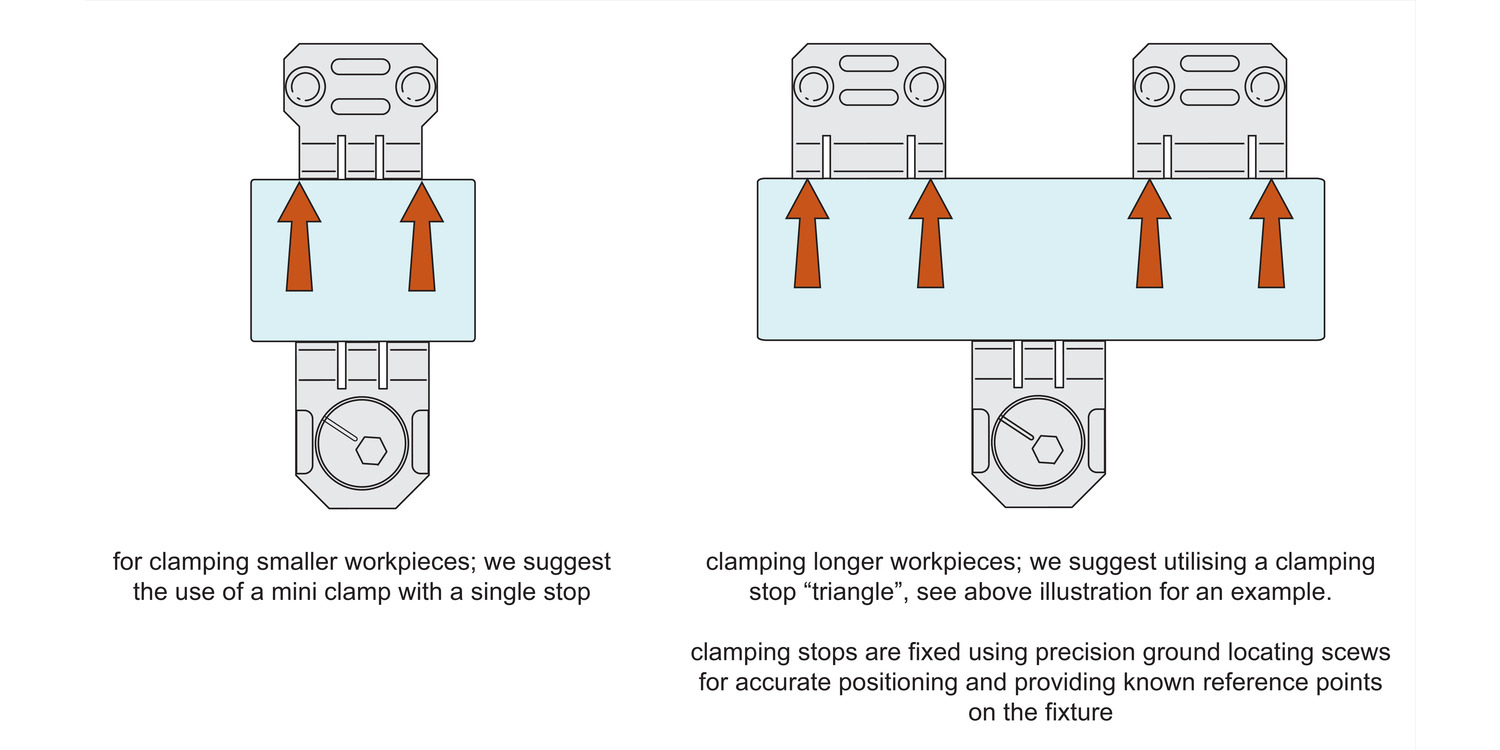

Use double clamping stop version on long, slender or flexible parts.
Use if possible with our mini finger clamp, part no. 10940.
Product Datasheets
Application images
