Spiral Cam Clamps

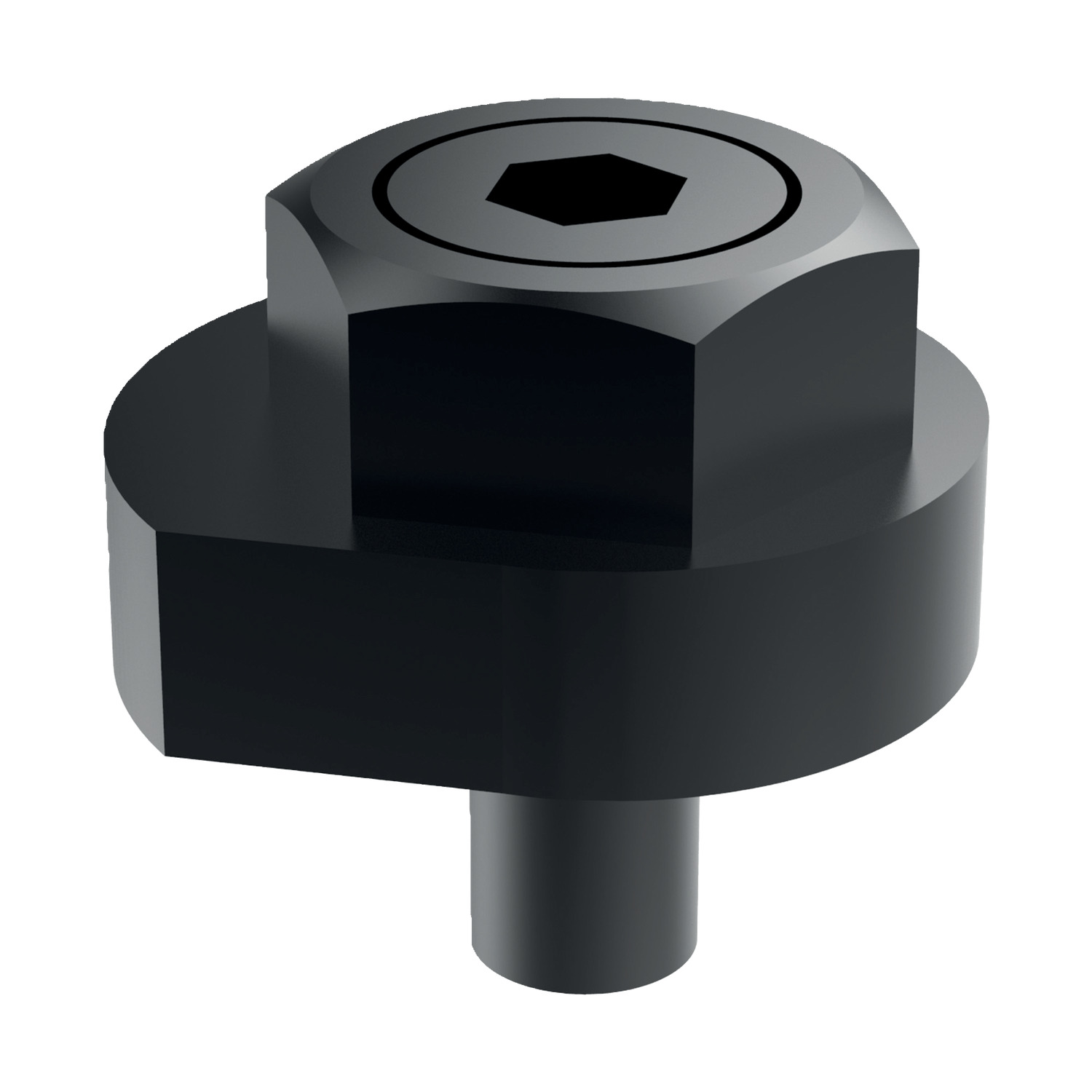

12109 Cam Clamps
material: Steel
Alternative products you may wish to consider
d1
24
d2
M 8x1,25
h1
16
h2
8
l1
12
w1
12
w2
16.4
Stroke s1
4.4
A/F1
6
A/F2
19
Torque to
max.
Nm
50
Clamping force
max.
kN
5.2
Weight
g
55
£ 54.02 per unit (click for quantity discounts)
d1
30
d2
M10x1,50
h1
20
h2
10
l1
15
w1
15
w2
20.5
Stroke s1
5.5
A/F1
8
A/F2
24
Torque to
max.
Nm
75
Clamping force
max.
kN
8.0
Weight
g
110
£ 64.07 per unit (click for quantity discounts)
d1
34
d2
M12x1,75
h1
24
h2
12
l1
18
w1
17
w2
23.2
Stroke s1
6.2
A/F1
10
A/F2
27
Torque to
max.
Nm
90
Clamping force
max.
kN
9.3
Weight
g
185
£ 75.36 per unit (click for quantity discounts)
d1
d2
h1
h2
l1
w1
w2
Stroke s1
A/F1
A/F2
Torque to
max.
Nm
Clamping force
max.
kN
Weight
g
| Price & Availability | Article | d1 | d2 | h1 | h2 | l1 | w1 | w2 | Stroke s1 | A/F1 | A/F2 | Torque to max. Nm | Clamping force max. kN | Weight g | ||||||||||||||||||
| 12109.W0024 | 24 | M 8x1,25 | 16 | 8 | 12 | 12 | 16.4 | 4.4 | 6 | 19 | 50 | 5.2 | 55 | |||||||||||||||||||
£ 54.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.

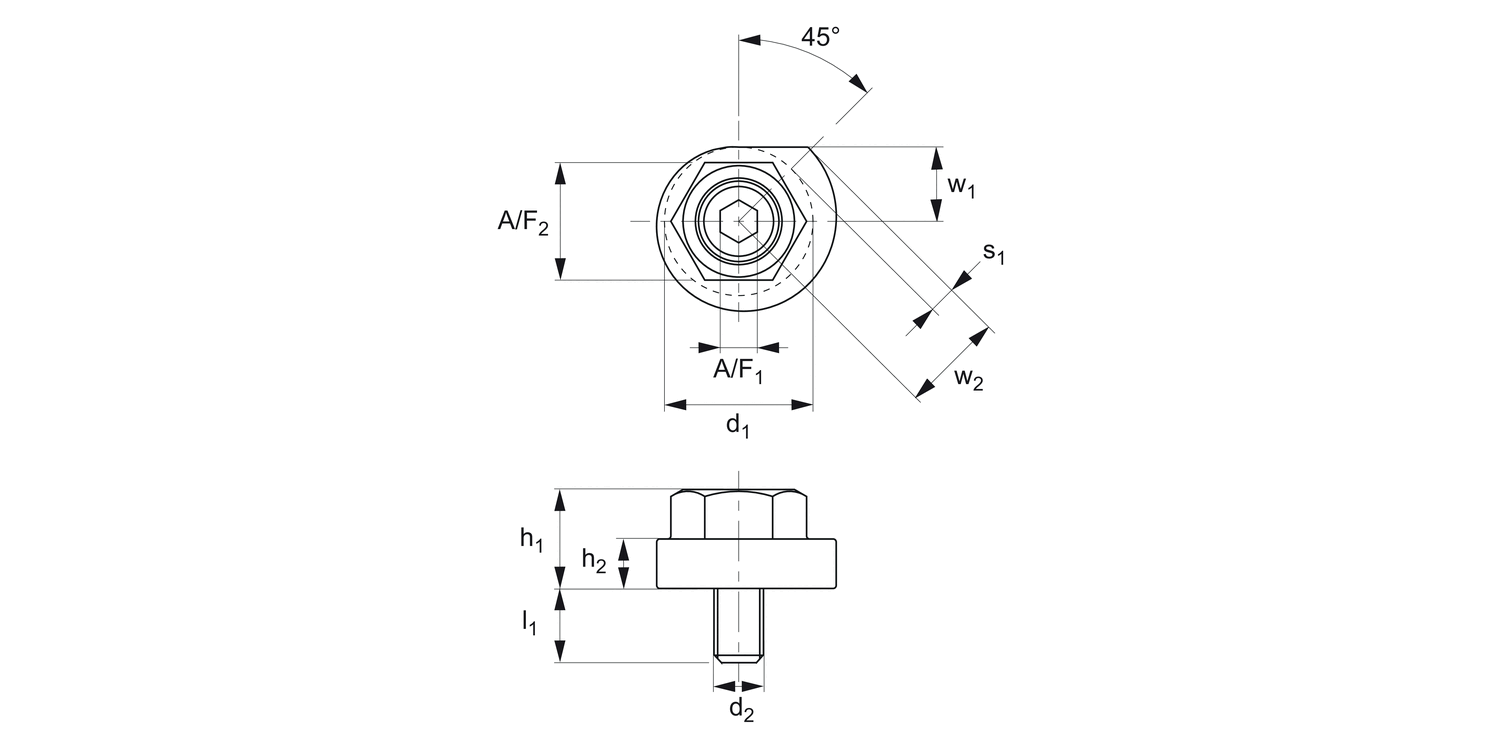

d1 24 d2 M 8x1,25 h1 16 h2 8 l1 12 w1 12 w2 16.4 Stroke s1 4.4 A/F1 6 A/F2 19 Torque to
max.
Nm 50 Clamping force
max.
kN 5.2 Weight
g 55 | ||||||||||||||||||||||||||||||||
| 12109.W0030 | 30 | M10x1,50 | 20 | 10 | 15 | 15 | 20.5 | 5.5 | 8 | 24 | 75 | 8.0 | 110 | |||||||||||||||||||
£ 64.07 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 30 d2 M10x1,50 h1 20 h2 10 l1 15 w1 15 w2 20.5 Stroke s1 5.5 A/F1 8 A/F2 24 Torque to
max.
Nm 75 Clamping force
max.
kN 8.0 Weight
g 110 | ||||||||||||||||||||||||||||||||
| 12109.W0034 | 34 | M12x1,75 | 24 | 12 | 18 | 17 | 23.2 | 6.2 | 10 | 27 | 90 | 9.3 | 185 | |||||||||||||||||||
£ 75.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
d1 34 d2 M12x1,75 h1 24 h2 12 l1 18 w1 17 w2 23.2 Stroke s1 6.2 A/F1 10 A/F2 27 Torque to
max.
Nm 90 Clamping force
max.
kN 9.3 Weight
g 185 | ||||||||||||||||||||||||||||||||
Technical & Application
Material
Steel (AISI 4140), HRc 33-39, blackened.
Technical Notes
Simple and robust cam clamp. Easy to install. Actuated with spanner.
Tips

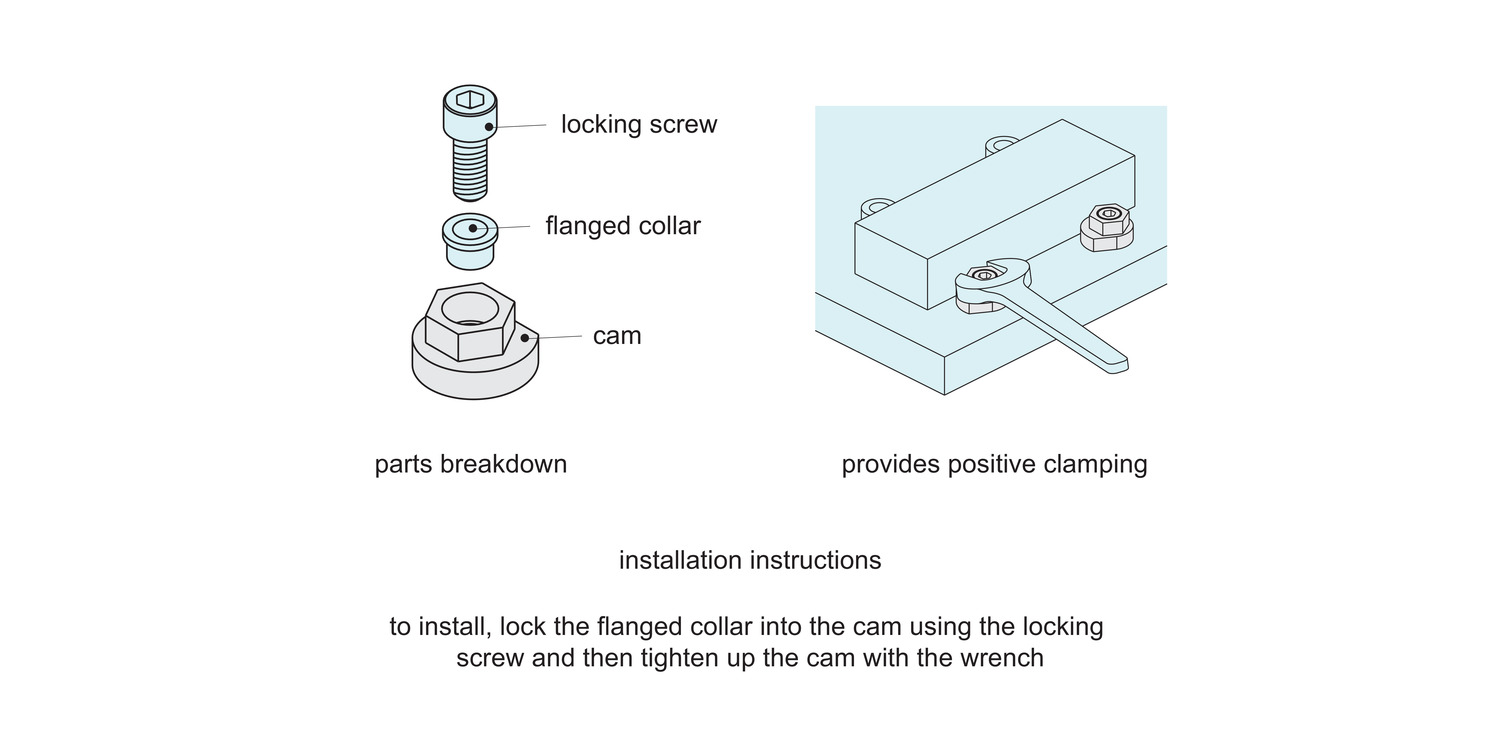

To install: insert flanged collar and locking screw into cam body. Tighten locking screw to fix cam in position. Load component, then use spanner to turn and actuate cam to clamp up to workpiece surface.
