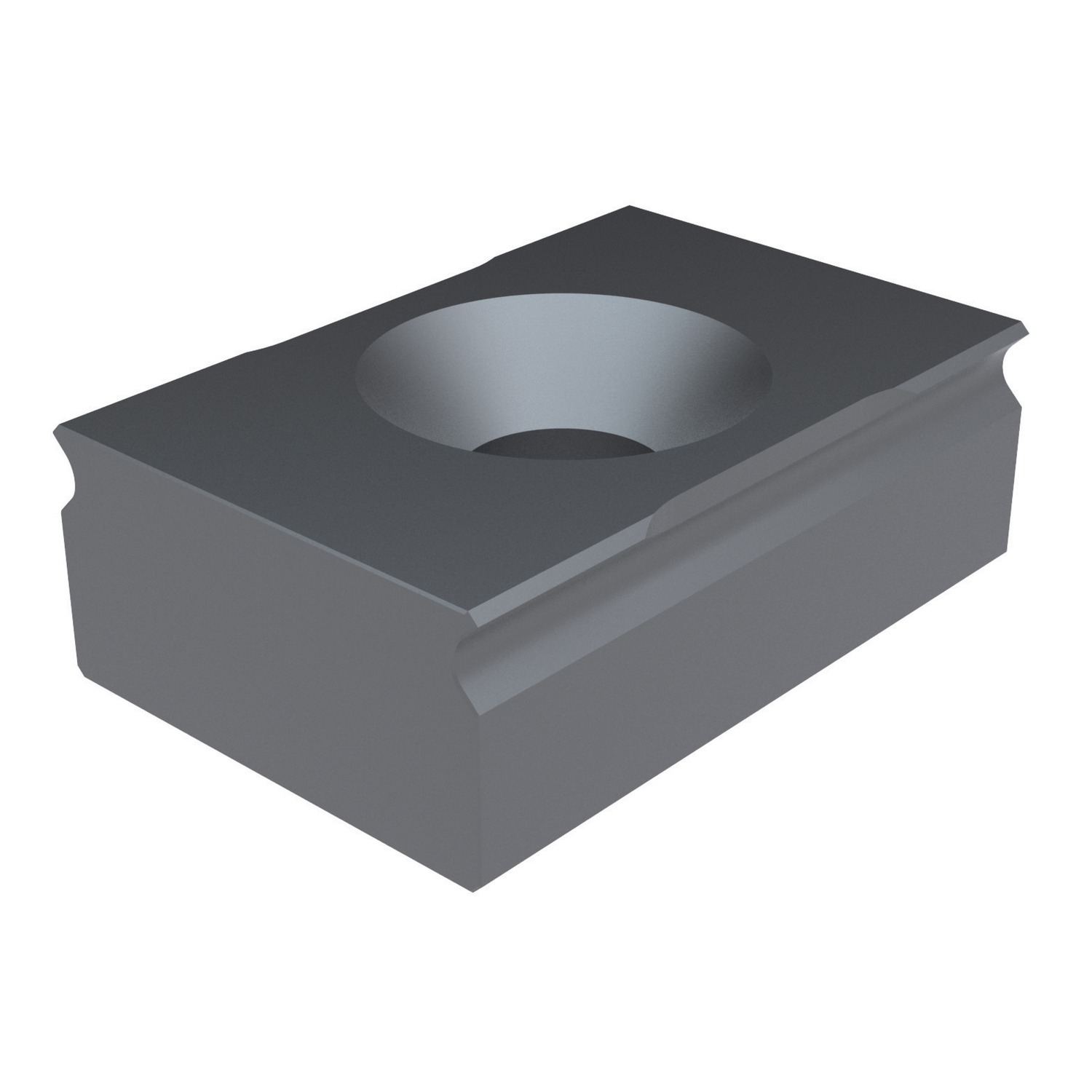

12034 Talongrip Clamps

Name: 12034.W0100
Brand: WC
SKU: 12034.W0100
Price: 35.75 EUR
Availability: InStock

material: Hardened steel

Article properties

Order No.

12034.W0100

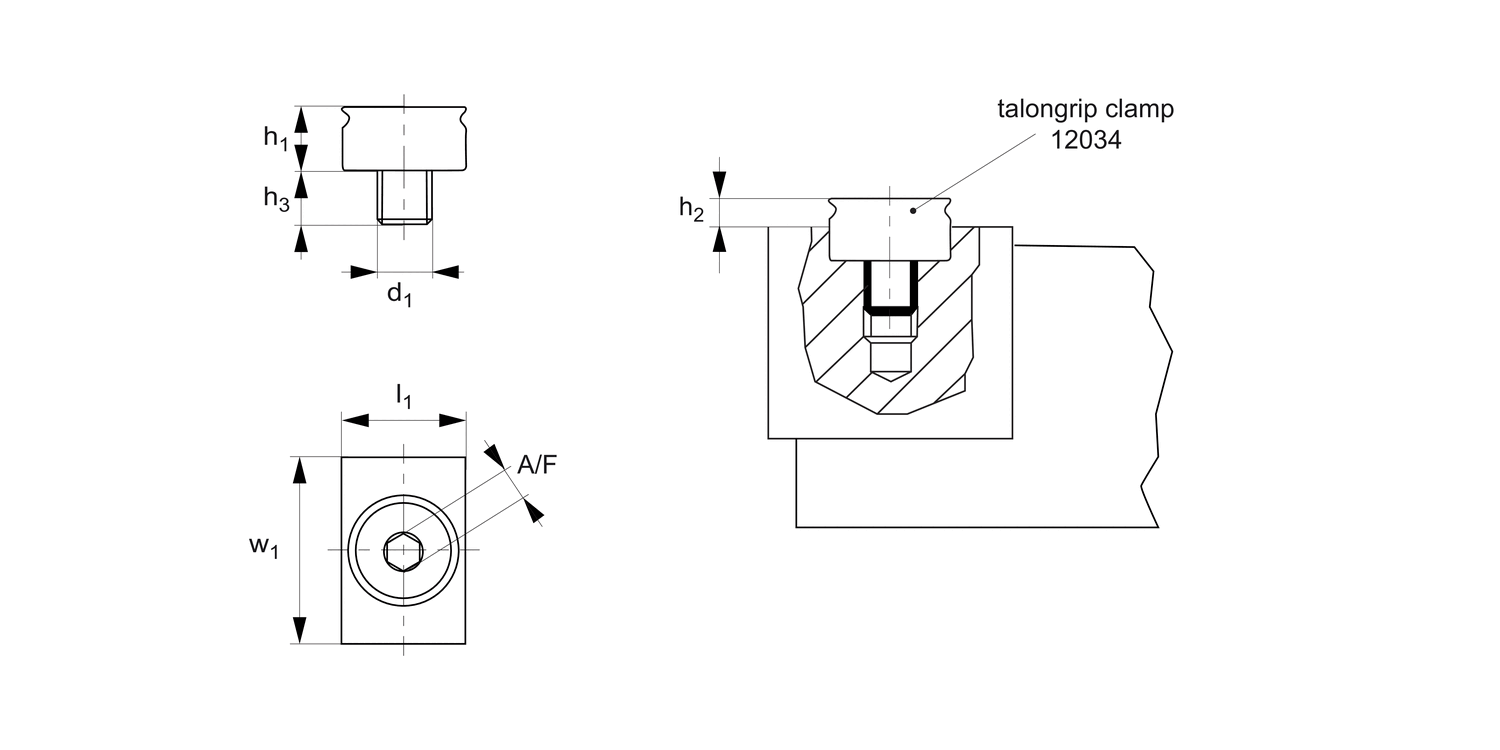

d₁

M 5

Grip height h₂

1,5 to 3,0

h₁

7.9

h₃

8.1

l₁

25.4

w₁

19.1

A/F

Qty/pack

Weight g

See full product selection

£ 35.75 per unit (click for quantity discounts)

Ready to despatch 32
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 35.75	0%
5-9	£ 33.96	5%
10-19	£ 32.18	10%
20-49	£ 30.39	15%
50+	£ 26.81	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, hardened (HRc 52-54).

Technical Notes

Typically used in conjunction with pitbull (part no. 12301) or Dynaforce (part no. 12010) clamps.
Allows aggressive clamping on as little as 1,5mm of material.

Tips

A further option includes an adaptor to suit 100mm and 150mm vices - see part no. 12035.

Product Datasheets

12034 Talongrip ClampsJune 24, 2025, 3:51 PM / 315.62 kB

TalongripsJune 24, 2025, 3:30 PM / 432.43 kB

Low Profile Side ClampingJune 24, 2025, 3:31 PM / 7.84 MB

Manual Clamping & Height SettingJune 24, 2025, 3:32 PM / 31.08 MB

Work HoldingJune 24, 2025, 3:33 PM / 61.81 MB

CAD files

12034 AcisApril 17, 2024, 9:03 AM / 42.11 kB

12034 IGESApril 17, 2024, 9:03 AM / 81.87 kB

12034 ParasolidApril 17, 2024, 9:03 AM / 45.92 kB

12034 ProEApril 17, 2024, 9:03 AM / 142.55 kB

12034 SolidWorksApril 17, 2024, 9:03 AM / 1.02 MB

12034 StepApril 17, 2024, 9:03 AM / 54.08 kB
