Universal Step Blocks
14040 Adjustable Step Blocks
with spiral gearing, material: Heat treated steel
Alternative products you may wish to consider
Type
G
Clamping height h1
min.
-
Clamping height h1
max.
-
Description
Upper part
h2
44
w1
30
l1
70
Lower part
-
Upper part
-
Single parts
G
Weight
g
500
£ 51.22 per unit (click for quantity discounts)
Type
Clamping height h1
min.
Clamping height h1
max.
Description
h2
w1
l1
Lower part
Upper part
Single parts
Weight
g
| Price & Availability | Article | Type | Clamping height h1 min. | Clamping height h1 max. | Description | h2 | w1 | l1 | Lower part | Upper part | Single parts | Weight g | |||||||||||||||
| 14040.W0005 | G | - | - | Upper part | 44 | 30 | 70 | - | - | G | 500 | ||||||||||||||||
£ 51.22 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Type G Clamping height h1
min. - Clamping height h1
max. - Description Upper part h2 44 w1 30 l1 70 Lower part - Upper part - Single parts G Weight
g 500 | |||||||||||||||||||||||||||
Technical & Application
Material
Steel, tempered and enamelled.
Technical Notes
DIN 6326.
The tooth form is a metric profile to DIN 13 sheet 1 with a pitch of 2,5mm. It lies in the normal section of the setting level.
Product Datasheets
CAD files

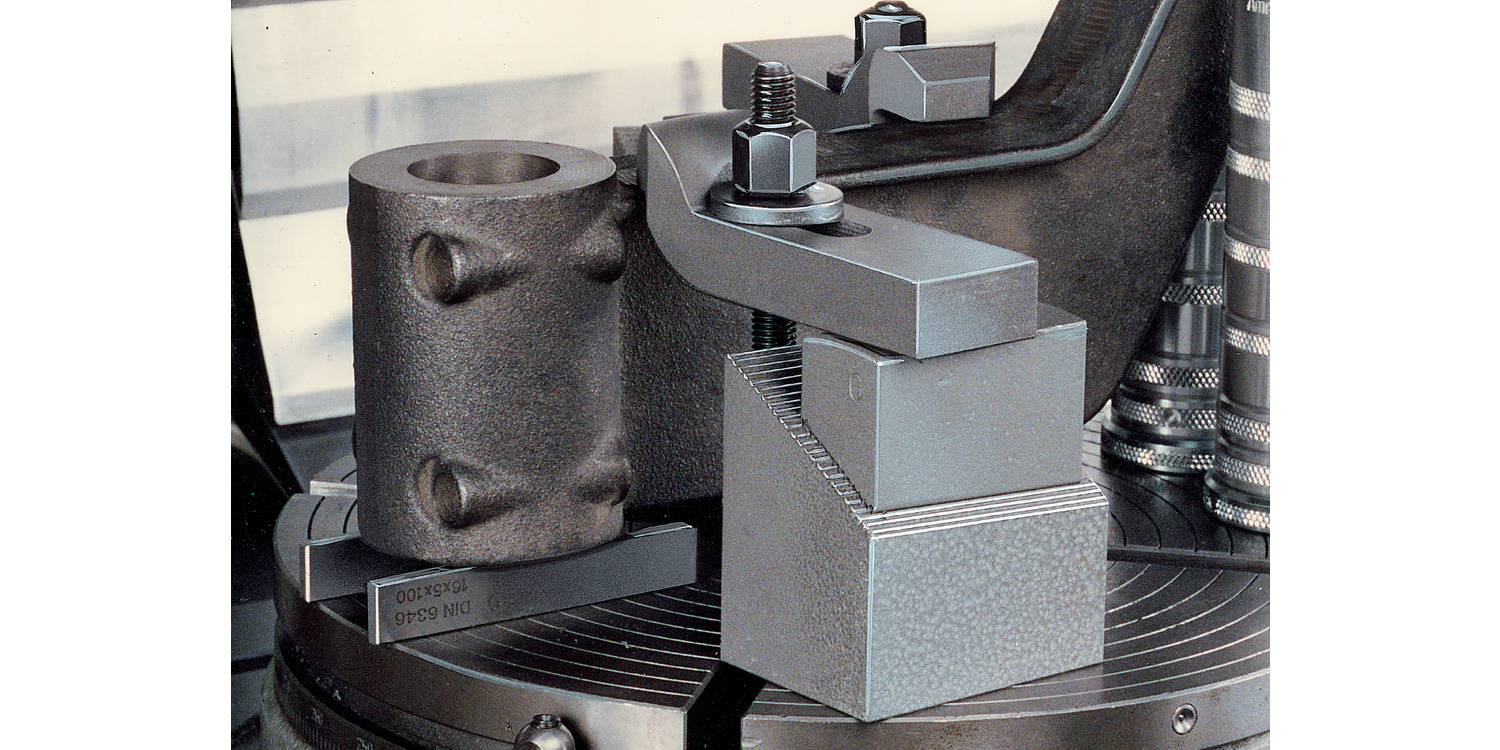

Application images
