Universal Step Blocks
14100 Step Blocks
large, material: Cast Iron
Alternative products you may wish to consider
£ 33.69 per unit (click for quantity discounts)
£ 52.82 per unit (click for quantity discounts)
Size
140
h1
min.
102.5
h1
max.
140
w1
100.0
w2
60
w3
50
Weight
g
2000
£ 67.50 per unit (click for quantity discounts)
Size
185
h1
min.
147.5
h1
max.
185
w1
105.0
w2
65
w3
50
Weight
g
2900
£ 92.62 per unit (click for quantity discounts)
Size
230
h1
min.
192.5
h1
max.
230
w1
110.0
w2
70
w3
50
Weight
g
3600
£ 108.69 per unit (click for quantity discounts)
Size
275
h1
min.
237.5
h1
max.
275
w1
115.0
w2
75
w3
50
Weight
g
4300
£ 125.53 per unit (click for quantity discounts)
Size
320
h1
min.
282.5
h1
max.
320
w1
120.0
w2
80
w3
50
Weight
g
5200
£ 153.07 per unit (click for quantity discounts)
Size
h1
min.
h1
max.
w1
w2
w3
Weight
g
| Price & Availability | Article | Size | h1 min. | h1 max. | w1 | w2 | w3 | Weight g | |||||||||||||||
| 14100.W0050 | 50 | 12.5 | 50 | 42.5 | 50 | 50 | 500 | ||||||||||||||||
£ 33.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 50 h1
min. 12.5 h1
max. 50 w1 42.5 w2 50 w3 50 Weight
g 500 | |||||||||||||||||||||||
| 14100.W0095 | 95 | 57.5 | 95 | 95.0 | 55 | 50 | 1600 | ||||||||||||||||
£ 52.82 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 95 h1
min. 57.5 h1
max. 95 w1 95.0 w2 55 w3 50 Weight
g 1600 | |||||||||||||||||||||||
| 14100.W0140 | 140 | 102.5 | 140 | 100.0 | 60 | 50 | 2000 | ||||||||||||||||
£ 67.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 140 h1
min. 102.5 h1
max. 140 w1 100.0 w2 60 w3 50 Weight
g 2000 | |||||||||||||||||||||||
| 14100.W0185 | 185 | 147.5 | 185 | 105.0 | 65 | 50 | 2900 | ||||||||||||||||
£ 92.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 185 h1
min. 147.5 h1
max. 185 w1 105.0 w2 65 w3 50 Weight
g 2900 | |||||||||||||||||||||||
| 14100.W0230 | 230 | 192.5 | 230 | 110.0 | 70 | 50 | 3600 | ||||||||||||||||
£ 108.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 230 h1
min. 192.5 h1
max. 230 w1 110.0 w2 70 w3 50 Weight
g 3600 | |||||||||||||||||||||||
| 14100.W0275 | 275 | 237.5 | 275 | 115.0 | 75 | 50 | 4300 | ||||||||||||||||
£ 125.53 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 275 h1
min. 237.5 h1
max. 275 w1 115.0 w2 75 w3 50 Weight
g 4300 | |||||||||||||||||||||||
| 14100.W0320 | 320 | 282.5 | 320 | 120.0 | 80 | 50 | 5200 | ||||||||||||||||
£ 153.07 per unit (click for quantity discounts) Ready to despatch 1 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 320 h1
min. 282.5 h1
max. 320 w1 120.0 w2 80 w3 50 Weight
g 5200 | |||||||||||||||||||||||
Technical & Application
Material
Cast iron, enamelled with support surface and steps milled.
Technical Notes
Produced to DIN 6318.
See item no. 14150(not found) for extra wide step blocks. Step increments of 7,5mm each.
Product Datasheets
CAD files

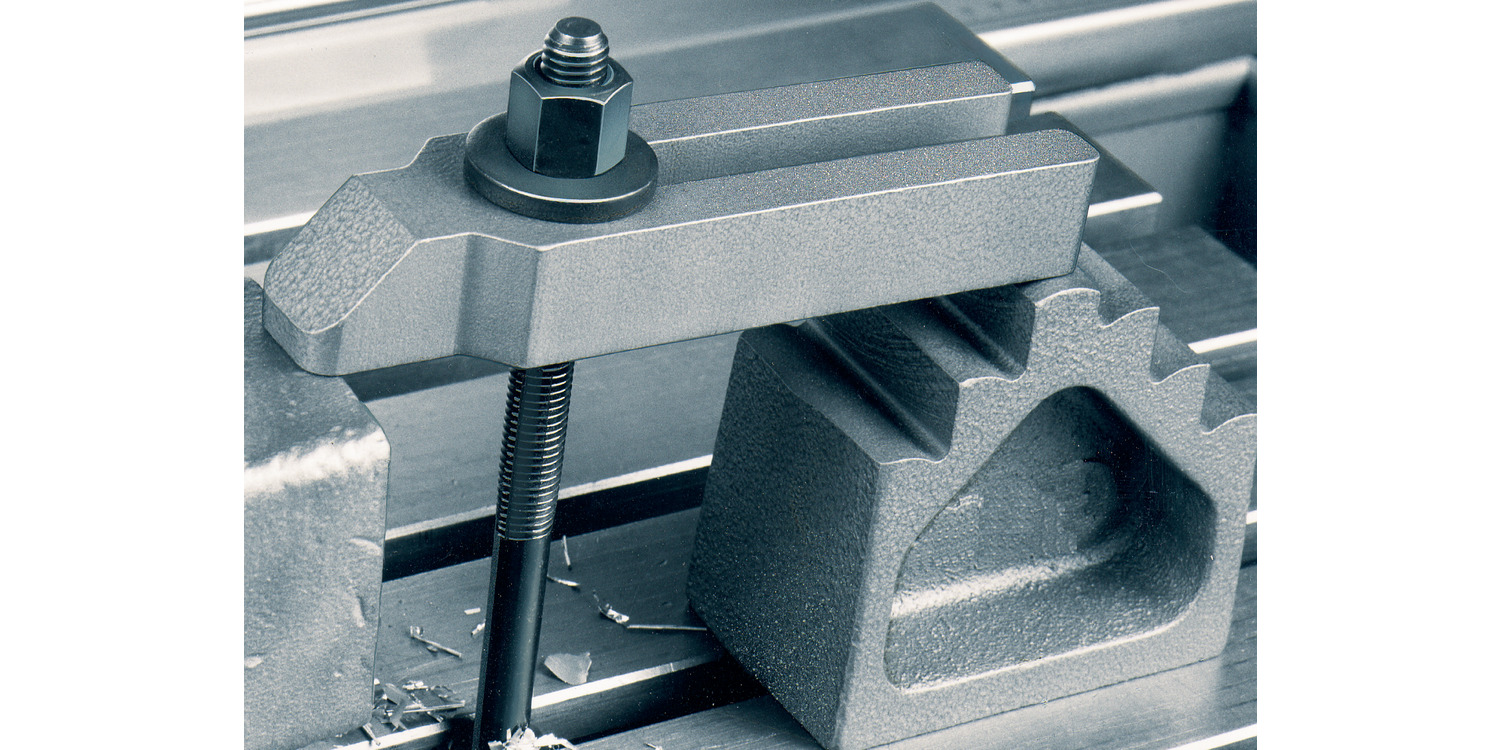

Application images
