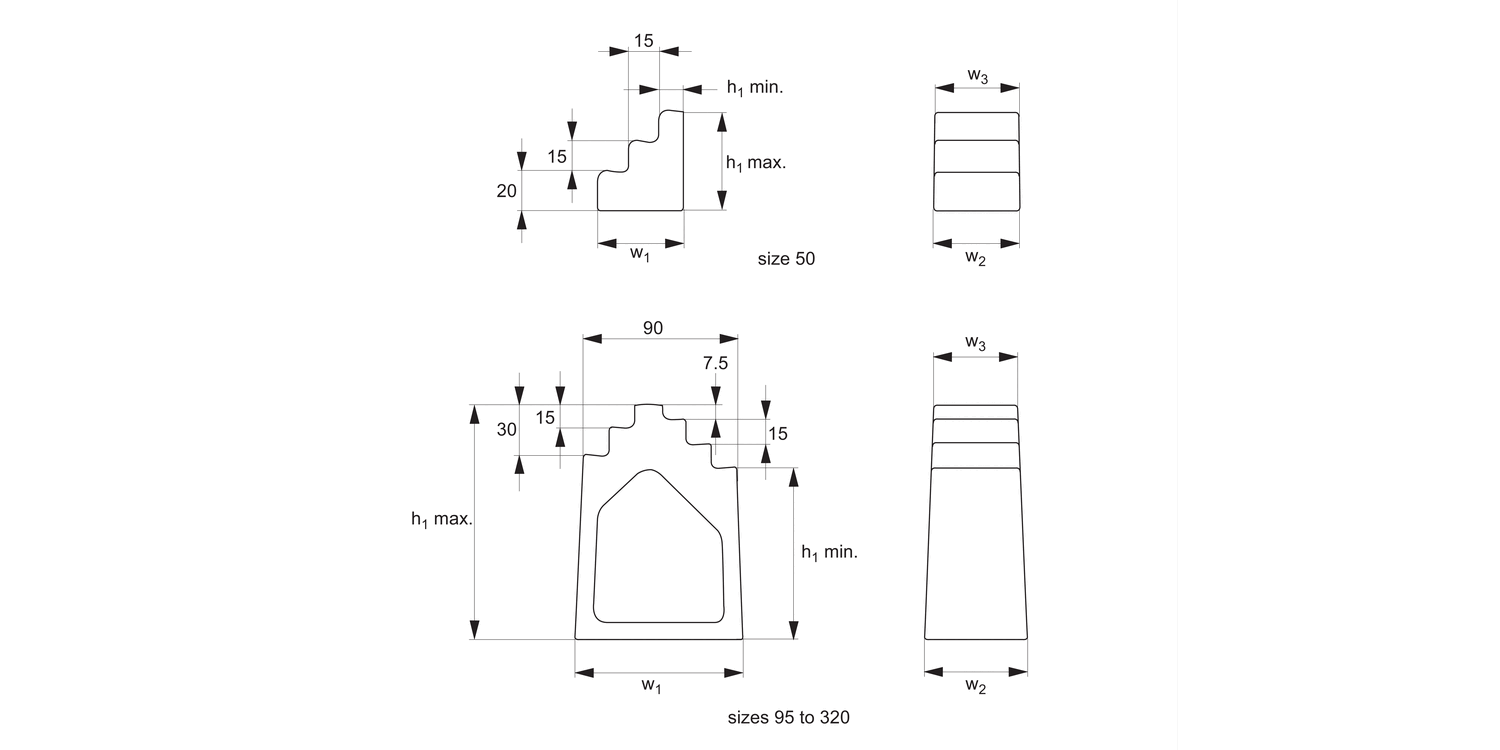

14100 Step Blocks

Name: 14100.W0275
Brand: WC
SKU: 14100.W0275
Price: 125.53 EUR
Availability: OutOfStock

large, material: Cast Iron

Article properties

Order No.

14100.W0275

Size

275

h₁ min.

237.5

h₁ max.

275

w₁

115.0

w₂

w₃

Weight g

4300

See full product selection

£ 125.53 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 125.53	0%
5-14	£ 112.98	10%
15-24	£ 106.70	15%
25+	£ 100.42	20%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Cast iron, enamelled with support surface and steps milled.

Technical Notes

Produced to DIN 6318.
See item no. 14150(not found) for extra wide step blocks. Step increments of 7,5mm each.

Product Datasheets

14100 Step BlocksJune 24, 2025, 3:50 PM / 296.57 kB

Step BlocksJune 24, 2025, 3:30 PM / 646.48 kB

Screw JacksJune 24, 2025, 3:31 PM / 2.76 MB

Manual Clamping & Height SettingJune 24, 2025, 3:32 PM / 31.08 MB

Work HoldingJune 24, 2025, 3:33 PM / 61.81 MB

CAD files

14100 IGESApril 17, 2024, 9:05 AM / 196.41 kB

14100 ParasolidApril 17, 2024, 9:05 AM / 88.86 kB

14100 ProEApril 17, 2024, 9:05 AM / 144.22 kB

14100 StepApril 17, 2024, 9:05 AM / 168.34 kB
