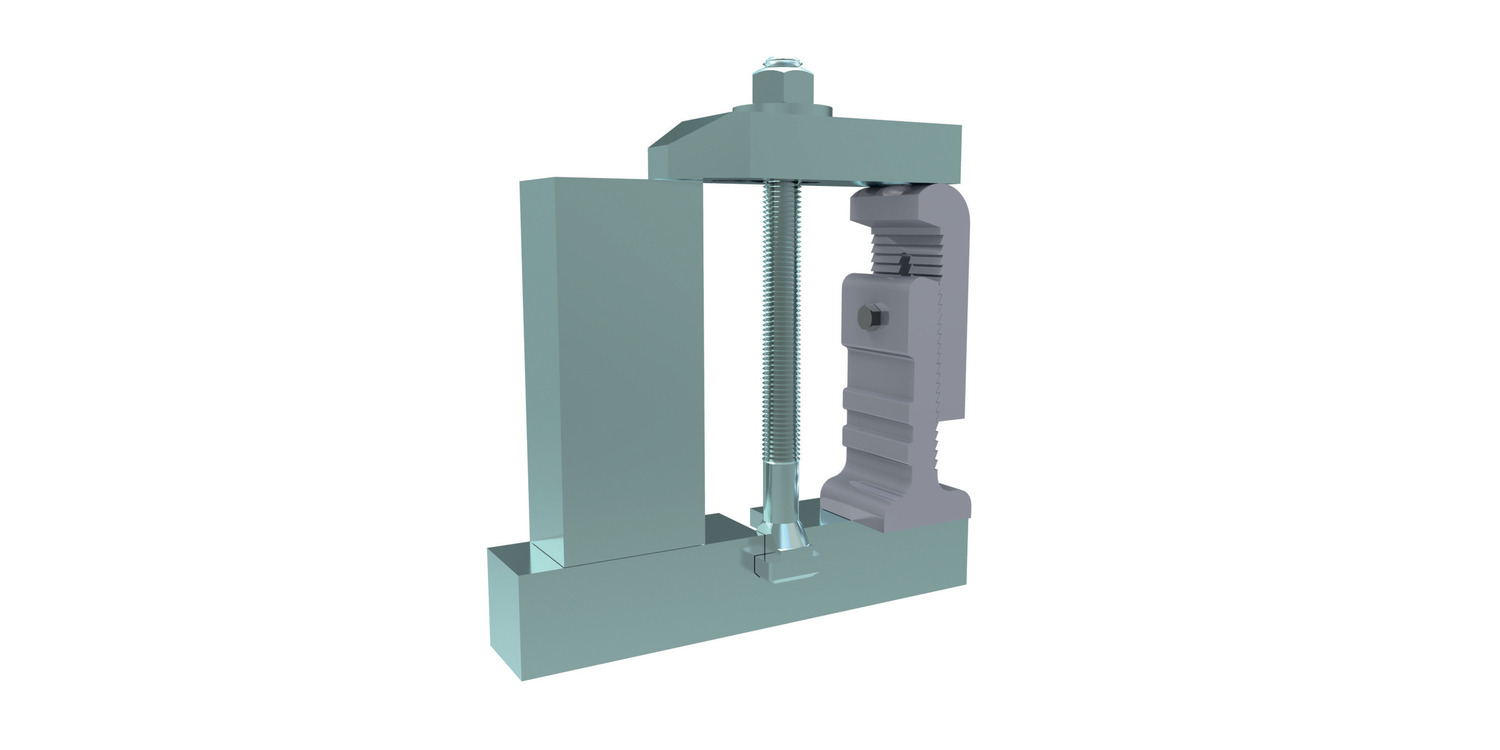

14200 Serrated Heel Block

material: Malleable casting

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Universal Step Blocks

Uni. Step Block Set
Steel

Adjustable Step Blocks
with spiral gearing

Step Blocks
large

Step Blocks
with coupling spring

Step Blocks - Large
extra wide

Serrated Heel Block

Serrated Heel Block - Malleable casting. 2 - 111 - 147 - 50

14200.W0015

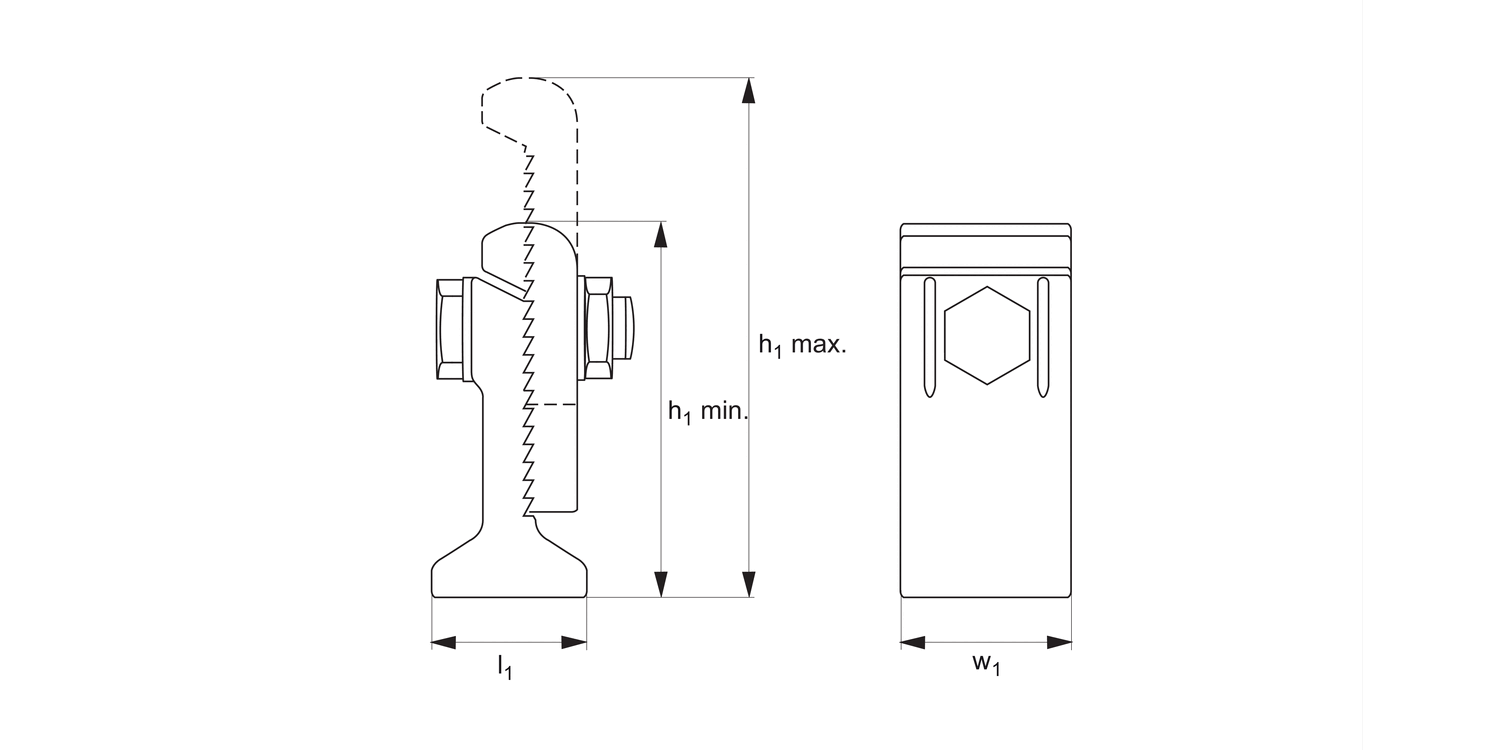

Size

2

h₁ min.

111

h₁ max.

147

w₁

50

l₁

50

Static load max. kN

40

Weight g

1225

£ 101.03 per unit (click for quantity discounts)

Serrated Heel Block - Malleable casting. 3 - 155 - 223 - 60

14200.W0022

Size

3

h₁ min.

155

h₁ max.

223

w₁

60

l₁

60

Static load max. kN

60

Weight g

2607

£ 179.85 per unit (click for quantity discounts)

Serrated Heel Block - Malleable casting. 4 - 220 - 340 - 80

14200.W0034

Size

4

h₁ min.

220

h₁ max.

340

w₁

80

l₁

80

Static load max. kN

90

Weight g

6028

£ 326.81 per unit (click for quantity discounts)

Serrated Heel Block - Malleable casting. 2 - 111 - 147 - 50

14200.W0015

Size

2

h₁ min.

111

h₁ max.

147

w₁

50

l₁

50

Static load max. kN

40

Weight g

1225

£ 101.03 per unit (click for quantity discounts)

Serrated Heel Block - Malleable casting. 3 - 155 - 223 - 60

14200.W0022

Size

3

h₁ min.

155

h₁ max.

223

w₁

60

l₁

60

Static load max. kN

60

Weight g

2607

£ 179.85 per unit (click for quantity discounts)

Serrated Heel Block - Malleable casting. 4 - 220 - 340 - 80

14200.W0034

Size

4

h₁ min.

220

h₁ max.

340

w₁

80

l₁

80

Static load max. kN

90

Weight g

6028

£ 326.81 per unit (click for quantity discounts)



Select all

Size

h₁ min.

h₁ max.

w₁

l₁

Static load max. kN

Weight g

Price & Availability	Article	Size	h1 min.	h1 max.	w1	l1	Static load max. kN	Weight g
	14200.W0015	2	111	147	50	50	40	1225
£ 101.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-2 £ 101.03 0% 3-4 £ 95.98 5% 5-9 £ 90.93 10% 10+ £ 85.88 15% Size 2 h1 min. 111 h1 max. 147 w1 50 l1 50 Static load max. kN 40 Weight g 1225 more info »
	14200.W0022	3	155	223	60	60	60	2607
£ 179.85 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-2 £ 179.85 0% 3-4 £ 170.86 5% 5-9 £ 161.87 10% 10+ £ 152.87 15% Size 3 h1 min. 155 h1 max. 223 w1 60 l1 60 Static load max. kN 60 Weight g 2607 more info »
	14200.W0034	4	220	340	80	80	90	6028
£ 326.81 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-2 £ 326.81 0% 3-4 £ 310.47 5% 5-9 £ 294.13 10% 10+ £ 277.79 15% Size 4 h1 min. 220 h1 max. 340 w1 80 l1 80 Static load max. kN 90 Weight g 6028 more info »
