Combination Toggle Clamp
position and clamp

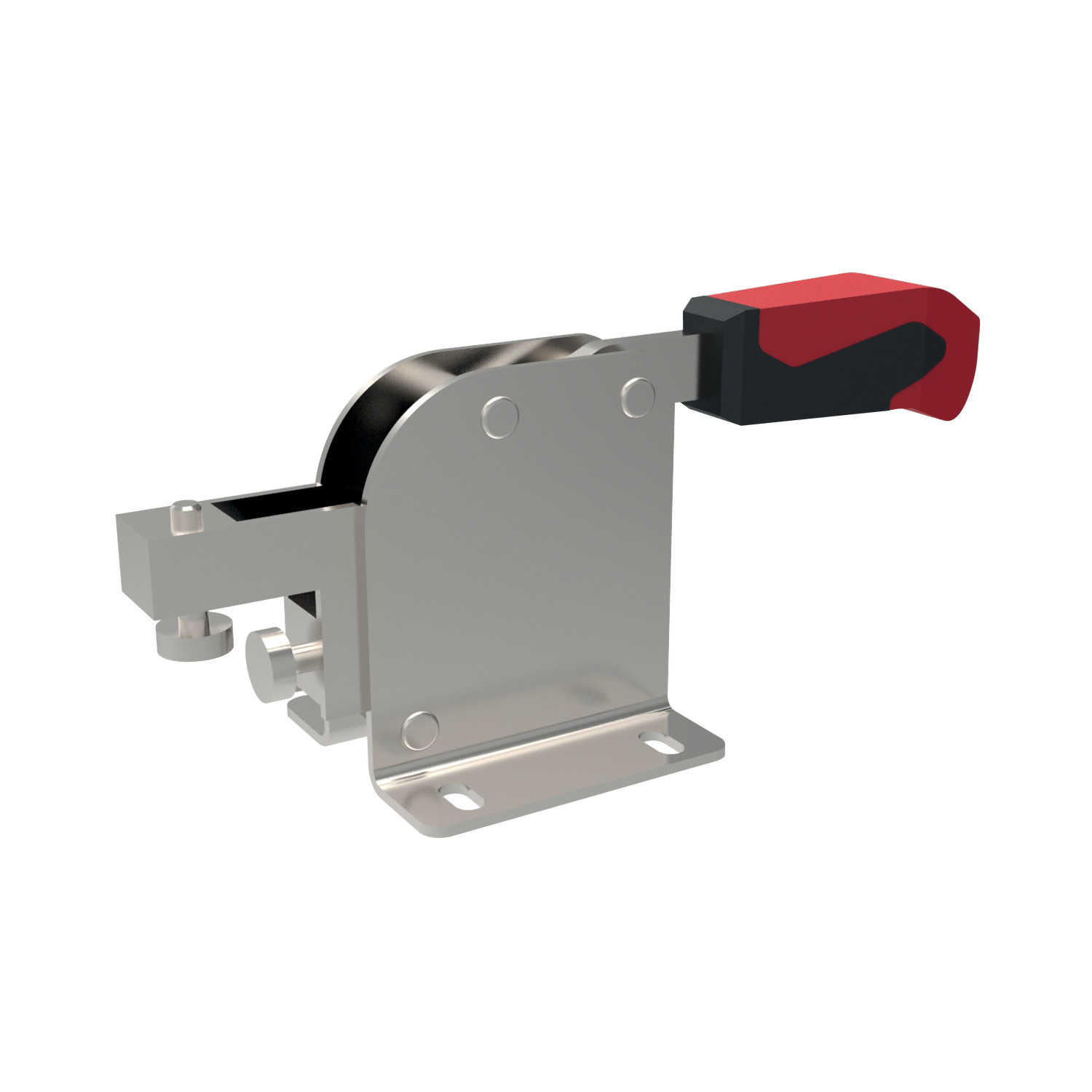

42500 Combination Toggle Clamp
position and clamp, material: Steel, zinc plated
Alternative products you may wish to consider

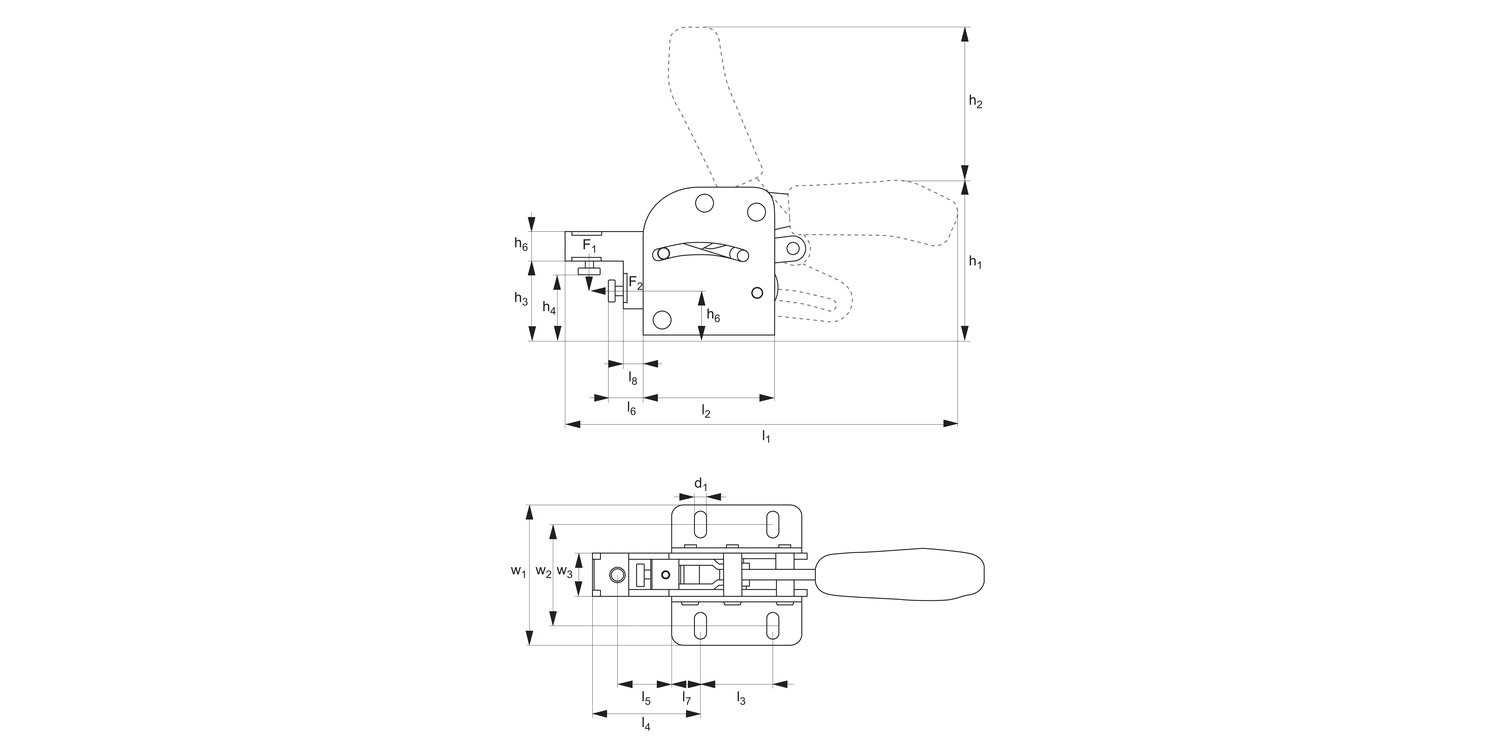

Size
F1
kN
F2
kN
d1
h1
h2
h3
h4
min.
h4
max.
h5
h6
l1
| Price & Availability | Article | Size | F1 kN | F2 kN | d1 | h1 | h2 | h3 | h4 min. | h4 max. | h5 | h6 | l1 | ||||||||||||||||||
| 42500.W0001 | 1 | 1.0 | 1.0 | 5.5 | 74 | 62 | 36.0 | 25 | 32 | 22 | 12 | 150 | |||||||||||||||||||
£ 153.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 1 F1
kN 1.0 F2
kN 1.0 d1 5.5 h1 74 h2 62 h3 36.0 h4
min. 25 h4
max. 32 h5 22 h6 12 l1 150 | |||||||||||||||||||||||||||||||
| 42500.W0002 | 2 | 2.0 | 2.0 | 6.5 | 94 | 87 | 46.0 | 30 | 40 | 28 | 16 | 219 | |||||||||||||||||||
£ 165.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 2 F1
kN 2.0 F2
kN 2.0 d1 6.5 h1 94 h2 87 h3 46.0 h4
min. 30 h4
max. 40 h5 28 h6 16 l1 219 | |||||||||||||||||||||||||||||||
| 42500.W0003 | 3 | 3.0 | 3.0 | 8.5 | 110 | 106 | 55.5 | 40 | 50 | 34 | 20 | 270 | |||||||||||||||||||
£ 201.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Size 3 F1
kN 3.0 F2
kN 3.0 d1 8.5 h1 110 h2 106 h3 55.5 h4
min. 40 h4
max. 50 h5 34 h6 20 l1 270 | |||||||||||||||||||||||||||||||
Weight
g
l2
l3
l4
l5
l6
min.
l6
max.
l7
l8
w1
w2
w3
| Price & Availability | Article | Weight g | l2 | l3 | l4 | l5 | l6 min. | l6 max. | l7 | l8 | w1 | w2 | w3 | ||||||||||||||||||
| 42500.W0001 | 340 | 55 | 40 | 33 | 15 | 5 | 10 | 7.5 | 0.5 | 53 | 34,5-39,5 | 17.0 | |||||||||||||||||||
£ 153.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 340 l2 55 l3 40 l4 33 l5 15 l6
min. 5 l6
max. 10 l7 7.5 l8 0.5 w1 53 w2 34,5-39,5 w3 17.0 | |||||||||||||||||||||||||||||||
| 42500.W0002 | 700 | 75 | 50 | 56 | 32 | 14 | 24 | 12.5 | 9.0 | 75 | 48,5-61,5 | 19.5 | |||||||||||||||||||
£ 165.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 700 l2 75 l3 50 l4 56 l5 32 l6
min. 14 l6
max. 24 l7 12.5 l8 9.0 w1 75 w2 48,5-61,5 w3 19.5 | |||||||||||||||||||||||||||||||
| 42500.W0003 | 1620 | 90 | 50 | 74 | 37 | 20 | 30 | 20.0 | 14.0 | 96 | 60,0-80,0 | 29.0 | |||||||||||||||||||
£ 201.87 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 1620 l2 90 l3 50 l4 74 l5 37 l6
min. 20 l6
max. 30 l7 20.0 l8 14.0 w1 96 w2 60,0-80,0 w3 29.0 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings (grease suitable for food industry use).
Ergonomic, soft feel and oil-resistant handle with large grip area.
Technical Notes
Especially useful in welding applications. The positioning rod and toggle clamp achieve precise positioning and clamping of components in one operation.
Temperature range -10°C to +80°C.
Product Datasheets
CAD files
Application images
