12036.1 Versagrip Clamps

Name: 12036.W0175
Brand: WC
SKU: 12036.W0175
Price: 38.22 GBP
Availability: InStock

material: Hardened steel

Article properties

Order No.

12036.W0175

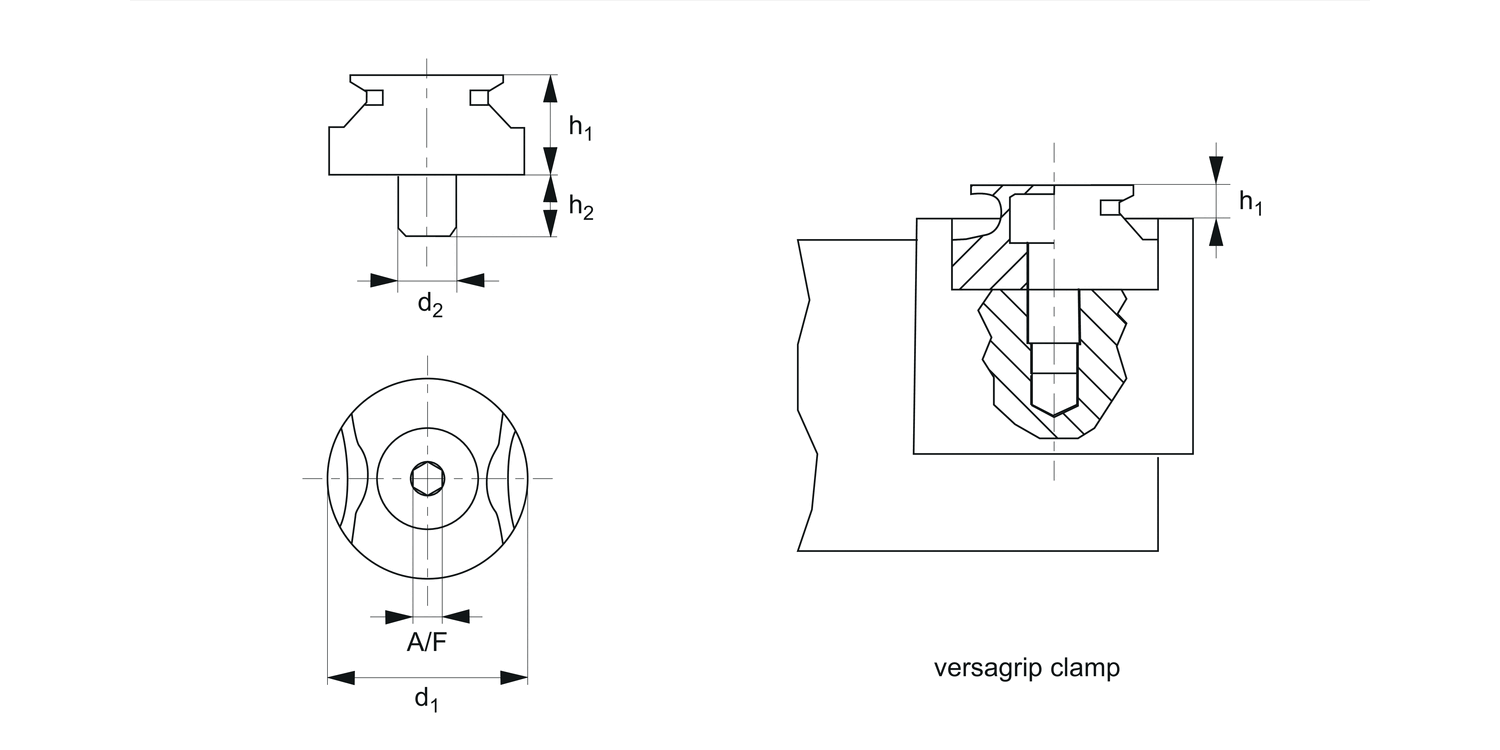

h₁

9.5

h₂

5.9

d₁

19.1

d₂

Grip height h₁

1,5 to 3,0

A/F

Qty/pack

Weight g

See full product selection

£ 38.22 per unit (click for quantity discounts)

Ready to despatch 13
Need more? Manufactured within 21 working days from order.
Typical UK delivery charge: £13.95.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 38.22	0%
5-9	£ 36.31	5%
10-19	£ 34.40	10%
20-49	£ 32.49	15%
50+	£ 28.67	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, hardnened (HRc 52-54).

Technical Notes

The hardened grip has penetrating teeth designed to bite into the workpiece preventing lateral and its horizontal movement.
These grips will even hold flame cut parts and parts with negative drafts.

Tips

A further option includes an adaptor to suit 100mm and 150mm vices - see part no. 12037.

Product Datasheets

12036.1 Versagrip Clamps24 June 2025, 15:51 / 282.89 kB

Talongrips24 June 2025, 15:30 / 432.43 kB

Low Profile Side Clamping24 June 2025, 15:31 / 7.84 MB

Manual Clamping & Height Setting24 June 2025, 15:32 / 31.08 MB

Work Holding24 June 2025, 15:33 / 61.81 MB

CAD files

12036.1 Acis5 December 2023, 17:53 / 152.40 kB

12036.1 IGES5 December 2023, 17:53 / 191.76 kB

12036.1 Parasolid5 December 2023, 17:53 / 97.51 kB

12036.1 ProE5 December 2023, 17:53 / 514.50 kB

12036.1 SolidWorks5 December 2023, 17:53 / 367.20 kB

12036.1 Step5 December 2023, 17:53 / 163.91 kB
