12200 Clamping Jaws - Low Height

Name: 12200.W0014
Brand: WC
SKU: 12200.W0014
Price: 193.28 EUR
Availability: OutOfStock

downhold action, material: Heat treated steel

Article properties

Order No.

12200.W0014

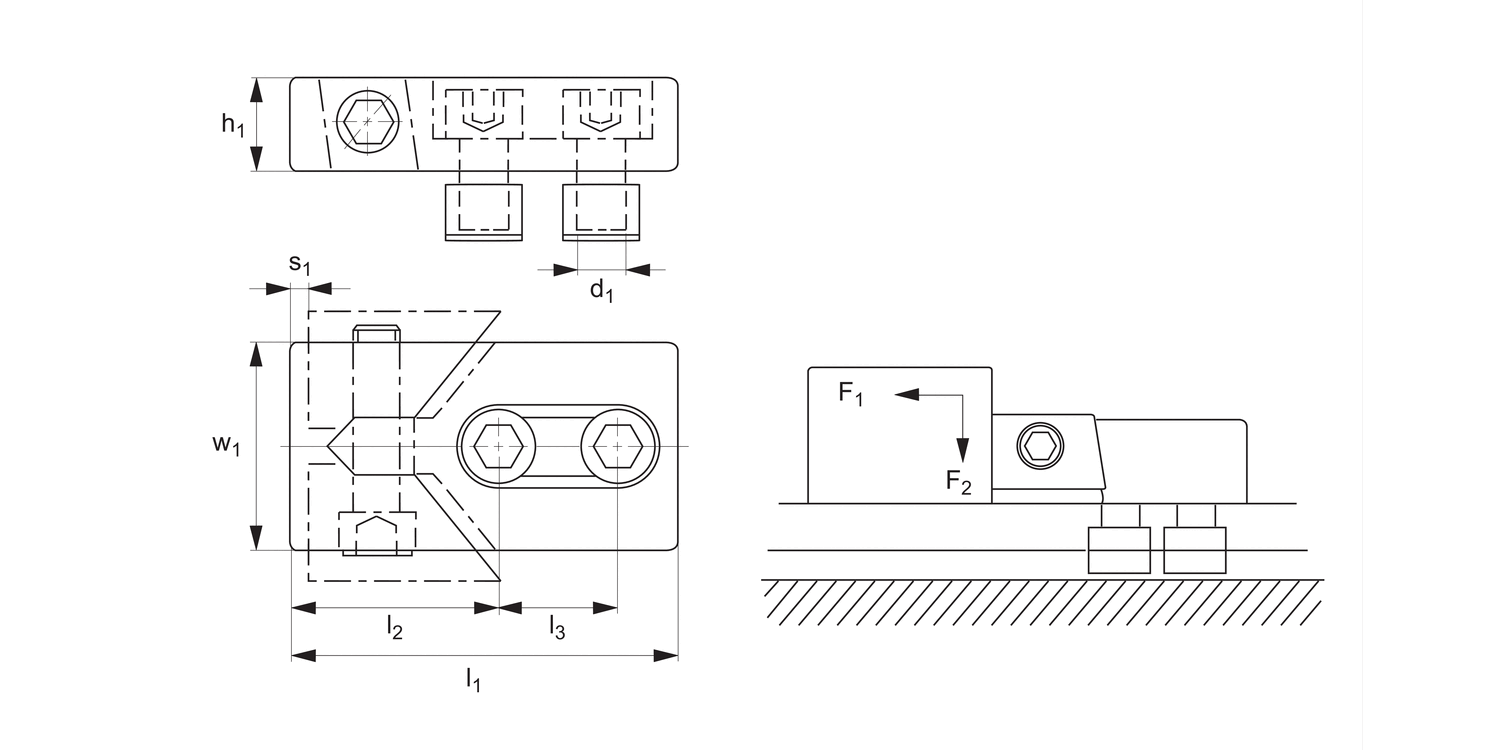

T-slot size

w₁

d₁

M12

h₁

l₁

l₂

l₃

Stroke s₁

F₁ kN

F₂ kN

0.9

See full product selection

£ 193.28 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-2	£ 193.28	0%
3-4	£ 173.95	10%
5+	£ 164.29	15%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, heat treated, blackened.

Technical Notes

Ideal for clamping low-profile plates. Acutated on one side via hex. key (provided).

Tips

Clamping action is forwards and downwards into the workpiece.
Sold in pairs.

Product Datasheets

12200 Clamping Jaws - Low HeightJune 24, 2025, 3:51 PM / 285.06 kB

Pull-Down ClampsJune 24, 2025, 3:30 PM / 615.51 kB

Heavy-Duty Side ClampingJune 24, 2025, 3:31 PM / 3.89 MB

Manual Clamping & Height SettingJune 24, 2025, 3:32 PM / 31.08 MB

Work HoldingJune 24, 2025, 3:33 PM / 61.81 MB

CAD files

12200 IGESApril 17, 2024, 9:04 AM / 1.24 MB

12200 ParasolidApril 17, 2024, 9:04 AM / 338.08 kB

12200 ProEApril 17, 2024, 9:04 AM / 787.92 kB

12200 StepApril 17, 2024, 9:04 AM / 658.76 kB
