Pull-Down Clamps
solid clamping jaws - flat design

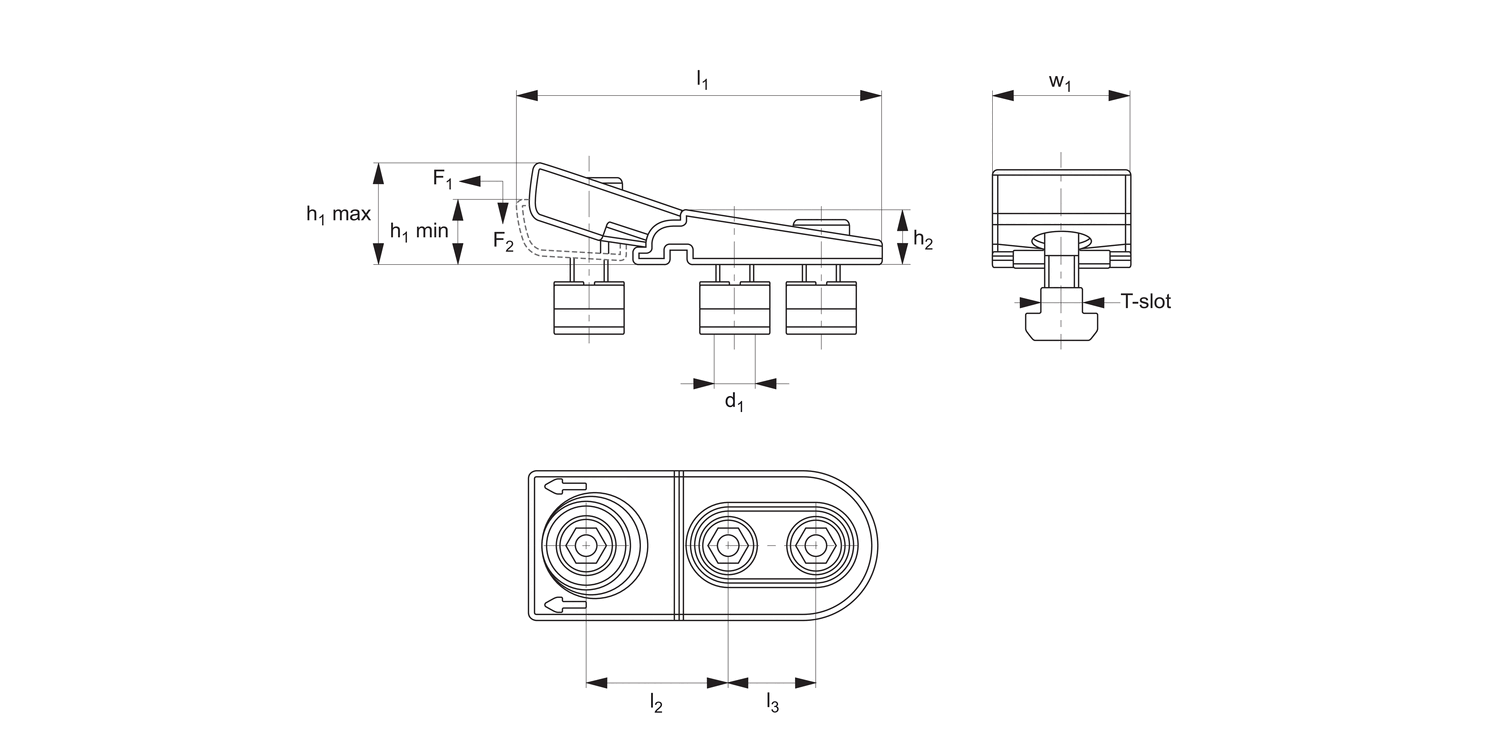

12205 Low Profile Flat Clamps
for T-slots, material: Steel
Order No.
12205.W0014
T-slot size
14
w1
15
d1
M12
h1
min.
16
h1
max.
25
h2
16
l1
110
l2
45-48
l3
26
F1
kN
15
F2
kN
7.5
Weight
g
579
£ 160.72 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 160.72 | 0% |
| 5-14 | £ 144.65 | 10% |
| 15-24 | £ 136.61 | 15% |
| 25+ | £ 128.58 | 20% |
Technical & Application
Material
Steel, tempered and burnished.
Technical Notes
Low height clampings of thin workpieces. Suitable for horizontal and vertical applications.
Tips
For clamping of low profile workpieces.
