Pull-Down Clamps
solid clamping jaws - flat design

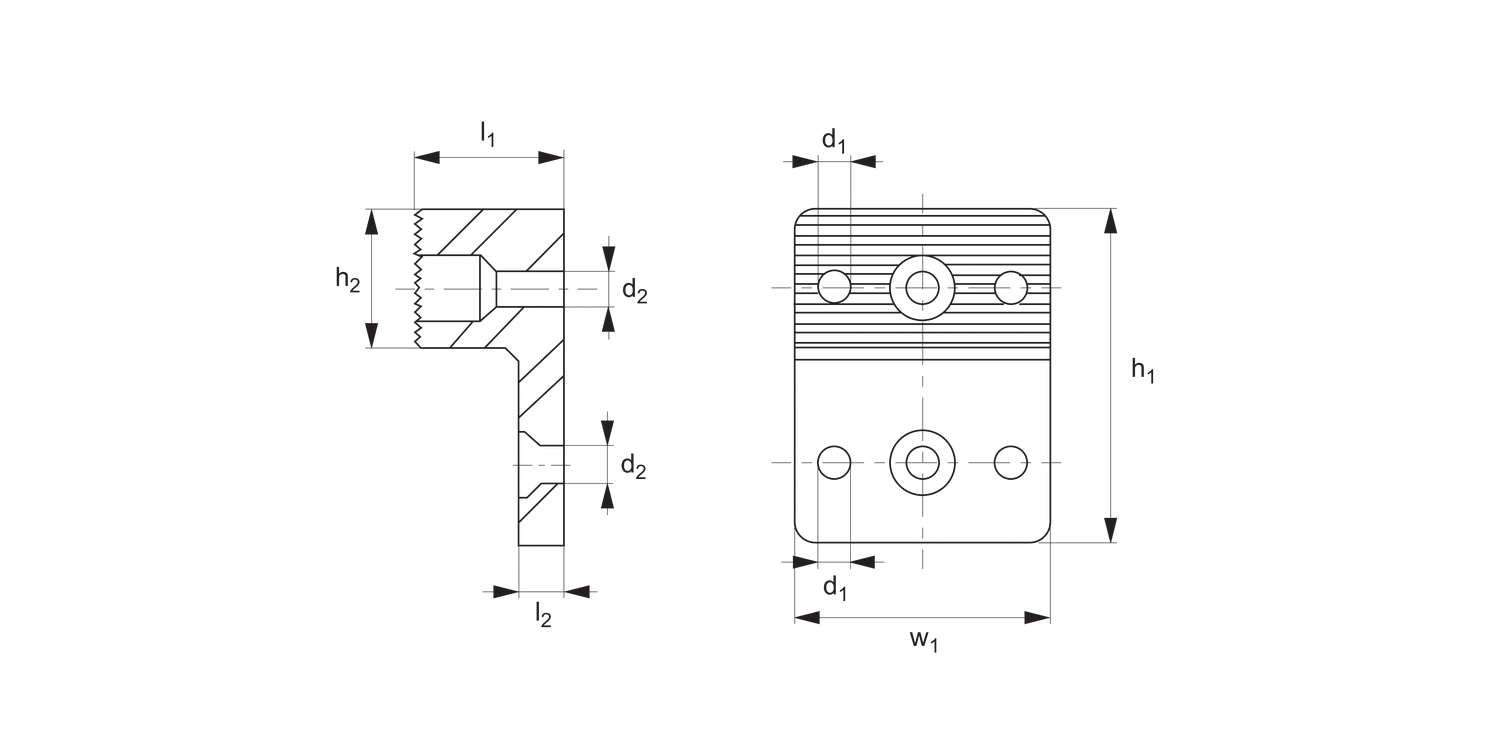

12330 Clamping Jaw
for clamps 12320, material: Steel
Order No.
12330.W0038
For clamp w1
90
d1
8.1
d2
9
h1
120
h2
50
l1
38
l2
12
Weight
g
1829
£ 279.38 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 279.38 | 0% |
| 10-19 | £ 251.44 | 10% |
| 20-49 | £ 237.47 | 15% |
| 50-99 | £ 223.50 | 20% |
| 100+ | £ 195.57 | 30% |
Technical & Application
Material
Steel, case hardened, with M8 bolts.
Tips
Clamping jaw with serrated surface for machining of rough parts. Can be mounted on the clamping jaw or the stop.
