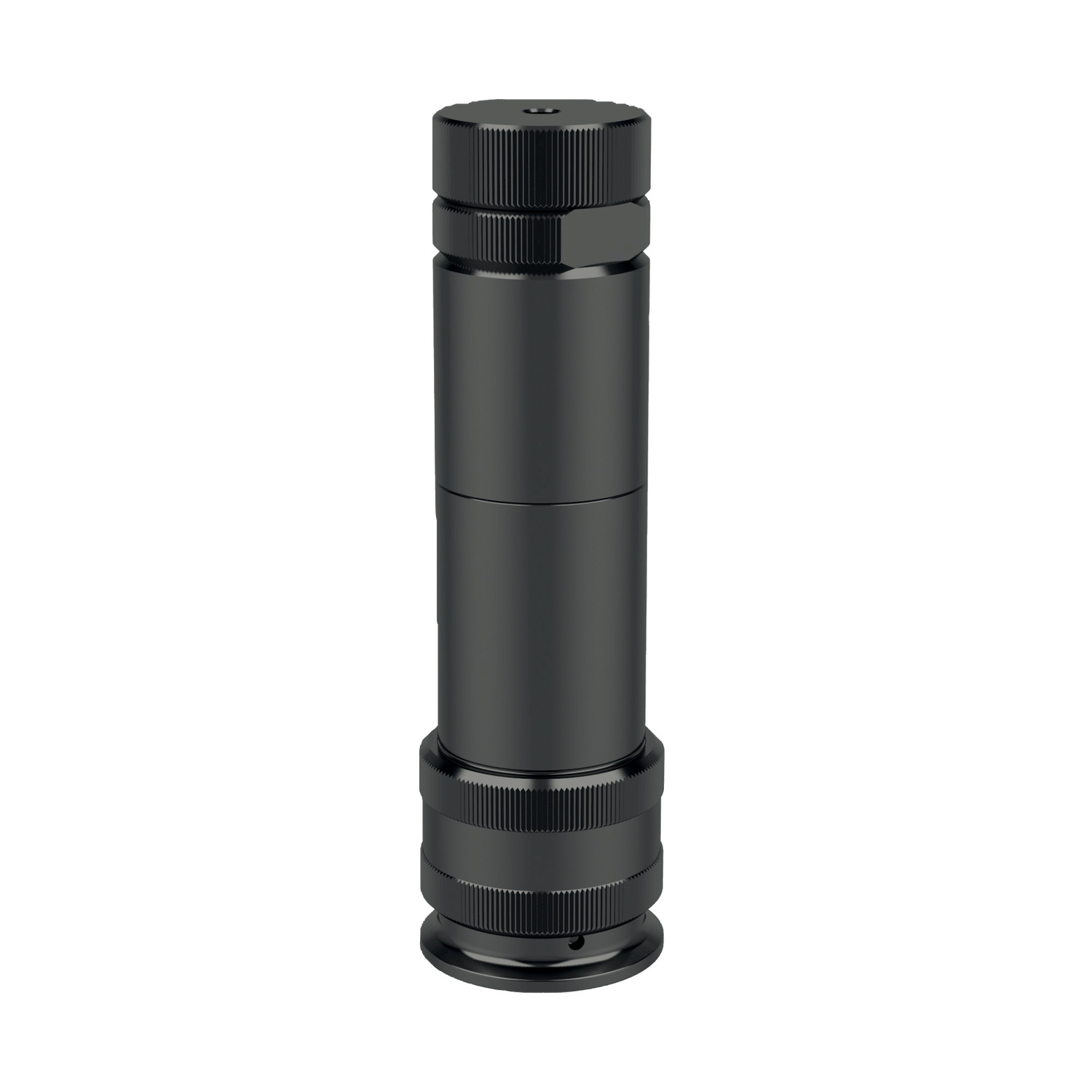

Modular Screw Jack
15370.1 Modular Screw Jack
material: Steel
Order No.
15370.W0040

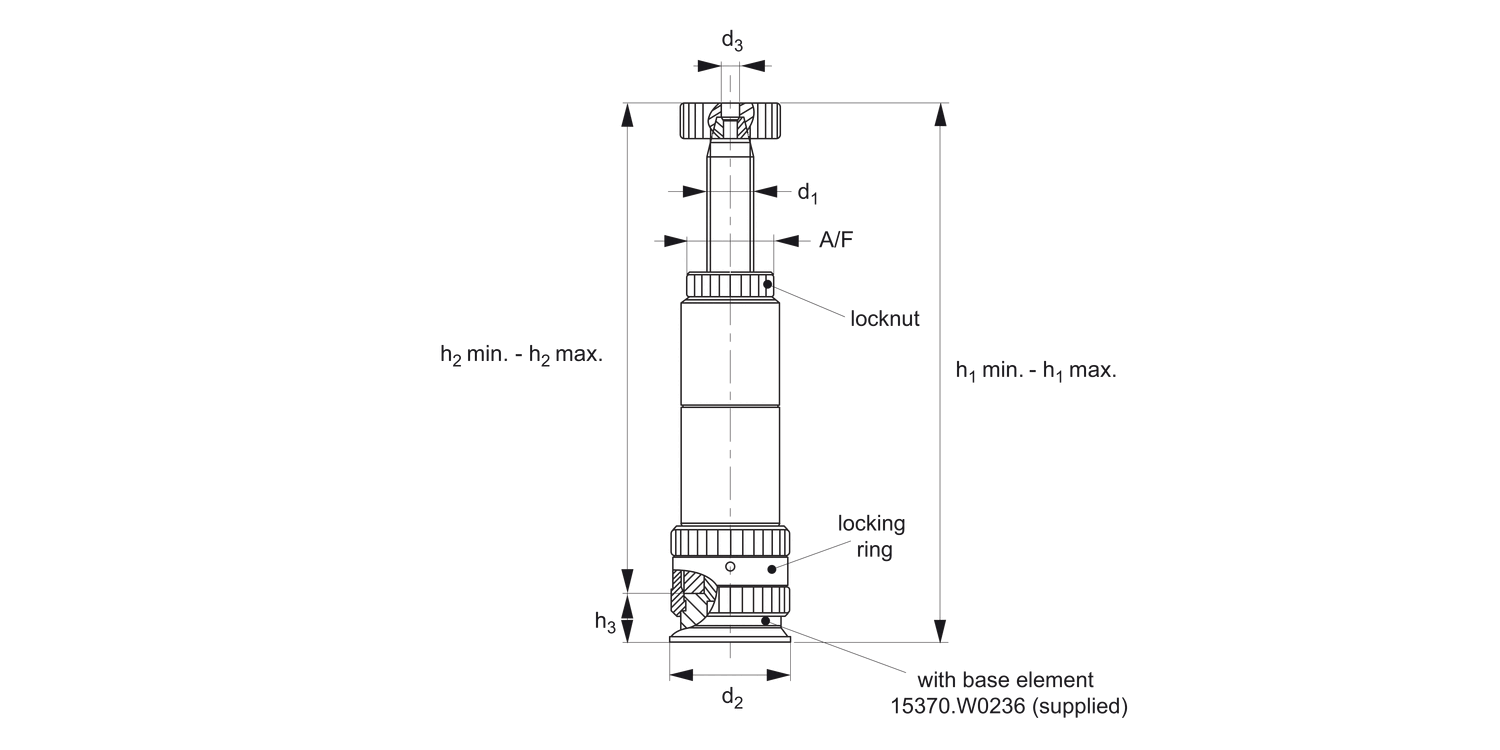

h1
min.
306
h1
max.
406
h2
min.
270
h2
max.
370
h3
36
d1
40x7
d2
90
d3
12
A/F
65
F
max.
kN
60
Weight
g
9436
£ 1,222.57 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 1,222.57 | 0% |
| 10-19 | £ 1,100.31 | 10% |
| 20-49 | £ 1,039.18 | 15% |
| 50-99 | £ 978.06 | 20% |
| 100+ | £ 855.80 | 30% |
Technical & Application
Material
Steel, tempered, burnished.
Technical Notes
Can be used on T-slots and grid plates by means of adapters which are screwed in the base element. The individual elements are joined together and connected by means of a threaded ring. The insertion tool makes it possible to use the locknut and base element as well as a thread adapter.
Tips
Can be used with other elements to achieve heights of up to 1.6 metres, with a max. load of 60 kN. Observe possible buckling loads.
Do not adjust screw jacks under load.
