Modular Screw Jack

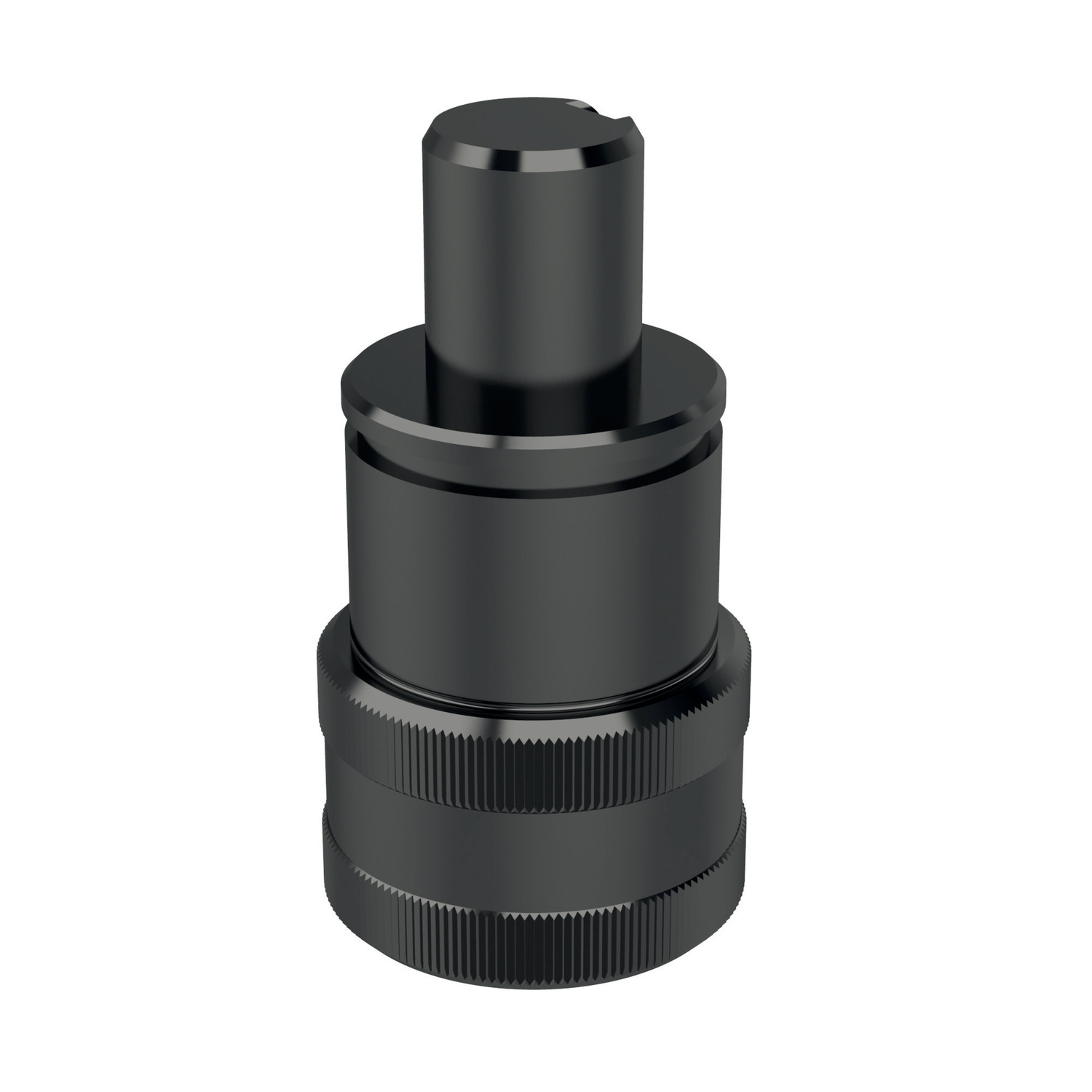

15370.2 Modular Screw Jack Spacers
material: Steel
Order No.
15370.W0126

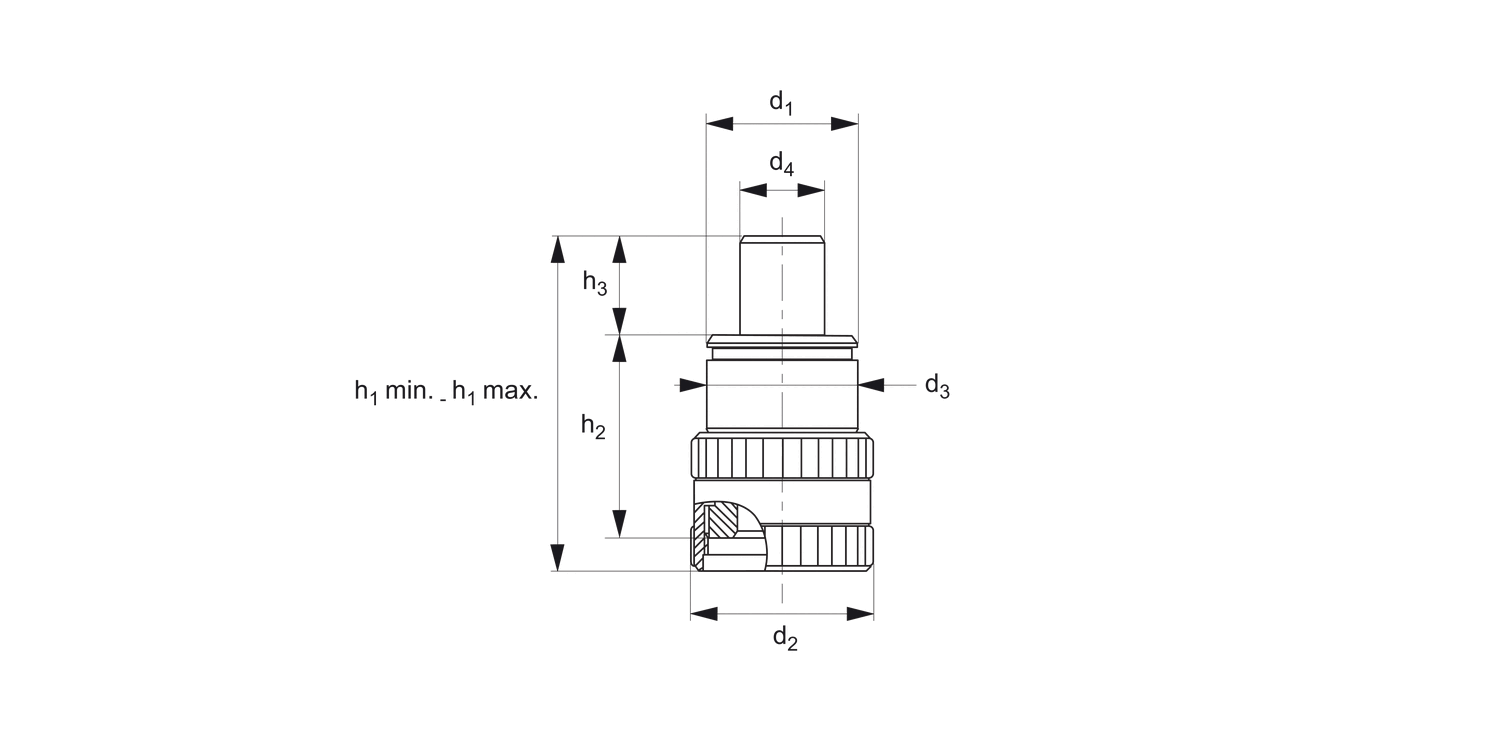

h1
min.
250
h1
max.
266.5
h2
200
h3
50
d1
M76x3
d2
89
d3
75
d4
42.5
Weight
g
6228
£ 768.39 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 768.39 | 0% |
| 10-19 | £ 691.55 | 10% |
| 20-49 | £ 653.13 | 15% |
| 50-99 | £ 614.71 | 20% |
| 100+ | £ 537.87 | 30% |
Technical & Application
Material
Steel, tempered, burnished.
Technical Notes
These spacer elements are used with modular screw jacks 15370. Using the item can allow stopless height range of up to 1620mm.
Tips
Can be used with other elements to achieve heights of up to 1.6 metres, with a max. load of 60 kN. Observe possible buckling loads.
Do not adjust screw jacks under load.
